Core enumerations and TaskValue type-safe variant for the Atomic Task System. More...

#include <string>
#include <stdexcept>
#include <cstdint>
#include "../vector.h"
#include "../ECS_Entity.h"

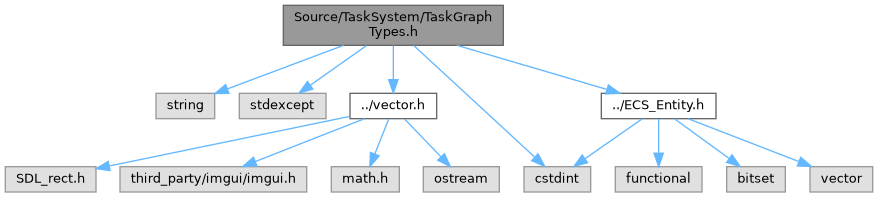

Include dependency graph for TaskGraphTypes.h:

This graph shows which files directly or indirectly include this file:

Classes
class	Olympe::TaskValue
	C++14-compliant type-safe value container for task parameters. More...

union	Olympe::TaskValue::PodData

struct	Olympe::DataPinDefinition
	Describes a data pin declared on a Visual Script node. More...

struct	Olympe::SubGraphParameterDef
	Describes an input or output parameter declared on a SubGraph file. More...

struct	Olympe::Condition
	Describes a single condition expression for Branch/While nodes. More...

struct	Olympe::SwitchCaseDefinition
	Describes a single case branch on a Switch node. More...

Namespaces
namespace	Olympe
	< Provides AssetID and INVALID_ASSET_ID

Enumerations
enum class	Olympe::TaskNodeType : uint8_t { Olympe::AtomicTask = 0 , Olympe::Sequence = 1 , Olympe::Selector = 2 , Olympe::Parallel = 3 , Olympe::Decorator = 4 , Olympe::Root = 5 , Olympe::EntryPoint = 6 , Olympe::Branch = 7 , Olympe::Switch = 8 , Olympe::VSSequence = 9 , Olympe::While = 10 , Olympe::ForEach = 11 , Olympe::DoOnce = 12 , Olympe::Delay = 13 , Olympe::GetBBValue = 14 , Olympe::SetBBValue = 15 , Olympe::MathOp = 16 , Olympe::SubGraph = 17 }
	Identifies the role of a node in the task graph. More...

enum class	Olympe::VariableType : uint8_t { Olympe::None , Olympe::Bool , Olympe::Int , Olympe::Float , Olympe::Vector , Olympe::EntityID , Olympe::String , Olympe::List = 7 , Olympe::GlobalRef = 8 }
	Type tags used by TaskValue to identify stored data. More...

enum class	Olympe::ParameterBindingType : uint8_t { Olympe::Literal = 0 , Olympe::LocalVariable = 1 , Olympe::AtomicTaskID = 2 , Olympe::ConditionID = 3 , Olympe::MathOperator = 4 , Olympe::ComparisonOp = 5 , Olympe::SubGraphPath = 6 }
	Describes how a parameter value is provided to a task node. More...

enum class	Olympe::DataPinDir : uint8_t { Olympe::Input , Olympe::Output }
	Direction of a data pin on a Visual Script node. More...

enum class	Olympe::ExecPinRole : uint8_t { Olympe::In , Olympe::Out , Olympe::OutElse , Olympe::OutLoop , Olympe::OutCompleted , Olympe::OutCase }
	Role of an exec pin on a Visual Script node. More...

Functions
static std::string	Olympe::VariableTypeToString (VariableType t)
	Converts a VariableType to its canonical string representation.

static TaskValue	Olympe::GetDefaultValueForType (VariableType type)
	Returns a correctly-typed default TaskValue for the given VariableType.

Variables
constexpr int32_t	Olympe::NODE_INDEX_NONE = -1
	Sentinel value for "no node" in node index / ID fields.

Detailed Description

Core enumerations and TaskValue type-safe variant for the Atomic Task System.

Defines the foundational types for the Atomic Task System (v3.0):

C++14 compliant - no std::variant, std::optional, or C++17/20 features.

Definition in file TaskGraphTypes.h.
