TaskGraphLoader.h File Reference

Clean schema v4 parser for ATS Visual Script task graphs. More...

#include <string>
#include <vector>
#include "TaskGraphTemplate.h"
#include "../json_helper.h"

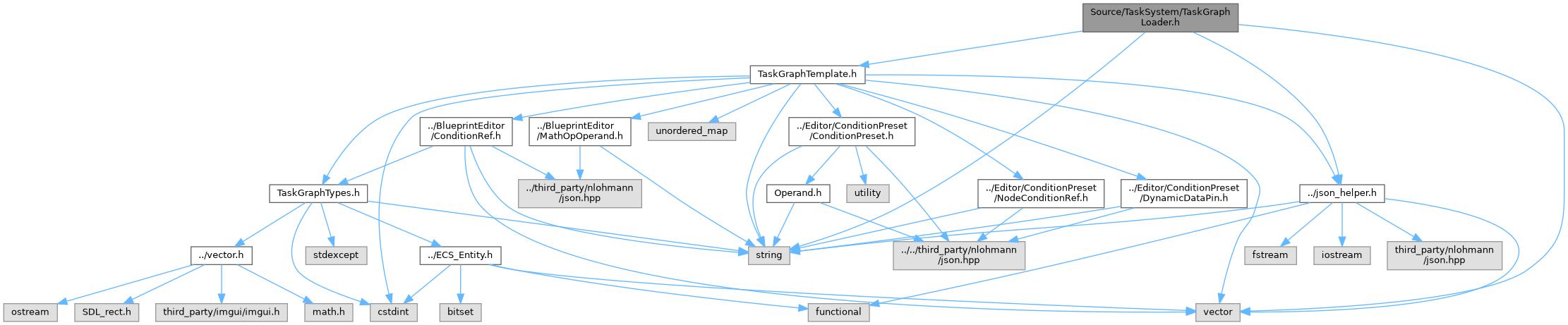

Include dependency graph for TaskGraphLoader.h:

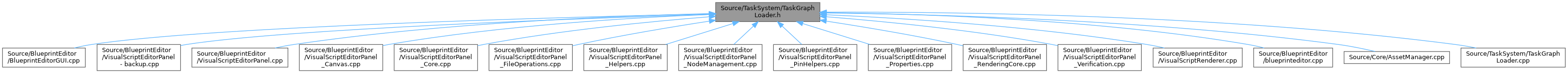

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Olympe::TaskGraphLoader
	Static utility that loads TaskGraphTemplate from schema v4 JSON. More...

Namespaces
namespace	Olympe
	< Provides AssetID and INVALID_ASSET_ID

Detailed Description

Clean schema v4 parser for ATS Visual Script task graphs.

Author

Olympe Engine

Date

2026-03-08

TaskGraphLoader v4 is a ground-up rewrite of the legacy loader. It natively parses schema v4 ATS VisualScript JSON (flat structure). For schema v3, it delegates to TaskGraphMigrator_v3_to_v4 before parsing. For schema v2 and below, it retains minimal backward-compatible parsing so that existing BehaviorTree assets continue to load.

Schema v4 (flat, ATS VisualScript):

{
  "schema_version": 4,
  "id": "uuid-string",
  "name": "string",
  "graphType": "VisualScript",
  "blackboard": [ { "key": "k", "type": "Int|Float|Bool|String|Vector", "value": ... } ],
  "nodes": [
    { "id": 0, "type": "EntryPoint|AtomicTask|...", "label": "...",
      "position": { "x": 0, "y": 0 },
      "params": { "key": "value" },
      "taskType": "Task_Wait",
      "delaySeconds": 0.0,
      "bbKey": "scope:key",
      "subGraphPath": "path",
      "conditionKey": "scope:key",
      "conditionOp": "==/!=/</>/<=/>=" ,
      "conditionValue": any,
      "mathOp": "+|-|*|/",
      "mathInputA": "scope:key",
      "mathInputB": "scope:key",
      "mathOutput": "scope:key",
      "switchKey": "scope:key" }
  ],
  "execConnections": [ { "fromNode": 0, "fromPin": "Completed", "toNode": 1 } ],
  "dataConnections": [ { "fromNode": 0, "fromPin": "value", "toNode": 1, "toPin": "input" } ]
}

C++14 compliant - no std::filesystem, no C++17/20 features.

Definition in file TaskGraphLoader.h.
