VisualScriptNodeRenderer.cpp File Reference

Implementation of VS node rendering helpers (Phase 5). More...

#include "VisualScriptNodeRenderer.h"
#include "../system/system_consts.h"
#include "AtomicTaskUIRegistry.h"
#include "ConditionRef.h"
#include "../third_party/imgui/imgui.h"
#include "../third_party/imnodes/imnodes.h"
#include <string>
#include <vector>
#include <unordered_set>

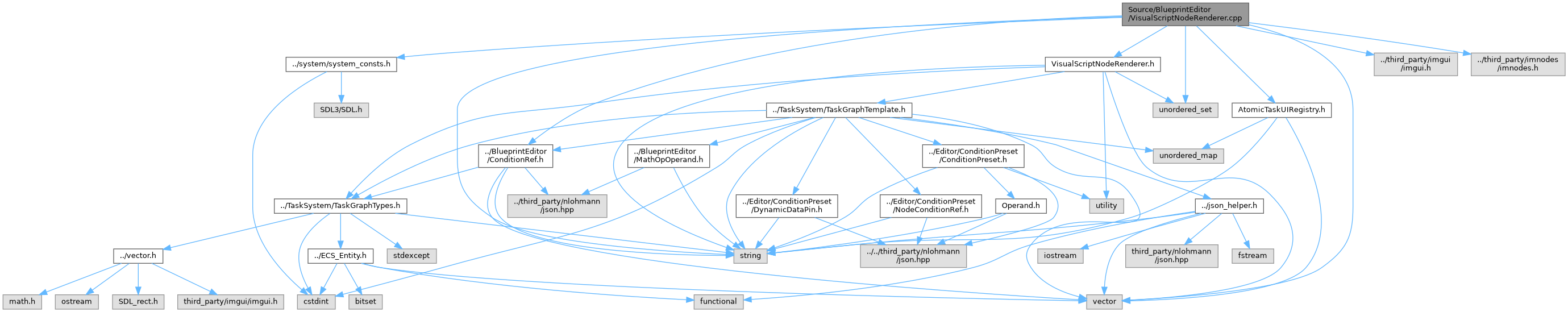

Include dependency graph for VisualScriptNodeRenderer.cpp:

Go to the source code of this file.

Namespaces
namespace	Olympe
	< Provides AssetID and INVALID_ASSET_ID

Functions
VSNodeStyle	Olympe::GetNodeStyle (TaskNodeType type)
	Returns the VSNodeStyle appropriate for a given node type.
unsigned int	Olympe::GetNodeTitleColor (VSNodeStyle style)
	Returns the title-bar RGBA colour for a given style.
unsigned int	Olympe::GetNodeTitleHoveredColor (VSNodeStyle style)
	Returns the title-bar hovered RGBA colour.
unsigned int	Olympe::GetExecPinColor ()
unsigned int	Olympe::GetDataPinColor (VariableType type)
	Returns the RGBA colour for a data pin by variable type.
const char *	Olympe::GetNodeTypeLabel (TaskNodeType type)
	Returns a human-readable label for a TaskNodeType.
const char *	Olympe::GetVariableTypeLabel (VariableType type)
	Returns a human-readable label for a VariableType.
static std::string	Olympe::GetOperandDisplayString (const OperandRef &operand)
	Builds a display string for a ConditionRef operand.
static std::string	Olympe::BuildConditionExpressionString (const ConditionRef &condition)
	Builds the complete condition expression string.
static float	Olympe::CalculateSwitchCaseLabelWidth (const std::string &baseName, const SwitchCaseDefinition &caseData)
	Calculates the width of a Switch case output pin label.
static float	Olympe::CalculateNodeMinimumWidth (const TaskNodeDefinition &def, const std::vector< std::string > &execInputPins, const std::vector< std::string > &execOutputPins, const std::vector< std::pair< std::string, VariableType > > &dataInputPins, const std::vector< std::pair< std::string, VariableType > > &dataOutputPins)
	Calculates the minimum width required for a node to display all content.

Detailed Description

Implementation of VS node rendering helpers (Phase 5).

Author

Olympe Engine

Date

2026-03-09

C++14 compliant.

Definition in file VisualScriptNodeRenderer.cpp.
