Converts a BT v2 JSON object to a TaskGraphTemplate (VS v4). More...

#include <BTtoVSMigrator.h>

Static Public Member Functions
static TaskGraphTemplate	Convert (const nlohmann::json &btV2Json, std::vector< std::string > &outErrors)
	Converts a BT v2 JSON document to a TaskGraphTemplate.

static bool	IsBTv2 (const nlohmann::json &j)
	Returns true if `j` looks like a BT v2 document.

static bool	IsDecoratorName (const std::string &nodeName)
	Returns true if `nodeName` indicates a BT Decorator node.

Static Private Member Functions
static TaskNodeDefinition	ConvertNode (const nlohmann::json &btNode, std::vector< std::string > &outErrors)
	Converts one BT node JSON object to a TaskNodeDefinition.

static std::vector< ExecPinConnection >	ConvertConnections (const nlohmann::json &nodesArray, std::vector< std::string > &outErrors)
	Builds exec connections from the BT "children" tree structure.

static void	ConvertBlackboard (const nlohmann::json &btV2Json, TaskGraphTemplate &vsGraph, std::vector< std::string > &outErrors)
	Copies blackboard entries from the BT JSON to the VS template.

static TaskNodeType	MapNodeType (const std::string &btType)
	Maps a BT node type string to the closest TaskNodeType equivalent.

Detailed Description

Converts a BT v2 JSON object to a TaskGraphTemplate (VS v4).

All methods are static; the class is a pure utility with no instance state.

Definition at line 51 of file BTtoVSMigrator.h.

Member Function Documentation

◆ Convert()

TaskGraphTemplate Olympe::BTtoVSMigrator::Convert	(	const nlohmann::json &	btV2Json,
		std::vector< std::string > &	outErrors
	)

static

Converts a BT v2 JSON document to a TaskGraphTemplate.

Parameters

btV2Json	Parsed JSON from a BT v2 asset file.
outErrors	Receives human-readable error messages on failure.

Returns: Populated TaskGraphTemplate (may be partial on error).

Definition at line 283 of file BTtoVSMigrator.cpp.

References Olympe::TaskGraphTemplate::BuildLookupCache(), ConvertBlackboard(), ConvertConnections(), ConvertNode(), Olympe::EntryPoint, Olympe::TaskGraphTemplate::EntryPointID, Olympe::TaskGraphTemplate::ExecConnections, GetComponentTypeID_Static(), Olympe::TaskGraphTemplate::GraphType, Olympe::TaskGraphTemplate::Name, Olympe::NODE_INDEX_NONE, Olympe::TaskNodeDefinition::NodeID, Olympe::TaskGraphTemplate::Nodes, Olympe::TaskGraphTemplate::RootNodeID, and Olympe::TaskNodeDefinition::Type.

Referenced by Olympe::VisualScriptRenderer::Load(), and Olympe::TaskGraphLoader::LoadFromJson().

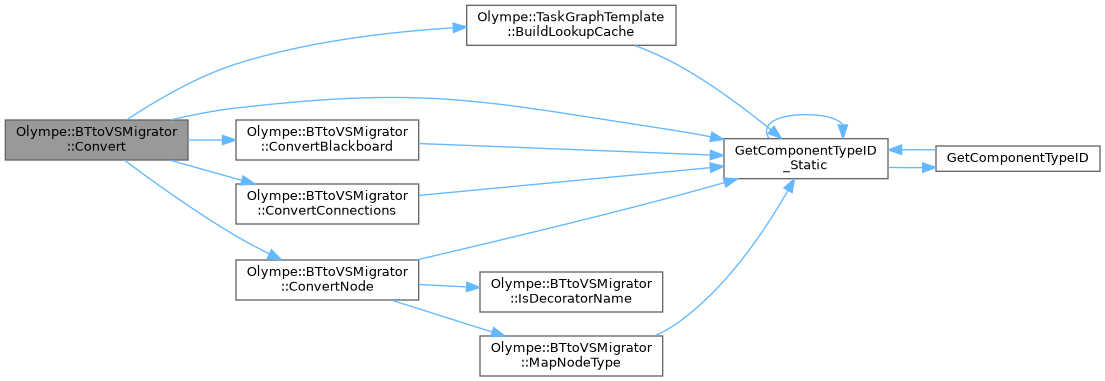

Here is the call graph for this function:

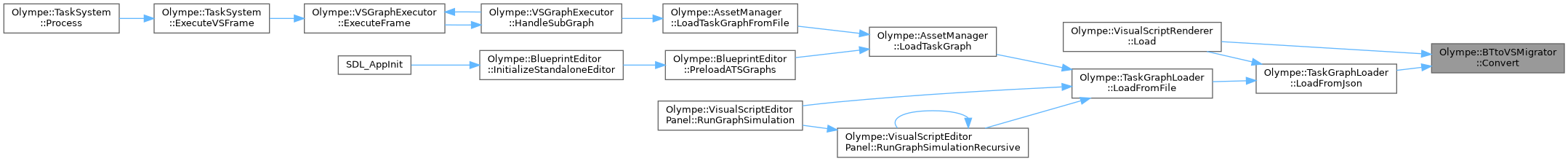

Here is the caller graph for this function:

◆ ConvertBlackboard()

void Olympe::BTtoVSMigrator::ConvertBlackboard	(	const nlohmann::json &	btV2Json,
		TaskGraphTemplate &	vsGraph,
		std::vector< std::string > &	outErrors
	)

staticprivate

Copies blackboard entries from the BT JSON to the VS template.

Definition at line 231 of file BTtoVSMigrator.cpp.

References Olympe::Bool, Olympe::Float, GetComponentTypeID_Static(), Olympe::Int, Olympe::BlackboardEntry::Key, Olympe::None, and Olympe::String.

Referenced by Convert().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConvertConnections()

std::vector< ExecPinConnection > Olympe::BTtoVSMigrator::ConvertConnections	(	const nlohmann::json &	nodesArray,
		std::vector< std::string > &	outErrors
	)

staticprivate

Builds exec connections from the BT "children" tree structure.

Walks the node array and for each node that has a "children" array, emits an ExecPinConnection { nodeID, "Out", childID, "In" }.

Definition at line 187 of file BTtoVSMigrator.cpp.

References GetComponentTypeID_Static(), Olympe::NODE_INDEX_NONE, and Olympe::ExecPinConnection::SourceNodeID.

Referenced by Convert().

Here is the call graph for this function:

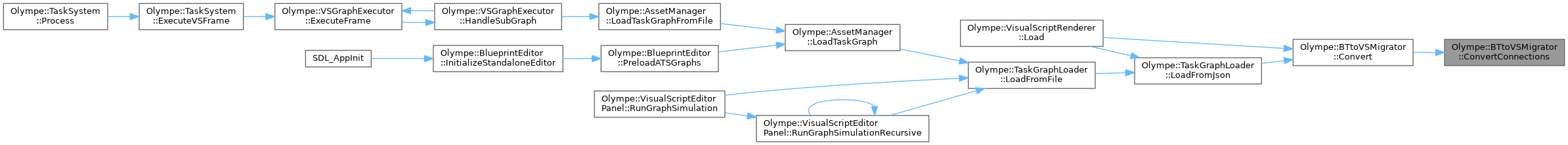

Here is the caller graph for this function:

◆ ConvertNode()

TaskNodeDefinition Olympe::BTtoVSMigrator::ConvertNode	(	const nlohmann::json &	btNode,
		std::vector< std::string > &	outErrors
	)

staticprivate

Converts one BT node JSON object to a TaskNodeDefinition.

Definition at line 74 of file BTtoVSMigrator.cpp.

References Olympe::AtomicTask, Olympe::TaskNodeDefinition::AtomicTaskID, Olympe::TaskNodeDefinition::ChildrenIDs, Olympe::Decorator, GetComponentTypeID_Static(), IsDecoratorName(), Olympe::Literal, MapNodeType(), Olympe::NODE_INDEX_NONE, Olympe::TaskNodeDefinition::NodeID, Olympe::TaskNodeDefinition::NodeName, Olympe::TaskNodeDefinition::Parameters, Olympe::ParameterBinding::Type, and Olympe::TaskNodeDefinition::Type.

Referenced by Convert().

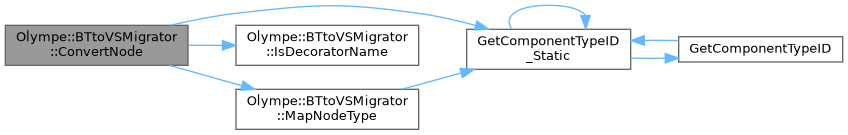

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsBTv2()

bool Olympe::BTtoVSMigrator::IsBTv2 ( const nlohmann::json & j )

static

Returns true if j looks like a BT v2 document.

Heuristic: document must contain "blueprintType" == "BehaviorTree" and either no schema_version or schema_version <= 2.

Definition at line 21 of file BTtoVSMigrator.cpp.

References GetComponentTypeID_Static().

Referenced by Olympe::TaskGraphLoader::LoadFromJson().

Here is the call graph for this function:

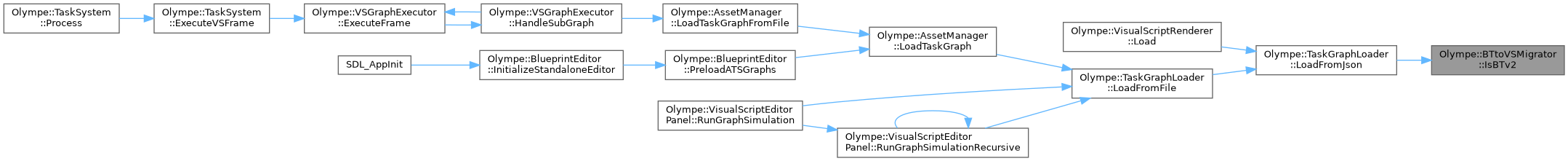

Here is the caller graph for this function:

◆ IsDecoratorName()

bool Olympe::BTtoVSMigrator::IsDecoratorName ( const std::string & nodeName )

static

Returns true if nodeName indicates a BT Decorator node.

Some BT v2 files encode Decorator nodes as type "Action" with a descriptive name (e.g. "Repeater", "Inverter", "Cooldown", "Timeout"). This helper centralises that heuristic so both the migrator and the loader can use it consistently.

Definition at line 43 of file BTtoVSMigrator.cpp.

Referenced by ConvertNode(), and Olympe::TaskGraphLoader::ParseNodeV4().

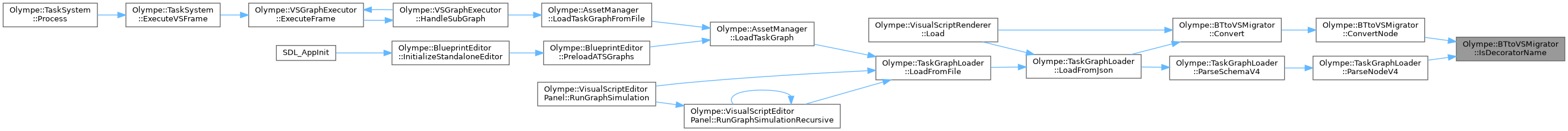

Here is the caller graph for this function:
