Abstract interface for canvas editors with unified pan/zoom/grid management. More...

#include <ICanvasEditor.h>

Inheritance diagram for Olympe::ICanvasEditor:

Public Member Functions
virtual	~ICanvasEditor ()=default

virtual void	BeginRender ()=0
	Begin rendering cycle for this canvas.

virtual void	EndRender ()=0
	End rendering cycle for this canvas.

virtual ImVec2	ScreenToCanvas (const ImVec2 &screenPos) const =0
	Transform screen space coordinates to canvas space.

virtual ImVec2	CanvasToScreen (const ImVec2 &canvasPos) const =0
	Transform canvas space coordinates to screen space.

virtual ImVec2	EditorToGrid (const ImVec2 &editorPos) const =0
	Transform editor space to grid space.

virtual ImVec2	GridToEditor (const ImVec2 &gridPos) const =0
	Transform grid space to editor space.

virtual ImVec2	GetPan () const =0
	Get current pan offset.

virtual void	SetPan (const ImVec2 &offset)=0
	Set pan offset directly.

virtual void	PanBy (const ImVec2 &delta)=0
	Pan by delta amount.

virtual void	ResetPan ()=0
	Reset pan to origin (0, 0)

virtual float	GetZoom () const =0
	Get current zoom level.

virtual void	SetZoom (float scale, const ImVec2 *zoomCenter=nullptr)=0
	Set zoom level directly.

virtual void	ZoomBy (float factor, const ImVec2 *zoomCenter=nullptr)=0
	Zoom by multiplier.

virtual ImVec2	GetZoomLimits () const =0
	Get zoom limits (min, max)

virtual void	ResetZoom ()=0
	Reset zoom to 1.0x.

virtual void	ResetView ()=0
	Reset both pan and zoom to defaults.

virtual CanvasGridRenderer::GridConfig	GetGridConfig () const =0
	Get current grid configuration.

virtual void	RenderGrid (CanvasGridRenderer::GridStylePreset preset)=0
	Render grid using current configuration.

virtual void	SetGridVisible (bool enabled)=0
	Enable/disable grid rendering.

virtual bool	IsGridVisible () const =0
	Check if grid is visible.

virtual ImVec2	GetCanvasScreenPos () const =0
	Get canvas position on screen.

virtual ImVec2	GetCanvasSize () const =0
	Get canvas size in screen space.

virtual void	SetCanvasScreenPos (const ImVec2 &screenPos)=0
	Set canvas screen position (call each frame to update)

virtual void	SetCanvasSize (const ImVec2 &size)=0
	Set canvas size (call each frame to update)

virtual void	GetCanvasVisibleBounds (ImVec2 &outMin, ImVec2 &outMax) const =0
	Get canvas visible area as AABB in canvas space.

virtual bool	IsPointInCanvas (const ImVec2 &screenPos) const =0
	Check if point in screen space is within canvas bounds.

virtual bool	IsCanvasHovered () const =0
	Check if canvas is being hovered by mouse.

virtual const char *	GetCanvasName () const =0
	Get the name/identifier of this canvas.

virtual void	RenderMinimap ()=0
	Render minimap overlay.

virtual void	SetMinimapVisible (bool enabled)=0
	Enable/disable minimap rendering.

virtual bool	IsMinimapVisible () const =0
	Check if minimap is visible.

virtual void	SetMinimapSize (float scale)=0
	Set minimap size scale.

virtual float	GetMinimapSize () const =0
	Get minimap size scale.

virtual void	SetMinimapPosition (int position)=0
	Set minimap position.

virtual int	GetMinimapPosition () const =0
	Get minimap position.

virtual void	UpdateMinimapNodes (const std::vector< std::tuple< int, float, float, float, float > > &nodes, float graphMinX, float graphMaxX, float graphMinY, float graphMaxY)=0
	Update minimap with current graph node data.

virtual void	UpdateMinimapViewport (float viewMinX, float viewMaxX, float viewMinY, float viewMaxY, float graphMinX, float graphMaxX, float graphMinY, float graphMaxY)=0
	Update minimap with current viewport bounds.

Detailed Description

Abstract interface for canvas editors with unified pan/zoom/grid management.

Implementations:

ImNodesCanvasEditor: Wraps ImNodes::BeginNodeEditor/EndNodeEditor
CustomCanvasEditor: Manual pan/zoom implementation with zoom support

Key contract:

BeginRender() must be called once per frame at start of canvas rendering
EndRender() must be called once per frame at end of canvas rendering
All coordinate transformations maintain consistency across pan/zoom states
Pan/zoom state is persistent across frames (for smooth interaction)

Definition at line 47 of file ICanvasEditor.h.

Constructor & Destructor Documentation

◆ ~ICanvasEditor()

virtual Olympe::ICanvasEditor::~ICanvasEditor ( )

virtualdefault

Member Function Documentation

◆ BeginRender()

virtual void Olympe::ICanvasEditor::BeginRender ( )

pure virtual

Begin rendering cycle for this canvas.

Must be called at the start of each frame's canvas rendering

Initializes draw state
Updates pan/zoom from input
Prepares coordinate systems

Implementations:

ImNodesCanvasEditor: Calls ImNodes::BeginNodeEditor()
CustomCanvasEditor: Updates m_canvasOffset and m_canvasZoom from input

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ CanvasToScreen()

virtual ImVec2 Olympe::ICanvasEditor::CanvasToScreen ( const ImVec2 & canvasPos ) const

pure virtual

Transform canvas space coordinates to screen space.

Parameters

canvasPos Coordinates in canvas space (logical coordinates)

Returns: Coordinates in screen space (pixels on screen)

Inverse of ScreenToCanvas: screen = canvasPos * zoom + pan + canvasOrigin

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::CanvasToScreen().

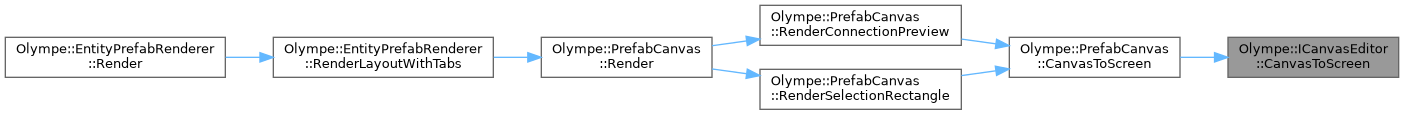

Here is the caller graph for this function:

◆ EditorToGrid()

virtual ImVec2 Olympe::ICanvasEditor::EditorToGrid ( const ImVec2 & editorPos ) const

pure virtual

Transform editor space to grid space.

Parameters

editorPos Coordinates in editor space

Returns: Coordinates in grid space (pan-independent)

Grid space removes the pan offset, allowing positions to be stored pan-independently. Useful for serialization.

For imnodes: grid space = SetNodeGridSpacePos (pan-independent storage) For custom: grid space = editorPos - pan offset

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ EndRender()

virtual void Olympe::ICanvasEditor::EndRender ( )

pure virtual

End rendering cycle for this canvas.

Must be called at the end of each frame's canvas rendering

Finalizes draw state
Captures post-render input events (hover detection, selection, etc.)

Implementations:

ImNodesCanvasEditor: Calls ImNodes::EndNodeEditor()
CustomCanvasEditor: Performs hover/selection detection, context menu logic

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ GetCanvasName()

virtual const char * Olympe::ICanvasEditor::GetCanvasName ( ) const

pure virtual

Get the name/identifier of this canvas.

Returns: String identifier for debugging and logging

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ GetCanvasScreenPos()

virtual ImVec2 Olympe::ICanvasEditor::GetCanvasScreenPos ( ) const

pure virtual

Get canvas position on screen.

Returns: Top-left corner of canvas in screen space (pixels)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ GetCanvasSize()

virtual ImVec2 Olympe::ICanvasEditor::GetCanvasSize ( ) const

pure virtual

Get canvas size in screen space.

Returns: Width and height of canvas rendering area (pixels)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ GetCanvasVisibleBounds()

virtual void Olympe::ICanvasEditor::GetCanvasVisibleBounds	(	ImVec2 &	outMin,
		ImVec2 &	outMax
	)		const

pure virtual

Get canvas visible area as AABB in canvas space.

Returns: {minCorner, maxCorner} in canvas logical coordinates

Useful for culling: which nodes are visible on screen?

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ GetGridConfig()

virtual CanvasGridRenderer::GridConfig Olympe::ICanvasEditor::GetGridConfig ( ) const

pure virtual

Get current grid configuration.

Returns: GridConfig struct with all grid parameters

Note: Reflects current zoom state in scaledSpacing

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ GetMinimapPosition()

virtual int Olympe::ICanvasEditor::GetMinimapPosition ( ) const

pure virtual

Get minimap position.

Returns: Current position enum value

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ GetMinimapSize()

virtual float Olympe::ICanvasEditor::GetMinimapSize ( ) const

pure virtual

Get minimap size scale.

Returns: Current size multiplier

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ GetPan()

virtual ImVec2 Olympe::ICanvasEditor::GetPan ( ) const

pure virtual

Get current pan offset.

Returns: Offset vector representing where canvas origin is panned to

Note: For imnodes: reads EditorContextGetPanning(); For custom: returns m_canvasOffset

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::AcceptComponentDropAtScreenPos(), Olympe::PrefabCanvas::GetCanvasOffset(), Olympe::PrefabCanvas::HandlePanStart(), Olympe::PrefabCanvas::RenderConnections(), Olympe::PrefabCanvas::RenderDebugInfo(), Olympe::PrefabCanvas::RenderGrid(), and Olympe::PrefabCanvas::RenderNodes().

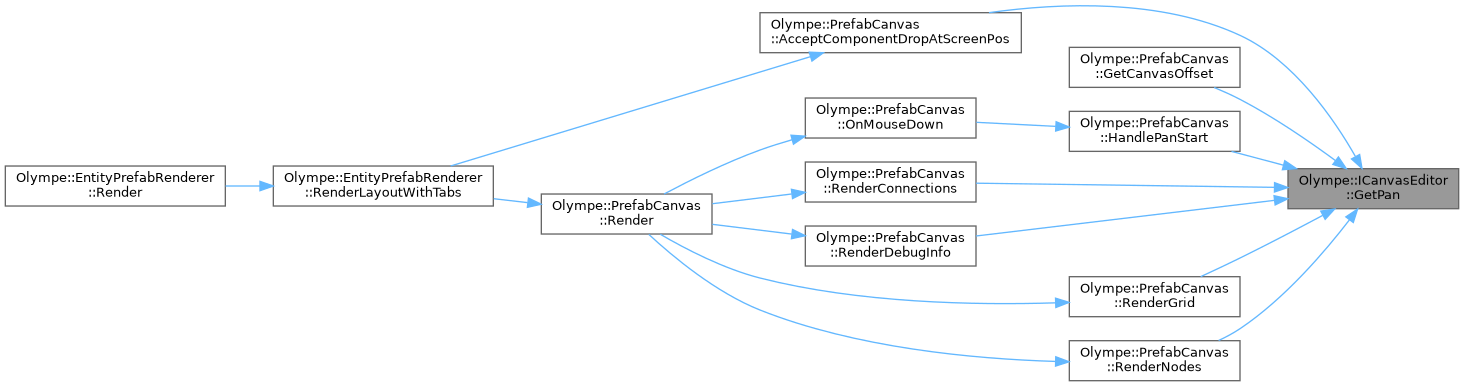

Here is the caller graph for this function:

◆ GetZoom()

virtual float Olympe::ICanvasEditor::GetZoom ( ) const

pure virtual

Get current zoom level.

Returns: Zoom scale (1.0 = 100%, 2.0 = 200%, 0.5 = 50%)

Note: For imnodes: always returns 1.0f (no zoom support); For custom: returns m_canvasZoom (0.1f to 3.0f)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::AcceptComponentDropAtScreenPos(), Olympe::PrefabCanvas::GetCanvasZoom(), Olympe::PrefabCanvas::RenderConnectionPreview(), Olympe::PrefabCanvas::RenderConnections(), Olympe::PrefabCanvas::RenderDebugInfo(), Olympe::PrefabCanvas::RenderGrid(), Olympe::PrefabCanvas::RenderNodes(), Olympe::PrefabCanvas::SetCanvasZoom(), and Olympe::PrefabCanvas::ZoomCanvas().

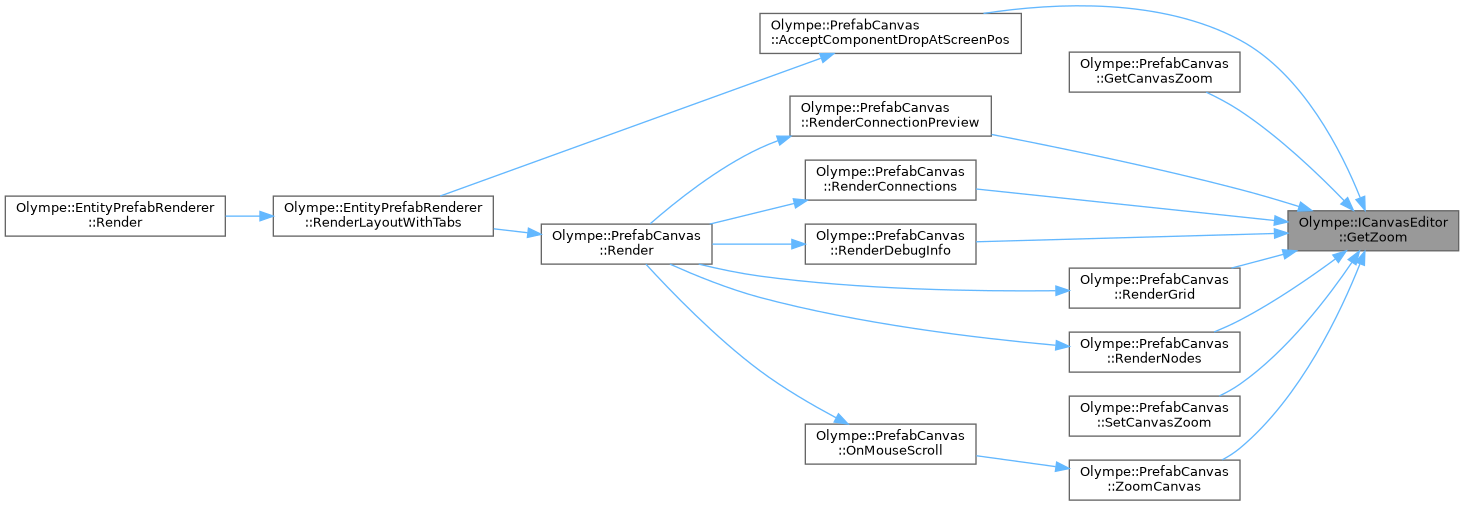

Here is the caller graph for this function:

◆ GetZoomLimits()

virtual ImVec2 Olympe::ICanvasEditor::GetZoomLimits ( ) const

pure virtual

Get zoom limits (min, max)

Returns: {minZoom, maxZoom}

Note: For imnodes: {1.0f, 1.0f} (no zoom support); For custom: {0.1f, 3.0f}

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::SetCanvasZoom().

Here is the caller graph for this function:

◆ GridToEditor()

virtual ImVec2 Olympe::ICanvasEditor::GridToEditor ( const ImVec2 & gridPos ) const

pure virtual

Transform grid space to editor space.

Parameters

gridPos Coordinates in grid space

Returns: Coordinates in editor space

Inverse of EditorToGrid, adds back the pan offset.

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ IsCanvasHovered()

virtual bool Olympe::ICanvasEditor::IsCanvasHovered ( ) const

pure virtual

Check if canvas is being hovered by mouse.

Returns: True if mouse is over canvas and canvas has focus

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ IsGridVisible()

virtual bool Olympe::ICanvasEditor::IsGridVisible ( ) const

pure virtual

Check if grid is visible.

Returns: True if grid will be rendered

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ IsMinimapVisible()

virtual bool Olympe::ICanvasEditor::IsMinimapVisible ( ) const

pure virtual

Check if minimap is visible.

Returns: True if minimap will be rendered

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ IsPointInCanvas()

virtual bool Olympe::ICanvasEditor::IsPointInCanvas ( const ImVec2 & screenPos ) const

pure virtual

Check if point in screen space is within canvas bounds.

Parameters

screenPos Position in screen space

Returns: True if point is inside canvas area

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ PanBy()

virtual void Olympe::ICanvasEditor::PanBy ( const ImVec2 & delta )

pure virtual

Pan by delta amount.

Parameters

delta Relative pan movement

Note: Convenience method: SetPan(GetPan() + delta)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::PanCanvas().

Here is the caller graph for this function:

◆ RenderGrid()

virtual void Olympe::ICanvasEditor::RenderGrid ( CanvasGridRenderer::GridStylePreset preset )

pure virtual

Render grid using current configuration.

Parameters

preset Style preset to use

Delegates to CanvasGridRenderer::RenderGrid()

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ RenderMinimap()

virtual void Olympe::ICanvasEditor::RenderMinimap ( )

pure virtual

Render minimap overlay.

Renders minimap showing current viewport relative to full graph

Implementations:

ImNodesCanvasEditor: Calls ImNodes::MiniMap()
CustomCanvasEditor: No-op (minimap not yet supported for custom canvas)

Note: Must be called BEFORE EndRender() for imnodes

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::Render().

Here is the caller graph for this function:

◆ ResetPan()

virtual void Olympe::ICanvasEditor::ResetPan ( )

pure virtual

Reset pan to origin (0, 0)

Note: Convenience method: SetPan(ImVec2(0, 0))

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ ResetView()

virtual void Olympe::ICanvasEditor::ResetView ( )

pure virtual

Reset both pan and zoom to defaults.

Note: Convenience: ResetPan(); ResetZoom();

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::ResetView().

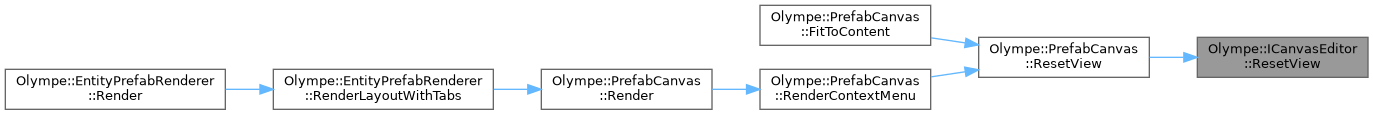

Here is the caller graph for this function:

◆ ResetZoom()

virtual void Olympe::ICanvasEditor::ResetZoom ( )

pure virtual

Reset zoom to 1.0x.

Note: Convenience: SetZoom(1.0f)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ ScreenToCanvas()

virtual ImVec2 Olympe::ICanvasEditor::ScreenToCanvas ( const ImVec2 & screenPos ) const

pure virtual

Transform screen space coordinates to canvas space.

Parameters

screenPos Coordinates in screen space (pixels from top-left of window)

Returns: Coordinates in canvas space (logical coordinates after pan/zoom)

Canvas space = screen space transformed by:

Subtract canvas origin (where canvas starts on screen)
Subtract pan offset (where user panned to)
Divide by zoom level (scale to logical units)

Formula: canvas = (screen - canvasOrigin - pan) / zoom

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::Render(), and Olympe::PrefabCanvas::ScreenToCanvas().

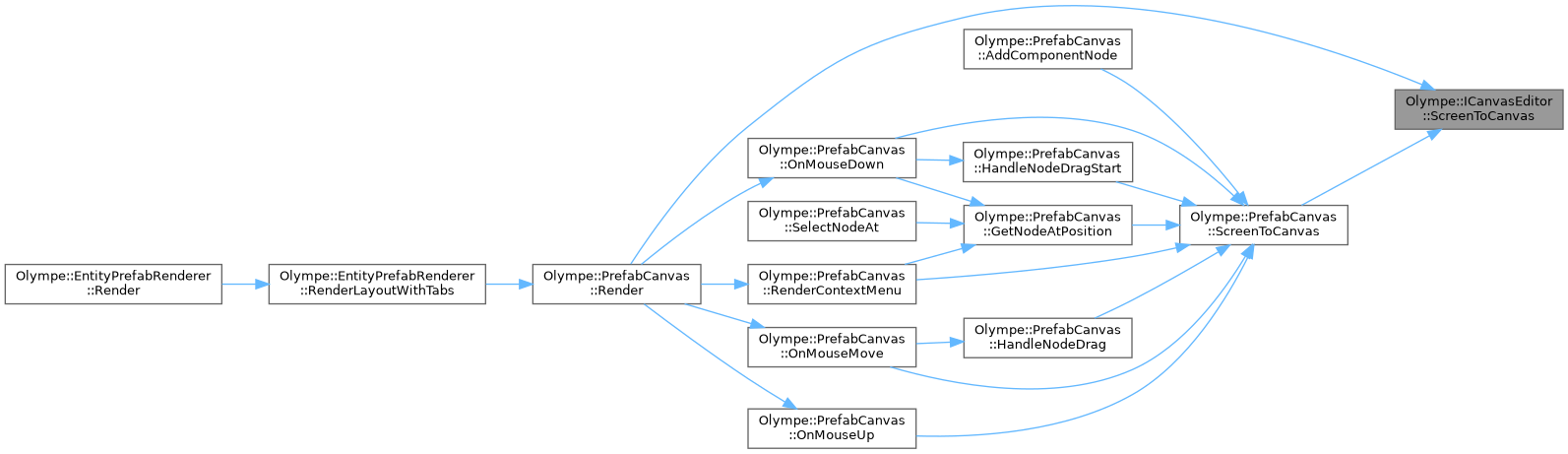

Here is the caller graph for this function:

◆ SetCanvasScreenPos()

virtual void Olympe::ICanvasEditor::SetCanvasScreenPos ( const ImVec2 & screenPos )

pure virtual

Set canvas screen position (call each frame to update)

Parameters

screenPos Top-left corner position in screen space

Required for minimap coordinate calculations each frame

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::Render().

Here is the caller graph for this function:

◆ SetCanvasSize()

virtual void Olympe::ICanvasEditor::SetCanvasSize ( const ImVec2 & size )

pure virtual

Set canvas size (call each frame to update)

Parameters

size	Width and height in screen space

Required for minimap rendering calculations each frame

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::Render().

Here is the caller graph for this function:

◆ SetGridVisible()

virtual void Olympe::ICanvasEditor::SetGridVisible ( bool enabled )

pure virtual

Enable/disable grid rendering.

Parameters

enabled True to show grid, false to hide

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ SetMinimapPosition()

virtual void Olympe::ICanvasEditor::SetMinimapPosition ( int position )

pure virtual

Set minimap position.

Parameters

position Position enum value (TopLeft, TopRight, BottomLeft, BottomRight)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ SetMinimapSize()

virtual void Olympe::ICanvasEditor::SetMinimapSize ( float scale )

pure virtual

Set minimap size scale.

Parameters

scale Size multiplier (0.1f = 10%, 0.3f = 30% of canvas)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ SetMinimapVisible()

virtual void Olympe::ICanvasEditor::SetMinimapVisible ( bool enabled )

pure virtual

Enable/disable minimap rendering.

Parameters

enabled True to show minimap, false to hide

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

◆ SetPan()

virtual void Olympe::ICanvasEditor::SetPan ( const ImVec2 & offset )

pure virtual

Set pan offset directly.

Parameters

offset New pan offset

Used for programmatic pan (keyboard shortcut, reset view, etc.)

Note: For imnodes: calls EditorContextResetPanning(); For custom: updates m_canvasOffset directly

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::HandlePan(), and Olympe::PrefabCanvas::SetCanvasOffset().

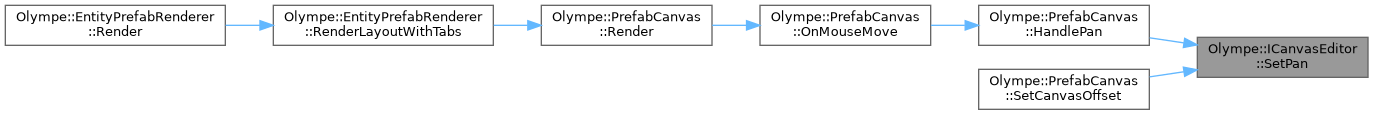

Here is the caller graph for this function:

◆ SetZoom()

virtual void Olympe::ICanvasEditor::SetZoom	(	float	scale,
		const ImVec2 *	zoomCenter = `nullptr`
	)

pure virtual

Set zoom level directly.

Parameters

scale	New zoom scale
zoomCenter	Optional center point for zoom (in screen space)

If zoomCenter provided, zoom maintains visual position of that point

Note: For imnodes: this is a no-op (returns without change); For custom: updates m_canvasZoom with zoom-center adjustment

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::SetCanvasZoom(), and Olympe::PrefabCanvas::ZoomCanvas().

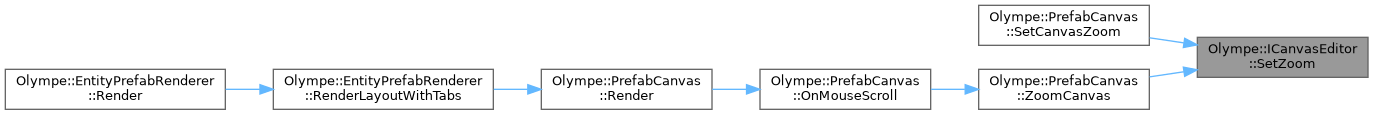

Here is the caller graph for this function:

◆ UpdateMinimapNodes()

virtual void Olympe::ICanvasEditor::UpdateMinimapNodes	(	const std::vector< std::tuple< int, float, float, float, float > > &	nodes,
		float	graphMinX,
		float	graphMaxX,
		float	graphMinY,
		float	graphMaxY
	)

pure virtual

Update minimap with current graph node data.

Parameters

nodes	Vector of (nodeId, posX, posY, width, height) tuples representing graph nodes
graphMinX	Graph bounds left edge
graphMaxX	Graph bounds right edge
graphMinY	Graph bounds top edge
graphMaxY	Graph bounds bottom edge

Required for custom minimap rendering (CustomCanvasEditor) ImNodes minimap ignores this (uses internal ImNodes node positions)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::Render().

Here is the caller graph for this function:

◆ UpdateMinimapViewport()

virtual void Olympe::ICanvasEditor::UpdateMinimapViewport	(	float	viewMinX,
		float	viewMaxX,
		float	viewMinY,
		float	viewMaxY,
		float	graphMinX,
		float	graphMaxX,
		float	graphMinY,
		float	graphMaxY
	)

pure virtual

Update minimap with current viewport bounds.

Parameters

viewMinX	Visible area left edge
viewMaxX	Visible area right edge
viewMinY	Visible area top edge
viewMaxY	Visible area bottom edge
graphMinX	Graph bounds left edge
graphMaxX	Graph bounds right edge
graphMinY	Graph bounds top edge
graphMaxY	Graph bounds bottom edge

Required for custom minimap rendering (CustomCanvasEditor) Normalizes viewport bounds relative to graph bounds for minimap display

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

Referenced by Olympe::PrefabCanvas::Render().

Here is the caller graph for this function:

◆ ZoomBy()

virtual void Olympe::ICanvasEditor::ZoomBy	(	float	factor,
		const ImVec2 *	zoomCenter = `nullptr`
	)

pure virtual

Zoom by multiplier.

Parameters

factor	Zoom multiplier (1.1 = 10% zoom in, 0.9 = 10% zoom out)
zoomCenter	Optional center point for zoom

Note: Convenience: SetZoom(GetZoom() * factor, zoomCenter)

Implemented in Olympe::CustomCanvasEditor, and Olympe::ImNodesCanvasEditor.

The documentation for this class was generated from the following file:

Source/BlueprintEditor/Utilities/ICanvasEditor.h

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ ~ICanvasEditor()

Member Function Documentation

◆ BeginRender()

◆ CanvasToScreen()

◆ EditorToGrid()

◆ EndRender()

◆ GetCanvasName()

◆ GetCanvasScreenPos()

◆ GetCanvasSize()

◆ GetCanvasVisibleBounds()

◆ GetGridConfig()

◆ GetMinimapPosition()

◆ GetMinimapSize()

◆ GetPan()

◆ GetZoom()

◆ GetZoomLimits()

◆ GridToEditor()

◆ IsCanvasHovered()

◆ IsGridVisible()

◆ IsMinimapVisible()

◆ IsPointInCanvas()

◆ PanBy()

◆ RenderGrid()

◆ RenderMinimap()

◆ ResetPan()

◆ ResetView()

◆ ResetZoom()

◆ ScreenToCanvas()

◆ SetCanvasScreenPos()

◆ SetCanvasSize()

◆ SetGridVisible()

◆ SetMinimapPosition()

◆ SetMinimapSize()

◆ SetMinimapVisible()

◆ SetPan()

◆ SetZoom()

◆ UpdateMinimapNodes()

◆ UpdateMinimapViewport()

◆ ZoomBy()
