Olympe::NodeStyleRegistry Class Reference

Singleton providing NodeStyle descriptors per NodeType. More...

#include <NodeStyleRegistry.h>

Collaboration diagram for Olympe::NodeStyleRegistry:

Public Member Functions
const NodeStyle &	GetStyle (NodeType type) const
	Returns the style for the given node type.
const NodeStyle &	GetStyleByTaskID (const std::string &taskId) const
	Returns the style to use for an atomic-task node identified by ID.
const NodeStyle &	GetStyleByVSTypeName (const std::string &vsTypeName) const
	Returns the style for a VS node type identified by string.

Static Public Member Functions
static NodeStyleRegistry &	Get ()
	Returns the singleton instance.
static ImU32	GetExecPinColor ()
	Colour for execution-flow (exec) pins — white.
static ImU32	GetDataPinColor ()
	Colour for data pins — green.

Private Member Functions
	NodeStyleRegistry ()

Private Attributes
NodeStyle	m_defaultStyle
std::unordered_map< int, NodeStyle >	m_styles
	Key is the underlying int value of NodeType.
std::unordered_map< std::string, NodeStyle >	m_vsStyles
	Key is the VS type name string (TaskNodeType as string).

Detailed Description

Singleton providing NodeStyle descriptors per NodeType.

Usage:

const NodeStyle& style = NodeStyleRegistry::Get().GetStyle(node->type);
ImNodes::PushColorStyle(ImNodesCol_TitleBar,         style.headerColor);
ImNodes::PushColorStyle(ImNodesCol_TitleBarHovered,  style.headerHoveredColor);
ImNodes::PushColorStyle(ImNodesCol_TitleBarSelected, style.headerSelectedColor);
ImNodes::BeginNode(id);
// ...
ImNodes::EndNode();
ImNodes::PopColorStyle();
ImNodes::PopColorStyle();
ImNodes::PopColorStyle();

For exec-flow pins use GetExecPinColor(); for data pins GetDataPinColor().

Definition at line 63 of file NodeStyleRegistry.h.

Constructor & Destructor Documentation

NodeStyleRegistry()

Olympe::NodeStyleRegistry::NodeStyleRegistry ( )

private

Definition at line 30 of file NodeStyleRegistry.cpp.

References ColorScheme::Action_Hovered, ColorScheme::Action_Primary, ColorScheme::Action_Selected, Olympe::BT_Action, Olympe::BT_Condition, Olympe::BT_Cooldown, Olympe::BT_Decorator, Olympe::BT_Inverter, Olympe::BT_Monitor, Olympe::BT_OnEvent, Olympe::BT_Parallel, Olympe::BT_ParallelThreshold, Olympe::BT_RandomSelector, Olympe::BT_Repeater, Olympe::BT_Root, Olympe::BT_Selector, Olympe::BT_SendMessage, Olympe::BT_Sequence, Olympe::BT_SubGraph, Olympe::BT_UntilFailure, Olympe::BT_UntilSuccess, Olympe::Comment, ColorScheme::Comment_Hovered, ColorScheme::Comment_Primary, ColorScheme::Comment_Selected, ColorScheme::Composite_Hovered, ColorScheme::Composite_Primary, ColorScheme::Composite_Selected, ColorScheme::EntryPoint_Hovered, ColorScheme::EntryPoint_Primary, ColorScheme::EntryPoint_Selected, ColorScheme::FlowControl_Hovered, ColorScheme::FlowControl_Primary, ColorScheme::FlowControl_Selected, GetComponentTypeID_Static(), Olympe::NodeStyle::headerColor, Olympe::HFSM_State, Olympe::HFSM_Transition, ColorScheme::Inverter_Hovered, ColorScheme::Inverter_Primary, ColorScheme::Inverter_Selected, m_styles, m_vsStyles, ColorScheme::Repeater_Hovered, ColorScheme::Repeater_Primary, ColorScheme::Repeater_Selected, ColorScheme::SubGraph_Hovered, ColorScheme::SubGraph_Primary, and ColorScheme::SubGraph_Selected.

Here is the call graph for this function:

Member Function Documentation

Get()

NodeStyleRegistry & Olympe::NodeStyleRegistry::Get ( )

static

Returns the singleton instance.

Definition at line 20 of file NodeStyleRegistry.cpp.

Referenced by Olympe::NodeGraphPanel::RenderGraph(), Olympe::AI::BTNodePalette::RenderNodeButton(), Olympe::NodeGraphPanel::RenderNodePinsAndContent(), and Olympe::NodeGraphShared::RenderNodeVisual().

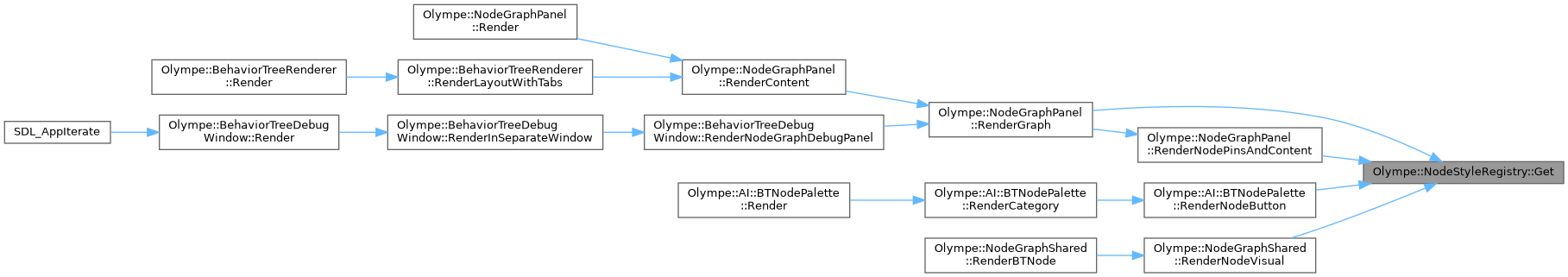

Here is the caller graph for this function:

GetDataPinColor()

ImU32 Olympe::NodeStyleRegistry::GetDataPinColor ( )

static

Colour for data pins — green.

Definition at line 416 of file NodeStyleRegistry.cpp.

References GetComponentTypeID_Static().

Here is the call graph for this function:

GetExecPinColor()

ImU32 Olympe::NodeStyleRegistry::GetExecPinColor ( )

static

Colour for execution-flow (exec) pins — white.

Definition at line 411 of file NodeStyleRegistry.cpp.

References GetComponentTypeID_Static().

Here is the call graph for this function:

GetStyle()

const NodeStyle & Olympe::NodeStyleRegistry::GetStyle

(

NodeType

type

)

const

Returns the style for the given node type.

Falls back to the default grey style for unknown types.

Definition at line 386 of file NodeStyleRegistry.cpp.

References GetComponentTypeID_Static(), m_defaultStyle, and m_styles.

Referenced by Olympe::NodeGraphPanel::RenderGraph(), Olympe::AI::BTNodePalette::RenderNodeButton(), Olympe::NodeGraphPanel::RenderNodePinsAndContent(), and Olympe::NodeGraphShared::RenderNodeVisual().

Here is the call graph for this function:

Here is the caller graph for this function:

GetStyleByTaskID()

const NodeStyle & Olympe::NodeStyleRegistry::GetStyleByTaskID

(

const std::string &

taskId

)

const

Returns the style to use for an atomic-task node identified by ID.

Currently returns the BT_Action style for all task IDs.

Definition at line 398 of file NodeStyleRegistry.cpp.

References Olympe::BT_Action, GetComponentTypeID_Static(), m_defaultStyle, and m_styles.

Here is the call graph for this function:

GetStyleByVSTypeName()

const NodeStyle & Olympe::NodeStyleRegistry::GetStyleByVSTypeName

(

const std::string &

vsTypeName

)

const

Returns the style for a VS node type identified by string.

Used by the VS graph renderer which uses TaskNodeType, not the legacy NodeType enum.

Parameters

vsTypeName

String form of TaskNodeType (e.g. "EntryPoint", "Branch", "Delay").

Returns

NodeStyle for the given type, or default grey if unknown.

Definition at line 374 of file NodeStyleRegistry.cpp.

References GetComponentTypeID_Static(), m_defaultStyle, and m_vsStyles.

Here is the call graph for this function:

Member Data Documentation

m_defaultStyle

NodeStyle Olympe::NodeStyleRegistry::m_defaultStyle

private

Definition at line 101 of file NodeStyleRegistry.h.

Referenced by GetStyle(), GetStyleByTaskID(), and GetStyleByVSTypeName().

m_styles

std::unordered_map<int, NodeStyle> Olympe::NodeStyleRegistry::m_styles

private

Key is the underlying int value of NodeType.

Definition at line 104 of file NodeStyleRegistry.h.

Referenced by GetStyle(), GetStyleByTaskID(), and NodeStyleRegistry().

m_vsStyles

std::unordered_map<std::string, NodeStyle> Olympe::NodeStyleRegistry::m_vsStyles

private

Key is the VS type name string (TaskNodeType as string).

Definition at line 107 of file NodeStyleRegistry.h.

Referenced by GetStyleByVSTypeName(), and NodeStyleRegistry().

---

The documentation for this class was generated from the following files:

• Source/BlueprintEditor/NodeStyleRegistry.h
• Source/BlueprintEditor/NodeStyleRegistry.cpp
