Olympe::ParameterEditorRegistry Class Reference

Singleton mapping TaskNodeType -> vector of ParameterDescriptor. More...

#include <ParameterEditorRegistry.h>

Public Member Functions
void	RegisterNodeType (TaskNodeType nodeType, const std::vector< ParameterDescriptor > &descriptors)
	Registers a set of parameter descriptors for a node type.
const std::vector< ParameterDescriptor > &	GetNodeParameters (TaskNodeType nodeType) const
	Returns the parameter descriptors for the given node type.
const ParameterDescriptor *	GetParameterDescriptor (TaskNodeType nodeType, const std::string &paramName) const
	Returns the descriptor for a specific parameter of a node type.

Static Public Member Functions
static ParameterEditorRegistry &	Get ()
	Returns the singleton instance.

Private Member Functions
	ParameterEditorRegistry ()
void	InitializeBuiltInParameters ()

Private Attributes
std::unordered_map< uint8_t, std::vector< ParameterDescriptor > >	m_params

Static Private Attributes
static const std::vector< ParameterDescriptor >	s_empty
	Returned by GetNodeParameters when a type has no descriptors.

Detailed Description

Singleton mapping TaskNodeType -> vector of ParameterDescriptor.

Definition at line 51 of file ParameterEditorRegistry.h.

Constructor & Destructor Documentation

ParameterEditorRegistry()

Olympe::ParameterEditorRegistry::ParameterEditorRegistry ( )

private

Definition at line 30 of file ParameterEditorRegistry.cpp.

References InitializeBuiltInParameters().

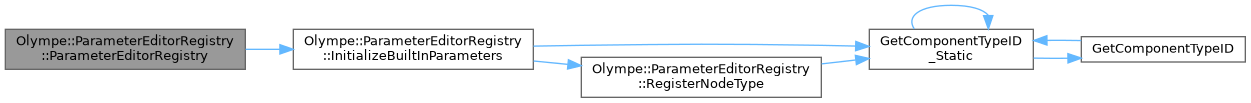

Here is the call graph for this function:

Member Function Documentation

Get()

ParameterEditorRegistry & Olympe::ParameterEditorRegistry::Get ( )

static

Returns the singleton instance.

Calls InitializeBuiltInParameters() on first access.

Definition at line 24 of file ParameterEditorRegistry.cpp.

References GetComponentTypeID_Static().

Here is the call graph for this function:

GetNodeParameters()

const std::vector< ParameterDescriptor > & Olympe::ParameterEditorRegistry::GetNodeParameters

(

TaskNodeType

nodeType

)

const

Returns the parameter descriptors for the given node type.

Returns an empty vector if no descriptors have been registered for nodeType.

Parameters

nodeType

The node type.

Returns

Reference to the descriptors vector.

Definition at line 50 of file ParameterEditorRegistry.cpp.

References GetComponentTypeID_Static(), m_params, and s_empty.

Referenced by GetParameterDescriptor().

Here is the call graph for this function:

Here is the caller graph for this function:

GetParameterDescriptor()

const ParameterDescriptor * Olympe::ParameterEditorRegistry::GetParameterDescriptor	(	TaskNodeType	nodeType,
		const std::string &	paramName
	)		const

Returns the descriptor for a specific parameter of a node type.

Parameters

nodeType	The node type.
paramName	Parameter name.

Returns

Pointer to the descriptor, or nullptr if not found.

Definition at line 57 of file ParameterEditorRegistry.cpp.

References GetComponentTypeID_Static(), and GetNodeParameters().

Here is the call graph for this function:

InitializeBuiltInParameters()

void Olympe::ParameterEditorRegistry::InitializeBuiltInParameters ( )

private

Definition at line 74 of file ParameterEditorRegistry.cpp.

References Olympe::AtomicTask, Olympe::AtomicTaskID, Olympe::ParameterDescriptor::bindingType, Olympe::Branch, Olympe::ComparisonOp, Olympe::ConditionID, Olympe::Delay, Olympe::ParameterDescriptor::description, Olympe::Float, Olympe::ForEach, Olympe::GetBBValue, GetComponentTypeID_Static(), Olympe::List, Olympe::Literal, Olympe::LocalVariable, Olympe::MathOp, Olympe::MathOperator, Olympe::ParameterDescriptor::name, RegisterNodeType(), Olympe::ParameterDescriptor::required, Olympe::SetBBValue, Olympe::SubGraph, Olympe::SubGraphPath, Olympe::Switch, and Olympe::While.

Referenced by ParameterEditorRegistry().

Here is the call graph for this function:

Here is the caller graph for this function:

RegisterNodeType()

void Olympe::ParameterEditorRegistry::RegisterNodeType	(	TaskNodeType	nodeType,
		const std::vector< ParameterDescriptor > &	descriptors
	)

Registers a set of parameter descriptors for a node type.

Overwrites any previously registered descriptors for nodeType.

Parameters

nodeType	The node type.
descriptors	Ordered list of parameter descriptors.

Definition at line 39 of file ParameterEditorRegistry.cpp.

References GetComponentTypeID_Static(), and m_params.

Referenced by InitializeBuiltInParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_params

std::unordered_map<uint8_t, std::vector<ParameterDescriptor> > Olympe::ParameterEditorRegistry::m_params

private

Definition at line 98 of file ParameterEditorRegistry.h.

Referenced by GetNodeParameters(), and RegisterNodeType().

s_empty

const std::vector< ParameterDescriptor > Olympe::ParameterEditorRegistry::s_empty

staticprivate

Returned by GetNodeParameters when a type has no descriptors.

Definition at line 101 of file ParameterEditorRegistry.h.

Referenced by GetNodeParameters().

---

The documentation for this class was generated from the following files:

• Source/BlueprintEditor/ParameterEditorRegistry.h
• Source/BlueprintEditor/ParameterEditorRegistry.cpp
