C++14-compliant type-safe value container for task parameters. More...

#include <TaskGraphTypes.h>

Collaboration diagram for Olympe::TaskValue:

Classes
union	PodData

Public Member Functions
	TaskValue ()
	Default constructor: creates a value of type VariableType::None.

	TaskValue (bool v)
	Construct from bool.

	TaskValue (int v)
	Construct from int.

	TaskValue (float v)
	Construct from float.

	TaskValue (const ::Vector &v)
	Construct from Vector.

	TaskValue (EntityID v)
	Construct from EntityID.

	TaskValue (const std::string &v)
	Construct from std::string.

bool	AsBool () const
	Returns the bool value.

int	AsInt () const
	Returns the int value.

float	AsFloat () const
	Returns the float value.

::Vector	AsVector () const
	Returns the Vector value.

EntityID	AsEntityID () const
	Returns the EntityID value.

std::string	AsString () const
	Returns the string value.

VariableType	GetType () const
	Returns the VariableType tag of the stored value.

bool	IsNone () const
	Returns true if the value has not been set (type == None).

std::string	to_string () const
	Converts the stored value to a string representation.

Private Attributes
union Olympe::TaskValue::PodData	m_data

::Vector	m_vectorValue

std::string	m_stringValue

VariableType	m_type

Detailed Description

C++14-compliant type-safe value container for task parameters.

Stores one value of type: bool, int, float, Vector, EntityID, or std::string. POD types share a union; non-POD types (Vector, std::string) are stored as separate members.

Throws std::runtime_error on type mismatch when calling typed getters.

Definition at line 181 of file TaskGraphTypes.h.

Constructor & Destructor Documentation

◆ TaskValue() [1/7]

Olympe::TaskValue::TaskValue ( )

Default constructor: creates a value of type VariableType::None.

Definition at line 22 of file TaskGraphTypes.cpp.

References Olympe::TaskValue::PodData::entityValue, and m_data.

◆ TaskValue() [2/7]

Olympe::TaskValue::TaskValue ( bool v )

explicit

Construct from bool.

Parameters

v	Boolean value.

Definition at line 30 of file TaskGraphTypes.cpp.

References Olympe::TaskValue::PodData::boolValue, GetComponentTypeID_Static(), and m_data.

Here is the call graph for this function:

◆ TaskValue() [3/7]

Olympe::TaskValue::TaskValue ( int v )

explicit

Construct from int.

Parameters

v	Integer value.

Definition at line 38 of file TaskGraphTypes.cpp.

References GetComponentTypeID_Static(), Olympe::TaskValue::PodData::intValue, and m_data.

Here is the call graph for this function:

◆ TaskValue() [4/7]

Olympe::TaskValue::TaskValue ( float v )

explicit

Construct from float.

Parameters

v	Float value.

Definition at line 46 of file TaskGraphTypes.cpp.

References Olympe::TaskValue::PodData::floatValue, GetComponentTypeID_Static(), and m_data.

Here is the call graph for this function:

◆ TaskValue() [5/7]

Olympe::TaskValue::TaskValue ( const ::Vector & v )

explicit

Construct from Vector.

Parameters

v	Vector value (2D or 3D via z component).

Definition at line 54 of file TaskGraphTypes.cpp.

References Olympe::TaskValue::PodData::entityValue, and m_data.

◆ TaskValue() [6/7]

Olympe::TaskValue::TaskValue ( EntityID v )

explicit

Construct from EntityID.

Parameters

v	Entity identifier.

Definition at line 62 of file TaskGraphTypes.cpp.

References Olympe::TaskValue::PodData::entityValue, GetComponentTypeID_Static(), and m_data.

Here is the call graph for this function:

◆ TaskValue() [7/7]

Olympe::TaskValue::TaskValue ( const std::string & v )

explicit

Construct from std::string.

Parameters

v	String value.

Definition at line 70 of file TaskGraphTypes.cpp.

References Olympe::TaskValue::PodData::entityValue, and m_data.

Member Function Documentation

◆ AsBool()

bool Olympe::TaskValue::AsBool ( ) const

Returns the bool value.

Exceptions

std::runtime_error if the stored type is not Bool.

Definition at line 82 of file TaskGraphTypes.cpp.

References Olympe::Bool, Olympe::TaskValue::PodData::boolValue, m_data, and m_type.

Referenced by Olympe::ConditionEvaluator::CompareValues(), Olympe::EntityBlackboard::ExportGlobalsToJson(), Olympe::VSGraphExecutor::HandleBranch(), Olympe::VSGraphExecutor::HandleWhile(), Olympe::PopulateRuntimeEnvironmentFromBlackboard(), Olympe::PopulateRuntimeEnvironmentFromDataPins(), Olympe::VisualScriptEditorPanel::RenderConstValueInput(), Olympe::VisualScriptEditorPanel::RenderGlobalVariablesPanel(), and Olympe::VisualScriptEditorPanel::SerializeAndWrite().

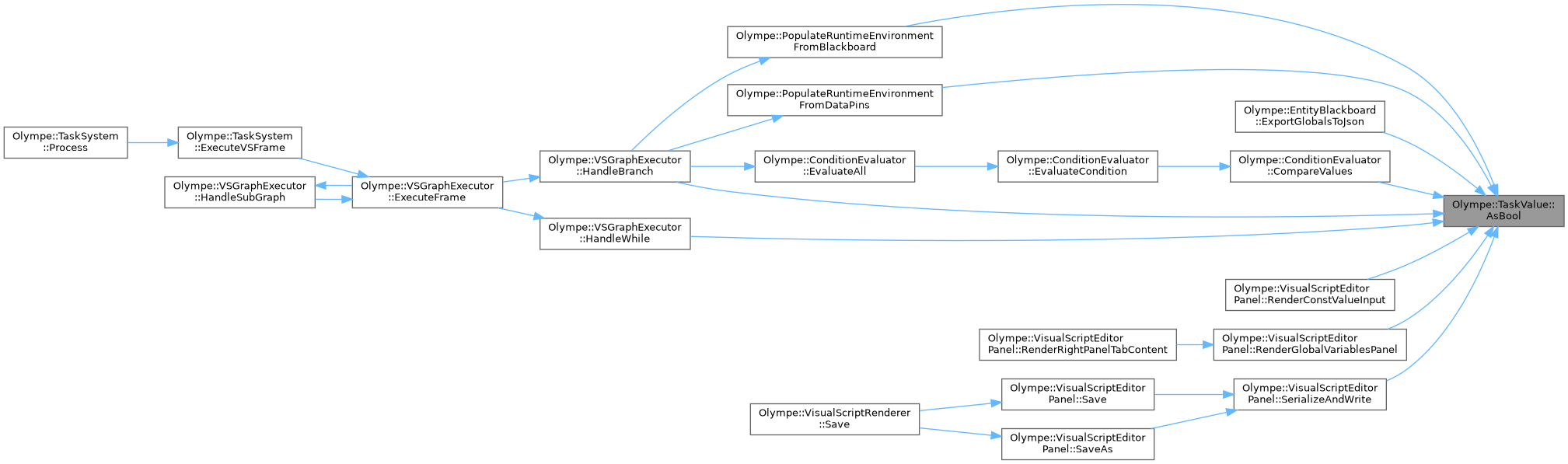

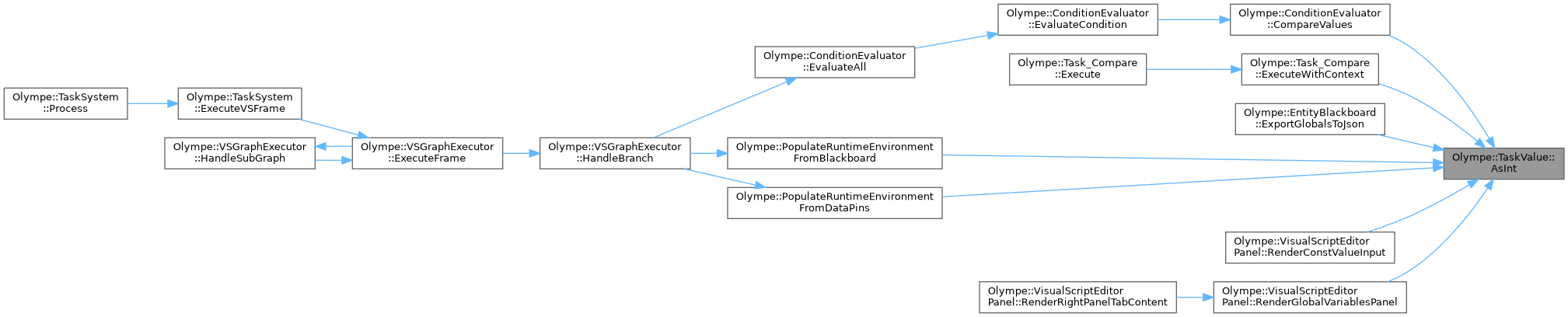

Here is the caller graph for this function:

◆ AsEntityID()

EntityID Olympe::TaskValue::AsEntityID ( ) const

Returns the EntityID value.

Exceptions

std::runtime_error if the stored type is not EntityID.

Definition at line 118 of file TaskGraphTypes.cpp.

References Olympe::EntityID, Olympe::TaskValue::PodData::entityValue, m_data, and m_type.

Referenced by Olympe::Task_Attack::ExecuteWithContext(), Olympe::EntityBlackboard::ExportGlobalsToJson(), and Olympe::VisualScriptEditorPanel::RenderGlobalVariablesPanel().

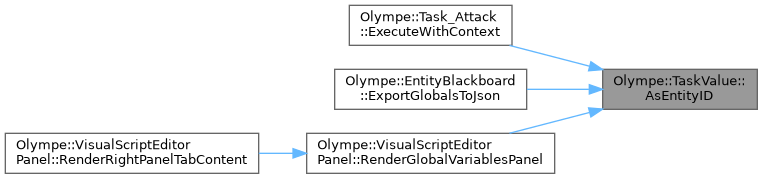

Here is the caller graph for this function:

◆ AsFloat()

float Olympe::TaskValue::AsFloat ( ) const

Returns the float value.

Exceptions

std::runtime_error if the stored type is not Float.

Definition at line 100 of file TaskGraphTypes.cpp.

References Olympe::Float, Olympe::TaskValue::PodData::floatValue, m_data, and m_type.

Referenced by Olympe::ConditionEvaluator::CompareValues(), Olympe::EntityBlackboard::ExportGlobalsToJson(), Olympe::VSGraphExecutor::HandleMathOp(), Olympe::PopulateRuntimeEnvironmentFromBlackboard(), Olympe::PopulateRuntimeEnvironmentFromDataPins(), Olympe::VisualScriptEditorPanel::RenderConstValueInput(), and Olympe::VisualScriptEditorPanel::RenderGlobalVariablesPanel().

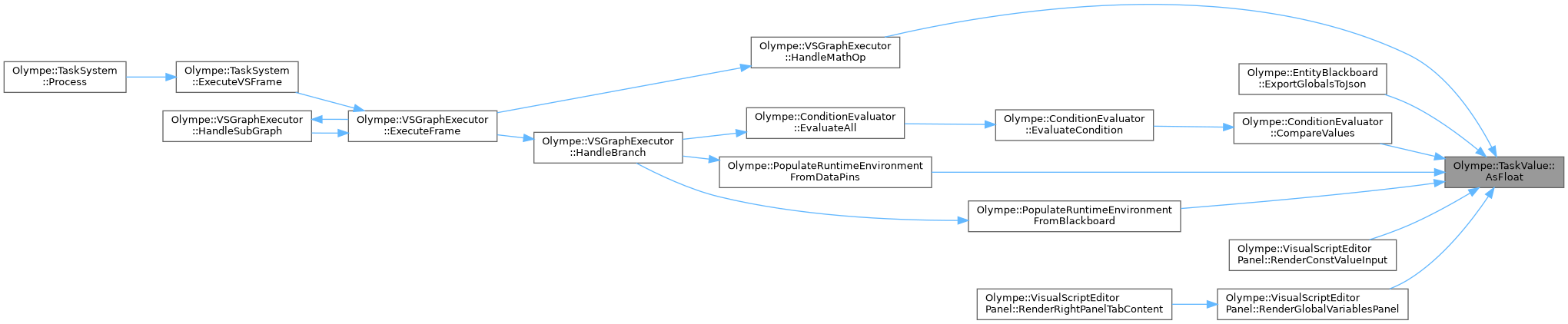

Here is the caller graph for this function:

◆ AsInt()

int Olympe::TaskValue::AsInt ( ) const

Returns the int value.

Exceptions

std::runtime_error if the stored type is not Int.

Definition at line 91 of file TaskGraphTypes.cpp.

References Olympe::Int, Olympe::TaskValue::PodData::intValue, m_data, and m_type.

Referenced by Olympe::ConditionEvaluator::CompareValues(), Olympe::Task_Compare::ExecuteWithContext(), Olympe::EntityBlackboard::ExportGlobalsToJson(), Olympe::PopulateRuntimeEnvironmentFromBlackboard(), Olympe::PopulateRuntimeEnvironmentFromDataPins(), Olympe::VisualScriptEditorPanel::RenderConstValueInput(), and Olympe::VisualScriptEditorPanel::RenderGlobalVariablesPanel().

Here is the caller graph for this function:

◆ AsString()

std::string Olympe::TaskValue::AsString ( ) const

Returns the string value.

Exceptions

std::runtime_error if the stored type is not String.

Definition at line 127 of file TaskGraphTypes.cpp.

References m_stringValue, m_type, and Olympe::String.

Referenced by Olympe::ConditionEvaluator::CompareValues(), Olympe::Task_ChangeState::ExecuteWithContext(), Olympe::EntityBlackboard::ExportGlobalsToJson(), Olympe::VSGraphExecutor::HandleSwitch(), Olympe::VisualScriptEditorPanel::RenderConstValueInput(), and Olympe::VisualScriptEditorPanel::RenderGlobalVariablesPanel().

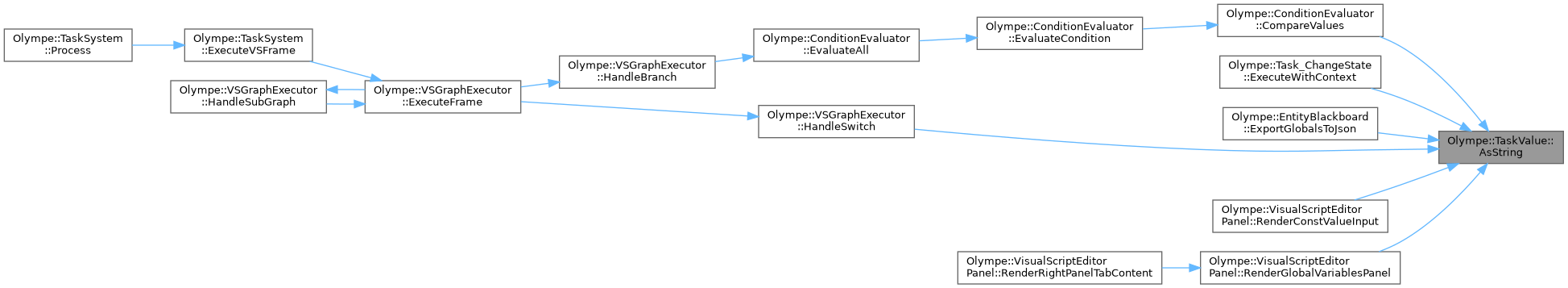

Here is the caller graph for this function:

◆ AsVector()

Vector Olympe::TaskValue::AsVector ( ) const

Returns the Vector value.

Exceptions

std::runtime_error if the stored type is not Vector.

Definition at line 109 of file TaskGraphTypes.cpp.

References m_type, m_vectorValue, and Olympe::Vector.

Referenced by Olympe::ConditionEvaluator::CompareValues(), Olympe::Task_Flee::ExecuteWithContext(), Olympe::Task_GotoPosition::ExecuteWithContext(), Olympe::EntityBlackboard::ExportGlobalsToJson(), and Olympe::VisualScriptEditorPanel::RenderConstValueInput().

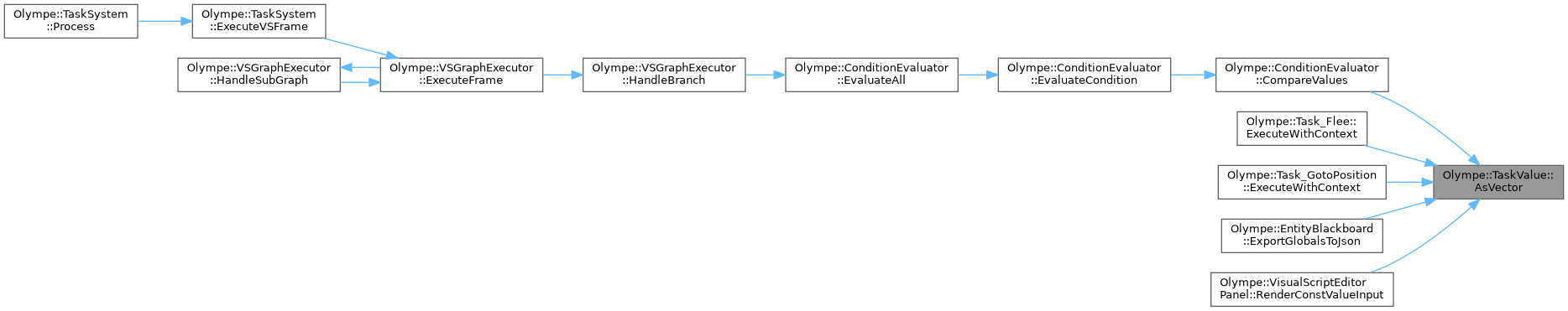

Here is the caller graph for this function:

◆ GetType()

VariableType Olympe::TaskValue::GetType ( ) const

Returns the VariableType tag of the stored value.

Definition at line 140 of file TaskGraphTypes.cpp.

References m_type.

Referenced by Olympe::GlobalTemplateBlackboard::AddVariable(), Olympe::ConditionEvaluator::CompareValues(), Olympe::EntityBlackboard::ExportGlobalsToJson(), Olympe::PopulateRuntimeEnvironmentFromBlackboard(), Olympe::PopulateRuntimeEnvironmentFromDataPins(), Olympe::EntityBlackboard::SetGlobalValue(), Olympe::LocalBlackboard::SetValue(), and Olympe::GlobalTemplateBlackboard::UpdateVariable().

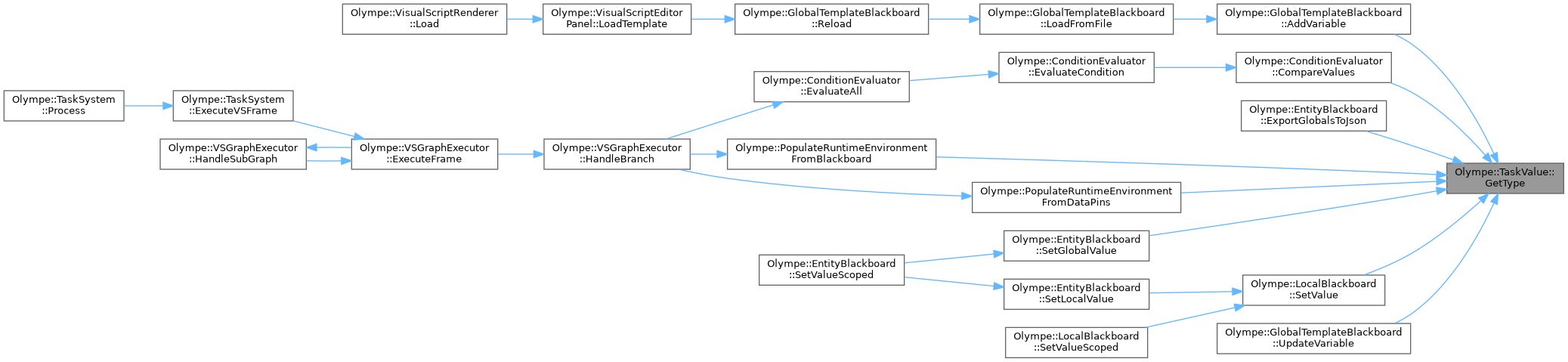

Here is the caller graph for this function:

◆ IsNone()

bool Olympe::TaskValue::IsNone ( ) const

Returns true if the value has not been set (type == None).

Definition at line 145 of file TaskGraphTypes.cpp.

References m_type, and Olympe::None.

Referenced by Olympe::GlobalTemplateBlackboard::AddVariable(), Olympe::EntityBlackboard::ExportGlobalsToJson(), Olympe::VisualScriptEditorPanel::RenderConstValueInput(), Olympe::VisualScriptEditorPanel::RenderGlobalVariablesPanel(), and Olympe::GlobalTemplateBlackboard::UpdateVariable().

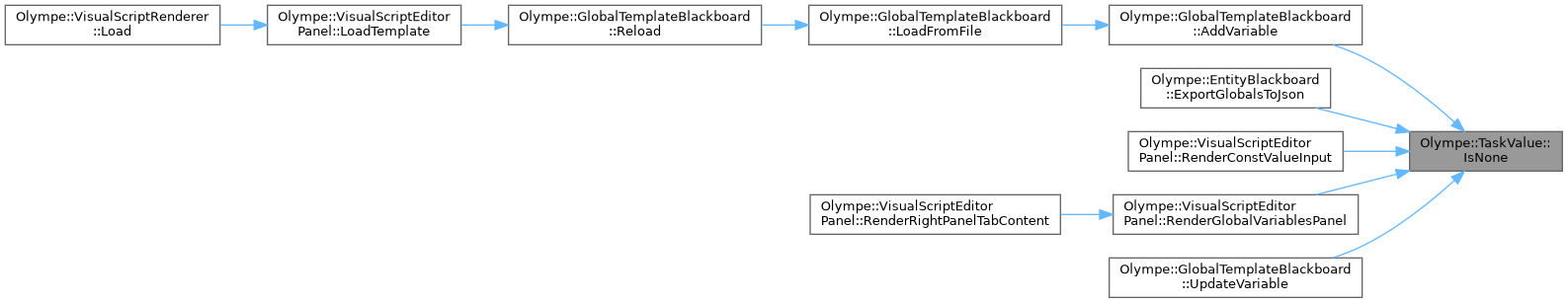

Here is the caller graph for this function:

◆ to_string()

std::string Olympe::TaskValue::to_string ( ) const

Converts the stored value to a string representation.

Never returns an empty string — falls back to "0" for None or empty values. This prevents JSON builder failures when serializing uninitialized entries.

Returns: String representation of the value.

Definition at line 154 of file TaskGraphTypes.cpp.

References Olympe::Bool, Olympe::TaskValue::PodData::boolValue, Olympe::EntityID, Olympe::TaskValue::PodData::entityValue, Olympe::Float, Olympe::TaskValue::PodData::floatValue, GetComponentTypeID_Static(), Olympe::Int, Olympe::TaskValue::PodData::intValue, m_data, m_stringValue, m_type, Olympe::None, Olympe::String, and SYSTEM_LOG.

Referenced by Olympe::VisualScriptEditorPanel::FormatTaskParameters(), and Olympe::VisualScriptEditorPanel::RunGraphSimulation().

Here is the call graph for this function:

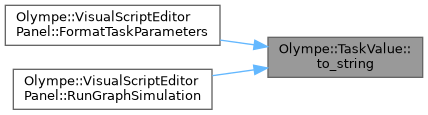

Here is the caller graph for this function:

Member Data Documentation

◆ m_data

union Olympe::TaskValue::PodData Olympe::TaskValue::m_data

private

Referenced by AsBool(), AsEntityID(), AsFloat(), AsInt(), TaskValue(), TaskValue(), TaskValue(), TaskValue(), TaskValue(), TaskValue(), TaskValue(), and to_string().

◆ m_stringValue

std::string Olympe::TaskValue::m_stringValue

private

Definition at line 306 of file TaskGraphTypes.h.

Referenced by AsString(), and to_string().

◆ m_type

VariableType Olympe::TaskValue::m_type

private

Definition at line 308 of file TaskGraphTypes.h.

Referenced by AsBool(), AsEntityID(), AsFloat(), AsInt(), AsString(), AsVector(), GetType(), IsNone(), and to_string().

◆ m_vectorValue

::Vector Olympe::TaskValue::m_vectorValue

private

Definition at line 305 of file TaskGraphTypes.h.

Referenced by AsVector().

The documentation for this class was generated from the following files:

Source/TaskSystem/TaskGraphTypes.h
Source/TaskSystem/TaskGraphTypes.cpp
