Olympe::UndoRedoStack Class Reference

Bounded stack of reversible editor commands. More...

#include <UndoRedoStack.h>

Public Member Functions
	UndoRedoStack ()
void	PushCommand (std::unique_ptr< ICommand > cmd, TaskGraphTemplate &graph)
	Executes the command on graph, then pushes it onto the undo stack.
void	Undo (TaskGraphTemplate &graph)
	Undoes the last command, moving it to the redo stack.
void	Redo (TaskGraphTemplate &graph)
	Re-applies the last undone command, moving it back to the undo stack.
void	Clear ()
	Clears both undo and redo stacks (e.g.
bool	CanUndo () const
	Returns true if there is at least one command to undo.
bool	CanRedo () const
	Returns true if there is at least one command to redo.
std::size_t	UndoSize () const
	Returns the number of commands currently on the undo stack.
std::size_t	RedoSize () const
	Returns the number of commands currently on the redo stack.
std::string	PeekUndoDescription () const
	Returns the description of the top undo command, or "" if empty.
std::string	PeekRedoDescription () const
	Returns the description of the top redo command, or "" if empty.

Static Public Attributes
static const std::size_t	MAX_STACK_SIZE = 100u
	Maximum number of undo entries kept in memory.

Private Attributes
std::vector< std::unique_ptr< ICommand > >	m_undoStack
std::vector< std::unique_ptr< ICommand > >	m_redoStack

Detailed Description

Bounded stack of reversible editor commands.

Usage:

UndoRedoStack stack;
stack.PushCommand(std::unique_ptr<ICommand>(new AddNodeCommand(def)));
if (stack.CanUndo()) stack.Undo(graph);
if (stack.CanRedo()) stack.Redo(graph);

When more than MAX_STACK_SIZE commands are pushed, the oldest undo entry is dropped (FIFO eviction). Pushing any new command clears the redo stack.

Definition at line 395 of file UndoRedoStack.h.

Constructor & Destructor Documentation

UndoRedoStack()

Olympe::UndoRedoStack::UndoRedoStack

(

)

Definition at line 513 of file UndoRedoStack.cpp.

Member Function Documentation

CanRedo()

bool Olympe::UndoRedoStack::CanRedo

(

)

const

Returns true if there is at least one command to redo.

Definition at line 572 of file UndoRedoStack.cpp.

References m_redoStack.

CanUndo()

bool Olympe::UndoRedoStack::CanUndo

(

)

const

Returns true if there is at least one command to undo.

Definition at line 567 of file UndoRedoStack.cpp.

References m_undoStack.

Clear()

void Olympe::UndoRedoStack::Clear

(

)

Clears both undo and redo stacks (e.g.

after save).

Definition at line 561 of file UndoRedoStack.cpp.

References m_redoStack, and m_undoStack.

PeekRedoDescription()

std::string Olympe::UndoRedoStack::PeekRedoDescription

(

)

const

Returns the description of the top redo command, or "" if empty.

Definition at line 593 of file UndoRedoStack.cpp.

References m_redoStack.

PeekUndoDescription()

std::string Olympe::UndoRedoStack::PeekUndoDescription

(

)

const

Returns the description of the top undo command, or "" if empty.

Definition at line 587 of file UndoRedoStack.cpp.

References m_undoStack.

PushCommand()

void Olympe::UndoRedoStack::PushCommand	(	std::unique_ptr< ICommand >	cmd,
		TaskGraphTemplate &	graph
	)

Executes the command on graph, then pushes it onto the undo stack.

Clears the redo stack.

Parameters

cmd	Owning pointer to the command. Must not be null.
graph	Target graph on which Execute() is called immediately.

Definition at line 517 of file UndoRedoStack.cpp.

References GetComponentTypeID_Static(), m_redoStack, m_undoStack, and MAX_STACK_SIZE.

Referenced by Olympe::VisualScriptEditorPanel::AddNode(), Olympe::VisualScriptEditorPanel::ConnectData(), Olympe::VisualScriptEditorPanel::ConnectExec(), Olympe::VisualScriptEditorPanel::RemoveLink(), Olympe::VisualScriptEditorPanel::RemoveNode(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), and Olympe::VisualScriptEditorPanel::RenderSwitchNodeProperties().

Here is the call graph for this function:

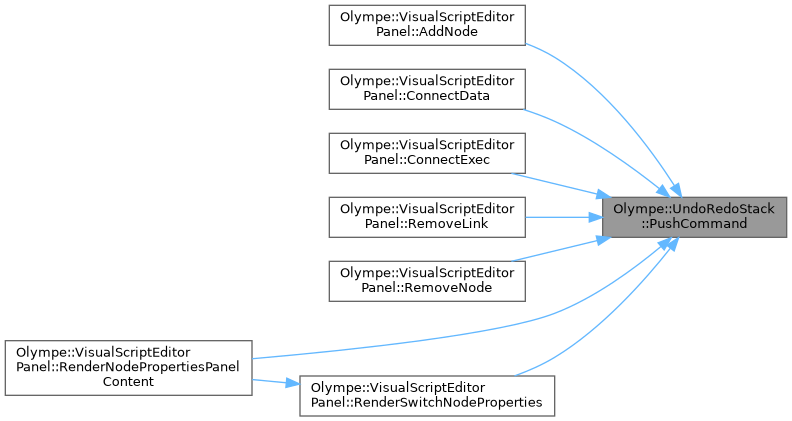

Here is the caller graph for this function:

Redo()

void Olympe::UndoRedoStack::Redo

(

TaskGraphTemplate &

graph

)

Re-applies the last undone command, moving it back to the undo stack.

Precondition

CanRedo() == true

Definition at line 549 of file UndoRedoStack.cpp.

References GetComponentTypeID_Static(), m_redoStack, and m_undoStack.

Here is the call graph for this function:

RedoSize()

std::size_t Olympe::UndoRedoStack::RedoSize

(

)

const

Returns the number of commands currently on the redo stack.

Definition at line 582 of file UndoRedoStack.cpp.

References m_redoStack.

Undo()

void Olympe::UndoRedoStack::Undo

(

TaskGraphTemplate &

graph

)

Undoes the last command, moving it to the redo stack.

Precondition

CanUndo() == true

Definition at line 537 of file UndoRedoStack.cpp.

References GetComponentTypeID_Static(), m_redoStack, and m_undoStack.

Here is the call graph for this function:

UndoSize()

std::size_t Olympe::UndoRedoStack::UndoSize

(

)

const

Returns the number of commands currently on the undo stack.

Definition at line 577 of file UndoRedoStack.cpp.

References m_undoStack.

Member Data Documentation

m_redoStack

std::vector<std::unique_ptr<ICommand> > Olympe::UndoRedoStack::m_redoStack

private

Definition at line 456 of file UndoRedoStack.h.

Referenced by CanRedo(), Clear(), PeekRedoDescription(), PushCommand(), Redo(), RedoSize(), and Undo().

m_undoStack

std::vector<std::unique_ptr<ICommand> > Olympe::UndoRedoStack::m_undoStack

private

Definition at line 455 of file UndoRedoStack.h.

Referenced by CanUndo(), Clear(), PeekUndoDescription(), PushCommand(), Redo(), Undo(), and UndoSize().

MAX_STACK_SIZE

const std::size_t Olympe::UndoRedoStack::MAX_STACK_SIZE = 100u

static

Maximum number of undo entries kept in memory.

Definition at line 399 of file UndoRedoStack.h.

Referenced by PushCommand().

---

The documentation for this class was generated from the following files:

• Source/BlueprintEditor/UndoRedoStack.h
• Source/BlueprintEditor/UndoRedoStack.cpp
