Olympe::VariablePropertyPanel Class Reference

ImGui sub-panel for editing Variable node's blackboard variable selection. More...

#include <VariablePropertyPanel.h>

Collaboration diagram for Olympe::VariablePropertyPanel:

Public Member Functions
	VariablePropertyPanel ()
	Constructs the panel.
	~VariablePropertyPanel ()=default
	VariablePropertyPanel (const VariablePropertyPanel &)=delete
VariablePropertyPanel &	operator= (const VariablePropertyPanel &)=delete
void	SetNodeName (const std::string &name)
	Sets the node name displayed in the title section.
void	SetTemplate (const TaskGraphTemplate *tmpl)
	Sets the template reference for blackboard variable lookup.
void	SetBBKey (const std::string &key)
	Sets the currently selected BB key.
const std::string &	GetBBKey () const
	Returns the current (possibly modified) BB key.
bool	IsDirty () const
	Returns true if the BB key has been modified since the last call to ClearDirty().
void	ClearDirty ()
	Resets the dirty flag.
void	Render ()
	Renders the panel into the current ImGui context.

Private Member Functions
void	RebuildVariableList ()
	Rebuilds the list of available blackboard variables.

Private Attributes
std::string	m_nodeName
std::string	m_selectedBBKey
const TaskGraphTemplate *	m_template
bool	m_dirty
std::vector< std::string >	m_availableVariables

Detailed Description

ImGui sub-panel for editing Variable node's blackboard variable selection.

Identical to GetBBValuePropertyPanel - provides variable dropdown selector.

Definition at line 32 of file VariablePropertyPanel.h.

Constructor & Destructor Documentation

VariablePropertyPanel() [1/2]

Olympe::VariablePropertyPanel::VariablePropertyPanel ( )

explicit

Constructs the panel.

Definition at line 18 of file VariablePropertyPanel.cpp.

~VariablePropertyPanel()

Olympe::VariablePropertyPanel::~VariablePropertyPanel ( )

default

VariablePropertyPanel() [2/2]

Olympe::VariablePropertyPanel::VariablePropertyPanel ( const VariablePropertyPanel &  )

delete

Member Function Documentation

ClearDirty()

void Olympe::VariablePropertyPanel::ClearDirty ( )

inline

Resets the dirty flag.

Definition at line 79 of file VariablePropertyPanel.h.

References m_dirty.

GetBBKey()

const std::string & Olympe::VariablePropertyPanel::GetBBKey

(

)

const

Returns the current (possibly modified) BB key.

Definition at line 44 of file VariablePropertyPanel.cpp.

References m_selectedBBKey.

IsDirty()

bool Olympe::VariablePropertyPanel::IsDirty ( ) const

inline

Returns true if the BB key has been modified since the last call to ClearDirty().

Definition at line 74 of file VariablePropertyPanel.h.

References m_dirty.

operator=()

VariablePropertyPanel & Olympe::VariablePropertyPanel::operator= ( const VariablePropertyPanel &  )

delete

RebuildVariableList()

void Olympe::VariablePropertyPanel::RebuildVariableList ( )

private

Rebuilds the list of available blackboard variables.

Definition at line 49 of file VariablePropertyPanel.cpp.

References Olympe::TaskGraphTemplate::Blackboard, GetComponentTypeID_Static(), m_availableVariables, and m_template.

Referenced by SetTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

Render()

void Olympe::VariablePropertyPanel::Render

(

)

Renders the panel into the current ImGui context.

Definition at line 63 of file VariablePropertyPanel.cpp.

References Olympe::TaskGraphTemplate::Blackboard, Olympe::Bool, Olympe::EntityID, Olympe::Float, GetComponentTypeID_Static(), Olympe::Int, m_availableVariables, m_nodeName, m_selectedBBKey, m_template, SetBBKey(), Olympe::String, and Olympe::Vector.

Here is the call graph for this function:

SetBBKey()

void Olympe::VariablePropertyPanel::SetBBKey

(

const std::string &

key

)

Sets the currently selected BB key.

Definition at line 35 of file VariablePropertyPanel.cpp.

References GetComponentTypeID_Static(), m_dirty, and m_selectedBBKey.

Referenced by Render().

Here is the call graph for this function:

Here is the caller graph for this function:

SetNodeName()

void Olympe::VariablePropertyPanel::SetNodeName

(

const std::string &

name

)

Sets the node name displayed in the title section.

Definition at line 24 of file VariablePropertyPanel.cpp.

References m_nodeName.

SetTemplate()

void Olympe::VariablePropertyPanel::SetTemplate

(

const TaskGraphTemplate *

tmpl

)

Sets the template reference for blackboard variable lookup.

Definition at line 29 of file VariablePropertyPanel.cpp.

References GetComponentTypeID_Static(), m_template, and RebuildVariableList().

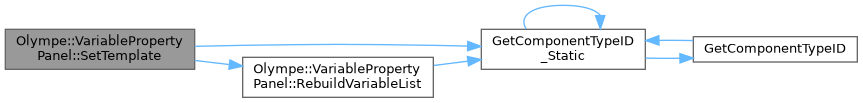

Here is the call graph for this function:

Member Data Documentation

m_availableVariables

std::vector<std::string> Olympe::VariablePropertyPanel::m_availableVariables

private

Definition at line 100 of file VariablePropertyPanel.h.

Referenced by RebuildVariableList(), and Render().

m_dirty

bool Olympe::VariablePropertyPanel::m_dirty

private

Definition at line 99 of file VariablePropertyPanel.h.

Referenced by ClearDirty(), IsDirty(), and SetBBKey().

m_nodeName

std::string Olympe::VariablePropertyPanel::m_nodeName

private

Definition at line 96 of file VariablePropertyPanel.h.

Referenced by Render(), and SetNodeName().

m_selectedBBKey

std::string Olympe::VariablePropertyPanel::m_selectedBBKey

private

Definition at line 97 of file VariablePropertyPanel.h.

Referenced by GetBBKey(), Render(), and SetBBKey().

m_template

const TaskGraphTemplate* Olympe::VariablePropertyPanel::m_template

private

Definition at line 98 of file VariablePropertyPanel.h.

Referenced by RebuildVariableList(), Render(), and SetTemplate().

---

The documentation for this class was generated from the following files:

• Source/Editor/Panels/VariablePropertyPanel.h
• Source/Editor/Panels/VariablePropertyPanel.cpp
