Olympe::VisualScriptNodeRenderer Class Reference

Stateless helper class for rendering VS nodes via ImNodes. More...

#include <VisualScriptNodeRenderer.h>

Static Public Member Functions
static void	RenderNode (int nodeUID, int nodeID, int graphID, const std::string &nodeName, TaskNodeType type, bool hasBreakpoint, bool isActive, const std::vector< std::string > &execInputPins, const std::vector< std::string > &execOutputPins, const std::vector< std::pair< std::string, VariableType > > &dataInputPins, const std::vector< std::pair< std::string, VariableType > > &dataOutputPins, const std::unordered_set< int > &connectedAttrIDs={})
	Renders a complete VS node (title + exec pins + data pins).
static void	RenderNode (int nodeUID, int nodeID, int graphID, const TaskNodeDefinition &def, bool hasBreakpoint, bool isActive, const std::vector< std::string > &execInputPins, const std::vector< std::string > &execOutputPins, const std::vector< std::pair< std::string, VariableType > > &dataInputPins, const std::vector< std::pair< std::string, VariableType > > &dataOutputPins, void(*onAddPin)(int nodeID, void *userData), void *onAddPinUserData, void(*onRemovePin)(int nodeID, int dynamicPinIndex, void *userData)=nullptr, void *onRemovePinUserData=nullptr, const std::unordered_set< int > &connectedAttrIDs={})
	Extended RenderNode with inline parameter display and optional Add[+]/Remove[-] callbacks.
static void	RenderBreakpointIndicator (int nodeUID)
	Renders a breakpoint indicator (red circle) next to a node.
static void	RenderActiveNodeGlow (int nodeUID)
	Renders a "currently executing" glow overlay around a node.

Private Member Functions
	VisualScriptNodeRenderer ()=delete

Detailed Description

Stateless helper class for rendering VS nodes via ImNodes.

All methods are static — this class has no instance state. The renderer pushes/pops ImNodes colour styles and delegates actual node/pin calls to ImNodes directly.

Definition at line 88 of file VisualScriptNodeRenderer.h.

Constructor & Destructor Documentation

VisualScriptNodeRenderer()

Olympe::VisualScriptNodeRenderer::VisualScriptNodeRenderer ( )

privatedelete

Member Function Documentation

RenderActiveNodeGlow()

void Olympe::VisualScriptNodeRenderer::RenderActiveNodeGlow ( int  nodeUID )

static

Renders a "currently executing" glow overlay around a node.

Parameters

nodeUID

Global ImNodes node UID.

Definition at line 906 of file VisualScriptNodeRenderer.cpp.

References GetComponentTypeID_Static().

Here is the call graph for this function:

RenderBreakpointIndicator()

void Olympe::VisualScriptNodeRenderer::RenderBreakpointIndicator ( int  nodeUID )

static

Renders a breakpoint indicator (red circle) next to a node.

Must be called inside an ImNodes::BeginNodeEditor() … EndNodeEditor() scope, and after ImNodes::EndNode() so that GetNodeEditorSpacePos() is valid.

Parameters

nodeUID

Global ImNodes node UID.

Definition at line 892 of file VisualScriptNodeRenderer.cpp.

References GetComponentTypeID_Static().

Here is the call graph for this function:

RenderNode() [1/2]

void Olympe::VisualScriptNodeRenderer::RenderNode ( int  nodeUID, int  nodeID, int  graphID, const std::string &  nodeName, TaskNodeType  type, bool  hasBreakpoint, bool  isActive, const std::vector< std::string > &  execInputPins, const std::vector< std::string > &  execOutputPins, const std::vector< std::pair< std::string, VariableType > > &  dataInputPins, const std::vector< std::pair< std::string, VariableType > > &  dataOutputPins, const std::unordered_set< int > &  connectedAttrIDs = {}  )

static

Renders a complete VS node (title + exec pins + data pins).

Must be called inside an ImNodes::BeginNodeEditor() … EndNodeEditor() scope.

Parameters

nodeUID	Global ImNodes node UID.
nodeID	Graph-local node ID (for breakpoint lookup).
graphID	Graph ID (for breakpoint lookup).
nodeName	Display name.
type	Node type (determines style).
hasBreakpoint	Whether a breakpoint is set on this node.
isActive	Whether this node is currently executing (debug).
execInputPins	Names of exec-in pins (usually just {"In"}).
execOutputPins	Names of exec-out pins (e.g. {"True","False"}).
dataInputPins	(name, type) pairs for data-in pins.
dataOutputPins	(name, type) pairs for data-out pins.

Note

Tooltip display is handled by the caller after EndNodeEditor() because ImNodes::IsNodeHovered() requires ImNodesScope_None.

Definition at line 318 of file VisualScriptNodeRenderer.cpp.

References GetComponentTypeID_Static(), Olympe::GetDataPinColor(), Olympe::GetExecPinColor(), Olympe::GetNodeStyle(), Olympe::GetNodeTitleColor(), and Olympe::GetNodeTitleHoveredColor().

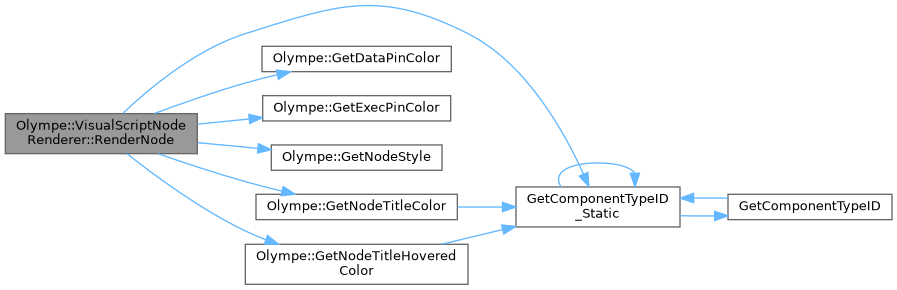

Here is the call graph for this function:

RenderNode() [2/2]

void Olympe::VisualScriptNodeRenderer::RenderNode ( int  nodeUID, int  nodeID, int  graphID, const TaskNodeDefinition &  def, bool  hasBreakpoint, bool  isActive, const std::vector< std::string > &  execInputPins, const std::vector< std::string > &  execOutputPins, const std::vector< std::pair< std::string, VariableType > > &  dataInputPins, const std::vector< std::pair< std::string, VariableType > > &  dataOutputPins, void(*)(int nodeID, void *userData)  onAddPin, void *  onAddPinUserData, void(*)(int nodeID, int dynamicPinIndex, void *userData)  onRemovePin = nullptr, void *  onRemovePinUserData = nullptr, const std::unordered_set< int > &  connectedAttrIDs = {}  )

static

Extended RenderNode with inline parameter display and optional Add[+]/Remove[-] callbacks.

Displays key parameters inline in the node body (between title bar and pins). For VSSequence and Switch nodes, renders a [+] button below the last exec-out pin that invokes onAddPin(nodeID, onAddPinUserData). For each dynamic exec-out pin (all but the base pin), renders a [-] button inline that invokes onRemovePin(nodeID, dynamicPinIndex, onRemovePinUserData).

Parameters

nodeUID	Global ImNodes node UID.
nodeID	Graph-local node ID.
graphID	Graph ID (breakpoint lookup).
def	Full node definition (for inline parameter display).
hasBreakpoint	Whether a breakpoint is set on this node.
isActive	Whether this node is executing (debug).
execInputPins	Names of exec-in pins.
execOutputPins	Names of exec-out pins (includes dynamic ones for VSSequence/Switch).
dataInputPins	(name, type) pairs for data-in pins.
dataOutputPins	(name, type) pairs for data-out pins.
onAddPin	Optional callback invoked when user clicks [+] on a VSSequence/Switch. Receives the nodeID and onAddPinUserData. Pass nullptr to disable.
onAddPinUserData	User data passed to onAddPin.
onRemovePin	Optional callback invoked when user clicks [-] on a dynamic pin. Receives nodeID, 0-based dynamic pin index, and onRemovePinUserData. Pass nullptr to disable.
onRemovePinUserData	User data passed to onRemovePin.

Definition at line 486 of file VisualScriptNodeRenderer.cpp.

References Olympe::And, Olympe::AtomicTask, Olympe::TaskNodeDefinition::AtomicTaskID, Olympe::TaskNodeDefinition::BBKey, Olympe::Branch, Olympe::BuildConditionExpressionString(), Olympe::CalculateNodeMinimumWidth(), Olympe::TaskNodeDefinition::ConditionID, Olympe::TaskNodeDefinition::conditionOperandRefs, Olympe::TaskNodeDefinition::conditionRefs, Olympe::MathOpOperand::Const, Olympe::MathOpOperand::constValue, Olympe::SystemColors::DATA_PIN_COLOR, Olympe::Delay, Olympe::TaskNodeDefinition::DelaySeconds, Olympe::TaskNodeDefinition::DynamicExecOutputPins, Olympe::TaskNodeDefinition::dynamicPins, Olympe::AtomicTaskUIRegistry::Get(), Olympe::GetBBValue, GetComponentTypeID_Static(), Olympe::GetDataPinColor(), Olympe::GetExecPinColor(), Olympe::GetNodeStyle(), Olympe::GetNodeTitleColor(), Olympe::GetNodeTitleHoveredColor(), Olympe::AtomicTaskUIRegistry::GetTaskSpec(), Olympe::MathOpRef::leftOperand, Olympe::Literal, Olympe::MathOp, Olympe::MathOpRef::mathOperator, Olympe::TaskNodeDefinition::mathOpRef, Olympe::MathOpOperand::mode, Olympe::TaskNodeDefinition::NodeName, Olympe::TaskNodeDefinition::Parameters, Olympe::MathOpOperand::Pin, Olympe::MathOpRef::rightOperand, Olympe::SetBBValue, Olympe::SubGraph, Olympe::TaskNodeDefinition::SubGraphPath, Olympe::Switch, Olympe::TaskNodeDefinition::switchCases, Olympe::TaskNodeDefinition::Type, Olympe::MathOpOperand::Variable, Olympe::MathOpOperand::variableName, Olympe::VSSequence, and Olympe::While.

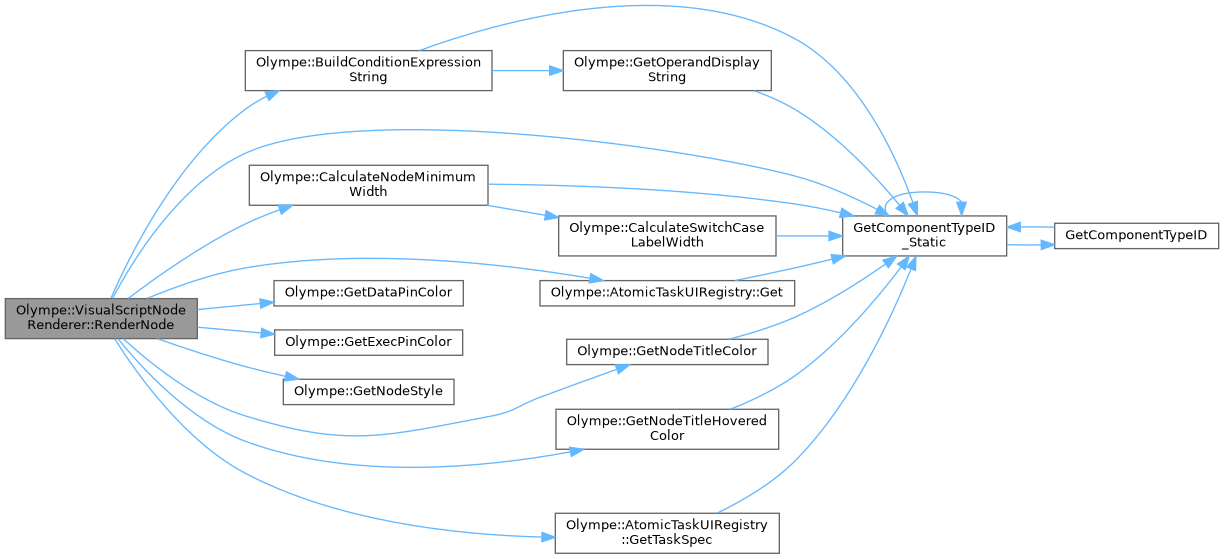

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• Source/BlueprintEditor/VisualScriptNodeRenderer.h
• Source/BlueprintEditor/VisualScriptNodeRenderer.cpp
