Olympe::SystemColors Namespace Reference

Functions
static uint32_t	ToImU32_ABGR (uint32_t rgbaColor)
	Helper function to extract ImU32 color (ImGui format).

Variables
constexpr uint32_t	EXEC_PIN_COLOR = 0xFFFFFFFF
	White color for execution flow (exec) pins and connections.
constexpr uint32_t	DATA_PIN_COLOR = 0xB464C8FF
	Violet color for data pins and connections.
constexpr uint32_t	EXEC_CONNECTION_COLOR = 0xFFFFFFFF
	Alternative white color for exec connections (Bezier curves).
constexpr uint32_t	DATA_CONNECTION_COLOR = 0xB464C8FF
	Alternative violet color for data connections (Bezier curves).
constexpr uint32_t	BT_ROOT_NODE_COLOR = 0x00FF00FF
	Green color for Root node (entry point of behavior tree).
constexpr uint32_t	BT_ONEVENT_NODE_COLOR = 0xFF8844FF
	Orange color for OnEvent nodes (event-driven execution).
constexpr uint32_t	BT_RANDOM_NODE_COLOR = 0xFFFF00FF
	Yellow color for RandomSelector composite nodes.
constexpr uint32_t	BT_THRESHOLD_NODE_COLOR = 0xFF00FFFF
	Magenta color for ParallelThreshold composite nodes.
constexpr uint32_t	BT_MONITOR_NODE_COLOR = 0x00FFFFFF
	Cyan color for Monitor decorator nodes.
constexpr uint32_t	BT_SENDMESSAGE_ACTION_COLOR = 0xFF4422FF
	Orange-red color for SendMessage action nodes.

Function Documentation

ToImU32_ABGR()

static uint32_t Olympe::SystemColors::ToImU32_ABGR ( uint32_t  rgbaColor )

inlinestatic

Helper function to extract ImU32 color (ImGui format).

ImGui uses ABGR format, so we need to swizzle RGBA to ABGR.

Definition at line 82 of file system_consts.h.

References GetComponentTypeID_Static().

Referenced by Olympe::NodeGraphPanel::RenderGraph().

Here is the call graph for this function:

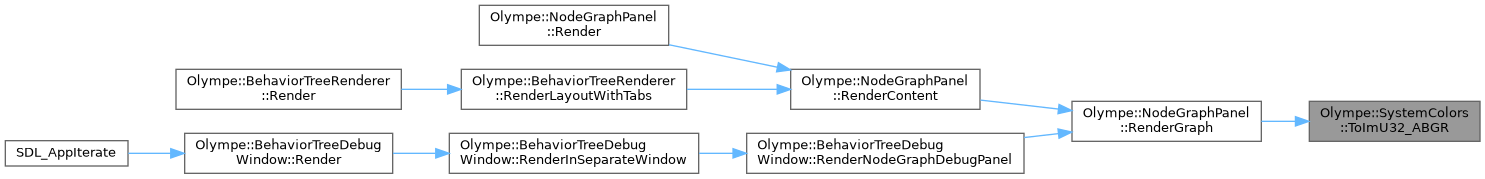

Here is the caller graph for this function:

Variable Documentation

BT_MONITOR_NODE_COLOR

constexpr uint32_t Olympe::SystemColors::BT_MONITOR_NODE_COLOR = 0x00FFFFFF

constexpr

Cyan color for Monitor decorator nodes.

Indicates continuous condition monitoring during child execution.

Definition at line 70 of file system_consts.h.

BT_ONEVENT_NODE_COLOR

constexpr uint32_t Olympe::SystemColors::BT_ONEVENT_NODE_COLOR = 0xFF8844FF

constexpr

Orange color for OnEvent nodes (event-driven execution).

Indicates nodes that execute in response to EventQueue messages.

Definition at line 52 of file system_consts.h.

BT_RANDOM_NODE_COLOR

constexpr uint32_t Olympe::SystemColors::BT_RANDOM_NODE_COLOR = 0xFFFF00FF

constexpr

Yellow color for RandomSelector composite nodes.

Indicates non-deterministic execution (random child selection).

Definition at line 58 of file system_consts.h.

BT_ROOT_NODE_COLOR

constexpr uint32_t Olympe::SystemColors::BT_ROOT_NODE_COLOR = 0x00FF00FF

constexpr

Green color for Root node (entry point of behavior tree).

Indicates the primary execution tree entry point.

Definition at line 46 of file system_consts.h.

Referenced by Olympe::NodeGraphPanel::RenderGraph().

BT_SENDMESSAGE_ACTION_COLOR

constexpr uint32_t Olympe::SystemColors::BT_SENDMESSAGE_ACTION_COLOR = 0xFF4422FF

constexpr

Orange-red color for SendMessage action nodes.

Indicates nodes that emit events to the EventQueue system.

Definition at line 76 of file system_consts.h.

BT_THRESHOLD_NODE_COLOR

constexpr uint32_t Olympe::SystemColors::BT_THRESHOLD_NODE_COLOR = 0xFF00FFFF

constexpr

Magenta color for ParallelThreshold composite nodes.

Indicates parallel execution with success/failure thresholds.

Definition at line 64 of file system_consts.h.

DATA_CONNECTION_COLOR

constexpr uint32_t Olympe::SystemColors::DATA_CONNECTION_COLOR = 0xB464C8FF

constexpr

Alternative violet color for data connections (Bezier curves).

Same as DATA_PIN_COLOR but used explicitly for link rendering.

Definition at line 36 of file system_consts.h.

DATA_PIN_COLOR

constexpr uint32_t Olympe::SystemColors::DATA_PIN_COLOR = 0xB464C8FF

constexpr

Violet color for data pins and connections.

Used for circle-shaped pins representing data flow.

Definition at line 24 of file system_consts.h.

Referenced by Olympe::GetDataPinColor(), and Olympe::VisualScriptNodeRenderer::RenderNode().

EXEC_CONNECTION_COLOR

constexpr uint32_t Olympe::SystemColors::EXEC_CONNECTION_COLOR = 0xFFFFFFFF

constexpr

Alternative white color for exec connections (Bezier curves).

Same as EXEC_PIN_COLOR but used explicitly for link rendering.

Definition at line 30 of file system_consts.h.

EXEC_PIN_COLOR

constexpr uint32_t Olympe::SystemColors::EXEC_PIN_COLOR = 0xFFFFFFFF

constexpr

White color for execution flow (exec) pins and connections.

Used for triangle-shaped pins representing control flow.

Definition at line 18 of file system_consts.h.

Referenced by Olympe::GetExecPinColor().
