Olympe::ConditionPreset Struct Reference

A globally-stored, reusable condition expression. More...

#include <ConditionPreset.h>

Collaboration diagram for Olympe::ConditionPreset:

Public Member Functions
	ConditionPreset ()
	Default constructor — generates an empty preset.
	ConditionPreset (const std::string &id, const Operand &l, ComparisonOp o, const Operand &r)
	Full constructor.
std::string	GetPreview () const
	Returns a human-readable preview string.
bool	NeedsLeftPin () const
	Returns true when the left operand is in Pin mode.
bool	NeedsRightPin () const
	Returns true when the right operand is in Pin mode.
std::pair< bool, bool >	GetPinNeeds () const
	Returns a pair {needsLeft, needsRight}.
nlohmann::json	ToJson () const
	Serializes this preset to a JSON object.

Static Public Member Functions
static std::string	OpToString (ComparisonOp o)
	Returns the operator as a display string (e.g. "<=").
static ComparisonOp	OpFromString (const std::string &s)
	Parses a display string back to a ComparisonOp.
static ConditionPreset	FromJson (const nlohmann::json &data)
	Deserializes a ConditionPreset from a JSON object.

Public Attributes
std::string	id
	Global unique UUID (e.g. "preset_001")
std::string	name
	Human-readable display name (e.g. "Condition #1")
Operand	left
ComparisonOp	op
Operand	right

Detailed Description

A globally-stored, reusable condition expression.

Identified by a UUID string. Holds a left Operand, a ComparisonOp, and a right Operand. Serialized to / loaded from ./Blueprints/Presets/condition_presets.json.

Definition at line 49 of file ConditionPreset.h.

Constructor & Destructor Documentation

ConditionPreset() [1/2]

Olympe::ConditionPreset::ConditionPreset

(

)

Default constructor — generates an empty preset.

Definition at line 21 of file ConditionPreset.cpp.

ConditionPreset() [2/2]

Olympe::ConditionPreset::ConditionPreset	(	const std::string &	id,
		const Operand &	l,
		ComparisonOp	o,
		const Operand &	r
	)

Full constructor.

Parameters

id	UUID string (caller must supply a unique value).
l	Left operand.
o	Comparison operator.
r	Right operand.

Definition at line 34 of file ConditionPreset.cpp.

Member Function Documentation

FromJson()

ConditionPreset Olympe::ConditionPreset::FromJson ( const nlohmann::json &  data )

static

Deserializes a ConditionPreset from a JSON object.

Definition at line 114 of file ConditionPreset.cpp.

References Olympe::Operand::FromJson(), GetComponentTypeID_Static(), id, and OpFromString().

Referenced by Olympe::ConditionPresetRegistry::Load(), and Olympe::TaskGraphLoader::ParseSchemaV4().

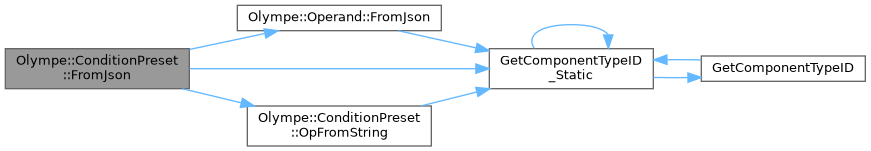

Here is the call graph for this function:

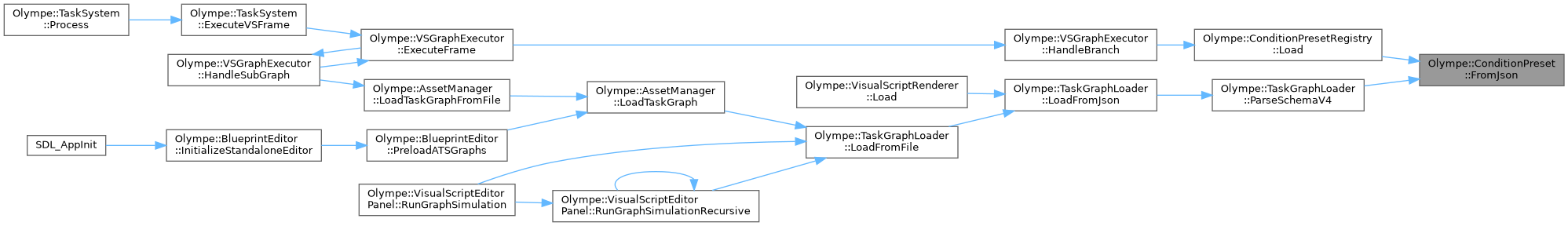

Here is the caller graph for this function:

GetPinNeeds()

std::pair< bool, bool > Olympe::ConditionPreset::GetPinNeeds

(

)

const

Returns a pair {needsLeft, needsRight}.

Definition at line 67 of file ConditionPreset.cpp.

References Olympe::Operand::IsPin(), left, and right.

Here is the call graph for this function:

GetPreview()

std::string Olympe::ConditionPreset::GetPreview

(

)

const

Returns a human-readable preview string.

Example: "[mHealth] <= [2]"

Definition at line 50 of file ConditionPreset.cpp.

References Olympe::Operand::GetDisplayString(), left, op, OpToString(), and right.

Referenced by Olympe::ConditionPresetEditDialog::GetPreview().

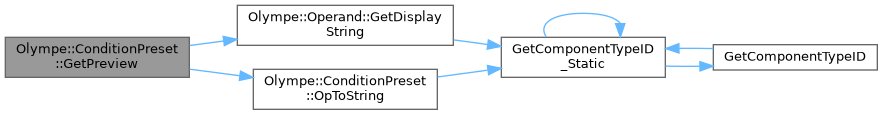

Here is the call graph for this function:

Here is the caller graph for this function:

NeedsLeftPin()

bool Olympe::ConditionPreset::NeedsLeftPin

(

)

const

Returns true when the left operand is in Pin mode.

Definition at line 57 of file ConditionPreset.cpp.

References Olympe::Operand::IsPin(), and left.

Here is the call graph for this function:

NeedsRightPin()

bool Olympe::ConditionPreset::NeedsRightPin

(

)

const

Returns true when the right operand is in Pin mode.

Definition at line 62 of file ConditionPreset.cpp.

References Olympe::Operand::IsPin(), and right.

Here is the call graph for this function:

OpFromString()

ComparisonOp Olympe::ConditionPreset::OpFromString ( const std::string &  s )

static

Parses a display string back to a ComparisonOp.

Returns ComparisonOp::Equal on unknown input.

Definition at line 88 of file ConditionPreset.cpp.

References Olympe::Equal, GetComponentTypeID_Static(), Olympe::Greater, Olympe::GreaterEqual, Olympe::Less, Olympe::LessEqual, and Olympe::NotEqual.

Referenced by FromJson(), Olympe::ConditionPresetEditDialog::RenderOperatorSelector(), and Olympe::ConditionPresetEditDialog::SetOperator().

Here is the call graph for this function:

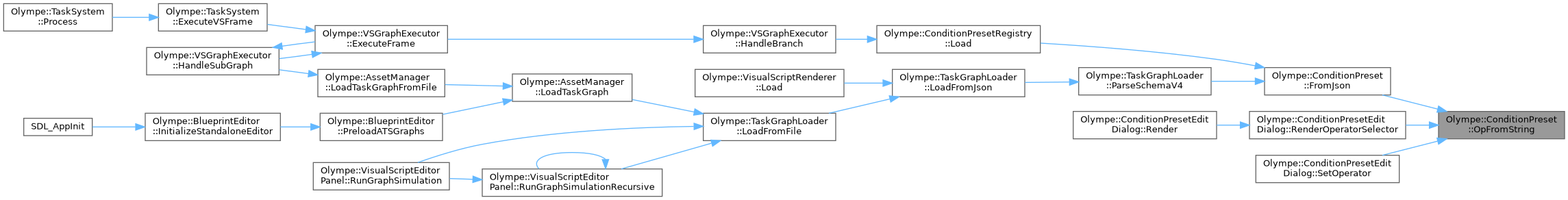

Here is the caller graph for this function:

OpToString()

std::string Olympe::ConditionPreset::OpToString ( ComparisonOp  o )

static

Returns the operator as a display string (e.g. "<=").

Definition at line 73 of file ConditionPreset.cpp.

References Olympe::Equal, GetComponentTypeID_Static(), Olympe::Greater, Olympe::GreaterEqual, Olympe::Less, Olympe::LessEqual, and Olympe::NotEqual.

Referenced by GetPreview(), Olympe::ConditionPresetEditDialog::RenderOperatorSelector(), and ToJson().

Here is the call graph for this function:

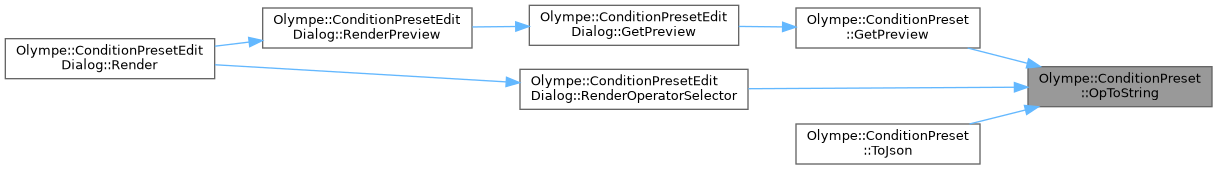

Here is the caller graph for this function:

ToJson()

nlohmann::json Olympe::ConditionPreset::ToJson

(

)

const

Serializes this preset to a JSON object.

Definition at line 102 of file ConditionPreset.cpp.

References GetComponentTypeID_Static(), id, left, name, op, OpToString(), right, and Olympe::Operand::ToJson().

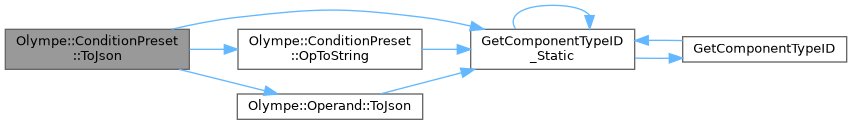

Here is the call graph for this function:

Member Data Documentation

id

std::string Olympe::ConditionPreset::id

Global unique UUID (e.g. "preset_001")

Definition at line 50 of file ConditionPreset.h.

Referenced by Olympe::ConditionPresetRegistry::CreatePreset(), Olympe::ConditionPresetRegistry::DuplicatePreset(), FromJson(), ToJson(), and Olympe::ConditionPresetRegistry::UpdatePreset().

left

Operand Olympe::ConditionPreset::left

Definition at line 52 of file ConditionPreset.h.

Referenced by Olympe::NodeConditionsPanel::AddCondition(), Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::ConditionPresetEditDialog::GetLeftOperand(), GetPinNeeds(), GetPreview(), Olympe::ConditionPresetEditDialog::IsValid(), NeedsLeftPin(), Olympe::ConditionPresetEditDialog::RenderOperandSelector(), Olympe::ConditionPresetEditDialog::SetLeftConst(), Olympe::ConditionPresetEditDialog::SetLeftMode(), Olympe::ConditionPresetEditDialog::SetLeftPin(), Olympe::ConditionPresetEditDialog::SetLeftVariable(), and ToJson().

name

std::string Olympe::ConditionPreset::name

Human-readable display name (e.g. "Condition #1")

Definition at line 51 of file ConditionPreset.h.

Referenced by Olympe::PresetDropdownHelper::GetPresetDisplayName(), Olympe::ConditionPresetLibraryPanel::OnAddPresetClicked(), Olympe::ConditionPresetEditDialog::Render(), Olympe::PresetDropdownHelper::Render(), Olympe::ConditionPresetEditDialog::SetName(), and ToJson().

op

ComparisonOp Olympe::ConditionPreset::op

Definition at line 53 of file ConditionPreset.h.

Referenced by Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::ConditionPresetEditDialog::GetOperator(), GetPreview(), Olympe::ConditionPresetEditDialog::RenderOperatorSelector(), Olympe::ConditionPresetEditDialog::SetOperator(), and ToJson().

right

Operand Olympe::ConditionPreset::right

Definition at line 54 of file ConditionPreset.h.

Referenced by Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), GetPinNeeds(), GetPreview(), Olympe::ConditionPresetEditDialog::GetRightOperand(), Olympe::ConditionPresetEditDialog::IsValid(), NeedsRightPin(), Olympe::ConditionPresetEditDialog::RenderOperandSelector(), Olympe::ConditionPresetEditDialog::SetRightConst(), Olympe::ConditionPresetEditDialog::SetRightMode(), Olympe::ConditionPresetEditDialog::SetRightPin(), Olympe::ConditionPresetEditDialog::SetRightVariable(), and ToJson().

---

The documentation for this struct was generated from the following files:

• Source/Editor/ConditionPreset/ConditionPreset.h
• Source/Editor/ConditionPreset/ConditionPreset.cpp
