Olympe::MathOpRef Struct Reference

Complete reference for a MathOp node: left operand, operator, right operand. More...

#include <MathOpOperand.h>

Collaboration diagram for Olympe::MathOpRef:

Public Member Functions
std::string	GetDisplayString () const
	Returns a human-readable display string for the operation.
nlohmann::json	ToJson () const
	Serializes this MathOpRef to a JSON object.

Static Public Member Functions
static MathOpRef	FromJson (const nlohmann::json &data)
	Deserializes a MathOpRef from a JSON object.

Public Attributes
MathOpOperand	leftOperand
	Left-hand side operand (A)
std::string	mathOperator = "+"
	Arithmetic operator: "+", "-", "*", "/", "%", "^".
MathOpOperand	rightOperand
	Right-hand side operand (B)

Detailed Description

Complete reference for a MathOp node: left operand, operator, right operand.

Stores the full operand configuration for one MathOp node. The result is computed as: leftOperand [operator] rightOperand. Operators supported: "+", "-", "*", "/", "%", "^" (power).

Operands whose mode is Pin automatically have DynamicDataPin objects generated for them by DynamicDataPinManager.

Definition at line 86 of file MathOpOperand.h.

Member Function Documentation

FromJson()

MathOpRef Olympe::MathOpRef::FromJson ( const nlohmann::json &  data )

static

Deserializes a MathOpRef from a JSON object.

Definition at line 108 of file MathOpOperand.cpp.

References Olympe::MathOpOperand::FromJson(), GetComponentTypeID_Static(), and leftOperand.

Referenced by Olympe::TaskGraphLoader::ParseNodeV4().

Here is the call graph for this function:

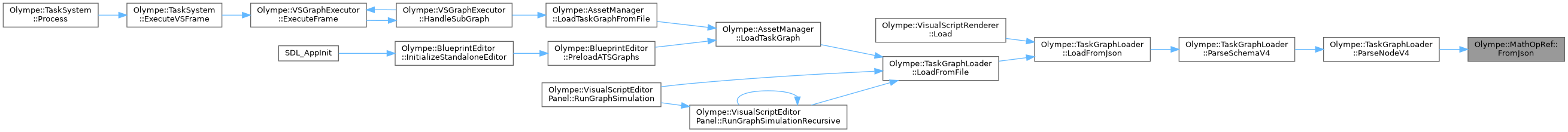

Here is the caller graph for this function:

GetDisplayString()

std::string Olympe::MathOpRef::GetDisplayString

(

)

const

Returns a human-readable display string for the operation.

Example: "[mSpeed] + [5.0]" or "[Pin:0] * [mFactor]"

Definition at line 60 of file MathOpOperand.cpp.

References Olympe::MathOpOperand::Const, Olympe::MathOpOperand::constValue, Olympe::MathOpOperand::dynamicPinID, leftOperand, mathOperator, Olympe::MathOpOperand::mode, Olympe::MathOpOperand::Pin, rightOperand, Olympe::MathOpOperand::Variable, and Olympe::MathOpOperand::variableName.

ToJson()

nlohmann::json Olympe::MathOpRef::ToJson

(

)

const

Serializes this MathOpRef to a JSON object.

Definition at line 97 of file MathOpOperand.cpp.

References GetComponentTypeID_Static(), leftOperand, mathOperator, rightOperand, and Olympe::MathOpOperand::ToJson().

Referenced by Olympe::VisualScriptEditorPanel::SerializeAndWrite().

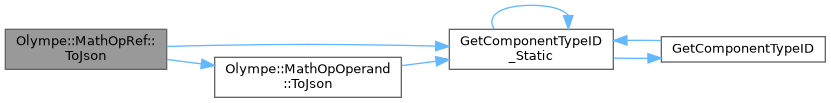

Here is the call graph for this function:

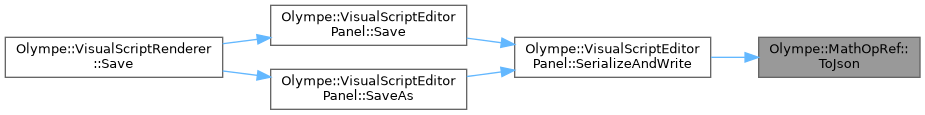

Here is the caller graph for this function:

Member Data Documentation

leftOperand

MathOpOperand Olympe::MathOpRef::leftOperand

Left-hand side operand (A)

Definition at line 89 of file MathOpOperand.h.

Referenced by Olympe::VisualScriptEditorPanel::AddNode(), Olympe::DataPinEvaluator_EvaluateRecursive(), FromJson(), GetDisplayString(), Olympe::MathOpPropertyPanel::RenderInlineOperandEditor(), Olympe::VisualScriptNodeRenderer::RenderNode(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanel(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), and ToJson().

mathOperator

std::string Olympe::MathOpRef::mathOperator = "+"

Arithmetic operator: "+", "-", "*", "/", "%", "^".

Definition at line 90 of file MathOpOperand.h.

Referenced by Olympe::VisualScriptEditorPanel::AddNode(), GetDisplayString(), Olympe::VisualScriptNodeRenderer::RenderNode(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanel(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), Olympe::MathOpPropertyPanel::RenderOperatorSelector(), Olympe::VisualScriptEditorPanel::SerializeAndWrite(), and ToJson().

rightOperand

MathOpOperand Olympe::MathOpRef::rightOperand

Right-hand side operand (B)

Definition at line 91 of file MathOpOperand.h.

Referenced by Olympe::VisualScriptEditorPanel::AddNode(), Olympe::DataPinEvaluator_EvaluateRecursive(), GetDisplayString(), Olympe::MathOpPropertyPanel::RenderInlineOperandEditor(), Olympe::VisualScriptNodeRenderer::RenderNode(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanel(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), and ToJson().

---

The documentation for this struct was generated from the following files:

• Source/BlueprintEditor/MathOpOperand.h
• Source/BlueprintEditor/MathOpOperand.cpp
