Immutable, shareable task graph asset. More...

#include <TaskGraphTemplate.h>

Collaboration diagram for Olympe::TaskGraphTemplate:

Public Member Functions
bool	Validate () const
	Validates the structural integrity of the template.

const TaskNodeDefinition *	GetNode (int32_t nodeId) const
	Returns a pointer to the node with the given ID, or nullptr.

void	BuildLookupCache ()
	Rebuilds the internal ID-to-node lookup map from the Nodes vector.

int	SanitizeExecConnections ()
	Phase 24.3 - Poka-Yoke: Sanitizes exec connections to remove invalid links.

Public Attributes
std::string	Name
	Friendly name of this template (e.g. "PatrolBehaviour")

std::string	Description
	Optional human-readable description.

std::vector< VariableDefinition >	LocalVariables
	Blackboard schema.

std::vector< TaskNodeDefinition >	Nodes
	All graph nodes.

int32_t	RootNodeID = NODE_INDEX_NONE
	ID of the root node (must exist in Nodes)

int32_t	EntryPointID = NODE_INDEX_NONE
	ID of the EntryPoint node (for VS graphs)

std::string	GraphType = "BehaviorTree"
	Graph type: "BehaviorTree" (legacy) or "VisualScript" (ATS VS)

std::vector< BlackboardEntry >	Blackboard
	Local blackboard declared in this graph.

std::vector< ExecPinConnection >	ExecConnections
	Explicit exec connections (ATS VS only)

std::vector< DataPinConnection >	DataConnections
	Explicit data connections (ATS VS only)

bool	IsSubGraph = false
	True if this template is a SubGraph.

std::vector< SubGraphParameterDef >	InputParameters
	Declared inputs (for subgraphs)

std::vector< SubGraphParameterDef >	OutputParameters
	Declared outputs (for subgraphs)

std::vector< ConditionPreset >	Presets
	Presets are now stored in the graph JSON, not in external files.

json	GlobalVariableValues = json::object()
	Stores JSON representation of global variable values for this specific graph instance.

Private Attributes
std::unordered_map< int32_t, const TaskNodeDefinition * >	m_nodeLookup
	Fast lookup: node ID -> pointer into Nodes vector.

Detailed Description

Immutable, shareable task graph asset.

Load once, share across many TaskRunner instances. Call BuildLookupCache() after populating Nodes so that GetNode() runs in O(1). Call Validate() before using the template to catch structural errors early.

Definition at line 178 of file TaskGraphTemplate.h.

Member Function Documentation

◆ BuildLookupCache()

void Olympe::TaskGraphTemplate::BuildLookupCache ( )

Rebuilds the internal ID-to-node lookup map from the Nodes vector.

Must be called after Nodes is populated or modified.

Definition at line 81 of file TaskGraphTemplate.cpp.

References GetComponentTypeID_Static(), m_nodeLookup, Name, Nodes, and SYSTEM_LOG.

Referenced by Olympe::BTtoVSMigrator::Convert(), Olympe::VisualScriptEditorPanel::LoadTemplate(), and Olympe::VisualScriptEditorPanel::SyncTemplateFromCanvas().

Here is the call graph for this function:

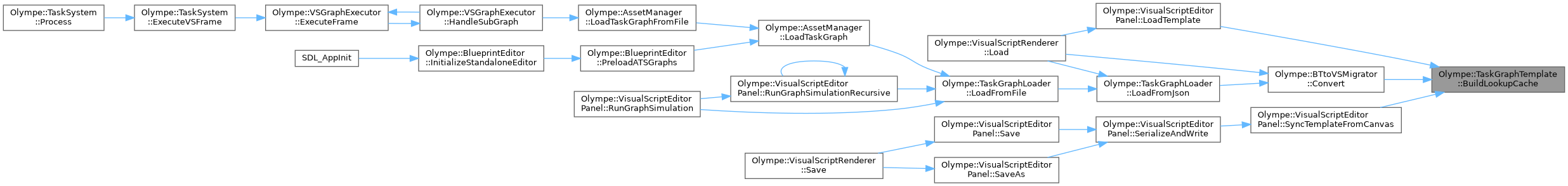

Here is the caller graph for this function:

◆ GetNode()

const TaskNodeDefinition * Olympe::TaskGraphTemplate::GetNode ( int32_t nodeId ) const

Returns a pointer to the node with the given ID, or nullptr.

Requires BuildLookupCache() to have been called after the last modification to Nodes.

Parameters

nodeId Node identifier.

Returns: Pointer to the node, or nullptr if not found.

Definition at line 71 of file TaskGraphTemplate.cpp.

References GetComponentTypeID_Static(), and m_nodeLookup.

Referenced by Olympe::VisualScriptEditorPanel::RebuildLinks(), Olympe::VisualScriptEditorPanel::RemoveLink(), and Olympe::GraphRuntimeInstance::StepExecution().

Here is the call graph for this function:

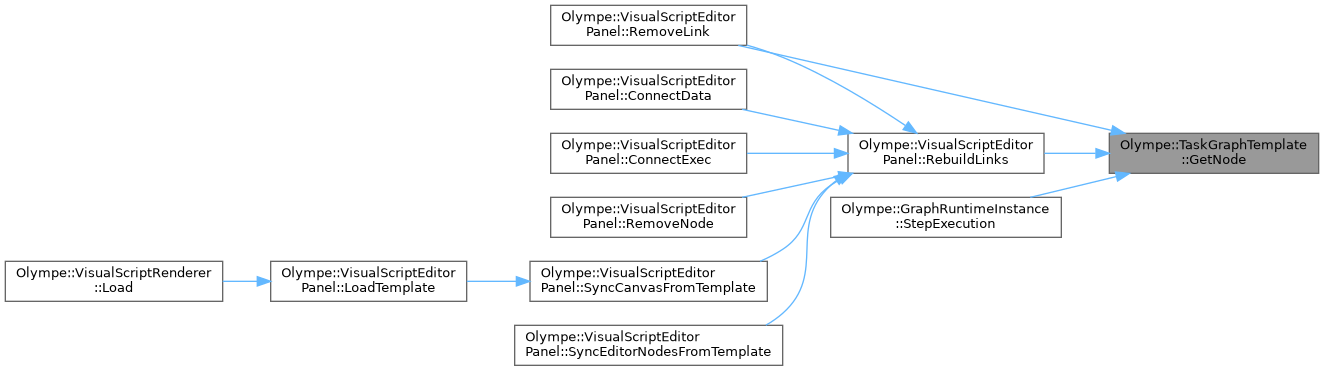

Here is the caller graph for this function:

◆ SanitizeExecConnections()

int Olympe::TaskGraphTemplate::SanitizeExecConnections ( )

Phase 24.3 - Poka-Yoke: Sanitizes exec connections to remove invalid links.

Detects and removes exec connections that violate the data-pure node constraints:

Removes any exec-in connections TO data-pure nodes (GetBBValue, MathOp)
Removes any exec-out connections FROM data-pure nodes

Logs all removed connections to SYSTEM_LOG for debugging. Safe to call multiple times (idempotent).

Returns: Number of invalid connections that were removed.

Definition at line 98 of file TaskGraphTemplate.cpp.

References ExecConnections, Olympe::GetBBValue, GetComponentTypeID_Static(), Olympe::MathOp, Nodes, and SYSTEM_LOG.

Here is the call graph for this function:

◆ Validate()

bool Olympe::TaskGraphTemplate::Validate ( ) const

Validates the structural integrity of the template.

Rules checked:

Nodes vector must not be empty.
RootNodeID must reference an existing node.
Every ChildrenID referenced by any node must reference an existing node.

Returns: true if all validation rules pass; false otherwise.

Definition at line 21 of file TaskGraphTemplate.cpp.

References Olympe::TaskNodeDefinition::ChildrenIDs, GetComponentTypeID_Static(), Name, Nodes, RootNodeID, and SYSTEM_LOG.

Here is the call graph for this function:

Member Data Documentation

◆ Blackboard

std::vector<BlackboardEntry> Olympe::TaskGraphTemplate::Blackboard

Local blackboard declared in this graph.

Definition at line 200 of file TaskGraphTemplate.h.

Referenced by Olympe::VariablePropertyPanel::RebuildVariableList(), Olympe::VariablePropertyPanel::Render(), Olympe::VisualScriptEditorPanel::RenderForEachNodeProperties(), Olympe::VisualScriptEditorPanel::RenderSubGraphNodeProperties(), Olympe::SetBBValuePropertyPanel::RenderValueInput(), Olympe::GetBBValuePropertyPanel::RenderVariableInfo(), Olympe::VisualScriptEditorPanel::RunGraphSimulation(), Olympe::VisualScriptEditorPanel::SerializeAndWrite(), and Olympe::VisualScriptEditorPanel::ValidateAndCleanBlackboardEntries().

◆ DataConnections

std::vector<DataPinConnection> Olympe::TaskGraphTemplate::DataConnections

Explicit data connections (ATS VS only)

Definition at line 206 of file TaskGraphTemplate.h.

Referenced by Olympe::VisualScriptEditorPanel::RebuildLinks(), Olympe::VisualScriptEditorPanel::RunGraphSimulation(), Olympe::VisualScriptEditorPanel::SerializeAndWrite(), and Olympe::VisualScriptEditorPanel::TraceUpstreamDataNodes().

◆ Description

std::string Olympe::TaskGraphTemplate::Description

Optional human-readable description.

Definition at line 186 of file TaskGraphTemplate.h.

◆ EntryPointID

int32_t Olympe::TaskGraphTemplate::EntryPointID = NODE_INDEX_NONE

ID of the EntryPoint node (for VS graphs)

Definition at line 194 of file TaskGraphTemplate.h.

Referenced by Olympe::VisualScriptEditorPanel::AddNode(), Olympe::BTtoVSMigrator::Convert(), Olympe::VisualScriptEditorPanel::RunGraphSimulation(), and Olympe::GraphRuntimeInstance::StartExecution().

◆ ExecConnections

std::vector<ExecPinConnection> Olympe::TaskGraphTemplate::ExecConnections

Explicit exec connections (ATS VS only)

Definition at line 203 of file TaskGraphTemplate.h.

Referenced by Olympe::BTtoVSMigrator::Convert(), Olympe::VisualScriptEditorPanel::RebuildLinks(), Olympe::VisualScriptEditorPanel::RunGraphSimulation(), SanitizeExecConnections(), and Olympe::VisualScriptEditorPanel::SerializeAndWrite().

◆ GlobalVariableValues

json Olympe::TaskGraphTemplate::GlobalVariableValues = json::object()

Stores JSON representation of global variable values for this specific graph instance.

These are entity-specific values (different from global registry defaults). Loaded from "globalVariableValues" in graph JSON during deserialization. Restored to EntityBlackboard after initialization.

Definition at line 224 of file TaskGraphTemplate.h.

Referenced by Olympe::VisualScriptEditorPanel::LoadTemplate(), Olympe::VisualScriptEditorPanel::Save(), Olympe::VisualScriptEditorPanel::SaveAs(), and Olympe::VisualScriptEditorPanel::SerializeAndWrite().

◆ GraphType

std::string Olympe::TaskGraphTemplate::GraphType = "BehaviorTree"

Graph type: "BehaviorTree" (legacy) or "VisualScript" (ATS VS)

Definition at line 197 of file TaskGraphTemplate.h.

Referenced by Olympe::BTtoVSMigrator::Convert().

◆ InputParameters

std::vector<SubGraphParameterDef> Olympe::TaskGraphTemplate::InputParameters

Declared inputs (for subgraphs)

Definition at line 210 of file TaskGraphTemplate.h.

◆ IsSubGraph

bool Olympe::TaskGraphTemplate::IsSubGraph = false

True if this template is a SubGraph.

Definition at line 209 of file TaskGraphTemplate.h.

◆ LocalVariables

std::vector<VariableDefinition> Olympe::TaskGraphTemplate::LocalVariables

Blackboard schema.

Definition at line 188 of file TaskGraphTemplate.h.

◆ m_nodeLookup

std::unordered_map<int32_t, const TaskNodeDefinition*> Olympe::TaskGraphTemplate::m_nodeLookup

private

Fast lookup: node ID -> pointer into Nodes vector.

Definition at line 277 of file TaskGraphTemplate.h.

Referenced by BuildLookupCache(), and GetNode().

◆ Name

std::string Olympe::TaskGraphTemplate::Name

Friendly name of this template (e.g. "PatrolBehaviour")

Definition at line 185 of file TaskGraphTemplate.h.

Referenced by BuildLookupCache(), Olympe::BTtoVSMigrator::Convert(), Olympe::VisualScriptEditorPanel::Initialize(), Olympe::VisualScriptEditorPanel::LoadTemplate(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), Olympe::VisualScriptEditorPanel::RenderSwitchNodeProperties(), Olympe::VisualScriptEditorPanel::RunGraphSimulation(), Olympe::VisualScriptEditorPanel::SerializeAndWrite(), and Validate().

◆ Nodes

std::vector<TaskNodeDefinition> Olympe::TaskGraphTemplate::Nodes

All graph nodes.

Definition at line 189 of file TaskGraphTemplate.h.

◆ OutputParameters

std::vector<SubGraphParameterDef> Olympe::TaskGraphTemplate::OutputParameters

Declared outputs (for subgraphs)

Definition at line 211 of file TaskGraphTemplate.h.

◆ Presets

std::vector<ConditionPreset> Olympe::TaskGraphTemplate::Presets

Presets are now stored in the graph JSON, not in external files.

This makes blueprints self-contained with no external file dependencies. Populated during LoadTemplate() from "presets" array in graph JSON.

Definition at line 217 of file TaskGraphTemplate.h.

Referenced by Olympe::VisualScriptEditorPanel::Initialize(), Olympe::VisualScriptEditorPanel::LoadTemplate(), Olympe::VisualScriptEditorPanel::SerializeAndWrite(), and Olympe::VisualScriptEditorPanel::SyncPresetsFromRegistryToTemplate().

◆ RootNodeID

int32_t Olympe::TaskGraphTemplate::RootNodeID = NODE_INDEX_NONE

ID of the root node (must exist in Nodes)

Definition at line 191 of file TaskGraphTemplate.h.

Referenced by Olympe::VisualScriptEditorPanel::AddNode(), Olympe::BTtoVSMigrator::Convert(), Olympe::VisualScriptEditorPanel::RunGraphSimulation(), Olympe::GraphRuntimeInstance::StartExecution(), and Validate().

The documentation for this class was generated from the following files:

Source/TaskSystem/TaskGraphTemplate.h
Source/TaskSystem/TaskGraphTemplate.cpp
