Olympe::Task_RequestPathfinding Class Reference

Async pathfinding task that polls PathfindingManager for completion. More...

#include <Task_RequestPathfinding.h>

Inheritance diagram for Olympe::Task_RequestPathfinding:

Collaboration diagram for Olympe::Task_RequestPathfinding:

Public Member Functions
	Task_RequestPathfinding ()
TaskStatus	ExecuteWithContext (const AtomicTaskContext &ctx, const ParameterMap &params) override
	Executes the atomic task for one frame with full runtime context.
TaskStatus	Execute (const ParameterMap &params) override
	Executes the atomic task for one frame.
void	Abort () override
	Aborts the task, releasing any in-progress state.
Public Member Functions inherited from Olympe::IAtomicTask
virtual	~IAtomicTask ()=default

Private Attributes
PathfindingManager::RequestID	m_requestID
	Active request ID (0 = none)
bool	m_hasRequest
	True after first-tick submission.

Additional Inherited Members
Public Types inherited from Olympe::IAtomicTask
using	ParameterMap = std::unordered_map< std::string, TaskValue >
	Convenience alias for the parameter map passed to Execute().

Detailed Description

Async pathfinding task that polls PathfindingManager for completion.

Definition at line 45 of file Task_RequestPathfinding.h.

Constructor & Destructor Documentation

Task_RequestPathfinding()

Olympe::Task_RequestPathfinding::Task_RequestPathfinding

(

)

Definition at line 31 of file Task_RequestPathfinding.cpp.

Member Function Documentation

Abort()

void Olympe::Task_RequestPathfinding::Abort ( )

overridevirtual

Aborts the task, releasing any in-progress state.

Called by the TaskSystem when execution is interrupted (e.g. a parent node is aborted or a new graph is bound while a task is Running). Concrete tasks must implement this to clean up timers, reservations, animations, or any other side-effects started in Execute().

Implements Olympe::IAtomicTask.

Definition at line 37 of file Task_RequestPathfinding.cpp.

References Olympe::PathfindingManager::Cancel(), Olympe::PathfindingManager::Get(), Olympe::PathfindingManager::INVALID_REQUEST_ID, m_hasRequest, m_requestID, and SYSTEM_LOG.

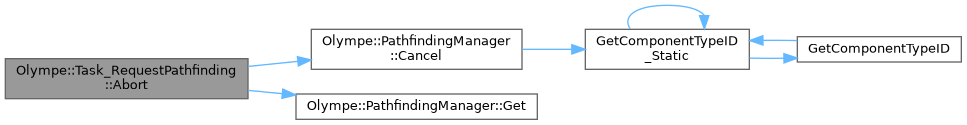

Here is the call graph for this function:

Execute()

TaskStatus Olympe::Task_RequestPathfinding::Execute ( const ParameterMap &  params )

overridevirtual

Executes the atomic task for one frame.

Parameters

params

Named parameters provided by the task graph node.

Returns

TaskStatus::Success, Failure, or Running. Returning Running causes the task to be ticked again next frame.

Implements Olympe::IAtomicTask.

Definition at line 53 of file Task_RequestPathfinding.cpp.

References Olympe::Failure.

ExecuteWithContext()

TaskStatus Olympe::Task_RequestPathfinding::ExecuteWithContext ( const AtomicTaskContext &  ctx, const ParameterMap &  params  )

overridevirtual

Executes the atomic task for one frame with full runtime context.

New tasks should override this method to access the richer context (World pointer, LocalBlackboard, EntityID, dt, StateTimer). The default implementation simply forwards to Execute(params) so all existing tasks remain compatible without any changes.

Parameters

ctx	Runtime context for this tick (Entity, World*, LocalBB, dt, StateTimer).
params	Named parameters provided by the task graph node.

Returns

TaskStatus::Success, Failure, or Running.

Reimplemented from Olympe::IAtomicTask.

Definition at line 62 of file Task_RequestPathfinding.cpp.

References Olympe::BB_KEY_PATH, Olympe::BB_KEY_POSITION, Olympe::PathfindingManager::Cancel(), Olympe::Failure, Olympe::Float, Olympe::PathfindingManager::Get(), GetComponentTypeID_Static(), Olympe::PathfindingManager::GetPathString(), Olympe::PathfindingManager::INVALID_REQUEST_ID, m_hasRequest, m_requestID, Olympe::PathfindingManager::Request(), Olympe::Running, Olympe::Success, SYSTEM_LOG, Olympe::Vector, Vector::x, and Vector::y.

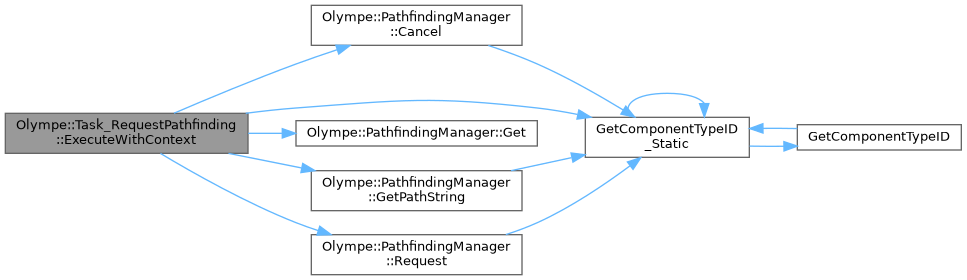

Here is the call graph for this function:

Member Data Documentation

m_hasRequest

bool Olympe::Task_RequestPathfinding::m_hasRequest

private

True after first-tick submission.

Definition at line 58 of file Task_RequestPathfinding.h.

Referenced by Abort(), and ExecuteWithContext().

m_requestID

PathfindingManager::RequestID Olympe::Task_RequestPathfinding::m_requestID

private

Active request ID (0 = none)

Definition at line 57 of file Task_RequestPathfinding.h.

Referenced by Abort(), and ExecuteWithContext().

---

The documentation for this class was generated from the following files:

• Source/TaskSystem/AtomicTasks/AI/Task_RequestPathfinding.h
• Source/TaskSystem/AtomicTasks/AI/Task_RequestPathfinding.cpp
