Stores the complete reference for one condition including operand-to-DynamicDataPin mapping. More...

#include <ConditionRef.h>

Collaboration diagram for Olympe::ConditionRef:

Public Member Functions
nlohmann::json	ToJson () const
	Serializes this ConditionRef to a JSON object.

Static Public Member Functions
static ConditionRef	FromJson (const nlohmann::json &data)
	Deserializes a ConditionRef from a JSON object.

Public Attributes
int	conditionIndex = -1
	Index in the Branch/While node's conditions[] array.

OperandRef	leftOperand
	Left-hand side of the comparison.

std::string	operatorStr = "=="
	Comparison operator: "==", "<=", ">=", "!=", "<", ">".

OperandRef	rightOperand
	Right-hand side of the comparison.

VariableType	compareType = VariableType::Float
	Expected value type of both operands.

Detailed Description

Stores the complete reference for one condition including operand-to-DynamicDataPin mapping.

Conditions whose operands are in Pin mode automatically have DynamicDataPin objects generated for them by DynamicDataPinManager. The panel renders this structure with editable fields for each component (operand values, operator, logical combinator).

Multiple ConditionRef objects on a single node are evaluated in order, combined via their implicit logical operators (And/Or).

Definition at line 95 of file ConditionRef.h.

Member Function Documentation

◆ FromJson()

ConditionRef Olympe::ConditionRef::FromJson ( const nlohmann::json & data )

static

Deserializes a ConditionRef from a JSON object.

Definition at line 96 of file ConditionRef.cpp.

References Olympe::Bool, conditionIndex, Olympe::Float, Olympe::OperandRef::FromJson(), GetComponentTypeID_Static(), Olympe::Int, and Olympe::String.

Here is the call graph for this function:

◆ ToJson()

nlohmann::json Olympe::ConditionRef::ToJson ( ) const

Serializes this ConditionRef to a JSON object.

Definition at line 73 of file ConditionRef.cpp.

References Olympe::Bool, compareType, conditionIndex, Olympe::Float, GetComponentTypeID_Static(), Olympe::Int, leftOperand, operatorStr, rightOperand, Olympe::String, and Olympe::OperandRef::ToJson().

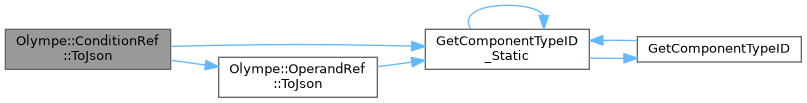

Here is the call graph for this function:

Member Data Documentation

◆ compareType

VariableType Olympe::ConditionRef::compareType = VariableType::Float

Expected value type of both operands.

Definition at line 105 of file ConditionRef.h.

Referenced by ToJson().

◆ conditionIndex

int Olympe::ConditionRef::conditionIndex = -1

Index in the Branch/While node's conditions[] array.

Definition at line 97 of file ConditionRef.h.

Referenced by Olympe::NodeConditionsPanel::AddCondition(), FromJson(), Olympe::TaskGraphLoader::ParseNodeV4(), Olympe::NodeConditionsPanel::RenderConditionList(), and ToJson().

◆ leftOperand

OperandRef Olympe::ConditionRef::leftOperand

Left-hand side of the comparison.

Definition at line 100 of file ConditionRef.h.

Referenced by Olympe::NodeConditionsPanel::RenderConditionsPreview(), and ToJson().

◆ operatorStr

std::string Olympe::ConditionRef::operatorStr = "=="

Comparison operator: "==", "<=", ">=", "!=", "<", ">".

Definition at line 101 of file ConditionRef.h.

Referenced by Olympe::DynamicDataPinManager::SyncPins(), and ToJson().

◆ rightOperand

OperandRef Olympe::ConditionRef::rightOperand

Right-hand side of the comparison.

Definition at line 102 of file ConditionRef.h.
