One side of a ConditionPreset comparison expression. More...

#include <Operand.h>

Public Member Functions
	Operand ()
	Default: Variable mode, empty string.

std::string	GetDisplayString () const
	Returns a human-readable display string.

bool	IsPin () const
	Returns true when mode == Pin.

bool	IsVariable () const
	Returns true when mode == Variable.

bool	IsConst () const
	Returns true when mode == Const.

nlohmann::json	ToJson () const
	Serializes this Operand to a JSON object.

Static Public Member Functions
static Operand	CreateVariable (const std::string &variableID)
	Factory — creates a Variable-mode operand.

static Operand	CreateConst (double constVal)
	Factory — creates a Const-mode operand.

static Operand	CreatePin (const std::string &pinLabel)
	Factory — creates a Pin-mode operand.

static Operand	FromJson (const nlohmann::json &data)
	Deserializes an Operand from a JSON object.

Public Attributes
OperandMode	mode
	Discriminator tag.

std::string	stringValue
	Variable ID or Pin label (mode == Variable\|Pin)

double	constValue
	Literal constant (mode == Const)

Detailed Description

One side of a ConditionPreset comparison expression.

Only one of stringValue / constValue is meaningful depending on mode:

Variable : stringValue holds the blackboard variable ID (e.g. "mHealth")
Const : constValue holds the literal number (e.g. 2.0)
Pin : stringValue holds the pin label (e.g. "Pin:1")

Definition at line 45 of file Operand.h.

Constructor & Destructor Documentation

◆ Operand()

Olympe::Operand::Operand ( )

Default: Variable mode, empty string.

Definition at line 21 of file Operand.cpp.

Member Function Documentation

◆ CreateConst()

Operand Olympe::Operand::CreateConst ( double constVal )

static

Factory — creates a Const-mode operand.

Parameters

constVal Literal numeric value.

Definition at line 43 of file Operand.cpp.

References Olympe::Const, constValue, GetComponentTypeID_Static(), mode, and stringValue.

Referenced by Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::Examples::Example1_SimpleHealthCheck(), Olympe::Examples::Example2_ConstModeOperand(), Olympe::Examples::Example6_ErrorHandling(), Olympe::ConditionPresetLibraryPanel::OnAddPresetClicked(), Olympe::ConditionPresetEditDialog::RenderOperandSelector(), Olympe::ConditionPresetEditDialog::SetLeftConst(), Olympe::ConditionPresetEditDialog::SetLeftMode(), Olympe::ConditionPresetEditDialog::SetRightConst(), and Olympe::ConditionPresetEditDialog::SetRightMode().

Here is the call graph for this function:

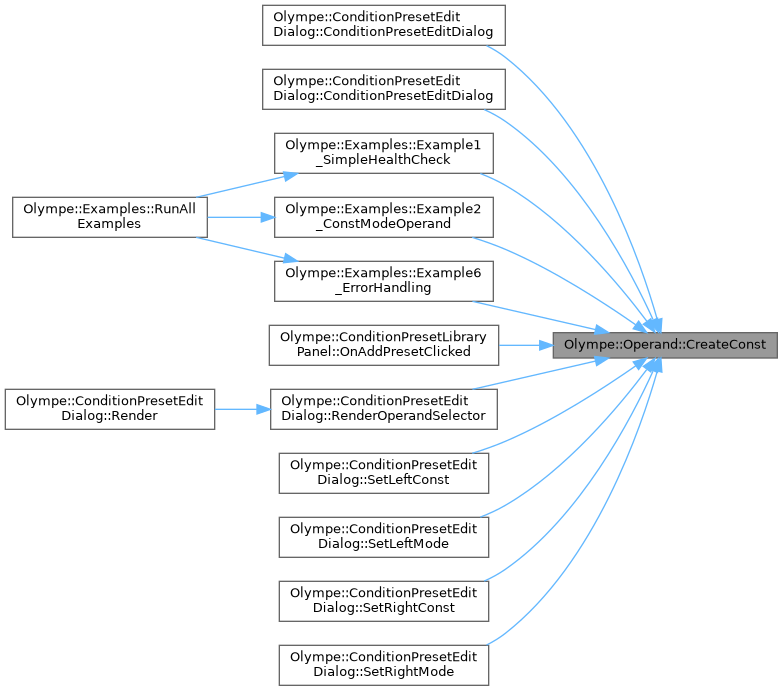

Here is the caller graph for this function:

◆ CreatePin()

Operand Olympe::Operand::CreatePin ( const std::string & pinLabel )

static

Factory — creates a Pin-mode operand.

Parameters

pinLabel Pin label shown in the UI (e.g. "Pin:1").

Definition at line 53 of file Operand.cpp.

References constValue, GetComponentTypeID_Static(), mode, Olympe::Pin, and stringValue.

Referenced by Olympe::ConditionPresetEditDialog::RenderOperandSelector(), Olympe::ConditionPresetEditDialog::SetLeftMode(), Olympe::ConditionPresetEditDialog::SetLeftPin(), Olympe::ConditionPresetEditDialog::SetRightMode(), and Olympe::ConditionPresetEditDialog::SetRightPin().

Here is the call graph for this function:

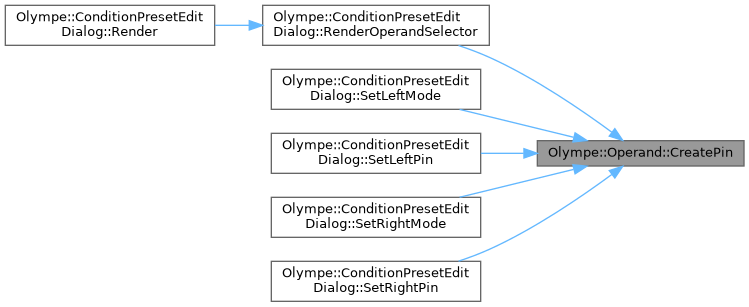

Here is the caller graph for this function:

◆ CreateVariable()

Operand Olympe::Operand::CreateVariable ( const std::string & variableID )

static

Factory — creates a Variable-mode operand.

Parameters

variableID Blackboard variable key (e.g. "mHealth").

Definition at line 33 of file Operand.cpp.

References constValue, GetComponentTypeID_Static(), mode, stringValue, and Olympe::Variable.

Referenced by Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::ConditionPresetEditDialog::ConditionPresetEditDialog(), Olympe::Examples::Example1_SimpleHealthCheck(), Olympe::Examples::Example6_ErrorHandling(), Olympe::ConditionPresetLibraryPanel::OnAddPresetClicked(), Olympe::ConditionPresetEditDialog::RenderOperandSelector(), Olympe::ConditionPresetEditDialog::SetLeftMode(), Olympe::ConditionPresetEditDialog::SetLeftVariable(), Olympe::ConditionPresetEditDialog::SetRightMode(), and Olympe::ConditionPresetEditDialog::SetRightVariable().

Here is the call graph for this function:

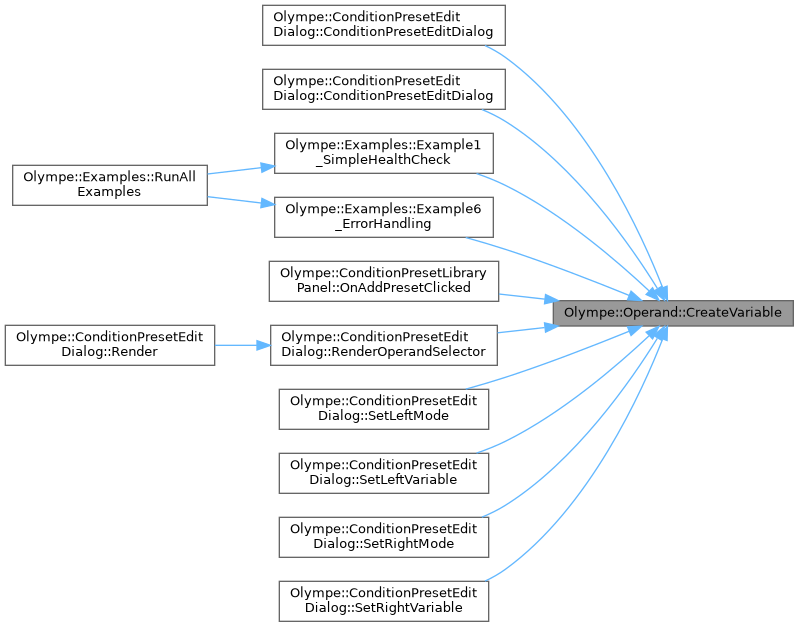

Here is the caller graph for this function:

◆ FromJson()

Operand Olympe::Operand::FromJson ( const nlohmann::json & data )

static

Deserializes an Operand from a JSON object.

Parameters

data	JSON object (must contain "mode" and "value" keys).

Definition at line 149 of file Operand.cpp.

References Olympe::Const, constValue, GetComponentTypeID_Static(), mode, Olympe::Pin, stringValue, and Olympe::Variable.

Referenced by Olympe::ConditionPreset::FromJson().

Here is the call graph for this function:

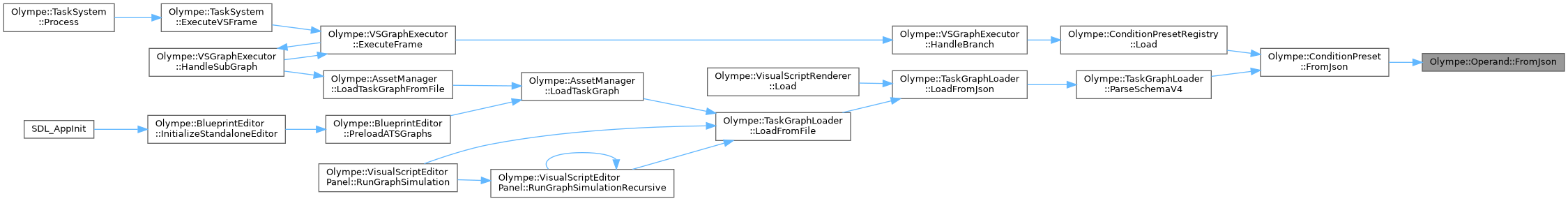

Here is the caller graph for this function:

◆ GetDisplayString()

std::string Olympe::Operand::GetDisplayString ( ) const

Returns a human-readable display string.

Examples: "[mHealth]", "[2]", "[Pin:1]"

Definition at line 66 of file Operand.cpp.

References Olympe::Const, constValue, GetComponentTypeID_Static(), mode, Olympe::Pin, stringValue, and Olympe::Variable.

Referenced by Olympe::ConditionPreset::GetPreview().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsConst()

bool Olympe::Operand::IsConst ( ) const

Returns true when mode == Const.

Definition at line 114 of file Operand.cpp.

References Olympe::Const, and mode.

◆ IsPin()

bool Olympe::Operand::IsPin ( ) const

Returns true when mode == Pin.

Definition at line 104 of file Operand.cpp.

References mode, and Olympe::Pin.

Referenced by Olympe::ConditionPreset::GetPinNeeds(), Olympe::ConditionPreset::NeedsLeftPin(), and Olympe::ConditionPreset::NeedsRightPin().

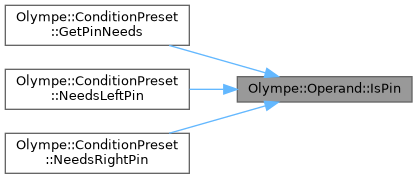

Here is the caller graph for this function:

◆ IsVariable()

bool Olympe::Operand::IsVariable ( ) const

Returns true when mode == Variable.

Definition at line 109 of file Operand.cpp.

References mode, and Olympe::Variable.

◆ ToJson()

nlohmann::json Olympe::Operand::ToJson ( ) const

Serializes this Operand to a JSON object.

Definition at line 123 of file Operand.cpp.

References Olympe::Const, constValue, GetComponentTypeID_Static(), mode, Olympe::Pin, stringValue, and Olympe::Variable.

Referenced by Olympe::ConditionPreset::ToJson().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ constValue

double Olympe::Operand::constValue

Literal constant (mode == Const)

Definition at line 48 of file Operand.h.

Referenced by CreateConst(), CreatePin(), CreateVariable(), FromJson(), GetDisplayString(), and ToJson().

◆ mode

OperandMode Olympe::Operand::mode

Discriminator tag.

Definition at line 46 of file Operand.h.

Referenced by CreateConst(), CreatePin(), CreateVariable(), FromJson(), GetDisplayString(), IsConst(), IsPin(), IsVariable(), and ToJson().

◆ stringValue

std::string Olympe::Operand::stringValue

Variable ID or Pin label (mode == Variable|Pin)

Definition at line 47 of file Operand.h.

Referenced by Olympe::NodeConditionsPanel::AddCondition(), CreateConst(), CreatePin(), CreateVariable(), FromJson(), GetDisplayString(), and ToJson().

The documentation for this struct was generated from the following files:

Source/Editor/ConditionPreset/Operand.h
Source/Editor/ConditionPreset/Operand.cpp
