Task_GotoPosition.h File Reference

Atomic task that moves an entity toward a 2D target position. More...

#include "../../IAtomicTask.h"

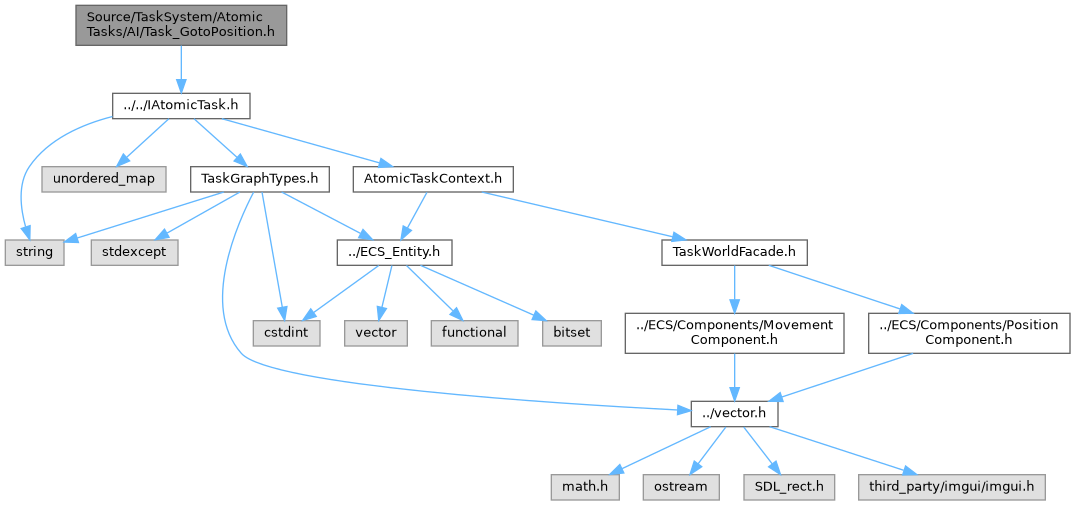

Include dependency graph for Task_GotoPosition.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Olympe::Task_GotoPosition
	Moves an entity toward a 2D (TargetX, TargetY) destination. More...

Namespaces
namespace	Olympe
	< Provides AssetID and INVALID_ASSET_ID

Detailed Description

Atomic task that moves an entity toward a 2D target position.

Author

Olympe Engine

Date

2026-03-08

Task_GotoPosition moves the entity toward (TargetX, TargetY) each frame. In headless mode it integrates the entity's "Position" key in the LocalBlackboard using ctx.DeltaTime. In World mode it writes Velocity to the MovementComponent via the ComponentFacade.

Parameters (ParameterMap): "TargetX" (Float) — X coordinate of the destination (required). "TargetY" (Float) — Y coordinate of the destination (required). "Speed" (Float) — Movement speed in units/s (optional, default 300.0).

Returns: Running while the entity is more than 5 units from the target. Success once the entity arrives (distance <= 5 units). Success immediately when ctx.World is nullptr (headless/test mode). Failure if "TargetX" or "TargetY" parameters are missing.

C++14 compliant - no C++17/20 features.

Definition in file Task_GotoPosition.h.
