#include <CollisionMap.h>

Collaboration diagram for CollisionMap:

Classes
struct	Sector

Public Types
typedef std::function< void(TileProperties &)>	TileUpdateFunc

Public Member Functions
void	Initialize (int width, int height, GridProjectionType projection, float tileWidth, float tileHeight, int numLayers=1, float tileOffsetX=0.0f, float tileOffsetY=0.0f)

void	SetActiveLayer (CollisionLayer layer)

CollisionLayer	GetActiveLayer () const

int	GetNumLayers () const

void	SetTileProperties (int x, int y, const TileProperties &props)

const TileProperties &	GetTileProperties (int x, int y) const

void	SetTileProperties (int x, int y, CollisionLayer layer, const TileProperties &props)

const TileProperties &	GetTileProperties (int x, int y, CollisionLayer layer) const

void	SetCollision (int x, int y, bool hasCollision)

bool	HasCollision (int x, int y) const

bool	HasCollision (int x, int y, CollisionLayer layer) const

void	UpdateTileState (int x, int y, TileUpdateFunc updateFunc)

void	UpdateTileState (int x, int y, CollisionLayer layer, TileUpdateFunc updateFunc)

void	WorldToGrid (float worldX, float worldY, int &outGridX, int &outGridY) const

void	GridToWorld (int gridX, int gridY, float &outWorldX, float &outWorldY) const

bool	IsValidGridPosition (int x, int y) const

bool	IsValidGridPosition (int x, int y, CollisionLayer layer) const

int	GetWidth () const

int	GetHeight () const

GridProjectionType	GetProjection () const

float	GetTileWidth () const

float	GetTileHeight () const

const std::vector< std::vector< TileProperties > > &	GetLayer (CollisionLayer layer) const

void	RegisterSector (int sectorX, int sectorY, int width, int height)

void	LoadSector (int sectorX, int sectorY)

void	UnloadSector (int sectorX, int sectorY)

const std::vector< Sector > &	GetSectors () const

void	Clear ()

	CollisionMap ()=default

	~CollisionMap ()=default

	CollisionMap (const CollisionMap &)=delete

CollisionMap &	operator= (const CollisionMap &)=delete

Static Public Member Functions
static CollisionMap &	Get ()

Public Attributes
std::vector< std::vector< std::vector< TileProperties > > >	m_layers

int	m_numLayers = 1

CollisionLayer	m_activeLayer = CollisionLayer::Ground

int	m_width = 0

int	m_height = 0

GridProjectionType	m_projection = GridProjectionType::Ortho

float	m_tileWidth = 32.0f

float	m_tileHeight = 32.0f

float	m_tileOffsetX = 0.0f

float	m_tileOffsetY = 0.0f

std::vector< Sector >	m_sectors

Static Public Attributes
static const TileProperties	s_emptyTile = TileProperties()

Detailed Description

Definition at line 86 of file CollisionMap.h.

Member Typedef Documentation

◆ TileUpdateFunc

typedef std::function<void(TileProperties&)> CollisionMap::TileUpdateFunc

Definition at line 119 of file CollisionMap.h.

Constructor & Destructor Documentation

◆ CollisionMap() [1/2]

CollisionMap::CollisionMap ( )

default

◆ ~CollisionMap()

CollisionMap::~CollisionMap ( )

default

◆ CollisionMap() [2/2]

CollisionMap::CollisionMap ( const CollisionMap & )

delete

Member Function Documentation

◆ Clear()

void CollisionMap::Clear ( )

Definition at line 336 of file CollisionMap.cpp.

References Ground, m_activeLayer, m_height, m_layers, m_numLayers, m_sectors, and m_width.

◆ Get()

static CollisionMap & CollisionMap::Get ( )

inlinestatic

Definition at line 89 of file CollisionMap.h.

References GetComponentTypeID_Static().

Referenced by World::GenerateCollisionAndNavigationMaps(), NavigationMap::GetTraversalCost(), NavigationMap::GridToWorld(), NavigationMap::IsNavigable(), GridSystem::RenderCollisionOverlay(), GridSystem::RenderNavigationOverlay(), NavigationMap::SetNavigable(), and NavigationMap::WorldToGrid().

Here is the call graph for this function:

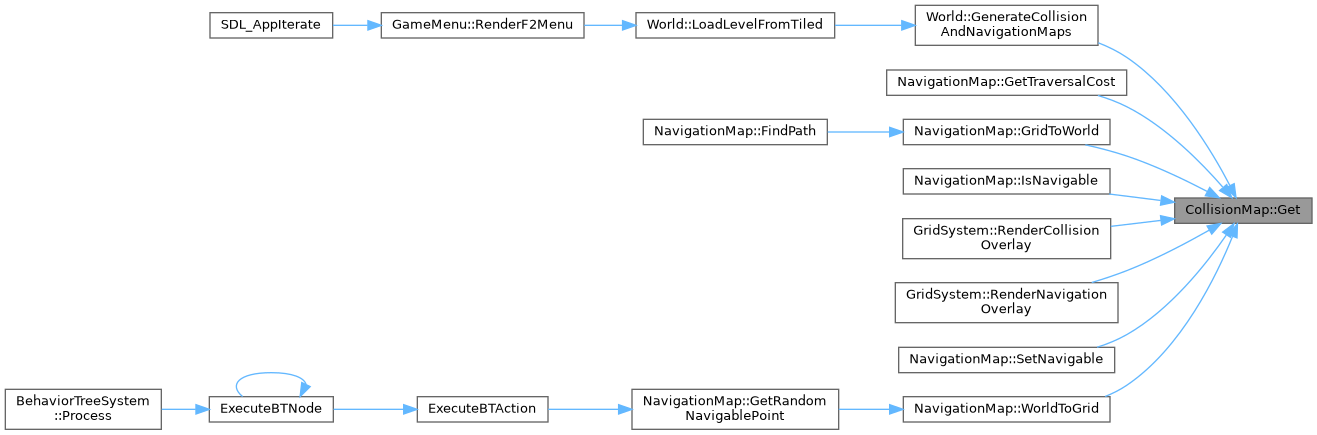

Here is the caller graph for this function:

◆ GetActiveLayer()

CollisionLayer CollisionMap::GetActiveLayer ( ) const

inline

Definition at line 102 of file CollisionMap.h.

References m_activeLayer.

◆ GetHeight()

int CollisionMap::GetHeight ( ) const

inline

Definition at line 133 of file CollisionMap.h.

References m_height.

◆ GetLayer()

const std::vector< std::vector< TileProperties > > & CollisionMap::GetLayer ( CollisionLayer layer ) const

Definition at line 286 of file CollisionMap.cpp.

References GetComponentTypeID_Static(), and m_layers.

Here is the call graph for this function:

◆ GetNumLayers()

int CollisionMap::GetNumLayers ( ) const

inline

Definition at line 103 of file CollisionMap.h.

References m_numLayers.

◆ GetProjection()

GridProjectionType CollisionMap::GetProjection ( ) const

inline

Definition at line 134 of file CollisionMap.h.

References m_projection.

◆ GetSectors()

const std::vector< Sector > & CollisionMap::GetSectors ( ) const

inline

Definition at line 153 of file CollisionMap.h.

References m_sectors.

◆ GetTileHeight()

float CollisionMap::GetTileHeight ( ) const

inline

Definition at line 136 of file CollisionMap.h.

References m_tileHeight.

◆ GetTileProperties() [1/2]

const TileProperties & CollisionMap::GetTileProperties	(	int	x,
		int	y
	)		const

Definition at line 117 of file CollisionMap.cpp.

References GetTileProperties(), and m_activeLayer.

Referenced by GetTileProperties().

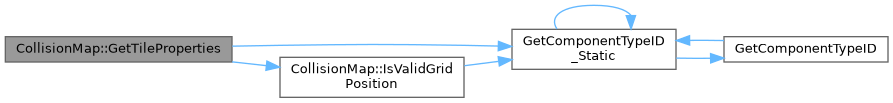

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTileProperties() [2/2]

const TileProperties & CollisionMap::GetTileProperties	(	int	x,
		int	y,
		CollisionLayer	layer
	)		const

Definition at line 132 of file CollisionMap.cpp.

References GetComponentTypeID_Static(), IsValidGridPosition(), m_layers, and s_emptyTile.

Here is the call graph for this function:

◆ GetTileWidth()

float CollisionMap::GetTileWidth ( ) const

inline

Definition at line 135 of file CollisionMap.h.

References m_tileWidth.

◆ GetWidth()

int CollisionMap::GetWidth ( ) const

inline

Definition at line 132 of file CollisionMap.h.

References m_width.

◆ GridToWorld()

void CollisionMap::GridToWorld	(	int	gridX,
		int	gridY,
		float &	outWorldX,
		float &	outWorldY
	)		const

Definition at line 241 of file CollisionMap.cpp.

References GetComponentTypeID_Static(), HexAxial, Iso, m_projection, m_tileHeight, m_tileWidth, and Ortho.

Referenced by NavigationMap::GridToWorld(), and Initialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HasCollision() [1/2]

bool CollisionMap::HasCollision	(	int	x,
		int	y
	)		const

Definition at line 152 of file CollisionMap.cpp.

References HasCollision(), and m_activeLayer.

Referenced by HasCollision().

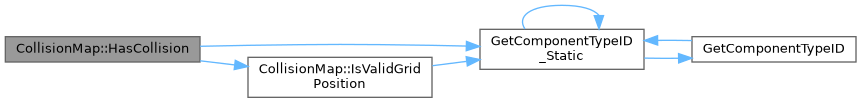

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HasCollision() [2/2]

bool CollisionMap::HasCollision	(	int	x,
		int	y,
		CollisionLayer	layer
	)		const

Definition at line 157 of file CollisionMap.cpp.

References GetComponentTypeID_Static(), IsValidGridPosition(), and m_layers.

Here is the call graph for this function:

◆ Initialize()

void CollisionMap::Initialize	(	int	width,
		int	height,
		GridProjectionType	projection,
		float	tileWidth,
		float	tileHeight,
		int	numLayers = `1`,
		float	tileOffsetX = `0.0f`,
		float	tileOffsetY = `0.0f`
	)
