Singleton registry for all BT node types. More...

#include <BTNodeRegistry.h>

Public Member Functions
void	RegisterNodeType (const BTNodeTypeInfo &info)
	Register a new node type.

const BTNodeTypeInfo *	GetNodeTypeInfo (const std::string &typeName) const
	Get metadata for a node type.

std::vector< std::string >	GetAllNodeTypes () const
	Get all registered node type names.

std::vector< std::string >	GetNodeTypesByCategory (BTNodeCategory category) const
	Get node types in a specific category.

bool	IsValidNodeType (const std::string &typeName) const
	Check if a node type exists.

bool	CanHaveChildren (const std::string &typeName) const
	Check if a node type can have children.

int	GetMinChildren (const std::string &typeName) const
	Get minimum number of children for a node type.

int	GetMaxChildren (const std::string &typeName) const
	Get maximum number of children for a node type.

Static Public Member Functions
static BTNodeRegistry &	Get ()
	Get singleton instance.

Private Member Functions
	BTNodeRegistry ()

	~BTNodeRegistry ()=default

	BTNodeRegistry (const BTNodeRegistry &)=delete

BTNodeRegistry &	operator= (const BTNodeRegistry &)=delete

void	InitializeBuiltInTypes ()
	Initialize all built-in BT node types.

Private Attributes
std::map< std::string, BTNodeTypeInfo >	m_nodeTypes

Detailed Description

Singleton registry for all BT node types.

Manages metadata for all behavior tree node types. Automatically initializes built-in types on first access. Provides queries by type name or category.

Definition at line 59 of file BTNodeRegistry.h.

Constructor & Destructor Documentation

◆ BTNodeRegistry() [1/2]

Olympe::AI::BTNodeRegistry::BTNodeRegistry ( )

private

Definition at line 29 of file BTNodeRegistry.cpp.

References InitializeBuiltInTypes().

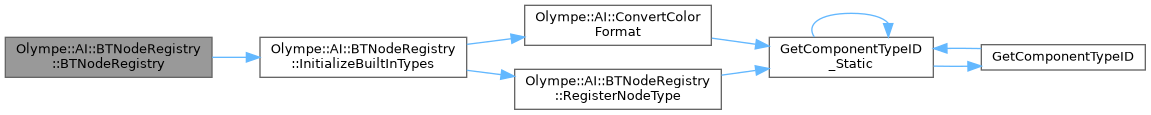

Here is the call graph for this function:

◆ ~BTNodeRegistry()

Olympe::AI::BTNodeRegistry::~BTNodeRegistry ( )

privatedefault

◆ BTNodeRegistry() [2/2]

Olympe::AI::BTNodeRegistry::BTNodeRegistry ( const BTNodeRegistry & )

privatedelete

Member Function Documentation

◆ CanHaveChildren()

bool Olympe::AI::BTNodeRegistry::CanHaveChildren ( const std::string & typeName ) const

Check if a node type can have children.

Parameters

typeName Type name to check

Returns: true if it can have children

Definition at line 464 of file BTNodeRegistry.cpp.

References GetComponentTypeID_Static(), and GetNodeTypeInfo().

Here is the call graph for this function:

◆ Get()

BTNodeRegistry & Olympe::AI::BTNodeRegistry::Get ( )

static

Get singleton instance.

Returns: Reference to global registry

Definition at line 24 of file BTNodeRegistry.cpp.

References GetComponentTypeID_Static().

Referenced by Olympe::AI::AIEditorGUI::Initialize(), Olympe::AI::BTNodePalette::RenderCategory(), Olympe::AI::AIEditorNodeRenderer::RenderNode(), Olympe::AI::BTNodePalette::RenderNodeButton(), Olympe::AI::AIEditorNodeRenderer::RenderNodeTooltip(), Test10_NodePaletteIntegration(), Test10_RegistryCategoryQuery(), Test1_RegistryInitialization(), Test2_NodeTypeQuery(), Olympe::AI::BTGraphValidator::ValidateChildrenCount(), and Olympe::AI::BTGraphValidator::ValidateNodeTypes().

Here is the call graph for this function:

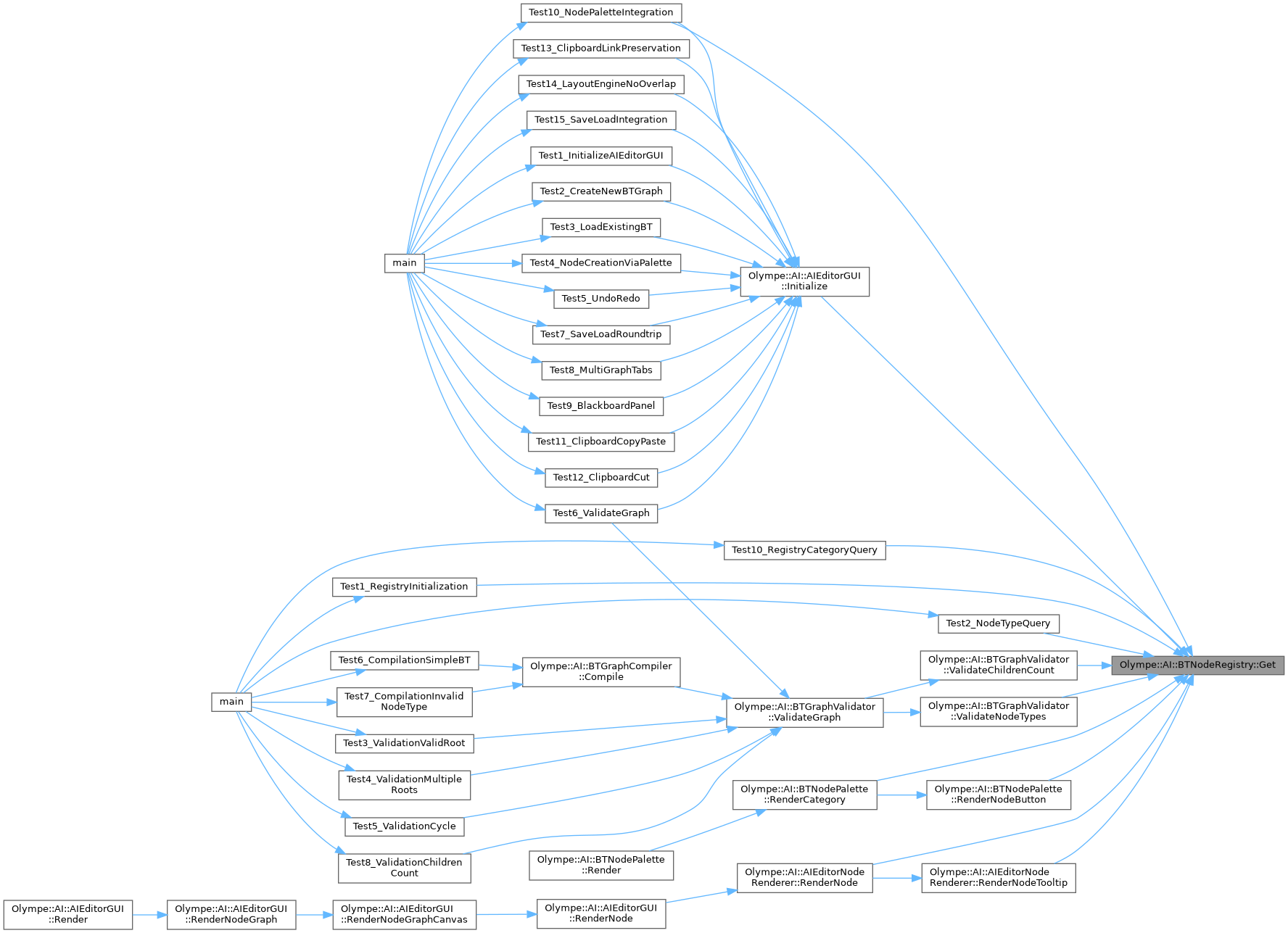

Here is the caller graph for this function:

◆ GetAllNodeTypes()

std::vector< std::string > Olympe::AI::BTNodeRegistry::GetAllNodeTypes ( ) const

Get all registered node type names.

Returns: Vector of type names

Definition at line 437 of file BTNodeRegistry.cpp.

References GetComponentTypeID_Static(), and m_nodeTypes.

Here is the call graph for this function:

◆ GetMaxChildren()

int Olympe::AI::BTNodeRegistry::GetMaxChildren ( const std::string & typeName ) const

Get maximum number of children for a node type.

Parameters

typeName Type name to query

Returns: Maximum children count (-1 = no limit)

Definition at line 482 of file BTNodeRegistry.cpp.

References GetComponentTypeID_Static(), and GetNodeTypeInfo().

Here is the call graph for this function:

◆ GetMinChildren()

int Olympe::AI::BTNodeRegistry::GetMinChildren ( const std::string & typeName ) const

Get minimum number of children for a node type.

Parameters

typeName Type name to query

Returns: Minimum children count (-1 = no limit)

Definition at line 473 of file BTNodeRegistry.cpp.

References GetComponentTypeID_Static(), and GetNodeTypeInfo().

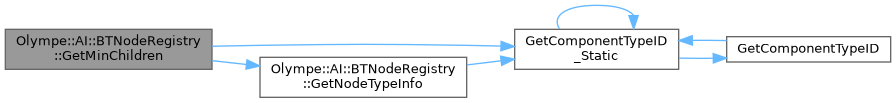

Here is the call graph for this function:

◆ GetNodeTypeInfo()

const BTNodeTypeInfo * Olympe::AI::BTNodeRegistry::GetNodeTypeInfo ( const std::string & typeName ) const

Get metadata for a node type.

Parameters

typeName Node type identifier

Returns: Pointer to metadata or nullptr if not found

Definition at line 432 of file BTNodeRegistry.cpp.

References GetComponentTypeID_Static(), and m_nodeTypes.

Referenced by CanHaveChildren(), GetMaxChildren(), and GetMinChildren().

Here is the call graph for this function:

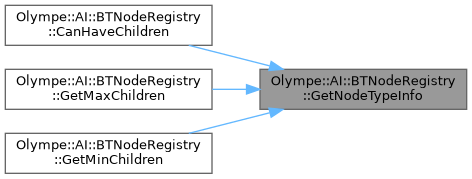

Here is the caller graph for this function:

◆ GetNodeTypesByCategory()

std::vector< std::string > Olympe::AI::BTNodeRegistry::GetNodeTypesByCategory ( BTNodeCategory category ) const

Get node types in a specific category.

Parameters

category Category to filter by

Returns: Vector of type names in the category

Definition at line 448 of file BTNodeRegistry.cpp.

References GetComponentTypeID_Static(), and m_nodeTypes.

Here is the call graph for this function:

◆ InitializeBuiltInTypes()

void Olympe::AI::BTNodeRegistry::InitializeBuiltInTypes ( )

private

Initialize all built-in BT node types.

Definition at line 33 of file BTNodeRegistry.cpp.

References Olympe::AI::Action, ColorScheme::Action_Primary, Olympe::AI::Composite, ColorScheme::Composite_Primary, Olympe::AI::Condition, Olympe::AI::ConvertColorFormat(), Olympe::AI::Decorator, ColorScheme::EntryPoint_Primary, ColorScheme::FlowControl_Primary, ColorScheme::Inverter_Primary, m_nodeTypes, RegisterNodeType(), ColorScheme::Repeater_Primary, ColorScheme::SubGraph_Primary, and SYSTEM_LOG.

Referenced by BTNodeRegistry().

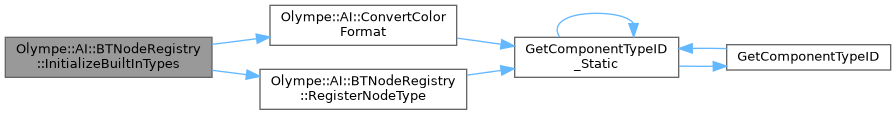

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsValidNodeType()

bool Olympe::AI::BTNodeRegistry::IsValidNodeType ( const std::string & typeName ) const

Check if a node type exists.

Parameters

typeName Type name to check

Returns: true if registered, false otherwise

Definition at line 460 of file BTNodeRegistry.cpp.

References m_nodeTypes.

◆ operator=()

BTNodeRegistry & Olympe::AI::BTNodeRegistry::operator= ( const BTNodeRegistry & )

privatedelete

◆ RegisterNodeType()

void Olympe::AI::BTNodeRegistry::RegisterNodeType ( const BTNodeTypeInfo & info )

Register a new node type.

Parameters

info	Node type metadata

Definition at line 428 of file BTNodeRegistry.cpp.

References GetComponentTypeID_Static(), and m_nodeTypes.

Referenced by InitializeBuiltInTypes().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_nodeTypes

std::map<std::string, BTNodeTypeInfo> Olympe::AI::BTNodeRegistry::m_nodeTypes

private

Definition at line 133 of file BTNodeRegistry.h.

Referenced by GetAllNodeTypes(), GetNodeTypeInfo(), GetNodeTypesByCategory(), InitializeBuiltInTypes(), IsValidNodeType(), and RegisterNodeType().

The documentation for this class was generated from the following files:

Source/AI/AIGraphPlugin_BT/BTNodeRegistry.h
Source/AI/AIGraphPlugin_BT/BTNodeRegistry.cpp
