Olympe::BBVariableRegistry Class Reference

Non-singleton registry populated from the active TaskGraphTemplate. More...

#include <BBVariableRegistry.h>

Public Member Functions
	BBVariableRegistry ()=default
void	LoadFromTemplate (const TaskGraphTemplate &tmpl)
	Rebuilds the registry from the blackboard entries of a template.
const std::vector< VarSpec > &	GetAllVariables () const
	Returns all variables (local and global), sorted by name.
std::vector< VarSpec >	GetVariablesByType (VariableType type) const
	Returns variables whose type matches type, sorted by name.
std::vector< VarSpec >	GetLocalVariables () const
	Returns only local-scope variables.
std::vector< VarSpec >	GetGlobalVariables () const
	Returns only global-scope variables.
bool	HasVariable (const std::string &name) const
	Returns true if a variable with the given name is registered.
size_t	GetCount () const
	Returns the number of registered variables.

Static Public Member Functions
static std::string	FormatDisplayLabel (const std::string &name, VariableType type, bool isGlobal)
	Formats a display label for a variable.

Private Attributes
std::vector< VarSpec >	m_vars

Detailed Description

Non-singleton registry populated from the active TaskGraphTemplate.

Intentionally non-singleton because the variable set depends on which graph is currently open in the editor. Create one instance per editor panel and call LoadFromTemplate() whenever the template changes.

Definition at line 47 of file BBVariableRegistry.h.

Constructor & Destructor Documentation

BBVariableRegistry()

Olympe::BBVariableRegistry::BBVariableRegistry ( )

default

Member Function Documentation

FormatDisplayLabel()

std::string Olympe::BBVariableRegistry::FormatDisplayLabel ( const std::string &  name, VariableType  type, bool  isGlobal  )

static

Formats a display label for a variable.

Format: "<name> (<TypeName>, <scope>)" Example: "health (Float, local)"

Parameters

name	Variable key.
type	Variable type.
isGlobal	Scope flag.

Returns

Formatted display label.

Definition at line 135 of file BBVariableRegistry.cpp.

References Olympe::VariableTypeName().

Referenced by LoadFromTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

GetAllVariables()

const std::vector< VarSpec > & Olympe::BBVariableRegistry::GetAllVariables

(

)

const

Returns all variables (local and global), sorted by name.

Definition at line 96 of file BBVariableRegistry.cpp.

References m_vars.

GetCount()

size_t Olympe::BBVariableRegistry::GetCount

(

)

const

Returns the number of registered variables.

Definition at line 153 of file BBVariableRegistry.cpp.

References m_vars.

GetGlobalVariables()

std::vector< VarSpec > Olympe::BBVariableRegistry::GetGlobalVariables

(

)

const

Returns only global-scope variables.

Definition at line 123 of file BBVariableRegistry.cpp.

References GetComponentTypeID_Static(), and m_vars.

Here is the call graph for this function:

GetLocalVariables()

std::vector< VarSpec > Olympe::BBVariableRegistry::GetLocalVariables

(

)

const

Returns only local-scope variables.

Definition at line 112 of file BBVariableRegistry.cpp.

References GetComponentTypeID_Static(), and m_vars.

Here is the call graph for this function:

GetVariablesByType()

std::vector< VarSpec > Olympe::BBVariableRegistry::GetVariablesByType

(

VariableType

type

)

const

Returns variables whose type matches type, sorted by name.

Parameters

type	VariableType filter.

Definition at line 101 of file BBVariableRegistry.cpp.

References GetComponentTypeID_Static(), and m_vars.

Here is the call graph for this function:

HasVariable()

bool Olympe::BBVariableRegistry::HasVariable

(

const std::string &

name

)

const

Returns true if a variable with the given name is registered.

Parameters

name	Variable key to look up.

Definition at line 143 of file BBVariableRegistry.cpp.

References GetComponentTypeID_Static(), and m_vars.

Here is the call graph for this function:

LoadFromTemplate()

void Olympe::BBVariableRegistry::LoadFromTemplate

(

const TaskGraphTemplate &

tmpl

)

Rebuilds the registry from the blackboard entries of a template.

Parameters

tmpl	Source template whose Blackboard vector is read.

Definition at line 41 of file BBVariableRegistry.cpp.

References FormatDisplayLabel(), Olympe::GlobalTemplateBlackboard::Get(), GetComponentTypeID_Static(), m_vars, and Olympe::VarSpec::name.

Referenced by Olympe::VisualScriptEditorPanel::RenderNodeDataParameters(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanel(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), Olympe::VisualScriptEditorPanel::RenderProperties(), Olympe::VisualScriptEditorPanel::RenderSwitchNodeProperties(), Olympe::GetBBValuePropertyPanel::RenderVariableSelector(), and Olympe::SetBBValuePropertyPanel::RenderVariableSelector().

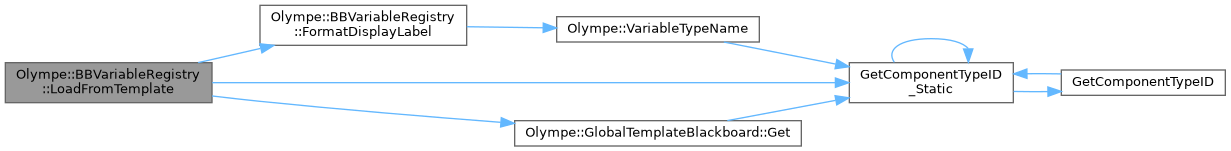

Here is the call graph for this function:

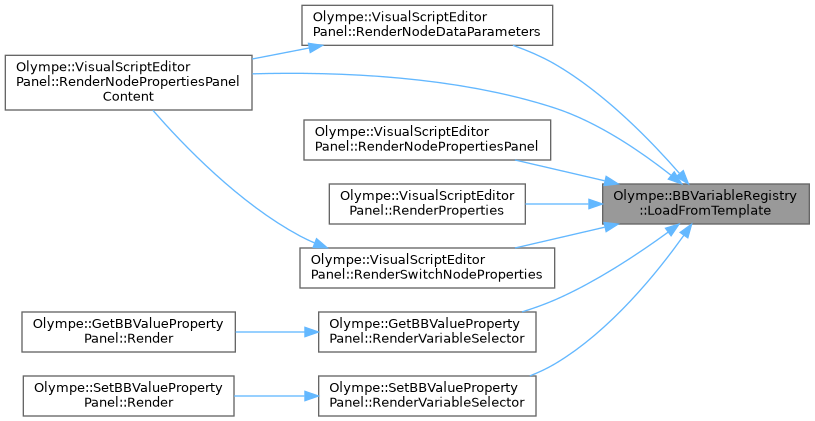

Here is the caller graph for this function:

Member Data Documentation

m_vars

std::vector<VarSpec> Olympe::BBVariableRegistry::m_vars

private

Definition at line 107 of file BBVariableRegistry.h.

Referenced by GetAllVariables(), GetCount(), GetGlobalVariables(), GetLocalVariables(), GetVariablesByType(), HasVariable(), and LoadFromTemplate().

---

The documentation for this class was generated from the following files:

• Source/BlueprintEditor/BBVariableRegistry.h
• Source/BlueprintEditor/BBVariableRegistry.cpp
