Adapts the BTNodeGraphManager + NodeGraphPanel to IGraphRenderer. More...

#include <BehaviorTreeRenderer.h>

Inheritance diagram for Olympe::BehaviorTreeRenderer:

Collaboration diagram for Olympe::BehaviorTreeRenderer:

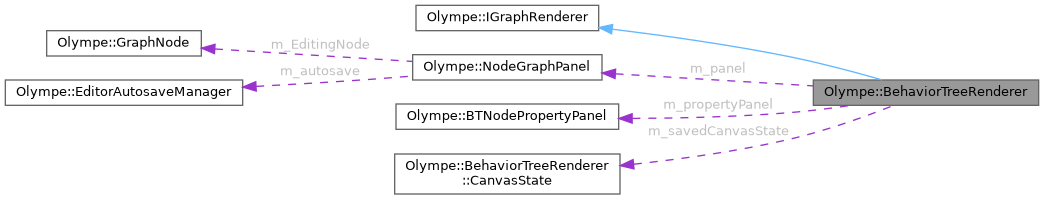

Classes
struct	CanvasState

Public Member Functions
	BehaviorTreeRenderer (NodeGraphPanel &panel)

	~BehaviorTreeRenderer ()

void	Render () override
	Renders the graph canvas into the current ImGui child window.

bool	Load (const std::string &path) override
	Loads a graph from a file on disk.

bool	Save (const std::string &path) override
	Saves the current graph state to disk.

bool	IsDirty () const override
	Returns true when the graph has unsaved changes.

std::string	GetGraphType () const override
	Returns the graph type string, e.g.

std::string	GetCurrentPath () const override
	Returns the last path successfully loaded/saved, or empty string.

bool	CreateNew (const std::string &name="Untitled BehaviorTree")
	Create a new empty BehaviorTree graph and set it active.

void	OnRunGraphClicked ()
	Run graph simulation via BehaviorTreeGraphAdapter + GraphExecutionSimulator Converts BT to graph format, executes, formats trace, and displays in ExecutionTestPanel.

Public Member Functions inherited from Olympe::IGraphRenderer
virtual	~IGraphRenderer ()

Private Member Functions
void	RenderLayoutWithTabs ()

void	RenderRightPanelTabs ()

void	AcceptNodeDrop (const std::string &nodeType, float screenX, float screenY)
	Handle drop of node type at screen position.

void	HandleKeyboardShortcuts ()
	Handle keyboard shortcuts for copy/paste/duplicate operations Ctrl+C: Copy selected node Ctrl+V: Paste nodes from clipboard Ctrl+D: Duplicate selected node.

void	SaveCanvasState () override
	Save the current canvas viewport state (pan, zoom, etc.) Called when tab is deactivated.

void	RestoreCanvasState () override
	Restore previously saved canvas viewport state Called when tab is reactivated.

std::string	GetCanvasStateJSON () const override
	Get canvas state as JSON string for persistence.

void	SetCanvasStateJSON (const std::string &json) override
	Restore canvas state from JSON string.

Private Attributes
NodeGraphPanel &	m_panel
	Shared panel reference (not owned)

std::unique_ptr< AI::BTNodePalette >	m_palette
	BTNodePalette for drag-drop.

BTNodePropertyPanel	m_propertyPanel
	Property editor for node properties.

int	m_graphId
	ID in BTNodeGraphManager; -1 if not loaded.

std::string	m_filePath
	Path that was loaded.

float	m_canvasPanelWidth = 0.75f
	Split ratio: 75% canvas, 25% right panel.

int	m_rightPanelTabSelection = 0
	0 = Palette, 1 = Properties

ImVec2	m_canvasScreenPos = ImVec2(0, 0)
	Screen position of canvas for drag-drop coordinate transformation.

std::unique_ptr< ExecutionTestPanel >	m_executionTestPanel
	REUSED: Simulation results panel.

std::unique_ptr< GraphExecutionTracer >	m_lastTracer
	Last simulation trace for results display.

struct Olympe::BehaviorTreeRenderer::CanvasState	m_savedCanvasState

Detailed Description

Adapts the BTNodeGraphManager + NodeGraphPanel to IGraphRenderer.

Phase 2 Enhancement: Now includes split-panel layout with:

75% NodeGraphPanel (canvas rendering)
25% Right panel with tabs:
- Tab 0: BTNodePalette (node selection + drag-drop)
- Tab 1: BTNodePropertyPanel (node property editing)

Each instance manages a single BT graph ID in BTNodeGraphManager. When Render() is called, this renderer sets that graph as the active one and delegates to a shared NodeGraphPanel reference for drawing.

Definition at line 44 of file BehaviorTreeRenderer.h.

Constructor & Destructor Documentation

◆ BehaviorTreeRenderer()

Olympe::BehaviorTreeRenderer::BehaviorTreeRenderer ( NodeGraphPanel & panel )

explicit

Parameters

panel Reference to the shared NodeGraphPanel owned by the editor GUI. The renderer does NOT take ownership.

Definition at line 28 of file BehaviorTreeRenderer.cpp.

References Olympe::BTNodePropertyPanel::Initialize(), m_executionTestPanel, m_lastTracer, m_palette, and m_propertyPanel.

Here is the call graph for this function:

◆ ~BehaviorTreeRenderer()

Olympe::BehaviorTreeRenderer::~BehaviorTreeRenderer ( )

Definition at line 48 of file BehaviorTreeRenderer.cpp.

References Olympe::NodeGraphManager::CloseGraph(), Olympe::NodeGraphManager::Get(), and m_graphId.

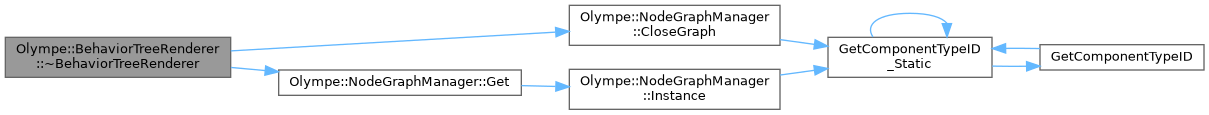

Here is the call graph for this function:

Member Function Documentation

◆ AcceptNodeDrop()

void Olympe::BehaviorTreeRenderer::AcceptNodeDrop	(	const std::string &	nodeType,
		float	screenX,
		float	screenY
	)

private

Handle drop of node type at screen position.

Parameters

nodeType	BT node type name
screenX	Absolute screen X coordinate
screenY	Absolute screen Y coordinate

Definition at line 283 of file BehaviorTreeRenderer.cpp.

References Olympe::NodeGraphManager::Get(), GetComponentTypeID_Static(), Olympe::NodeGraphManager::GetGraph(), m_canvasScreenPos, m_graphId, Olympe::StringToNodeType(), and SYSTEM_LOG.

Referenced by RenderLayoutWithTabs().

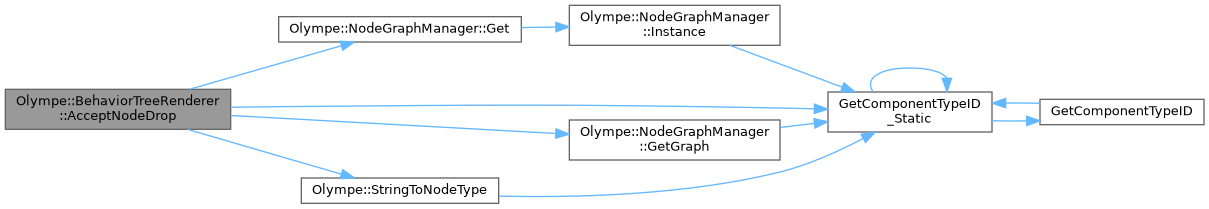

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateNew()

bool Olympe::BehaviorTreeRenderer::CreateNew ( const std::string & name = "Untitled BehaviorTree" )

Create a new empty BehaviorTree graph and set it active.

Parameters

name	Name for the new graph

Returns: true if successful

Definition at line 57 of file BehaviorTreeRenderer.cpp.

References Olympe::NodeGraphManager::CloseGraph(), Olympe::NodeGraphManager::CreateGraph(), Olympe::NodeGraphManager::Get(), m_filePath, m_graphId, Olympe::NodeGraphManager::SetActiveGraph(), and SYSTEM_LOG.

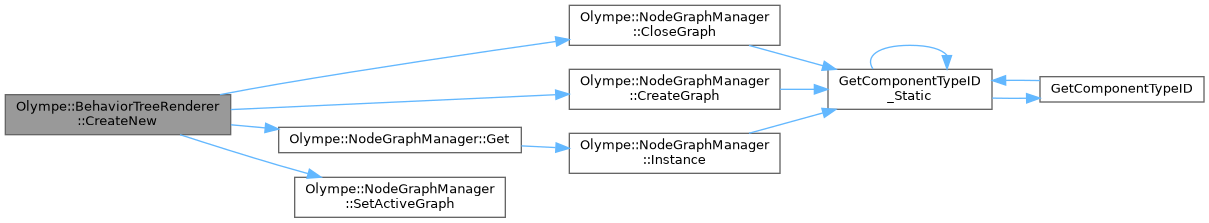

Here is the call graph for this function:

◆ GetCanvasStateJSON()

std::string Olympe::BehaviorTreeRenderer::GetCanvasStateJSON ( ) const

overrideprivatevirtual

Get canvas state as JSON string for persistence.

Returns: JSON representation of current canvas state

Reimplemented from Olympe::IGraphRenderer.

Definition at line 547 of file BehaviorTreeRenderer.cpp.

◆ GetCurrentPath()

std::string Olympe::BehaviorTreeRenderer::GetCurrentPath ( ) const

overridevirtual

Returns the last path successfully loaded/saved, or empty string.

Implements Olympe::IGraphRenderer.

Definition at line 278 of file BehaviorTreeRenderer.cpp.

References m_filePath.

◆ GetGraphType()

std::string Olympe::BehaviorTreeRenderer::GetGraphType ( ) const

overridevirtual

Returns the graph type string, e.g.

"VisualScript", "BehaviorTree".

Implements Olympe::IGraphRenderer.

Definition at line 273 of file BehaviorTreeRenderer.cpp.

◆ HandleKeyboardShortcuts()

void Olympe::BehaviorTreeRenderer::HandleKeyboardShortcuts ( )

private

Handle keyboard shortcuts for copy/paste/duplicate operations Ctrl+C: Copy selected node Ctrl+V: Paste nodes from clipboard Ctrl+D: Duplicate selected node.

Definition at line 333 of file BehaviorTreeRenderer.cpp.

References Olympe::NodeGraphManager::Get(), GetComponentTypeID_Static(), Olympe::NodeGraphManager::GetGraph(), m_graphId, m_panel, Olympe::NodeGraphPanel::m_SelectedNodeId, and SYSTEM_LOG.

Referenced by RenderLayoutWithTabs().

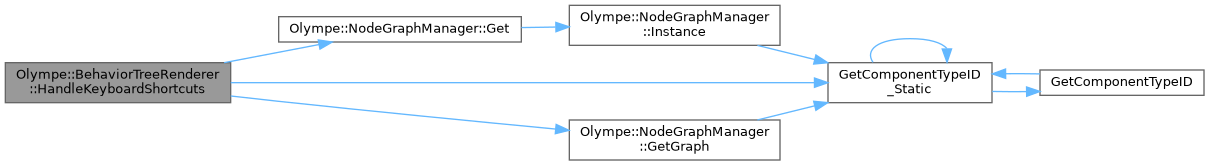

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsDirty()

bool Olympe::BehaviorTreeRenderer::IsDirty ( ) const

overridevirtual

Returns true when the graph has unsaved changes.

Implements Olympe::IGraphRenderer.

Definition at line 264 of file BehaviorTreeRenderer.cpp.

References Olympe::NodeGraphManager::Get(), GetComponentTypeID_Static(), Olympe::NodeGraphManager::GetGraph(), Olympe::NodeGraph::IsDirty(), and m_graphId.

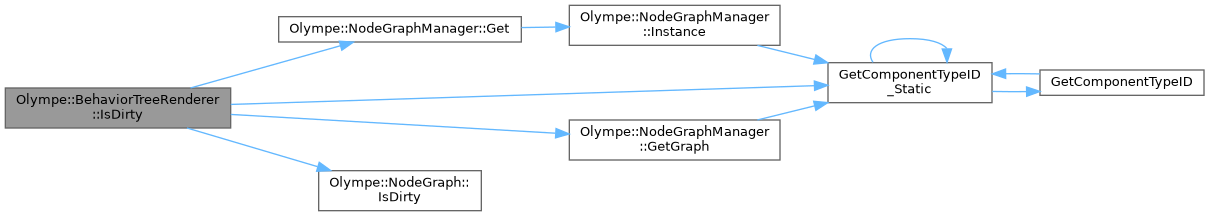

Here is the call graph for this function:

◆ Load()

bool Olympe::BehaviorTreeRenderer::Load ( const std::string & path )

overridevirtual

Loads a graph from a file on disk.

Parameters

path	Absolute or relative path to the .ats / .json file.

Returns: true on success.

Implements Olympe::IGraphRenderer.

Definition at line 222 of file BehaviorTreeRenderer.cpp.

References Olympe::NodeGraphManager::CloseGraph(), Olympe::NodeGraphManager::Get(), GetComponentTypeID_Static(), Olympe::NodeGraphManager::LoadGraph(), m_filePath, m_graphId, Olympe::NodeGraphManager::SetActiveGraph(), and SYSTEM_LOG.

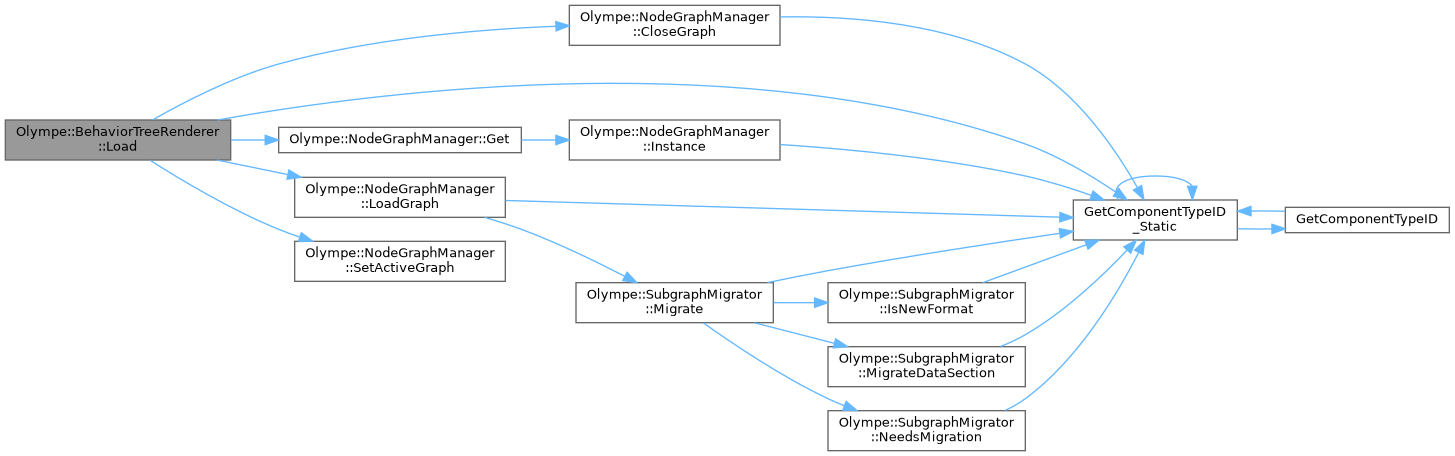

Here is the call graph for this function:

◆ OnRunGraphClicked()

void Olympe::BehaviorTreeRenderer::OnRunGraphClicked ( )

Run graph simulation via BehaviorTreeGraphAdapter + GraphExecutionSimulator Converts BT to graph format, executes, formats trace, and displays in ExecutionTestPanel.

Called by "Run Graph" toolbar button.

Definition at line 391 of file BehaviorTreeRenderer.cpp.

References Action, Olympe::BT_Action, Olympe::BT_Condition, Olympe::BT_Decorator, Olympe::BT_Inverter, Olympe::BT_OnEvent, Olympe::BT_Repeater, Olympe::BT_Root, Olympe::BT_Selector, Olympe::BT_Sequence, Olympe::BT_UntilFailure, Olympe::BT_UntilSuccess, Condition, Olympe::BehaviorTreeExecutor::ExecuteTree(), Olympe::NodeGraphManager::Get(), GetComponentTypeID_Static(), Olympe::NodeGraphManager::GetGraph(), BTNode::id, BehaviorTreeAsset::id, Inverter, m_executionTestPanel, m_graphId, Olympe::NodeGraph::name, OnEvent, Repeater, Root, Selector, Sequence, Success, and SYSTEM_LOG.
