Olympe::IGraphRenderer Class Reference

Polymorphic interface for all graph editor renderers. More...

#include <IGraphRenderer.h>

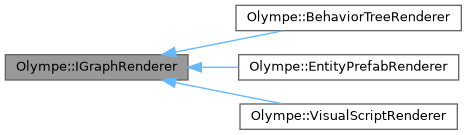

Inheritance diagram for Olympe::IGraphRenderer:

Public Member Functions
virtual	~IGraphRenderer ()
virtual void	Render ()=0
	Renders the graph canvas into the current ImGui child window.
virtual bool	Load (const std::string &path)=0
	Loads a graph from a file on disk.
virtual bool	Save (const std::string &path)=0
	Saves the current graph state to disk.
virtual bool	IsDirty () const =0
	Returns true when the graph has unsaved changes.
virtual std::string	GetGraphType () const =0
	Returns the graph type string, e.g.
virtual std::string	GetCurrentPath () const =0
	Returns the last path successfully loaded/saved, or empty string.
virtual void	SaveCanvasState ()
	Save the current canvas viewport state (pan, zoom, etc.) Called when tab is deactivated.
virtual void	RestoreCanvasState ()
	Restore previously saved canvas viewport state Called when tab is reactivated.
virtual std::string	GetCanvasStateJSON () const
	Get canvas state as JSON string for persistence.
virtual void	SetCanvasStateJSON (const std::string &json)
	Restore canvas state from JSON string.

Detailed Description

Polymorphic interface for all graph editor renderers.

Implementations are owned by TabManager via raw pointers (C++14 style). Lifetime: the owning EditorTab deletes the renderer when the tab is closed.

Definition at line 27 of file IGraphRenderer.h.

Constructor & Destructor Documentation

~IGraphRenderer()

virtual Olympe::IGraphRenderer::~IGraphRenderer ( )

inlinevirtual

Definition at line 30 of file IGraphRenderer.h.

Member Function Documentation

GetCanvasStateJSON()

virtual std::string Olympe::IGraphRenderer::GetCanvasStateJSON ( ) const

inlinevirtual

Get canvas state as JSON string for persistence.

Returns

JSON representation of current canvas state

Reimplemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

Definition at line 96 of file IGraphRenderer.h.

GetCurrentPath()

virtual std::string Olympe::IGraphRenderer::GetCurrentPath ( ) const

pure virtual

Returns the last path successfully loaded/saved, or empty string.

Implemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

GetGraphType()

virtual std::string Olympe::IGraphRenderer::GetGraphType ( ) const

pure virtual

Returns the graph type string, e.g.

"VisualScript", "BehaviorTree".

Implemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

IsDirty()

virtual bool Olympe::IGraphRenderer::IsDirty ( ) const

pure virtual

Returns true when the graph has unsaved changes.

Implemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

Load()

virtual bool Olympe::IGraphRenderer::Load ( const std::string &  path )

pure virtual

Loads a graph from a file on disk.

Parameters

path	Absolute or relative path to the .ats / .json file.

Returns

true on success.

Implemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

Render()

virtual void Olympe::IGraphRenderer::Render ( )

pure virtual

Renders the graph canvas into the current ImGui child window.

Implemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

RestoreCanvasState()

virtual void Olympe::IGraphRenderer::RestoreCanvasState ( )

inlinevirtual

Restore previously saved canvas viewport state Called when tab is reactivated.

Ensures smooth tab switching without losing layout.

Reimplemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

Definition at line 90 of file IGraphRenderer.h.

Save()

virtual bool Olympe::IGraphRenderer::Save ( const std::string &  path )

pure virtual

Saves the current graph state to disk.

Parameters

path	Destination path. If empty, save to the path passed to Load().

Returns

true on success.

Implemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

SaveCanvasState()

virtual void Olympe::IGraphRenderer::SaveCanvasState ( )

inlinevirtual

Save the current canvas viewport state (pan, zoom, etc.) Called when tab is deactivated.

Used to preserve viewport when switching between multiple tabs.

Reimplemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

Definition at line 83 of file IGraphRenderer.h.

SetCanvasStateJSON()

virtual void Olympe::IGraphRenderer::SetCanvasStateJSON ( const std::string &  json )

inlinevirtual

Restore canvas state from JSON string.

Parameters

json	JSON representation of saved canvas state

Reimplemented in Olympe::BehaviorTreeRenderer, Olympe::EntityPrefabRenderer, and Olympe::VisualScriptRenderer.

Definition at line 105 of file IGraphRenderer.h.

References GetComponentTypeID_Static().

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• Source/BlueprintEditor/IGraphRenderer.h
