Olympe::BlackboardVariablePresetRegistry Class Reference

Singleton registry for global blackboard variable presets. More...

#include <BlackboardVariablePresetRegistry.h>

Public Member Functions
	BlackboardVariablePresetRegistry (const BlackboardVariablePresetRegistry &)=delete
BlackboardVariablePresetRegistry &	operator= (const BlackboardVariablePresetRegistry &)=delete
bool	LoadFromFile (const std::string &filePath)
	Loads presets from a JSON file.
const std::vector< BlackboardVariablePreset > &	GetAllPresets () const
	Returns all loaded presets, sorted by name.
const BlackboardVariablePreset *	GetPreset (const std::string &name) const
	Returns a pointer to the preset with the given name, or nullptr.
std::vector< BlackboardVariablePreset >	GetByCategory (const std::string &category) const
	Returns all presets belonging to a given category.
std::vector< std::string >	GetAllCategories () const
	Returns all unique category names present in the registry.
bool	HasPreset (const std::string &name) const
	Returns true if a preset with the given name exists.
size_t	GetCount () const
	Returns the number of loaded presets.
void	Clear ()
	Clears all loaded presets and resets the registry.

Static Public Member Functions
static BlackboardVariablePresetRegistry &	Instance ()
	Returns the singleton instance.

Private Member Functions
	BlackboardVariablePresetRegistry ()=default

Private Attributes
std::mutex	m_mutex
	Guards m_presets during concurrent access.
std::vector< BlackboardVariablePreset >	m_presets
std::unordered_map< std::string, size_t >	m_nameIndex
	name -> index in m_presets

Detailed Description

Singleton registry for global blackboard variable presets.

Loaded from Assets/Config/BlackboardVariablePresets.json at editor startup. Provides O(1) lookup by name via internal index map. Category queries are O(n) on the preset list but cached on first access.

Thread-safety: read-only after LoadFromFile() — no locking required.

Definition at line 50 of file BlackboardVariablePresetRegistry.h.

Constructor & Destructor Documentation

BlackboardVariablePresetRegistry() [1/2]

Olympe::BlackboardVariablePresetRegistry::BlackboardVariablePresetRegistry ( const BlackboardVariablePresetRegistry &  )

delete

BlackboardVariablePresetRegistry() [2/2]

Olympe::BlackboardVariablePresetRegistry::BlackboardVariablePresetRegistry ( )

privatedefault

Member Function Documentation

Clear()

void Olympe::BlackboardVariablePresetRegistry::Clear

(

)

Clears all loaded presets and resets the registry.

Definition at line 176 of file BlackboardVariablePresetRegistry.cpp.

References m_nameIndex, and m_presets.

Referenced by LoadFromFile().

Here is the caller graph for this function:

GetAllCategories()

std::vector< std::string > Olympe::BlackboardVariablePresetRegistry::GetAllCategories

(

)

const

Returns all unique category names present in the registry.

Returns

Sorted vector of category strings.

Definition at line 142 of file BlackboardVariablePresetRegistry.cpp.

References Olympe::BlackboardVariablePreset::category, GetComponentTypeID_Static(), and m_presets.

Here is the call graph for this function:

GetAllPresets()

const std::vector< BlackboardVariablePreset > & Olympe::BlackboardVariablePresetRegistry::GetAllPresets

(

)

const

Returns all loaded presets, sorted by name.

Thread-safe: protected by an internal mutex so that concurrent calls from a FileWatcher thread and the Save path cannot race.

Returns

Const reference to the internal preset list.

Definition at line 115 of file BlackboardVariablePresetRegistry.cpp.

References GetComponentTypeID_Static(), m_mutex, and m_presets.

Here is the call graph for this function:

GetByCategory()

std::vector< BlackboardVariablePreset > Olympe::BlackboardVariablePresetRegistry::GetByCategory

(

const std::string &

category

)

const

Returns all presets belonging to a given category.

Parameters

category

Category label to filter by (case-sensitive).

Returns

Vector of matching presets (may be empty).

Definition at line 131 of file BlackboardVariablePresetRegistry.cpp.

References GetComponentTypeID_Static(), and m_presets.

Here is the call graph for this function:

GetCount()

size_t Olympe::BlackboardVariablePresetRegistry::GetCount

(

)

const

Returns the number of loaded presets.

Definition at line 171 of file BlackboardVariablePresetRegistry.cpp.

References m_presets.

GetPreset()

const BlackboardVariablePreset * Olympe::BlackboardVariablePresetRegistry::GetPreset

(

const std::string &

name

)

const

Returns a pointer to the preset with the given name, or nullptr.

Parameters

name	Variable name to look up (case-sensitive).

Returns

Pointer to preset if found, nullptr otherwise.

Definition at line 122 of file BlackboardVariablePresetRegistry.cpp.

References GetComponentTypeID_Static(), m_nameIndex, and m_presets.

Here is the call graph for this function:

HasPreset()

bool Olympe::BlackboardVariablePresetRegistry::HasPreset

(

const std::string &

name

)

const

Returns true if a preset with the given name exists.

Parameters

name	Variable name to test.

Definition at line 166 of file BlackboardVariablePresetRegistry.cpp.

References m_nameIndex.

Instance()

BlackboardVariablePresetRegistry & Olympe::BlackboardVariablePresetRegistry::Instance ( )

static

Returns the singleton instance.

Returns

Reference to the singleton.

Definition at line 26 of file BlackboardVariablePresetRegistry.cpp.

LoadFromFile()

bool Olympe::BlackboardVariablePresetRegistry::LoadFromFile

(

const std::string &

filePath

)

Loads presets from a JSON file.

Clears any previously loaded data before loading. On parse error, logs and returns false; registry remains empty.

Parameters

filePath

Absolute or relative path to the JSON preset file.

Returns

true on success, false on file/parse error.

Definition at line 36 of file BlackboardVariablePresetRegistry.cpp.

References Clear(), GetComponentTypeID_Static(), JsonHelper::GetString(), JsonHelper::LoadJsonFromFile(), m_nameIndex, m_presets, Olympe::BlackboardVariablePreset::name, and SYSTEM_LOG.

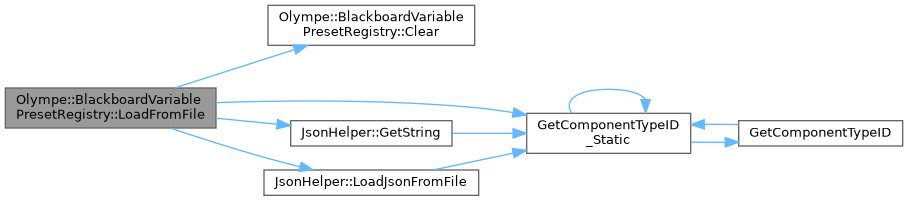

Here is the call graph for this function:

operator=()

BlackboardVariablePresetRegistry & Olympe::BlackboardVariablePresetRegistry::operator= ( const BlackboardVariablePresetRegistry &  )

delete

Member Data Documentation

m_mutex

std::mutex Olympe::BlackboardVariablePresetRegistry::m_mutex

mutableprivate

Guards m_presets during concurrent access.

Definition at line 123 of file BlackboardVariablePresetRegistry.h.

Referenced by GetAllPresets().

m_nameIndex

std::unordered_map<std::string, size_t> Olympe::BlackboardVariablePresetRegistry::m_nameIndex

private

name -> index in m_presets

Definition at line 125 of file BlackboardVariablePresetRegistry.h.

Referenced by Clear(), GetPreset(), HasPreset(), and LoadFromFile().

m_presets

std::vector<BlackboardVariablePreset> Olympe::BlackboardVariablePresetRegistry::m_presets

private

Definition at line 124 of file BlackboardVariablePresetRegistry.h.

Referenced by Clear(), GetAllCategories(), GetAllPresets(), GetByCategory(), GetCount(), GetPreset(), and LoadFromFile().

---

The documentation for this class was generated from the following files:

• Source/BlueprintEditor/BlackboardVariablePresetRegistry.h
• Source/BlueprintEditor/BlackboardVariablePresetRegistry.cpp
