Unified minimap renderer for standardized appearance. More...

#include <CanvasMinimapRenderer.h>

Collaboration diagram for Olympe::CanvasMinimapRenderer:

Public Member Functions
	CanvasMinimapRenderer ()

virtual	~CanvasMinimapRenderer ()=default

void	SetVisible (bool visible)
	Set minimap visibility.

bool	IsVisible () const
	Check if minimap should be rendered.

void	SetSize (float ratio)
	Set minimap size as ratio of canvas (0.05 - 0.5)

float	GetSize () const
	Get current size ratio.

void	SetPosition (MinimapPosition pos)
	Set minimap corner position.

MinimapPosition	GetPosition () const
	Get current position.

void	UpdateNodes (const std::vector< std::tuple< int, float, float, float, float > > &nodes, float graphMinX, float graphMaxX, float graphMinY, float graphMaxY)
	Update node positions from raw graph data.

void	UpdateViewport (float viewMinX, float viewMaxX, float viewMinY, float viewMaxY, float graphMinX, float graphMaxX, float graphMinY, float graphMaxY)
	Update visible viewport.

void	RenderImNodes () const
	Render minimap using ImNodes native API.

void	RenderCustom (const ImVec2 &canvasScreenPos, const ImVec2 &canvasSize) const
	Render minimap using custom ImGui drawing.

const std::vector< MinimapNodeData > &	GetNormalisedNodes () const
	Get normalised node positions for custom rendering.

const MinimapViewportData &	GetNormalisedViewport () const
	Get normalised viewport rectangle for custom rendering.

void	SetBackgroundColor (ImU32 color)
	Set minimap background color (RGBA)

void	SetNodeColor (ImU32 color)
	Set minimap node color (RGBA)

void	SetViewportColor (ImU32 color)
	Set minimap viewport rectangle color (RGBA)

Static Public Attributes
static constexpr float	DEFAULT_WIDTH = 200.0f

static constexpr float	DEFAULT_HEIGHT = 150.0f

Static Private Member Functions
static float	NormaliseCoord (float value, float minVal, float maxVal)

Private Attributes
bool	m_visible

float	m_sizeRatio
	0.05 - 0.5 ratio of canvas

MinimapPosition	m_position

std::vector< MinimapNodeData >	m_normalisedNodes

MinimapViewportData	m_normalisedViewport

ImU32	m_backgroundColor

ImU32	m_nodeColor

ImU32	m_viewportColor

Detailed Description

Unified minimap renderer for standardized appearance.

Typical usage:

CanvasMinimapRenderer minimap;
minimap.SetSize(0.15f);  // 15% of canvas
minimap.SetPosition(MinimapPosition::TopRight);

// Before rendering:
minimap.UpdateNodes(nodesList, graphMinX, graphMaxX, graphMinY, graphMaxY);
minimap.UpdateViewport(viewX, viewY, viewW, viewH, graphBounds);

// During render:
if (minimap.IsVisible())
{
    minimap.RenderCustom(drawList, canvasScreenPos, canvasSize);
    // OR for ImNodes:
    minimap.RenderImNodes();
}

Definition at line 90 of file CanvasMinimapRenderer.h.

Constructor & Destructor Documentation

◆ CanvasMinimapRenderer()

Olympe::CanvasMinimapRenderer::CanvasMinimapRenderer ( )

Definition at line 16 of file CanvasMinimapRenderer.cpp.

◆ ~CanvasMinimapRenderer()

virtual Olympe::CanvasMinimapRenderer::~CanvasMinimapRenderer ( )

virtualdefault

Member Function Documentation

◆ GetNormalisedNodes()

const std::vector< MinimapNodeData > & Olympe::CanvasMinimapRenderer::GetNormalisedNodes ( ) const

Get normalised node positions for custom rendering.

Definition at line 220 of file CanvasMinimapRenderer.cpp.

References m_normalisedNodes.

◆ GetNormalisedViewport()

const MinimapViewportData & Olympe::CanvasMinimapRenderer::GetNormalisedViewport ( ) const

Get normalised viewport rectangle for custom rendering.

Definition at line 225 of file CanvasMinimapRenderer.cpp.

References m_normalisedViewport.

◆ GetPosition()

MinimapPosition Olympe::CanvasMinimapRenderer::GetPosition ( ) const

Get current position.

Definition at line 56 of file CanvasMinimapRenderer.cpp.

References m_position.

◆ GetSize()

float Olympe::CanvasMinimapRenderer::GetSize ( ) const

Get current size ratio.

Definition at line 46 of file CanvasMinimapRenderer.cpp.

References m_sizeRatio.

◆ IsVisible()

bool Olympe::CanvasMinimapRenderer::IsVisible ( ) const

Check if minimap should be rendered.

Definition at line 35 of file CanvasMinimapRenderer.cpp.

References m_visible.

◆ NormaliseCoord()

float Olympe::CanvasMinimapRenderer::NormaliseCoord	(	float	value,
		float	minVal,
		float	maxVal
	)

staticprivate

Definition at line 65 of file CanvasMinimapRenderer.cpp.

References GetComponentTypeID_Static().

Referenced by UpdateNodes(), and UpdateViewport().

Here is the call graph for this function:

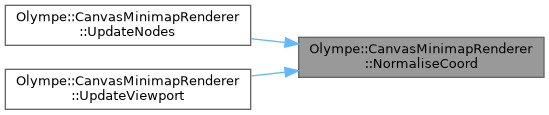

Here is the caller graph for this function:

◆ RenderCustom()

void Olympe::CanvasMinimapRenderer::RenderCustom	(	const ImVec2 &	canvasScreenPos,
		const ImVec2 &	canvasSize
	)		const

Render minimap using custom ImGui drawing.

Parameters

canvasScreenPos	Top-left of canvas on screen
canvasSize	Canvas dimensions in screen pixels

Definition at line 140 of file CanvasMinimapRenderer.cpp.

References Olympe::BottomLeft, Olympe::BottomRight, GetComponentTypeID_Static(), Olympe::MinimapViewportData::h, m_backgroundColor, m_nodeColor, m_normalisedNodes, m_normalisedViewport, m_position, m_sizeRatio, m_viewportColor, m_visible, Olympe::TopLeft, Olympe::TopRight, Olympe::MinimapViewportData::w, Olympe::MinimapViewportData::x, and Olympe::MinimapViewportData::y.

Here is the call graph for this function:

◆ RenderImNodes()

void Olympe::CanvasMinimapRenderer::RenderImNodes ( ) const

Render minimap using ImNodes native API.

Must be called BEFORE ImNodes::EndNodeEditor()

Definition at line 130 of file CanvasMinimapRenderer.cpp.

References GetComponentTypeID_Static(), m_position, m_sizeRatio, and m_visible.

Here is the call graph for this function:

◆ SetBackgroundColor()

void Olympe::CanvasMinimapRenderer::SetBackgroundColor ( ImU32 color )

Set minimap background color (RGBA)

Definition at line 234 of file CanvasMinimapRenderer.cpp.

References m_backgroundColor.

◆ SetNodeColor()

void Olympe::CanvasMinimapRenderer::SetNodeColor ( ImU32 color )

Set minimap node color (RGBA)

Definition at line 239 of file CanvasMinimapRenderer.cpp.

References m_nodeColor.

◆ SetPosition()

void Olympe::CanvasMinimapRenderer::SetPosition ( MinimapPosition pos )

Set minimap corner position.

Definition at line 51 of file CanvasMinimapRenderer.cpp.

References GetComponentTypeID_Static(), and m_position.

Here is the call graph for this function:

◆ SetSize()

void Olympe::CanvasMinimapRenderer::SetSize ( float ratio )

Set minimap size as ratio of canvas (0.05 - 0.5)

Definition at line 40 of file CanvasMinimapRenderer.cpp.

References GetComponentTypeID_Static(), and m_sizeRatio.

Here is the call graph for this function:

◆ SetViewportColor()

void Olympe::CanvasMinimapRenderer::SetViewportColor ( ImU32 color )

Set minimap viewport rectangle color (RGBA)

Definition at line 244 of file CanvasMinimapRenderer.cpp.

References m_viewportColor.

◆ SetVisible()

void Olympe::CanvasMinimapRenderer::SetVisible ( bool visible )

Set minimap visibility.

Definition at line 30 of file CanvasMinimapRenderer.cpp.

References m_visible.

◆ UpdateNodes()

void Olympe::CanvasMinimapRenderer::UpdateNodes	(	const std::vector< std::tuple< int, float, float, float, float > > &	nodes,
		float	graphMinX,
		float	graphMaxX,
		float	graphMinY,
		float	graphMaxY
	)

Update node positions from raw graph data.

Parameters

nodes	Vector of (nodeId, posX, posY, width, height) tuples
graphMinX	Graph bounds left edge
graphMaxX	Graph bounds right edge
graphMinY	Graph bounds top edge
graphMaxY	Graph bounds bottom edge

Definition at line 80 of file CanvasMinimapRenderer.cpp.

References GetComponentTypeID_Static(), m_normalisedNodes, Olympe::MinimapNodeData::nodeId, and NormaliseCoord().

Here is the call graph for this function:

◆ UpdateViewport()

void Olympe::CanvasMinimapRenderer::UpdateViewport	(	float	viewMinX,
		float	viewMaxX,
		float	viewMinY,
		float	viewMaxY,
		float	graphMinX,
		float	graphMaxX,
		float	graphMinY,
		float	graphMaxY
	)

Update visible viewport.

Parameters

viewMinX	Left edge of visible area (graph space)
viewMaxX	Right edge of visible area (graph space)
viewMinY	Top edge of visible area (graph space)
viewMaxY	Bottom edge of visible area (graph space)
graphMinX	Graph bounds left edge
graphMaxX	Graph bounds right edge
graphMinY	Graph bounds top edge
graphMaxY	Graph bounds bottom edge

Definition at line 110 of file CanvasMinimapRenderer.cpp.

References GetComponentTypeID_Static(), Olympe::MinimapViewportData::h, m_normalisedViewport, NormaliseCoord(), Olympe::MinimapViewportData::w, Olympe::MinimapViewportData::x, and Olympe::MinimapViewportData::y.

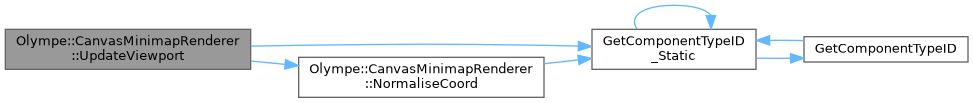

Here is the call graph for this function:

Member Data Documentation

◆ DEFAULT_HEIGHT

constexpr float Olympe::CanvasMinimapRenderer::DEFAULT_HEIGHT = 150.0f

staticconstexpr

Definition at line 95 of file CanvasMinimapRenderer.h.

◆ DEFAULT_WIDTH

constexpr float Olympe::CanvasMinimapRenderer::DEFAULT_WIDTH = 200.0f

staticconstexpr

Definition at line 94 of file CanvasMinimapRenderer.h.

◆ m_backgroundColor

ImU32 Olympe::CanvasMinimapRenderer::m_backgroundColor

private

Definition at line 232 of file CanvasMinimapRenderer.h.

Referenced by RenderCustom(), and SetBackgroundColor().

◆ m_nodeColor

ImU32 Olympe::CanvasMinimapRenderer::m_nodeColor

private

Definition at line 233 of file CanvasMinimapRenderer.h.

Referenced by RenderCustom(), and SetNodeColor().

◆ m_normalisedNodes

std::vector<MinimapNodeData> Olympe::CanvasMinimapRenderer::m_normalisedNodes

private

Definition at line 228 of file CanvasMinimapRenderer.h.

Referenced by GetNormalisedNodes(), RenderCustom(), and UpdateNodes().

◆ m_normalisedViewport

MinimapViewportData Olympe::CanvasMinimapRenderer::m_normalisedViewport

private

Definition at line 229 of file CanvasMinimapRenderer.h.

Referenced by GetNormalisedViewport(), RenderCustom(), and UpdateViewport().

◆ m_position

MinimapPosition Olympe::CanvasMinimapRenderer::m_position

private

Definition at line 225 of file CanvasMinimapRenderer.h.

Referenced by GetPosition(), RenderCustom(), RenderImNodes(), and SetPosition().

◆ m_sizeRatio

float Olympe::CanvasMinimapRenderer::m_sizeRatio

private

0.05 - 0.5 ratio of canvas

Definition at line 224 of file CanvasMinimapRenderer.h.

Referenced by GetSize(), RenderCustom(), RenderImNodes(), and SetSize().

◆ m_viewportColor

ImU32 Olympe::CanvasMinimapRenderer::m_viewportColor

private

Definition at line 234 of file CanvasMinimapRenderer.h.

Referenced by RenderCustom(), and SetViewportColor().

◆ m_visible

bool Olympe::CanvasMinimapRenderer::m_visible

private

Definition at line 223 of file CanvasMinimapRenderer.h.

Referenced by IsVisible(), RenderCustom(), RenderImNodes(), and SetVisible().

The documentation for this class was generated from the following files:

Source/BlueprintEditor/Utilities/CanvasMinimapRenderer.h
Source/BlueprintEditor/Utilities/CanvasMinimapRenderer.cpp
