Olympe::EditNodePropertyCommand Class Reference

Records a property edit on a single node for undo/redo. More...

#include <UndoRedoStack.h>

Inheritance diagram for Olympe::EditNodePropertyCommand:

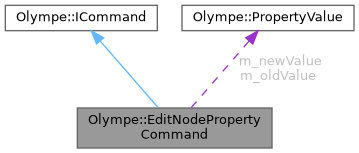

Collaboration diagram for Olympe::EditNodePropertyCommand:

Public Member Functions
	EditNodePropertyCommand (int32_t nodeID, const std::string &propertyKey, const PropertyValue &oldValue, const PropertyValue &newValue)
void	Execute (TaskGraphTemplate &graph) override
	Applies the command to the graph.
void	Undo (TaskGraphTemplate &graph) override
	Reverses the command on the graph.
std::string	GetDescription () const override
	Returns a short human-readable description (e.g.
Public Member Functions inherited from Olympe::ICommand
virtual	~ICommand ()=default

Static Private Member Functions
static void	ApplyValue (TaskNodeDefinition &node, const std::string &key, const PropertyValue &value)
	Applies value to the named field of node.

Private Attributes
int32_t	m_nodeID
std::string	m_propertyKey
PropertyValue	m_oldValue
PropertyValue	m_newValue

Detailed Description

Records a property edit on a single node for undo/redo.

Covers all editable fields exposed by the Properties panel: NodeName, AtomicTaskID, DelaySeconds, ConditionID, BBKey, MathOperator, SubGraphPath.

Uses the "commit on release" pattern: the command is pushed only when the ImGui widget loses focus after an edit (IsItemDeactivatedAfterEdit), so a single undo entry is created per editing session, not one per keystroke.

Definition at line 228 of file UndoRedoStack.h.

Constructor & Destructor Documentation

EditNodePropertyCommand()

Olympe::EditNodePropertyCommand::EditNodePropertyCommand	(	int32_t	nodeID,
		const std::string &	propertyKey,
		const PropertyValue &	oldValue,
		const PropertyValue &	newValue
	)

Definition at line 323 of file UndoRedoStack.cpp.

Member Function Documentation

ApplyValue()

void Olympe::EditNodePropertyCommand::ApplyValue ( TaskNodeDefinition &  node, const std::string &  key, const PropertyValue &  value  )

staticprivate

Applies value to the named field of node.

Definition at line 334 of file UndoRedoStack.cpp.

References Olympe::PropertyValue::floatVal, GetComponentTypeID_Static(), and Olympe::PropertyValue::strVal.

Referenced by Execute(), and Undo().

Here is the call graph for this function:

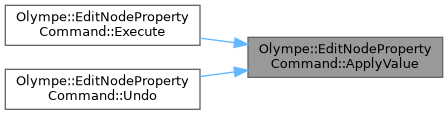

Here is the caller graph for this function:

Execute()

void Olympe::EditNodePropertyCommand::Execute ( TaskGraphTemplate &  graph )

overridevirtual

Applies the command to the graph.

Implements Olympe::ICommand.

Definition at line 354 of file UndoRedoStack.cpp.

References ApplyValue(), GetComponentTypeID_Static(), m_newValue, m_nodeID, and m_propertyKey.

Here is the call graph for this function:

GetDescription()

std::string Olympe::EditNodePropertyCommand::GetDescription ( ) const

overridevirtual

Returns a short human-readable description (e.g.

"Add Node #3").

Implements Olympe::ICommand.

Definition at line 380 of file UndoRedoStack.cpp.

References GetComponentTypeID_Static(), m_nodeID, and m_propertyKey.

Here is the call graph for this function:

Undo()

void Olympe::EditNodePropertyCommand::Undo ( TaskGraphTemplate &  graph )

overridevirtual

Reverses the command on the graph.

Implements Olympe::ICommand.

Definition at line 367 of file UndoRedoStack.cpp.

References ApplyValue(), GetComponentTypeID_Static(), m_nodeID, m_oldValue, and m_propertyKey.

Here is the call graph for this function:

Member Data Documentation

m_newValue

PropertyValue Olympe::EditNodePropertyCommand::m_newValue

private

Definition at line 243 of file UndoRedoStack.h.

Referenced by Execute().

m_nodeID

int32_t Olympe::EditNodePropertyCommand::m_nodeID

private

Definition at line 240 of file UndoRedoStack.h.

Referenced by Execute(), GetDescription(), and Undo().

m_oldValue

PropertyValue Olympe::EditNodePropertyCommand::m_oldValue

private

Definition at line 242 of file UndoRedoStack.h.

Referenced by Undo().

m_propertyKey

std::string Olympe::EditNodePropertyCommand::m_propertyKey

private

Definition at line 241 of file UndoRedoStack.h.

Referenced by Execute(), GetDescription(), and Undo().

---

The documentation for this class was generated from the following files:

• Source/BlueprintEditor/UndoRedoStack.h
• Source/BlueprintEditor/UndoRedoStack.cpp
