Olympe::GlobalBlackboard Class Reference

Process-wide singleton blackboard storing TaskValue entries. More...

#include <GlobalBlackboard.h>

Public Member Functions
TaskValue	GetVar (const std::string &key) const
	Reads a variable by key.
void	SetVar (const std::string &key, const TaskValue &value)
	Writes or creates a variable.
bool	IsDirty () const
	Returns true if any variable has been modified since the last ClearDirty().
void	MarkDirty ()
	Marks the blackboard as modified (called automatically by SetVar).
void	ClearDirty ()
	Clears the dirty flag (call after persisting).
bool	HasVar (const std::string &key) const
	Checks whether a variable exists.
void	Clear ()
	Removes all variables (useful in tests / level transitions).

Static Public Member Functions
static GlobalBlackboard &	Get ()
	Returns the singleton instance.

Private Member Functions
	GlobalBlackboard ()=default
	~GlobalBlackboard ()=default
	GlobalBlackboard (const GlobalBlackboard &)=delete
GlobalBlackboard &	operator= (const GlobalBlackboard &)=delete
	GlobalBlackboard (GlobalBlackboard &&)=delete
GlobalBlackboard &	operator= (GlobalBlackboard &&)=delete

Private Attributes
std::unordered_map< std::string, TaskValue >	m_store
bool	m_dirty = false

Detailed Description

Process-wide singleton blackboard storing TaskValue entries.

All VS graph nodes sharing the same process can read and write GlobalBlackboard variables using the "global:" scope prefix.

Example:

// Write:
GlobalBlackboard::Get().SetVar("GamePhase", TaskValue(std::string("Combat")));

// Read:
TaskValue v = GlobalBlackboard::Get().GetVar("GamePhase");

Definition at line 50 of file GlobalBlackboard.h.

Constructor & Destructor Documentation

GlobalBlackboard() [1/3]

Olympe::GlobalBlackboard::GlobalBlackboard ( )

privatedefault

~GlobalBlackboard()

Olympe::GlobalBlackboard::~GlobalBlackboard ( )

privatedefault

GlobalBlackboard() [2/3]

Olympe::GlobalBlackboard::GlobalBlackboard ( const GlobalBlackboard &  )

privatedelete

GlobalBlackboard() [3/3]

Olympe::GlobalBlackboard::GlobalBlackboard ( GlobalBlackboard &&  )

privatedelete

Member Function Documentation

Clear()

void Olympe::GlobalBlackboard::Clear ( )

inline

Removes all variables (useful in tests / level transitions).

Definition at line 119 of file GlobalBlackboard.h.

References m_dirty, and m_store.

ClearDirty()

void Olympe::GlobalBlackboard::ClearDirty ( )

inline

Clears the dirty flag (call after persisting).

Definition at line 104 of file GlobalBlackboard.h.

References m_dirty.

Get()

static GlobalBlackboard & Olympe::GlobalBlackboard::Get ( )

inlinestatic

Returns the singleton instance.

Returns

Reference to the single GlobalBlackboard instance.

Definition at line 57 of file GlobalBlackboard.h.

References GetComponentTypeID_Static().

Referenced by Olympe::LocalBlackboard::GetValueScoped(), and Olympe::LocalBlackboard::SetValueScoped().

Here is the call graph for this function:

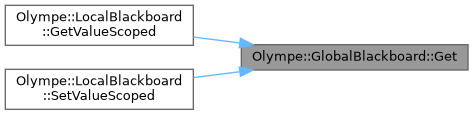

Here is the caller graph for this function:

GetVar()

TaskValue Olympe::GlobalBlackboard::GetVar ( const std::string &  key ) const

inline

Reads a variable by key.

Parameters

key	Variable name (without "global:" prefix).

Returns

Stored TaskValue, or default TaskValue() (None) if not found.

Definition at line 69 of file GlobalBlackboard.h.

References GetComponentTypeID_Static(), and m_store.

Referenced by Olympe::LocalBlackboard::GetValueScoped().

Here is the call graph for this function:

Here is the caller graph for this function:

HasVar()

bool Olympe::GlobalBlackboard::HasVar ( const std::string &  key ) const

inline

Checks whether a variable exists.

Parameters

key	Variable name (without "global:" prefix).

Returns

true if the variable exists.

Definition at line 111 of file GlobalBlackboard.h.

References GetComponentTypeID_Static(), and m_store.

Here is the call graph for this function:

IsDirty()

bool Olympe::GlobalBlackboard::IsDirty ( ) const

inline

Returns true if any variable has been modified since the last ClearDirty().

Definition at line 94 of file GlobalBlackboard.h.

References m_dirty.

MarkDirty()

void Olympe::GlobalBlackboard::MarkDirty ( )

inline

Marks the blackboard as modified (called automatically by SetVar).

Definition at line 99 of file GlobalBlackboard.h.

References m_dirty.

operator=() [1/2]

GlobalBlackboard & Olympe::GlobalBlackboard::operator= ( const GlobalBlackboard &  )

privatedelete

operator=() [2/2]

GlobalBlackboard & Olympe::GlobalBlackboard::operator= ( GlobalBlackboard &&  )

privatedelete

SetVar()

void Olympe::GlobalBlackboard::SetVar ( const std::string &  key, const TaskValue &  value  )

inline

Writes or creates a variable.

Parameters

key	Variable name (without "global:" prefix).
value	Value to store.

Definition at line 85 of file GlobalBlackboard.h.

References GetComponentTypeID_Static(), m_dirty, and m_store.

Referenced by Olympe::LocalBlackboard::SetValueScoped().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_dirty

bool Olympe::GlobalBlackboard::m_dirty = false

private

Definition at line 136 of file GlobalBlackboard.h.

Referenced by Clear(), ClearDirty(), IsDirty(), MarkDirty(), and SetVar().

m_store

std::unordered_map<std::string, TaskValue> Olympe::GlobalBlackboard::m_store

private

Definition at line 135 of file GlobalBlackboard.h.

Referenced by Clear(), GetVar(), HasVar(), and SetVar().

---

The documentation for this class was generated from the following file:

• Source/NodeGraphCore/GlobalBlackboard.h
