Olympe::GroupManager Class Reference

Singleton that owns all NodeGroup instances for the active graph. More...

#include <NodeGroup.h>

Public Member Functions
int	CreateGroup (const std::string &name, const std::vector< int > &nodeIds)
	Creates a new group from the given node IDs.
void	DeleteGroup (int groupId)
	Deletes the group with the given ID.
void	CollapseGroup (int groupId)
	Marks the group as collapsed.
void	ExpandGroup (int groupId)
	Marks the group as expanded.
NodeGroup *	GetGroup (int groupId)
	Returns a pointer to the group with the given ID.
int	GetGroupCount () const
	Returns the total number of groups.
void	Clear ()
	Removes all groups and resets the ID counter.
void	SaveToJson (nlohmann::json &j) const
void	LoadFromJson (const nlohmann::json &j)

Static Public Member Functions
static GroupManager &	Get ()
	Returns the single shared instance.

Private Member Functions
	GroupManager ()

Private Attributes
std::vector< NodeGroup >	m_Groups
int	m_NextGroupId

Detailed Description

Singleton that owns all NodeGroup instances for the active graph.

Typical usage:

auto& gm = GroupManager::Get();
std::vector<int> ids = {1, 2, 3};
int gid = gm.CreateGroup("Patrol Logic", ids);
gm.CollapseGroup(gid);

Definition at line 64 of file NodeGroup.h.

Constructor & Destructor Documentation

GroupManager()

Olympe::GroupManager::GroupManager ( )

private

Definition at line 83 of file NodeGroup.cpp.

Member Function Documentation

Clear()

void Olympe::GroupManager::Clear

(

)

Removes all groups and resets the ID counter.

Definition at line 143 of file NodeGroup.cpp.

References m_Groups, and m_NextGroupId.

Referenced by LoadFromJson().

Here is the caller graph for this function:

CollapseGroup()

void Olympe::GroupManager::CollapseGroup

(

int

groupId

)

Marks the group as collapsed.

No-op if not found.

Definition at line 114 of file NodeGroup.cpp.

References GetComponentTypeID_Static(), and GetGroup().

Here is the call graph for this function:

CreateGroup()

int Olympe::GroupManager::CreateGroup	(	const std::string &	name,
		const std::vector< int > &	nodeIds
	)

Creates a new group from the given node IDs.

Returns

The assigned group ID.

Definition at line 92 of file NodeGroup.cpp.

References GetComponentTypeID_Static(), Olympe::NodeGroup::id, m_Groups, and m_NextGroupId.

Here is the call graph for this function:

DeleteGroup()

void Olympe::GroupManager::DeleteGroup

(

int

groupId

)

Deletes the group with the given ID.

No-op if not found.

Definition at line 102 of file NodeGroup.cpp.

References GetComponentTypeID_Static(), and m_Groups.

Here is the call graph for this function:

ExpandGroup()

void Olympe::GroupManager::ExpandGroup

(

int

groupId

)

Marks the group as expanded.

No-op if not found.

Definition at line 121 of file NodeGroup.cpp.

References GetComponentTypeID_Static(), and GetGroup().

Here is the call graph for this function:

Get()

GroupManager & Olympe::GroupManager::Get ( )

static

Returns the single shared instance.

Definition at line 77 of file NodeGroup.cpp.

GetGroup()

NodeGroup * Olympe::GroupManager::GetGroup

(

int

groupId

)

Returns a pointer to the group with the given ID.

Returns

Pointer, or nullptr if not found.

Definition at line 128 of file NodeGroup.cpp.

References GetComponentTypeID_Static(), and m_Groups.

Referenced by CollapseGroup(), and ExpandGroup().

Here is the call graph for this function:

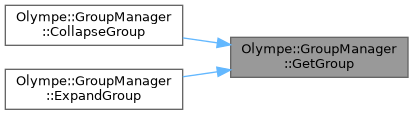

Here is the caller graph for this function:

GetGroupCount()

int Olympe::GroupManager::GetGroupCount

(

)

const

Returns the total number of groups.

Definition at line 138 of file NodeGroup.cpp.

References m_Groups.

LoadFromJson()

void Olympe::GroupManager::LoadFromJson

(

const nlohmann::json &

j

)

Definition at line 161 of file NodeGroup.cpp.

References Clear(), Olympe::NodeGroup::FromJson(), GetComponentTypeID_Static(), m_Groups, and m_NextGroupId.

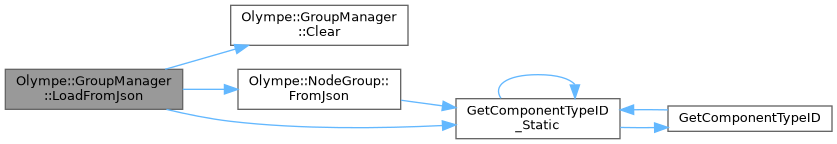

Here is the call graph for this function:

SaveToJson()

void Olympe::GroupManager::SaveToJson

(

nlohmann::json &

j

)

const

Definition at line 153 of file NodeGroup.cpp.

References GetComponentTypeID_Static(), and m_Groups.

Here is the call graph for this function:

Member Data Documentation

m_Groups

std::vector<NodeGroup> Olympe::GroupManager::m_Groups

private

Definition at line 116 of file NodeGroup.h.

Referenced by Clear(), CreateGroup(), DeleteGroup(), GetGroup(), GetGroupCount(), LoadFromJson(), and SaveToJson().

m_NextGroupId

int Olympe::GroupManager::m_NextGroupId

private

Definition at line 117 of file NodeGroup.h.

Referenced by Clear(), CreateGroup(), and LoadFromJson().

---

The documentation for this class was generated from the following files:

• Source/NodeGraphCore/NodeGroup.h
• Source/NodeGraphCore/NodeGroup.cpp
