Olympe::NodeGraph::ConnectPinsCommand Class Reference

Creates a link between two pins. More...

#include <ConnectPinsCommand.h>

Inheritance diagram for Olympe::NodeGraph::ConnectPinsCommand:

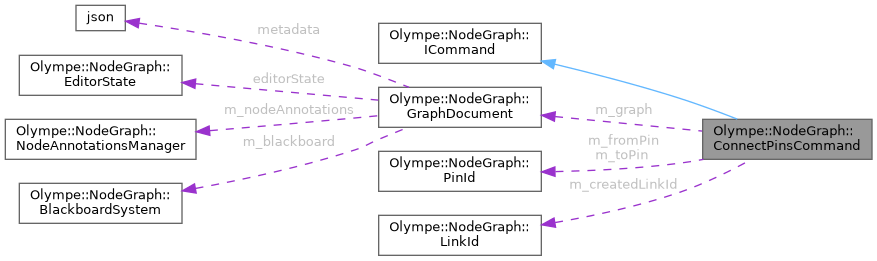

Collaboration diagram for Olympe::NodeGraph::ConnectPinsCommand:

Public Member Functions
	ConnectPinsCommand (GraphDocument *graph, PinId fromPin, PinId toPin)
void	Execute () override
	Execute the command.
void	Undo () override
	Undo the command.
std::string	GetDescription () const override
	Get description of the command.
Public Member Functions inherited from Olympe::NodeGraph::ICommand
virtual	~ICommand ()=default

Private Attributes
GraphDocument *	m_graph
PinId	m_fromPin
PinId	m_toPin
LinkId	m_createdLinkId

Detailed Description

Creates a link between two pins.

Definition at line 20 of file ConnectPinsCommand.h.

Constructor & Destructor Documentation

ConnectPinsCommand()

Olympe::NodeGraph::ConnectPinsCommand::ConnectPinsCommand	(	GraphDocument *	graph,
		PinId	fromPin,
		PinId	toPin
	)

Definition at line 13 of file ConnectPinsCommand.cpp.

Member Function Documentation

Execute()

void Olympe::NodeGraph::ConnectPinsCommand::Execute ( )

overridevirtual

Execute the command.

Implements Olympe::NodeGraph::ICommand.

Definition at line 20 of file ConnectPinsCommand.cpp.

References Olympe::NodeGraph::GraphDocument::ConnectPins(), m_createdLinkId, m_fromPin, m_graph, and m_toPin.

Here is the call graph for this function:

GetDescription()

std::string Olympe::NodeGraph::ConnectPinsCommand::GetDescription ( ) const

overridevirtual

Get description of the command.

Implements Olympe::NodeGraph::ICommand.

Definition at line 36 of file ConnectPinsCommand.cpp.

Undo()

void Olympe::NodeGraph::ConnectPinsCommand::Undo ( )

overridevirtual

Undo the command.

Implements Olympe::NodeGraph::ICommand.

Definition at line 28 of file ConnectPinsCommand.cpp.

References Olympe::NodeGraph::GraphDocument::DisconnectLink(), m_createdLinkId, m_graph, and Olympe::NodeGraph::LinkId::value.

Here is the call graph for this function:

Member Data Documentation

m_createdLinkId

LinkId Olympe::NodeGraph::ConnectPinsCommand::m_createdLinkId

private

Definition at line 32 of file ConnectPinsCommand.h.

Referenced by Execute(), and Undo().

m_fromPin

PinId Olympe::NodeGraph::ConnectPinsCommand::m_fromPin

private

Definition at line 30 of file ConnectPinsCommand.h.

Referenced by Execute().

m_graph

GraphDocument* Olympe::NodeGraph::ConnectPinsCommand::m_graph

private

Definition at line 29 of file ConnectPinsCommand.h.

Referenced by Execute(), and Undo().

m_toPin

PinId Olympe::NodeGraph::ConnectPinsCommand::m_toPin

private

Definition at line 31 of file ConnectPinsCommand.h.

Referenced by Execute().

---

The documentation for this class was generated from the following files:

• Source/NodeGraphCore/Commands/ConnectPinsCommand.h
• Source/NodeGraphCore/Commands/ConnectPinsCommand.cpp
