Olympe::NodeGraph::NodeGraphManager Class Reference

Singleton manager for multiple node graphs. More...

#include <NodeGraphManager.h>

Collaboration diagram for Olympe::NodeGraph::NodeGraphManager:

Public Member Functions
	NodeGraphManager (const NodeGraphManager &)=delete
NodeGraphManager &	operator= (const NodeGraphManager &)=delete
GraphId	CreateGraph (const std::string &graphType, const std::string &graphKind)
	Create a new graph.
GraphId	LoadGraph (const std::string &filepath)
	Load a graph from file.
bool	SaveGraph (GraphId id, const std::string &filepath)
	Save a graph to file.
bool	CloseGraph (GraphId id)
	Close a graph.
void	SetActiveGraph (GraphId id)
	Set active graph.
GraphDocument *	GetActiveGraph ()
	Get active graph.
GraphId	GetActiveGraphId () const
	Get active graph ID.
GraphDocument *	GetGraph (GraphId id)
	Get graph by ID.
std::vector< GraphId >	GetAllGraphIds () const
	Get all graph IDs.
std::string	GetGraphName (GraphId id) const
	Get graph name (for tab display)
std::vector< GraphId >	GetGraphOrderForTabs () const
	Get graph order for tabs.

Static Public Member Functions
static NodeGraphManager &	Get ()
	Get singleton instance.

Private Member Functions
	NodeGraphManager ()
	~NodeGraphManager ()

Private Attributes
std::map< GraphId, std::unique_ptr< GraphDocument > >	m_graphs
std::map< GraphId, std::string >	m_graphNames
std::vector< GraphId >	m_graphOrder
GraphId	m_activeGraphId
uint32_t	m_nextGraphId = 1

Detailed Description

Singleton manager for multiple node graphs.

Definition at line 25 of file NodeGraphManager.h.

Constructor & Destructor Documentation

NodeGraphManager() [1/2]

Olympe::NodeGraph::NodeGraphManager::NodeGraphManager ( const NodeGraphManager &  )

delete

NodeGraphManager() [2/2]

Olympe::NodeGraph::NodeGraphManager::NodeGraphManager ( )

private

Definition at line 28 of file NodeGraphManager.cpp.

~NodeGraphManager()

Olympe::NodeGraph::NodeGraphManager::~NodeGraphManager ( )

private

Definition at line 33 of file NodeGraphManager.cpp.

Member Function Documentation

CloseGraph()

bool Olympe::NodeGraph::NodeGraphManager::CloseGraph

(

GraphId

id

)

Close a graph.

Parameters

id

Graph ID

Returns

true if closed successfully

Definition at line 119 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static(), m_activeGraphId, m_graphNames, m_graphOrder, m_graphs, SYSTEM_LOG, and Olympe::NodeGraph::GraphId::value.

Here is the call graph for this function:

CreateGraph()

GraphId Olympe::NodeGraph::NodeGraphManager::CreateGraph	(	const std::string &	graphType,
		const std::string &	graphKind
	)

Create a new graph.

Parameters

graphType	Type of graph (e.g., "AIGraph")
graphKind	Kind of graph (e.g., "BehaviorTree", "HFSM")

Returns

ID of created graph

Definition at line 41 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static(), m_activeGraphId, m_graphNames, m_graphOrder, m_graphs, m_nextGraphId, SYSTEM_LOG, and Olympe::NodeGraph::GraphId::value.

Here is the call graph for this function:

Get()

NodeGraphManager & Olympe::NodeGraph::NodeGraphManager::Get ( )

static

Get singleton instance.

Definition at line 22 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static().

Referenced by Olympe::AI::AIEditorGUI::HandleLinkCreation(), Olympe::AI::AIEditorGUI::MenuAction_AutoLayout(), Olympe::AI::AIEditorGUI::MenuAction_Close(), Olympe::AI::AIEditorGUI::MenuAction_Copy(), Olympe::AI::AIEditorGUI::MenuAction_Cut(), Olympe::AI::AIEditorGUI::MenuAction_Delete(), Olympe::AI::AIEditorGUI::MenuAction_NewBT(), Olympe::AI::AIEditorGUI::MenuAction_NewHFSM(), Olympe::AI::AIEditorGUI::MenuAction_Open(), Olympe::AI::AIEditorGUI::MenuAction_Paste(), Olympe::AI::AIEditorGUI::MenuAction_Save(), Olympe::AI::AIEditorGUI::MenuAction_SaveAs(), Olympe::AI::AIEditorGUI::MenuAction_SelectAll(), Olympe::AI::AIEditorGUI::RenderBlackboardPanel(), Olympe::AI::AIEditorGUI::RenderConnections(), Olympe::AI::AIEditorGUI::RenderNode(), Olympe::AI::AIEditorGUI::RenderNodeGraph(), Olympe::AI::AIEditorGUI::RenderNodeGraphCanvas(), Test11_ClipboardCopyPaste(), Test12_ClipboardCut(), Test13_ClipboardLinkPreservation(), Test15_SaveLoadIntegration(), Test2_CreateNewBTGraph(), Test3_LoadExistingBT(), Test4_NodeCreationViaPalette(), Test5_MultiGraph(), Test5_UndoRedo(), Test6_ValidateGraph(), Test7_SaveLoadRoundtrip(), Test8_MultiGraphTabs(), and Olympe::AI::AIEditorGUI::Update().

Here is the call graph for this function:

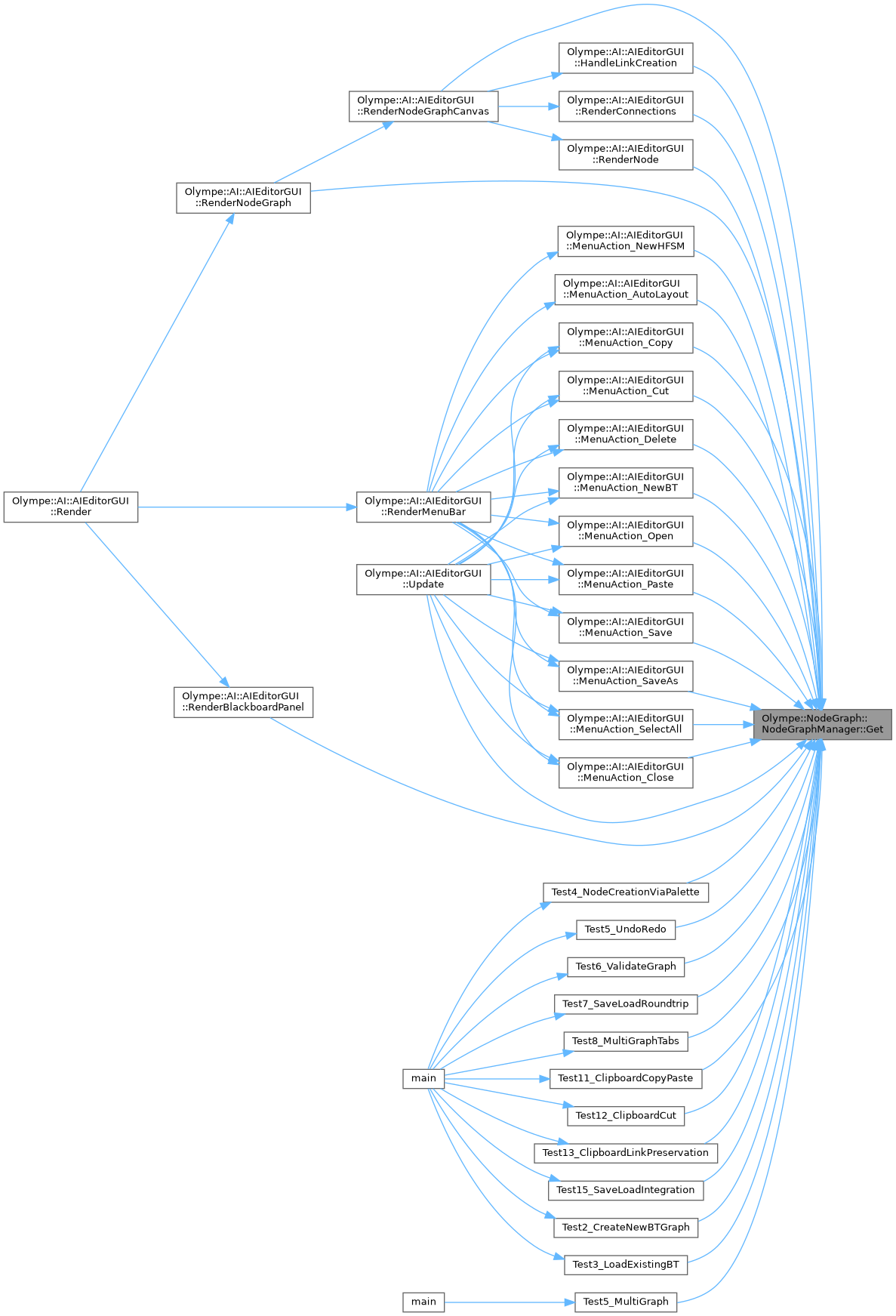

Here is the caller graph for this function:

GetActiveGraph()

GraphDocument * Olympe::NodeGraph::NodeGraphManager::GetActiveGraph

(

)

Get active graph.

Returns

Pointer to active graph or nullptr

Definition at line 168 of file NodeGraphManager.cpp.

References GetGraph(), m_activeGraphId, and Olympe::NodeGraph::GraphId::value.

Here is the call graph for this function:

GetActiveGraphId()

GraphId Olympe::NodeGraph::NodeGraphManager::GetActiveGraphId ( ) const

inline

Get active graph ID.

Returns

Active graph ID

Definition at line 90 of file NodeGraphManager.h.

References m_activeGraphId.

GetAllGraphIds()

std::vector< GraphId > Olympe::NodeGraph::NodeGraphManager::GetAllGraphIds

(

)

const

Get all graph IDs.

Returns

Vector of graph IDs

Definition at line 190 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static(), and m_graphs.

Here is the call graph for this function:

GetGraph()

GraphDocument * Olympe::NodeGraph::NodeGraphManager::GetGraph

(

GraphId

id

)

Get graph by ID.

Parameters

id

Graph ID

Returns

Pointer to graph or nullptr

Definition at line 180 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static(), and m_graphs.

Referenced by GetActiveGraph().

Here is the call graph for this function:

Here is the caller graph for this function:

GetGraphName()

std::string Olympe::NodeGraph::NodeGraphManager::GetGraphName

(

GraphId

id

)

const

Get graph name (for tab display)

Parameters

id

Graph ID

Returns

Graph name or empty string

Definition at line 200 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static(), and m_graphNames.

Here is the call graph for this function:

GetGraphOrderForTabs()

std::vector< GraphId > Olympe::NodeGraph::NodeGraphManager::GetGraphOrderForTabs ( ) const

inline

Get graph order for tabs.

Returns

Vector of graph IDs in insertion order

Definition at line 120 of file NodeGraphManager.h.

References m_graphOrder.

LoadGraph()

GraphId Olympe::NodeGraph::NodeGraphManager::LoadGraph

(

const std::string &

filepath

)

Load a graph from file.

Parameters

filepath

Path to JSON file

Returns

ID of loaded graph, or {0} if failed

Definition at line 62 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static(), JsonHelper::LoadJsonFromFile(), Olympe::NodeGraph::GraphMigrator::LoadWithMigration(), m_activeGraphId, m_graphNames, m_graphOrder, m_graphs, m_nextGraphId, SYSTEM_LOG, and Olympe::NodeGraph::GraphId::value.

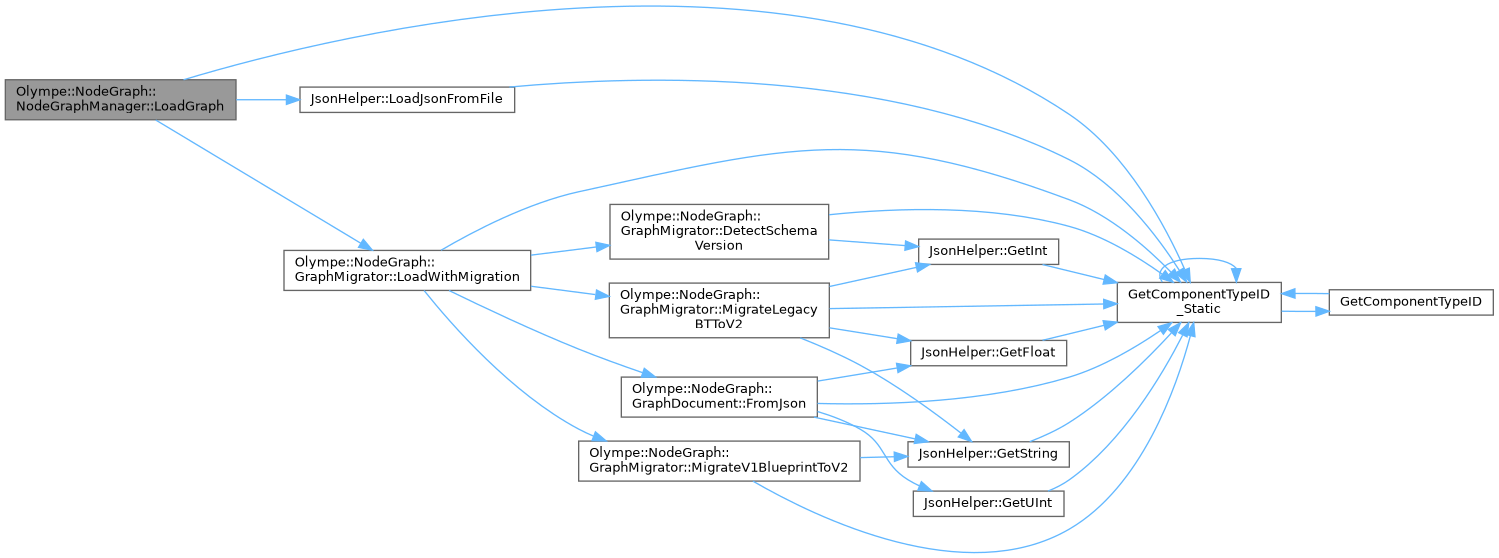

Here is the call graph for this function:

operator=()

NodeGraphManager & Olympe::NodeGraph::NodeGraphManager::operator= ( const NodeGraphManager &  )

delete

SaveGraph()

bool Olympe::NodeGraph::NodeGraphManager::SaveGraph	(	GraphId	id,
		const std::string &	filepath
	)

Save a graph to file.

Parameters

id	Graph ID
filepath	Path to save file

Returns

true if saved successfully

Definition at line 95 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static(), m_graphs, JsonHelper::SaveJsonToFile(), and SYSTEM_LOG.

Here is the call graph for this function:

SetActiveGraph()

void Olympe::NodeGraph::NodeGraphManager::SetActiveGraph

(

GraphId

id

)

Set active graph.

Parameters

id

Graph ID

Definition at line 159 of file NodeGraphManager.cpp.

References GetComponentTypeID_Static(), m_activeGraphId, and m_graphs.

Here is the call graph for this function:

Member Data Documentation

m_activeGraphId

GraphId Olympe::NodeGraph::NodeGraphManager::m_activeGraphId

private

Definition at line 129 of file NodeGraphManager.h.

Referenced by CloseGraph(), CreateGraph(), GetActiveGraph(), GetActiveGraphId(), LoadGraph(), and SetActiveGraph().

m_graphNames

std::map<GraphId, std::string> Olympe::NodeGraph::NodeGraphManager::m_graphNames

private

Definition at line 127 of file NodeGraphManager.h.

Referenced by CloseGraph(), CreateGraph(), GetGraphName(), and LoadGraph().

m_graphOrder

std::vector<GraphId> Olympe::NodeGraph::NodeGraphManager::m_graphOrder

private

Definition at line 128 of file NodeGraphManager.h.

Referenced by CloseGraph(), CreateGraph(), GetGraphOrderForTabs(), and LoadGraph().

m_graphs

std::map<GraphId, std::unique_ptr<GraphDocument> > Olympe::NodeGraph::NodeGraphManager::m_graphs

private

Definition at line 126 of file NodeGraphManager.h.

Referenced by CloseGraph(), CreateGraph(), GetAllGraphIds(), GetGraph(), LoadGraph(), SaveGraph(), and SetActiveGraph().

m_nextGraphId

uint32_t Olympe::NodeGraph::NodeGraphManager::m_nextGraphId = 1

private

Definition at line 130 of file NodeGraphManager.h.

Referenced by CreateGraph(), and LoadGraph().

---

The documentation for this class was generated from the following files:

• Source/NodeGraphCore/NodeGraphManager.h
• Source/NodeGraphCore/NodeGraphManager.cpp
