Olympe::TaskSystem Class Reference

ECS system responsible for advancing task graph execution each frame. More...

#include <TaskSystem.h>

Inheritance diagram for Olympe::TaskSystem:

Collaboration diagram for Olympe::TaskSystem:

Public Member Functions
	TaskSystem ()
	Constructs the system and configures the required component signature.
virtual void	Process () override
	Processes all entities registered with this system for one frame.
void	ExecuteNode (EntityID entity, TaskRunnerComponent &runner, const TaskGraphTemplate *tmpl, float dt)
	Advances execution of one node in the task graph for the given entity.
void	ExecuteVSFrame (EntityID entity, TaskRunnerComponent &runner, const TaskGraphTemplate *tmpl, float dt)
	Dispatches VS-graph execution to VSGraphExecutor.
void	AbortActiveTask (TaskRunnerComponent &runner)
	Aborts the active atomic task on a runner, if any.
Public Member Functions inherited from ECS_System
	ECS_System ()
virtual void	Render ()
virtual void	RenderDebug ()
void	AddEntity (EntityID entity)
void	RemoveEntity (EntityID entity)

Static Public Member Functions
static void	SetEditorPublishCallback (TaskEditorPublishFn fn)
	Register a callback that receives live task-runner state each frame while a task is executing.

Private Member Functions
void	ExecuteAtomicTask (EntityID entity, TaskRunnerComponent &runner, const TaskNodeDefinition &node, const TaskGraphTemplate *tmpl, float dt)
	Executes one tick of an AtomicTask node.
void	TransitionToNextNode (TaskRunnerComponent &runner, const TaskNodeDefinition &node, bool success)
	Advances runner.CurrentNodeID after a node completes.

Static Private Attributes
static TaskEditorPublishFn	s_EditorPublishFn = nullptr
	Callback registered by the editor to receive live runtime info.

Additional Inherited Members
Public Attributes inherited from ECS_System
ComponentSignature	requiredSignature
std::set< EntityID >	m_entities

Detailed Description

ECS system responsible for advancing task graph execution each frame.

Usage:

TaskSystem* taskSystem = world.RegisterSystem<TaskSystem>();
// TaskSystem sets its own requiredSignature in the constructor.

Inheritance: TaskSystem : ECS_System

Definition at line 77 of file TaskSystem.h.

Constructor & Destructor Documentation

TaskSystem()

Olympe::TaskSystem::TaskSystem

(

)

Constructs the system and configures the required component signature.

Note

Signature configuration is left as a TODO until the component registration API is fully wired up in Phase 1.5.

Definition at line 53 of file TaskSystem.cpp.

Member Function Documentation

AbortActiveTask()

void Olympe::TaskSystem::AbortActiveTask

(

TaskRunnerComponent &

runner

)

Aborts the active atomic task on a runner, if any.

Calls Abort() on runner.activeTask (if non-null), resets the unique_ptr, and sets runner.LastStatus to TaskRunnerComponent::TaskStatus::Aborted. Safe to call when runner.activeTask is nullptr (no-op).

Parameters

runner

Reference to the entity's TaskRunnerComponent.

Definition at line 339 of file TaskSystem.cpp.

References Olympe::TaskRunnerComponent::Aborted, and GetComponentTypeID_Static().

Here is the call graph for this function:

ExecuteAtomicTask()

void Olympe::TaskSystem::ExecuteAtomicTask ( EntityID  entity, TaskRunnerComponent &  runner, const TaskNodeDefinition &  node, const TaskGraphTemplate *  tmpl, float  dt  )

private

Executes one tick of an AtomicTask node.

Creates runner.activeTask on first call for this node, ticks it, and handles Running / completion transitions.

Parameters

entity	The entity being processed.
runner	Reference to the entity's TaskRunnerComponent.
node	The current AtomicTask node definition.
tmpl	Non-null pointer to the resolved TaskGraphTemplate (used to resolve LocalVariable bindings).
dt	Delta-time in seconds for the current frame.

Definition at line 220 of file TaskSystem.cpp.

References Olympe::AtomicTaskRegistry::Create(), Olympe::AtomicTaskContext::Entity, Olympe::TaskRunnerComponent::Failure, Olympe::AtomicTaskRegistry::Get(), GetComponentTypeID_Static(), Olympe::LocalBlackboard::Initialize(), Olympe::Literal, Olympe::LocalVariable, Olympe::Running, s_EditorPublishFn, Olympe::TaskRunnerComponent::Success, Olympe::Success, SYSTEM_LOG, and TransitionToNextNode().

Referenced by ExecuteNode().

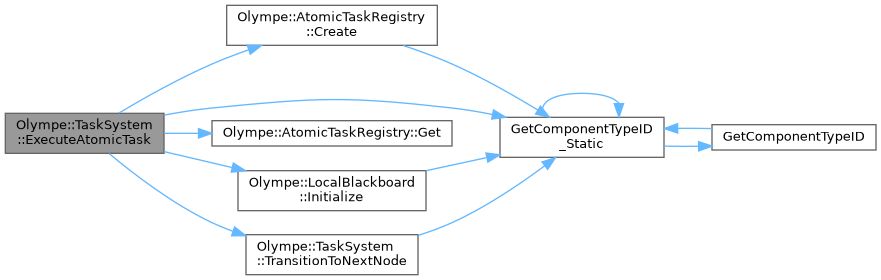

Here is the call graph for this function:

Here is the caller graph for this function:

ExecuteNode()

void Olympe::TaskSystem::ExecuteNode	(	EntityID	entity,
		TaskRunnerComponent &	runner,
		const TaskGraphTemplate *	tmpl,
		float	dt
	)

Advances execution of one node in the task graph for the given entity.

Implements the AtomicTask lifecycle described in the class documentation. runner.CurrentNodeID is treated as a NodeID (looked up via TaskGraphTemplate::GetNode()). NODE_INDEX_NONE (-1) means there is no active node; any lingering activeTask is Abort()ed and released.

Parameters

entity	The entity being processed.
runner	Reference to the entity's TaskRunnerComponent.
tmpl	Non-null pointer to the resolved TaskGraphTemplate.
dt	Delta-time in seconds for the current frame.

Definition at line 162 of file TaskSystem.cpp.

References Olympe::AtomicTask, ExecuteAtomicTask(), GetComponentTypeID_Static(), Olympe::NODE_INDEX_NONE, and SYSTEM_LOG.

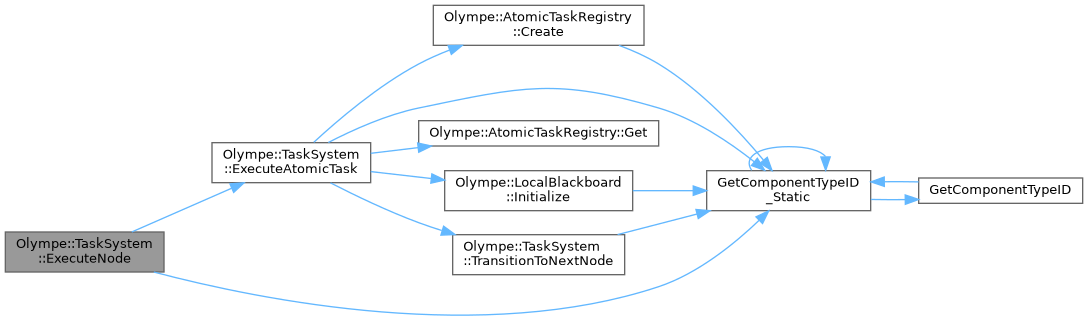

Here is the call graph for this function:

ExecuteVSFrame()

void Olympe::TaskSystem::ExecuteVSFrame	(	EntityID	entity,
		TaskRunnerComponent &	runner,
		const TaskGraphTemplate *	tmpl,
		float	dt
	)

Dispatches VS-graph execution to VSGraphExecutor.

Called from Process() when tmpl->GraphType == "VisualScript".

Parameters

entity	The entity being processed.
runner	Reference to the entity's TaskRunnerComponent.
tmpl	Non-null pointer to the resolved TaskGraphTemplate.
dt	Delta-time in seconds for the current frame.

Definition at line 101 of file TaskSystem.cpp.

References Olympe::BlackboardEntry::Default, Olympe::VSGraphExecutor::ExecuteFrame(), GetComponentTypeID_Static(), and Olympe::LocalBlackboard::InitializeFromEntries().

Referenced by Process().

Here is the call graph for this function:

Here is the caller graph for this function:

Process()

void Olympe::TaskSystem::Process ( )

overridevirtual

Processes all entities registered with this system for one frame.

For each entity in m_entities:

1. Retrieves the TaskRunnerComponent (TODO Phase 1.5: from World).
2. Looks up the bound TaskGraphTemplate via AssetManager::Get().
3. Skips the entity if no valid template is found.
4. Calls ExecuteNode() to advance task graph execution.

Reimplemented from ECS_System.

Definition at line 63 of file TaskSystem.cpp.

References ExecuteVSFrame(), Olympe::AssetManager::Get(), GetComponentTypeID_Static(), Olympe::AssetManager::GetTaskGraph(), ECS_System::m_entities, and SYSTEM_LOG.

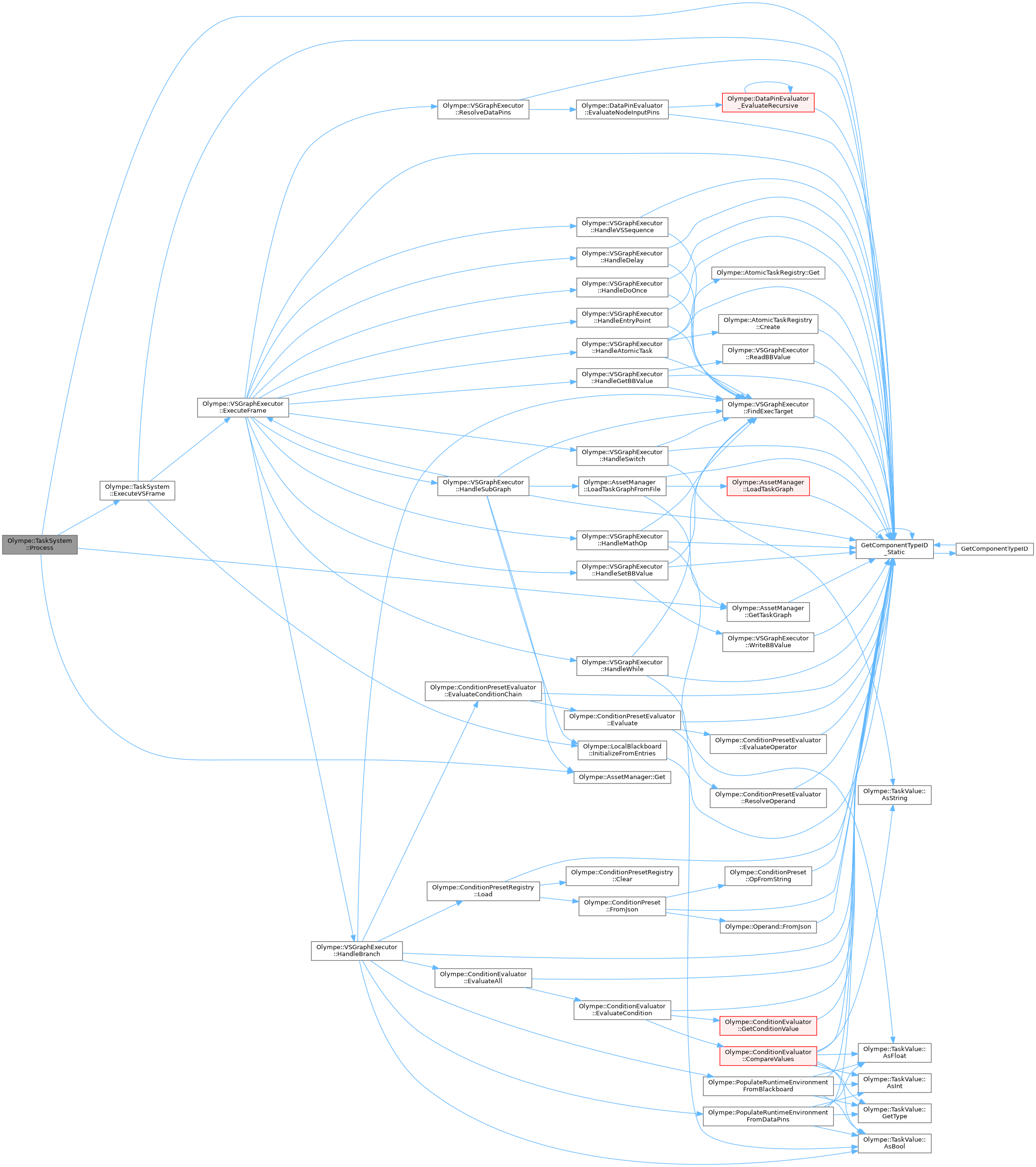

Here is the call graph for this function:

SetEditorPublishCallback()

void Olympe::TaskSystem::SetEditorPublishCallback ( TaskEditorPublishFn  fn )

static

Register a callback that receives live task-runner state each frame while a task is executing.

Pass nullptr to unregister. The callback is invoked from ExecuteAtomicTask() after ticking the task when the task is Running. It is safe to call this from any thread before the first Process().

Parameters

fn	Function matching TaskEditorPublishFn, or nullptr.

Definition at line 44 of file TaskSystem.cpp.

References GetComponentTypeID_Static(), and s_EditorPublishFn.

Referenced by Olympe::TaskExecutionBridge::Install(), and Olympe::TaskExecutionBridge::Uninstall().

Here is the call graph for this function:

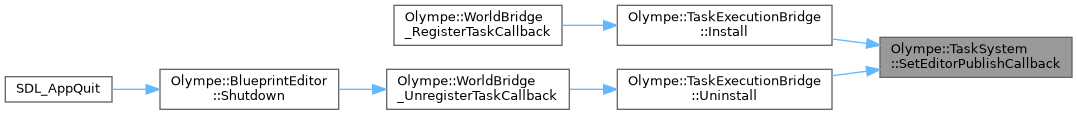

Here is the caller graph for this function:

TransitionToNextNode()

void Olympe::TaskSystem::TransitionToNextNode ( TaskRunnerComponent &  runner, const TaskNodeDefinition &  node, bool  success  )

private

Advances runner.CurrentNodeID after a node completes.

Sets runner.CurrentNodeID to node.NextOnSuccess if success is true, or node.NextOnFailure otherwise. NODE_INDEX_NONE signals that the graph has finished. Also resets runner.StateTimer to 0.

Parameters

runner	The runner component to update.
node	The node that just completed.
success	true if the node succeeded, false if it failed.

Definition at line 324 of file TaskSystem.cpp.

References GetComponentTypeID_Static().

Referenced by ExecuteAtomicTask().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

s_EditorPublishFn

TaskEditorPublishFn Olympe::TaskSystem::s_EditorPublishFn = nullptr

staticprivate

Callback registered by the editor to receive live runtime info.

Definition at line 214 of file TaskSystem.h.

Referenced by ExecuteAtomicTask(), and SetEditorPublishCallback().

---

The documentation for this class was generated from the following files:

• Source/TaskSystem/TaskSystem.h
• Source/TaskSystem/TaskSystem.cpp
