BTtoVSMigrator.h File Reference

Converts legacy BT v2 JSON graphs to ATS VS v4 JSON format (Phase 6). More...

#include <string>
#include <vector>
#include "../TaskSystem/TaskGraphTemplate.h"
#include "../third_party/nlohmann/json.hpp"

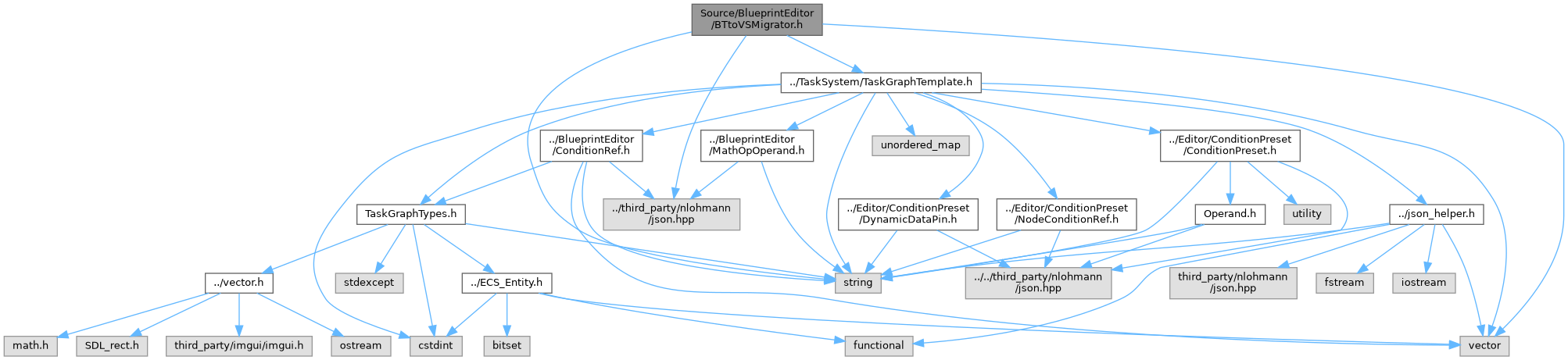

Include dependency graph for BTtoVSMigrator.h:

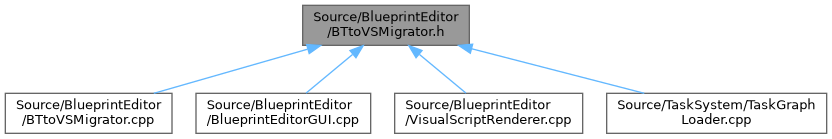

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Olympe::BTtoVSMigrator
	Converts a BT v2 JSON object to a TaskGraphTemplate (VS v4). More...

Namespaces
namespace	Olympe
	< Provides AssetID and INVALID_ASSET_ID

Detailed Description

Converts legacy BT v2 JSON graphs to ATS VS v4 JSON format (Phase 6).

Author

Olympe Engine

Date

2026-03-09

BTtoVSMigrator translates a "BehaviorTree" schema_version 2 (or lower) JSON document to the ATS VisualScript schema_version 4 format consumed by TaskGraphLoader.

Node type mapping: BT v2 type -> VS v4 TaskNodeType ───────────────────────────────────────── "Selector" -> TaskNodeType::Branch (conditions as children) "Sequence" -> TaskNodeType::VSSequence "Action" -> TaskNodeType::AtomicTask "Condition" -> TaskNodeType::Branch (single condition leaf) "Decorator" -> TaskNodeType::AtomicTask (inline, stripped) "Root" / "Start" -> TaskNodeType::EntryPoint

Connection mapping: BT parent->child -> ExecPinConnection { parent, "Out", child, "In" }

Blackboard mapping: BT blackboard entries are copied verbatim to the VS graph's Blackboard.

C++14 compliant — no std::optional, structured bindings, std::filesystem.

Definition in file BTtoVSMigrator.h.
