GraphAutoLayout.h File Reference

Hierarchical (Sugiyama-inspired) auto-layout for VS task graphs (Phase 6). More...

#include <vector>
#include <cstdint>
#include "../TaskSystem/TaskGraphTemplate.h"

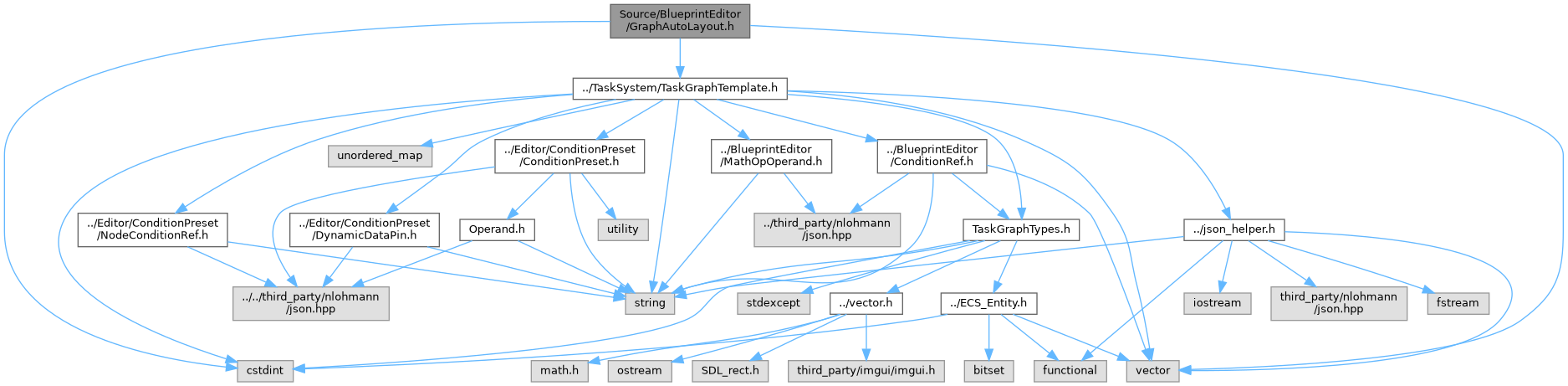

Include dependency graph for GraphAutoLayout.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Olympe::GraphAutoLayout
	Applies a hierarchical layout to a TaskGraphTemplate in place. More...
struct	Olympe::GraphAutoLayout::Layer
	A single layer in the hierarchical layout. More...

Namespaces
namespace	Olympe
	< Provides AssetID and INVALID_ASSET_ID

Detailed Description

Hierarchical (Sugiyama-inspired) auto-layout for VS task graphs (Phase 6).

Author

Olympe Engine

Date

2026-03-09

Assigns positions to TaskNodeDefinition nodes in a TaskGraphTemplate so that the graph can be read top-to-bottom. The EntryPoint node is placed at the root (top), and nodes are arranged into layers based on their distance from the entry point in the exec-connection graph.

Algorithm summary (Sugiyama-inspired):

1. BFS from the EntryPoint node → assign each node a layer index.
2. Within each layer, order nodes by ascending NodeID (stable).
3. Assign (x, y) screen-space positions using fixed spacing constants.
4. Positions are stored in the Parameters map under "__posX" / "__posY".

C++14 compliant — no std::optional, structured bindings, std::filesystem.

Definition in file GraphAutoLayout.h.
