Main debug window for behavior tree runtime visualization. More...

#include <BehaviorTreeDebugWindow.h>

Collaboration diagram for Olympe::BehaviorTreeDebugWindow:

Public Member Functions
	BehaviorTreeDebugWindow ()

	~BehaviorTreeDebugWindow ()

void	Initialize ()
	Initialize the debug window.

void	Shutdown ()
	Shutdown and cleanup.

void	Render ()
	Render the debug window (in separate SDL3 window)

void	ToggleVisibility ()
	Toggle window visibility (creates/destroys separate window)

bool	IsVisible () const
	Check if window is visible.

void	ProcessEvent (SDL_Event *event)
	Process SDL events for separate window.

void	AddExecutionEntry (EntityID entity, uint32_t nodeId, const std::string &nodeName, BTStatus status)
	Add an execution log entry.

Private Types
enum class	SortMode { Name , TreeName , LastUpdate , AIMode }

Private Member Functions
void	RenderEntityListPanel ()

void	RenderInspectorPanel ()

void	CreateSeparateWindow ()

void	DestroySeparateWindow ()

void	RenderInSeparateWindow ()

void	RefreshEntityList ()

void	UpdateEntityFiltering ()

void	UpdateEntitySorting ()

void	RenderEntityEntry (const EntityDebugInfo &info)

void	RenderRuntimeInfo ()

void	RenderBlackboardSection ()

void	RenderExecutionLog ()

void	InitNodeGraphDebugMode ()

void	ShutdownNodeGraphDebugMode ()

void	RenderNodeGraphDebugPanel ()

Private Attributes
std::vector< EntityDebugInfo >	m_entities

std::vector< EntityDebugInfo >	m_filteredEntities

EntityID	m_selectedEntity = 0

std::deque< ExecutionLogEntry >	m_executionLog

const size_t	MAX_LOG_ENTRIES = 100

bool	m_isVisible = false

bool	m_isInitialized = false

float	m_autoRefreshInterval = 0.5f

char	m_filterText [256] = ""

bool	m_filterActiveOnly = false

bool	m_filterHasTarget = false

SortMode	m_sortMode = SortMode::Name

bool	m_sortAscending = true

float	m_entityListWidth = 250.0f

float	m_inspectorWidth = 350.0f

bool	m_imnodesInitialized = false

SDL_Window *	m_separateWindow

SDL_Renderer *	m_separateRenderer

bool	m_windowCreated

ImGuiContext *	m_separateImGuiContext

EditorAutosaveManager	m_autosave

NodeGraphPanel	m_nodeGraphPanel

int	m_debugGraphId = -1

uint32_t	m_lastDebugTreeId = 0

Detailed Description

Main debug window for behavior tree runtime visualization.

Provides comprehensive debugging capabilities for AI behavior trees, including entity selection, graph visualization, and blackboard inspection.

Renders in a separate SDL3 native window (not embedded in main engine window).

Definition at line 79 of file BehaviorTreeDebugWindow.h.

Member Enumeration Documentation

◆ SortMode

enum class Olympe::BehaviorTreeDebugWindow::SortMode

strongprivate

Enumerator
Name
TreeName
LastUpdate
AIMode

Definition at line 166 of file BehaviorTreeDebugWindow.h.

Constructor & Destructor Documentation

◆ BehaviorTreeDebugWindow()

Olympe::BehaviorTreeDebugWindow::BehaviorTreeDebugWindow ( )

Definition at line 26 of file BehaviorTreeDebugWindow.cpp.

◆ ~BehaviorTreeDebugWindow()

Olympe::BehaviorTreeDebugWindow::~BehaviorTreeDebugWindow ( )

Definition at line 34 of file BehaviorTreeDebugWindow.cpp.

References Shutdown().

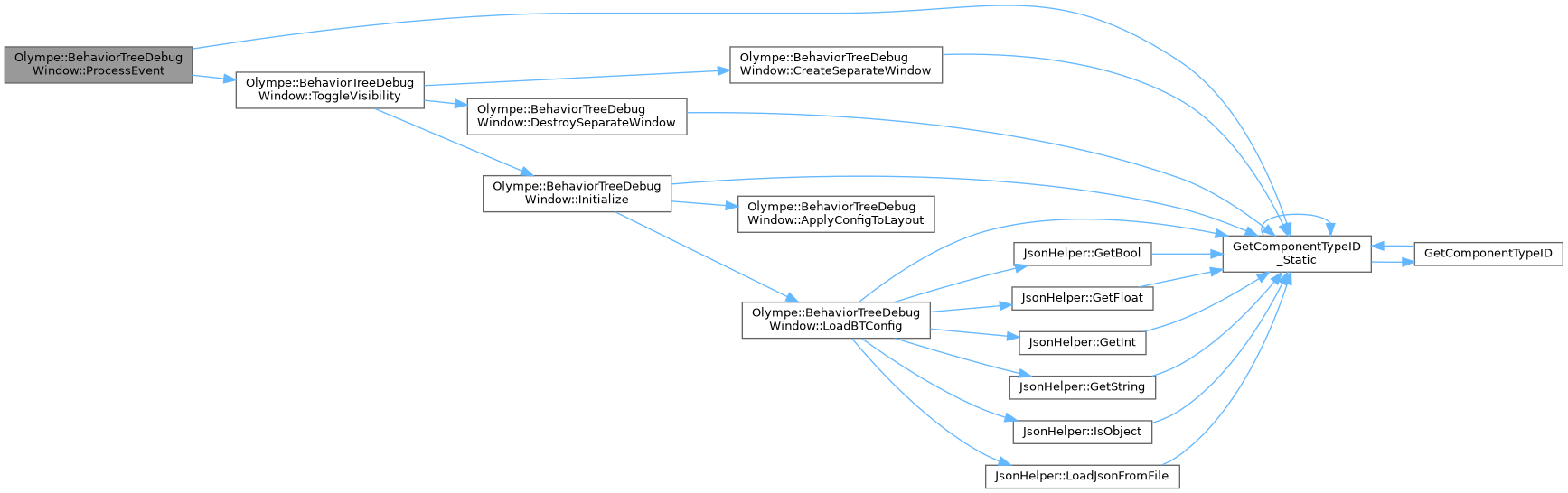

Here is the call graph for this function:

Member Function Documentation

◆ AddExecutionEntry()

void Olympe::BehaviorTreeDebugWindow::AddExecutionEntry	(	EntityID	entity,
		uint32_t	nodeId,
		const std::string &	nodeName,
		BTStatus	status
	)

Add an execution log entry.

Parameters

entity	Entity that executed
nodeId	Node that was executed
nodeName	Node name
status	Execution result

Definition at line 811 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static(), and Olympe::ExecutionLogEntry::timeAgo.

Referenced by BehaviorTreeSystem::Process().

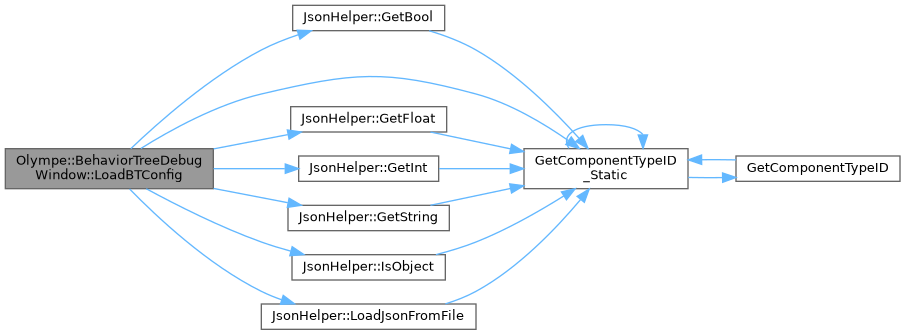

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateSeparateWindow()

void Olympe::BehaviorTreeDebugWindow::CreateSeparateWindow ( )

private

Definition at line 113 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static(), m_separateImGuiContext, m_separateRenderer, m_separateWindow, and m_windowCreated.

Referenced by ToggleVisibility().

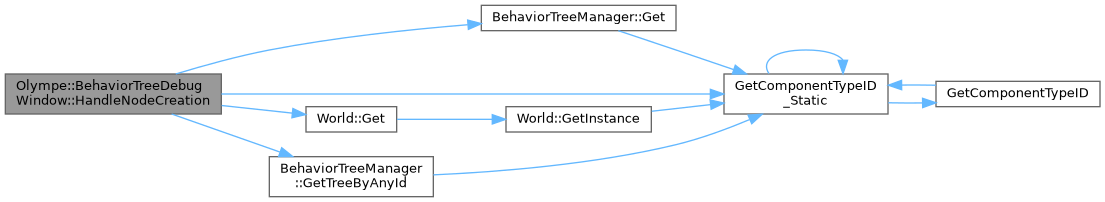

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DestroySeparateWindow()

void Olympe::BehaviorTreeDebugWindow::DestroySeparateWindow ( )

private

Definition at line 157 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static(), m_separateImGuiContext, m_separateRenderer, m_separateWindow, and m_windowCreated.

Referenced by Shutdown(), and ToggleVisibility().

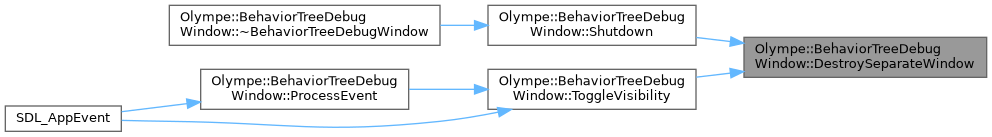

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialize()

void Olympe::BehaviorTreeDebugWindow::Initialize ( )

Initialize the debug window.

Definition at line 39 of file BehaviorTreeDebugWindow.cpp.

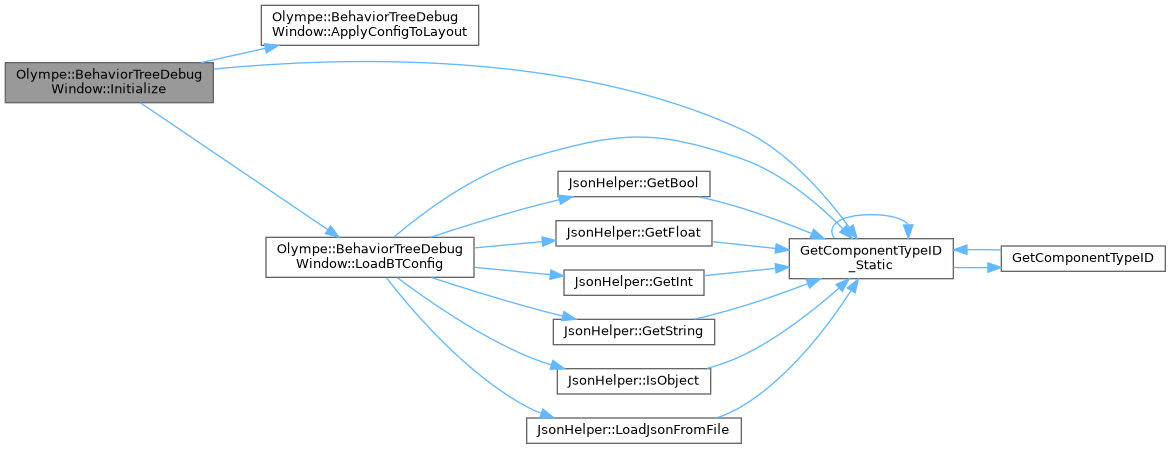

References GetComponentTypeID_Static(), Olympe::EditorAutosaveManager::Init(), InitNodeGraphDebugMode(), m_autosave, m_imnodesInitialized, and m_isInitialized.

Referenced by SDL_AppInit(), and ToggleVisibility().

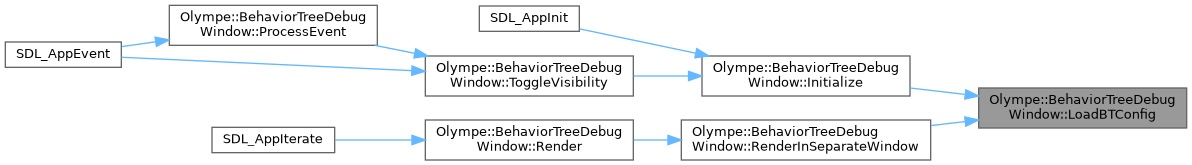

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InitNodeGraphDebugMode()

void Olympe::BehaviorTreeDebugWindow::InitNodeGraphDebugMode ( )

private

Definition at line 36 of file BehaviorTreeDebugWindow_NodeGraph.cpp.

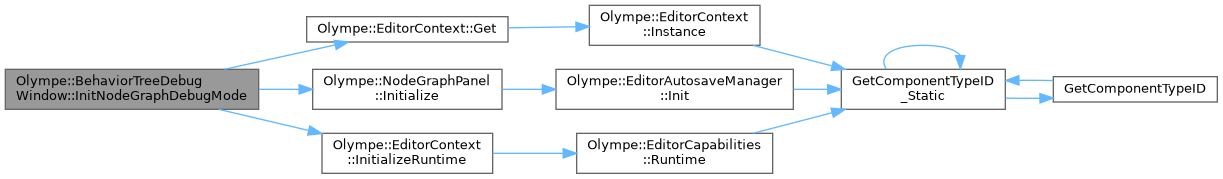

References Olympe::EditorContext::Get(), Olympe::NodeGraphPanel::Initialize(), Olympe::EditorContext::InitializeRuntime(), m_debugGraphId, m_lastDebugTreeId, m_nodeGraphPanel, and SYSTEM_LOG.

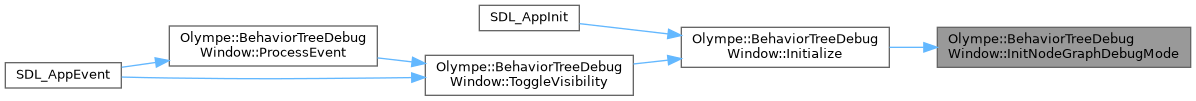

Referenced by Initialize().

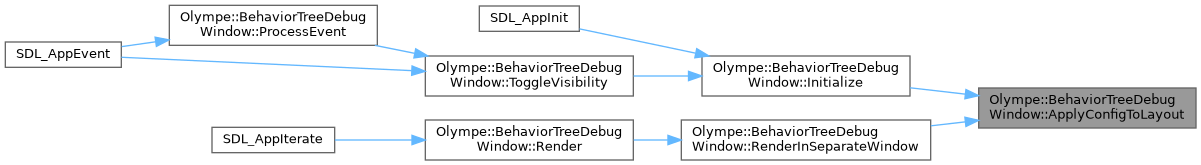

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsVisible()

bool Olympe::BehaviorTreeDebugWindow::IsVisible ( ) const

inline

Check if window is visible.

Definition at line 108 of file BehaviorTreeDebugWindow.h.

References m_isVisible.

Referenced by BehaviorTreeSystem::Process(), and SDL_AppEvent().

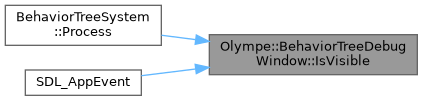

Here is the caller graph for this function:

◆ ProcessEvent()

void Olympe::BehaviorTreeDebugWindow::ProcessEvent ( SDL_Event * event )

Process SDL events for separate window.

Parameters

event SDL event to process

Definition at line 199 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static(), m_isVisible, m_separateImGuiContext, m_separateWindow, m_windowCreated, and ToggleVisibility().

Referenced by SDL_AppEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RefreshEntityList()

void Olympe::BehaviorTreeDebugWindow::RefreshEntityList ( )

private

Definition at line 339 of file BehaviorTreeDebugWindow.cpp.

References BehaviorTreeRuntime_data::AITreeAssetId, Combat, Dead, BehaviorTreeManager::DebugPrintLoadedTrees(), Olympe::EntityDebugInfo::entityId, Flee, BehaviorTreeManager::Get(), World::Get(), GetComponentTypeID_Static(), BehaviorTreeManager::GetTreeByAnyId(), BehaviorTreeManager::GetTreePathFromId(), AIBlackboard_data::hasTarget, Idle, Investigate, m_entities, BehaviorTreeAsset::name, Identity_data::name, Patrol, UpdateEntityFiltering(), and UpdateEntitySorting().

Referenced by RenderInSeparateWindow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Render()

void Olympe::BehaviorTreeDebugWindow::Render ( )

Render the debug window (in separate SDL3 window)

Definition at line 221 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static(), m_isVisible, m_separateImGuiContext, m_separateRenderer, m_windowCreated, and RenderInSeparateWindow().

Referenced by SDL_AppIterate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RenderBlackboardSection()

void Olympe::BehaviorTreeDebugWindow::RenderBlackboardSection ( )

private

Definition at line 694 of file BehaviorTreeDebugWindow.cpp.

References World::Get(), and GetComponentTypeID_Static().

Here is the call graph for this function:

◆ RenderEntityEntry()

void Olympe::BehaviorTreeDebugWindow::RenderEntityEntry ( const EntityDebugInfo & info )

private

Definition at line 536 of file BehaviorTreeDebugWindow.cpp.

References Failure, GetComponentTypeID_Static(), and Success.

Here is the call graph for this function:

◆ RenderEntityListPanel()

void Olympe::BehaviorTreeDebugWindow::RenderEntityListPanel ( )

private

Definition at line 483 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static().

Referenced by RenderInSeparateWindow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RenderExecutionLog()

void Olympe::BehaviorTreeDebugWindow::RenderExecutionLog ( )

private

Definition at line 773 of file BehaviorTreeDebugWindow.cpp.

References Failure, GetComponentTypeID_Static(), and Success.

Here is the call graph for this function:

◆ RenderInSeparateWindow()

void Olympe::BehaviorTreeDebugWindow::RenderInSeparateWindow ( )

private

Definition at line 245 of file BehaviorTreeDebugWindow.cpp.

References GameEngine::fDt, GetComponentTypeID_Static(), m_autoRefreshInterval, m_entityListWidth, m_executionLog, m_inspectorWidth, RefreshEntityList(), RenderEntityListPanel(), RenderInspectorPanel(), and RenderNodeGraphDebugPanel().

Referenced by Render().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RenderInspectorPanel()

void Olympe::BehaviorTreeDebugWindow::RenderInspectorPanel ( )

private

Definition at line 585 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static().

Referenced by RenderInSeparateWindow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RenderNodeGraphDebugPanel()

void Olympe::BehaviorTreeDebugWindow::RenderNodeGraphDebugPanel ( )

private

Definition at line 71 of file BehaviorTreeDebugWindow_NodeGraph.cpp.

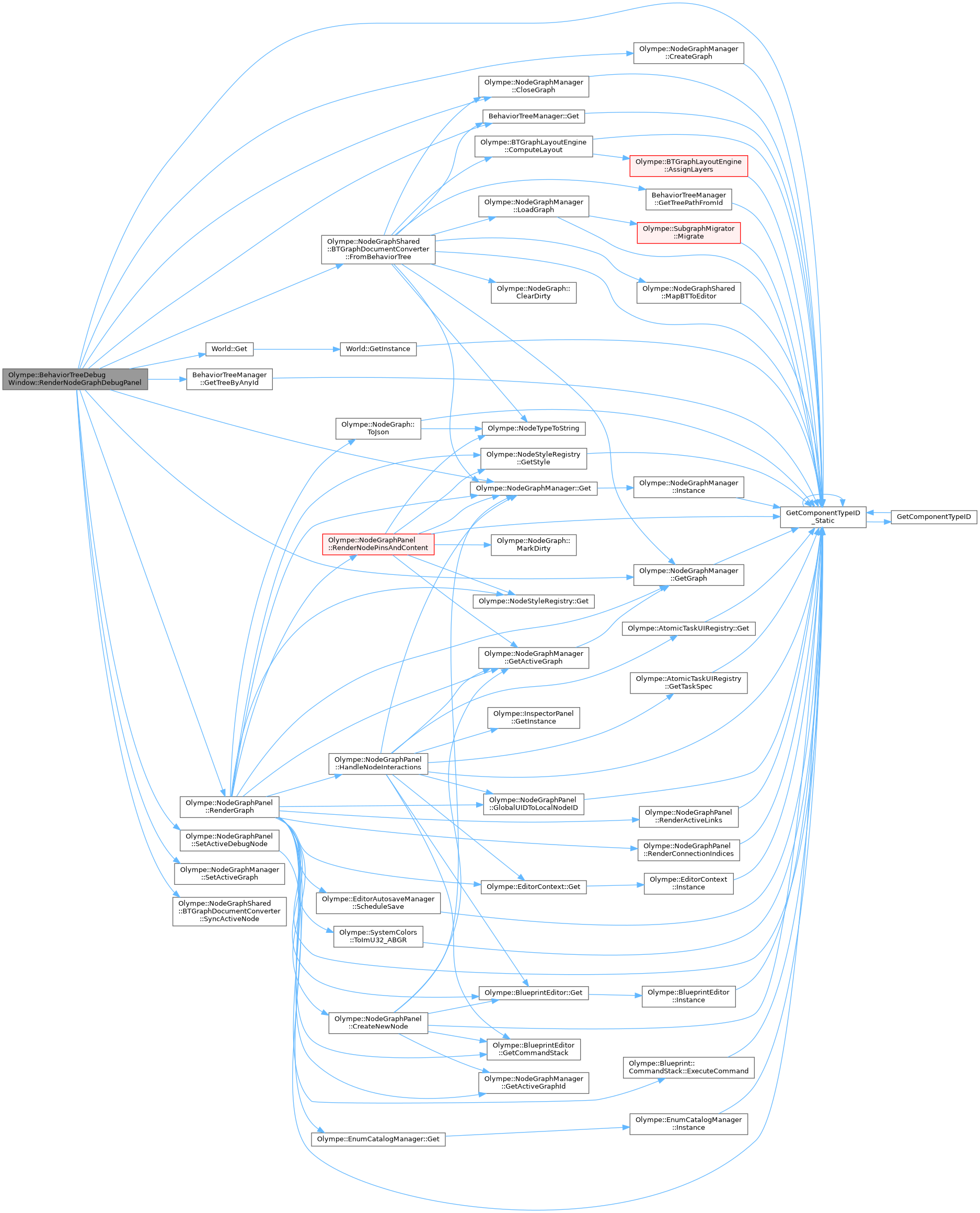

References Olympe::NodeGraphManager::CloseGraph(), Olympe::NodeGraphManager::CreateGraph(), Olympe::NodeGraphShared::BTGraphDocumentConverter::FromBehaviorTree(), BehaviorTreeManager::Get(), Olympe::NodeGraphManager::Get(), World::Get(), GetComponentTypeID_Static(), Olympe::NodeGraphManager::GetGraph(), BehaviorTreeManager::GetTreeByAnyId(), m_debugGraphId, m_lastDebugTreeId, m_nodeGraphPanel, m_selectedEntity, Olympe::NodeGraphPanel::RenderGraph(), Olympe::NodeGraphPanel::SetActiveDebugNode(), Olympe::NodeGraphManager::SetActiveGraph(), Olympe::NodeGraphShared::BTGraphDocumentConverter::SyncActiveNode(), and SYSTEM_LOG.

Referenced by RenderInSeparateWindow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RenderRuntimeInfo()

void Olympe::BehaviorTreeDebugWindow::RenderRuntimeInfo ( )

private

Definition at line 612 of file BehaviorTreeDebugWindow.cpp.

References Combat, Dead, BehaviorTreeManager::DebugPrintLoadedTrees(), Failure, Flee, BehaviorTreeManager::Get(), World::Get(), GetComponentTypeID_Static(), BehaviorTreeManager::GetTreeByAnyId(), BehaviorTreeManager::GetTreePathFromId(), Idle, Investigate, Patrol, and Success.

Here is the call graph for this function:

◆ Shutdown()

void Olympe::BehaviorTreeDebugWindow::Shutdown ( )

Shutdown and cleanup.

Definition at line 66 of file BehaviorTreeDebugWindow.cpp.

References DestroySeparateWindow(), Olympe::EditorAutosaveManager::Flush(), m_autosave, m_imnodesInitialized, m_isInitialized, and ShutdownNodeGraphDebugMode().

Referenced by ~BehaviorTreeDebugWindow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ShutdownNodeGraphDebugMode()

void Olympe::BehaviorTreeDebugWindow::ShutdownNodeGraphDebugMode ( )

private

Definition at line 54 of file BehaviorTreeDebugWindow_NodeGraph.cpp.

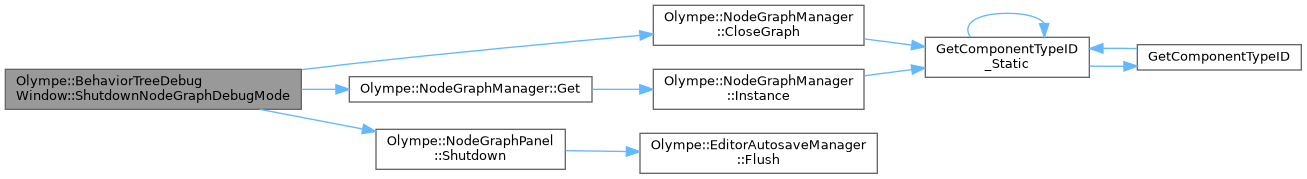

References Olympe::NodeGraphManager::CloseGraph(), Olympe::NodeGraphManager::Get(), m_debugGraphId, m_nodeGraphPanel, Olympe::NodeGraphPanel::Shutdown(), and SYSTEM_LOG.

Referenced by Shutdown().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ToggleVisibility()

void Olympe::BehaviorTreeDebugWindow::ToggleVisibility ( )

Toggle window visibility (creates/destroys separate window)

Definition at line 87 of file BehaviorTreeDebugWindow.cpp.

References CreateSeparateWindow(), DestroySeparateWindow(), Initialize(), m_isInitialized, m_isVisible, and m_windowCreated.

Referenced by ProcessEvent(), and SDL_AppEvent().

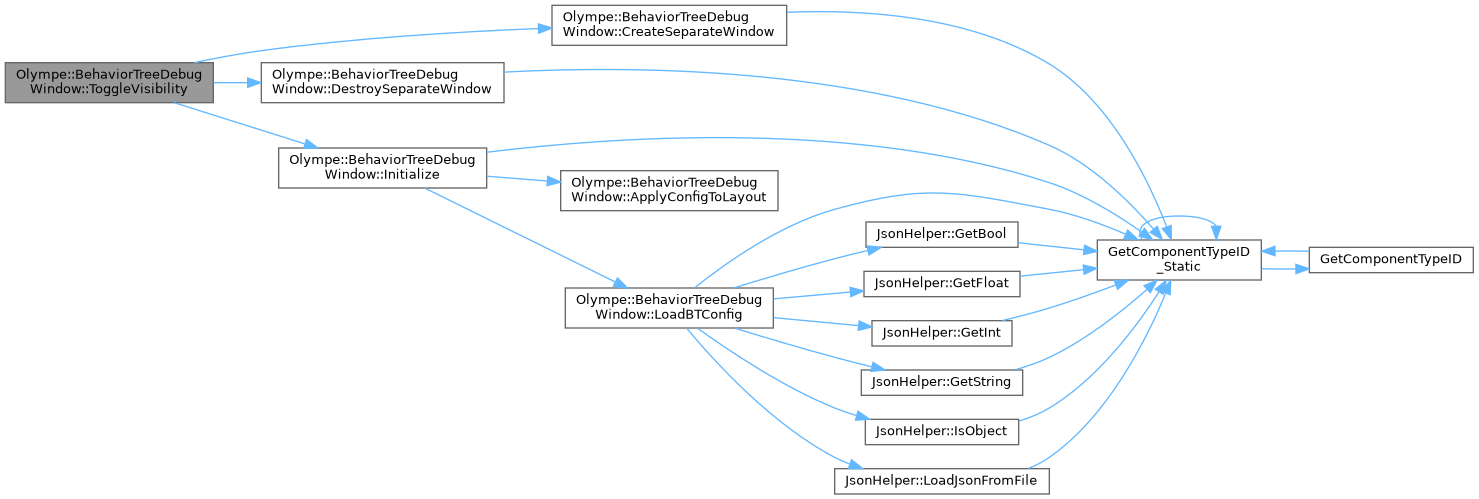

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateEntityFiltering()

void Olympe::BehaviorTreeDebugWindow::UpdateEntityFiltering ( )

private

Definition at line 432 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static(), m_entities, m_filterActiveOnly, m_filteredEntities, m_filterHasTarget, and m_filterText.

Referenced by RefreshEntityList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateEntitySorting()

void Olympe::BehaviorTreeDebugWindow::UpdateEntitySorting ( )

private

Definition at line 459 of file BehaviorTreeDebugWindow.cpp.

References GetComponentTypeID_Static(), m_filteredEntities, and m_sortAscending.

Referenced by RefreshEntityList().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_autoRefreshInterval

float Olympe::BehaviorTreeDebugWindow::m_autoRefreshInterval = 0.5f

private

Definition at line 158 of file BehaviorTreeDebugWindow.h.

Referenced by RenderInSeparateWindow().

◆ m_autosave

EditorAutosaveManager Olympe::BehaviorTreeDebugWindow::m_autosave

private

Definition at line 192 of file BehaviorTreeDebugWindow.h.

Referenced by Initialize(), and Shutdown().

◆ m_debugGraphId

int Olympe::BehaviorTreeDebugWindow::m_debugGraphId = -1

private

Definition at line 200 of file BehaviorTreeDebugWindow.h.

Referenced by InitNodeGraphDebugMode(), RenderNodeGraphDebugPanel(), and ShutdownNodeGraphDebugMode().

◆ m_entities

std::vector<EntityDebugInfo> Olympe::BehaviorTreeDebugWindow::m_entities

private

Definition at line 147 of file BehaviorTreeDebugWindow.h.

Referenced by RefreshEntityList(), and UpdateEntityFiltering().

◆ m_entityListWidth

float Olympe::BehaviorTreeDebugWindow::m_entityListWidth = 250.0f

private

Definition at line 177 of file BehaviorTreeDebugWindow.h.

Referenced by RenderInSeparateWindow().

◆ m_executionLog

std::deque<ExecutionLogEntry> Olympe::BehaviorTreeDebugWindow::m_executionLog

private

Definition at line 152 of file BehaviorTreeDebugWindow.h.

Referenced by RenderInSeparateWindow().

◆ m_filterActiveOnly

bool Olympe::BehaviorTreeDebugWindow::m_filterActiveOnly = false

private

Definition at line 162 of file BehaviorTreeDebugWindow.h.

Referenced by UpdateEntityFiltering().

◆ m_filteredEntities

std::vector<EntityDebugInfo> Olympe::BehaviorTreeDebugWindow::m_filteredEntities

private

Definition at line 148 of file BehaviorTreeDebugWindow.h.

Referenced by UpdateEntityFiltering(), and UpdateEntitySorting().

◆ m_filterHasTarget

bool Olympe::BehaviorTreeDebugWindow::m_filterHasTarget = false

private

Definition at line 163 of file BehaviorTreeDebugWindow.h.

Referenced by UpdateEntityFiltering().

◆ m_filterText

char Olympe::BehaviorTreeDebugWindow::m_filterText[256] = ""

private

Definition at line 161 of file BehaviorTreeDebugWindow.h.

Referenced by UpdateEntityFiltering().

◆ m_imnodesInitialized

bool Olympe::BehaviorTreeDebugWindow::m_imnodesInitialized = false

private

Definition at line 181 of file BehaviorTreeDebugWindow.h.

Referenced by Initialize(), and Shutdown().

◆ m_inspectorWidth

float Olympe::BehaviorTreeDebugWindow::m_inspectorWidth = 350.0f

private

Definition at line 178 of file BehaviorTreeDebugWindow.h.

Referenced by RenderInSeparateWindow().

◆ m_isInitialized

bool Olympe::BehaviorTreeDebugWindow::m_isInitialized = false

private

Definition at line 157 of file BehaviorTreeDebugWindow.h.

Referenced by Initialize(), Shutdown(), and ToggleVisibility().

◆ m_isVisible

bool Olympe::BehaviorTreeDebugWindow::m_isVisible = false

private

Definition at line 156 of file BehaviorTreeDebugWindow.h.

Referenced by IsVisible(), ProcessEvent(), Render(), and ToggleVisibility().

◆ m_lastDebugTreeId

uint32_t Olympe::BehaviorTreeDebugWindow::m_lastDebugTreeId = 0

private

Definition at line 201 of file BehaviorTreeDebugWindow.h.

Referenced by InitNodeGraphDebugMode(), and RenderNodeGraphDebugPanel().

◆ m_nodeGraphPanel

NodeGraphPanel Olympe::BehaviorTreeDebugWindow::m_nodeGraphPanel

private

Definition at line 199 of file BehaviorTreeDebugWindow.h.

Referenced by InitNodeGraphDebugMode(), RenderNodeGraphDebugPanel(), and ShutdownNodeGraphDebugMode().

◆ m_selectedEntity

EntityID Olympe::BehaviorTreeDebugWindow::m_selectedEntity = 0

private

Definition at line 149 of file BehaviorTreeDebugWindow.h.

Referenced by RenderNodeGraphDebugPanel().

◆ m_separateImGuiContext

ImGuiContext* Olympe::BehaviorTreeDebugWindow::m_separateImGuiContext

private

Definition at line 189 of file BehaviorTreeDebugWindow.h.

Referenced by CreateSeparateWindow(), DestroySeparateWindow(), ProcessEvent(), and Render().

◆ m_separateRenderer

SDL_Renderer* Olympe::BehaviorTreeDebugWindow::m_separateRenderer

private

Definition at line 185 of file BehaviorTreeDebugWindow.h.

Referenced by CreateSeparateWindow(), DestroySeparateWindow(), and Render().

◆ m_separateWindow

SDL_Window* Olympe::BehaviorTreeDebugWindow::m_separateWindow

private

Definition at line 184 of file BehaviorTreeDebugWindow.h.

Referenced by CreateSeparateWindow(), DestroySeparateWindow(), and ProcessEvent().

◆ m_sortAscending

bool Olympe::BehaviorTreeDebugWindow::m_sortAscending = true

private

Definition at line 174 of file BehaviorTreeDebugWindow.h.

Referenced by UpdateEntitySorting().

◆ m_sortMode

SortMode Olympe::BehaviorTreeDebugWindow::m_sortMode = SortMode::Name

private

Definition at line 173 of file BehaviorTreeDebugWindow.h.

◆ m_windowCreated

bool Olympe::BehaviorTreeDebugWindow::m_windowCreated

private

Definition at line 186 of file BehaviorTreeDebugWindow.h.

Referenced by CreateSeparateWindow(), DestroySeparateWindow(), ProcessEvent(), Render(), and ToggleVisibility().

◆ MAX_LOG_ENTRIES

const size_t Olympe::BehaviorTreeDebugWindow::MAX_LOG_ENTRIES = 100

private

Definition at line 153 of file BehaviorTreeDebugWindow.h.

The documentation for this class was generated from the following files:

Source/AI/BehaviorTreeDebugWindow.h
Source/AI/BehaviorTreeDebugWindow.cpp
Source/AI/BehaviorTreeDebugWindow_NodeGraph.cpp

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ SortMode

Constructor & Destructor Documentation

◆ BehaviorTreeDebugWindow()

◆ ~BehaviorTreeDebugWindow()

Member Function Documentation

◆ AddExecutionEntry()

◆ CreateSeparateWindow()

◆ DestroySeparateWindow()

◆ Initialize()

◆ InitNodeGraphDebugMode()

◆ IsVisible()

◆ ProcessEvent()

◆ RefreshEntityList()

◆ Render()

◆ RenderBlackboardSection()

◆ RenderEntityEntry()

◆ RenderEntityListPanel()

◆ RenderExecutionLog()

◆ RenderInSeparateWindow()

◆ RenderInspectorPanel()

◆ RenderNodeGraphDebugPanel()

◆ RenderRuntimeInfo()

◆ Shutdown()

◆ ShutdownNodeGraphDebugMode()

◆ ToggleVisibility()

◆ UpdateEntityFiltering()

◆ UpdateEntitySorting()

Member Data Documentation

◆ m_autoRefreshInterval

◆ m_autosave

◆ m_debugGraphId

◆ m_entities

◆ m_entityListWidth

◆ m_executionLog

◆ m_filterActiveOnly

◆ m_filteredEntities

◆ m_filterHasTarget

◆ m_filterText

◆ m_imnodesInitialized

◆ m_inspectorWidth

◆ m_isInitialized

◆ m_isVisible

◆ m_lastDebugTreeId

◆ m_nodeGraphPanel

◆ m_selectedEntity

◆ m_separateImGuiContext

◆ m_separateRenderer

◆ m_separateWindow

◆ m_sortAscending

◆ m_sortMode

◆ m_windowCreated

◆ MAX_LOG_ENTRIES
