Olympe::EditNodeCommand Class Reference

EditNodeCommand - Command to edit node properties (name, type-specific fields) More...

#include <CommandSystem.h>

Inheritance diagram for Olympe::EditNodeCommand:

Collaboration diagram for Olympe::EditNodeCommand:

Public Member Functions
	EditNodeCommand (const std::string &graphId, int nodeId, const std::string &oldName, const std::string &newName, const std::string &oldSubtype, const std::string &newSubtype)
void	Execute () override
void	Undo () override
std::string	GetDescription () const override
Public Member Functions inherited from Olympe::EditorCommand
virtual	~EditorCommand ()=default

Private Attributes
std::string	m_GraphId
int	m_NodeId
std::string	m_OldName
std::string	m_NewName
std::string	m_OldSubtype
std::string	m_NewSubtype

Detailed Description

EditNodeCommand - Command to edit node properties (name, type-specific fields)

Definition at line 231 of file CommandSystem.h.

Constructor & Destructor Documentation

EditNodeCommand()

Olympe::EditNodeCommand::EditNodeCommand	(	const std::string &	graphId,
		int	nodeId,
		const std::string &	oldName,
		const std::string &	newName,
		const std::string &	oldSubtype,
		const std::string &	newSubtype
	)

Definition at line 504 of file CommandSystem.cpp.

Member Function Documentation

Execute()

void Olympe::EditNodeCommand::Execute ( )

overridevirtual

Implements Olympe::EditorCommand.

Definition at line 516 of file CommandSystem.cpp.

References Olympe::BT_Action, Olympe::BT_Condition, Olympe::BT_Decorator, Olympe::NodeGraphManager::Get(), GetComponentTypeID_Static(), Olympe::NodeGraphManager::GetGraph(), m_GraphId, m_NewName, m_NewSubtype, m_NodeId, and Olympe::GraphNode::name.

Here is the call graph for this function:

GetDescription()

std::string Olympe::EditNodeCommand::GetDescription ( ) const

overridevirtual

Implements Olympe::EditorCommand.

Definition at line 574 of file CommandSystem.cpp.

References m_NodeId.

Undo()

void Olympe::EditNodeCommand::Undo ( )

overridevirtual

Implements Olympe::EditorCommand.

Definition at line 545 of file CommandSystem.cpp.

References Olympe::BT_Action, Olympe::BT_Condition, Olympe::BT_Decorator, Olympe::NodeGraphManager::Get(), GetComponentTypeID_Static(), Olympe::NodeGraphManager::GetGraph(), m_GraphId, m_NodeId, m_OldName, m_OldSubtype, and Olympe::GraphNode::name.

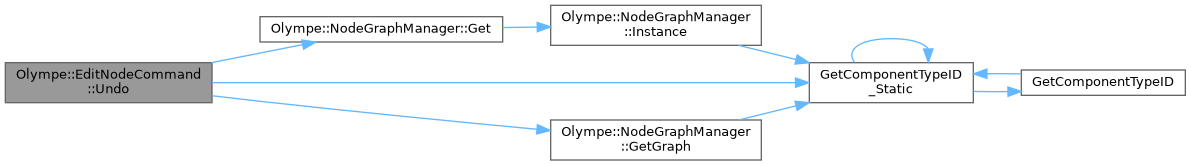

Here is the call graph for this function:

Member Data Documentation

m_GraphId

std::string Olympe::EditNodeCommand::m_GraphId

private

Definition at line 243 of file CommandSystem.h.

Referenced by Execute(), and Undo().

m_NewName

std::string Olympe::EditNodeCommand::m_NewName

private

Definition at line 246 of file CommandSystem.h.

Referenced by Execute().

m_NewSubtype

std::string Olympe::EditNodeCommand::m_NewSubtype

private

Definition at line 248 of file CommandSystem.h.

Referenced by Execute().

m_NodeId

int Olympe::EditNodeCommand::m_NodeId

private

Definition at line 244 of file CommandSystem.h.

Referenced by Execute(), GetDescription(), and Undo().

m_OldName

std::string Olympe::EditNodeCommand::m_OldName

private

Definition at line 245 of file CommandSystem.h.

Referenced by Undo().

m_OldSubtype

std::string Olympe::EditNodeCommand::m_OldSubtype

private

Definition at line 247 of file CommandSystem.h.

Referenced by Undo().

---

The documentation for this class was generated from the following files:

• Source/BlueprintEditor/CommandSystem.h
• Source/BlueprintEditor/CommandSystem.cpp
