TaskExecutionBridge.h File Reference

Runtime bridge: routes live TaskRunner state to the Editor UI. More...

#include "LocalBlackboard.h"
#include "../ECS_Entity.h"

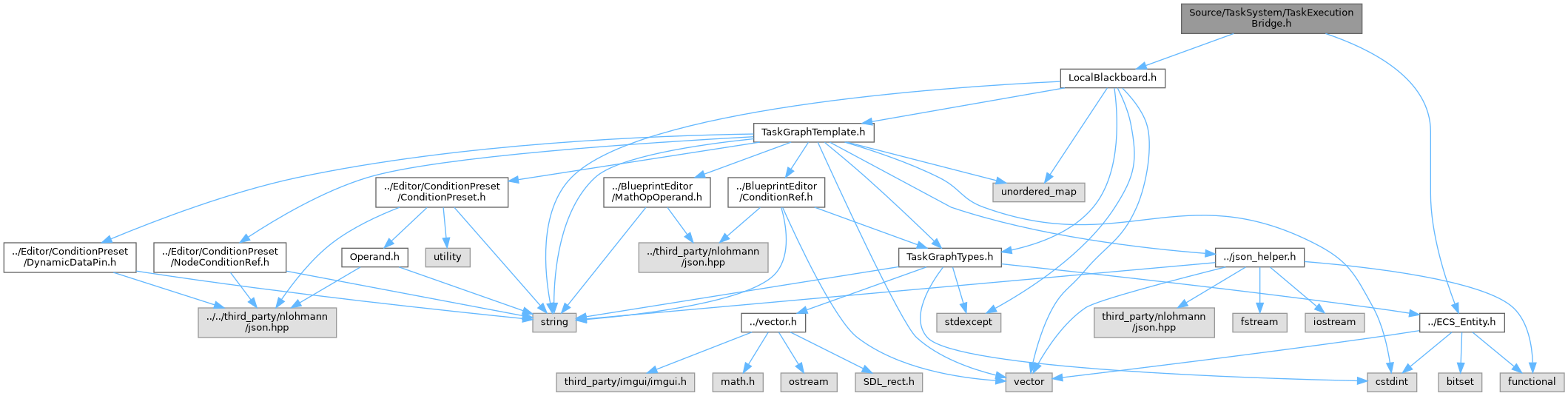

Include dependency graph for TaskExecutionBridge.h:

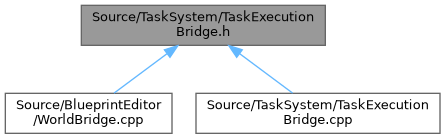

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Olympe::TaskExecutionBridge
	Mediator that publishes per-frame task-runner state to the Editor. More...

Namespaces
namespace	Olympe
	< Provides AssetID and INVALID_ASSET_ID

Typedefs
using	Olympe::BridgeSetNodeFn = void(*)(int nodeIndex)
	Callback type: receives the local node index being executed.
using	Olympe::BridgeSetBBFn = void(*)(const LocalBlackboard *bb)
	Callback type: receives a non-owning pointer to the frame blackboard.

Detailed Description

Runtime bridge: routes live TaskRunner state to the Editor UI.

Author

Olympe Engine

Date

2026-02-25

TaskExecutionBridge is a lightweight mediator between the TaskSystem and the Editor layer. It registers a callback with TaskSystem::SetEditorPublishCallback and forwards the published runner state to Editor-side hooks (function pointers) that have been registered by the Editor at startup.

Design goals

• TaskExecutionBridge lives in Source/TaskSystem/ and has zero compile-time dependency on any Editor or ImGui headers.
• The Editor registers its static methods (e.g. InspectorPanel::SetDebugBlackboard and NodeGraphPanel::SetActiveDebugNode) as function-pointer hooks via Install().
• Non-owning semantics: the LocalBlackboard pointer forwarded to the BB hook is valid only for the duration of the callback invocation.
• Calls are guarded: if no hooks are installed the callback is a no-op.

Usage (Editor startup)

// In WorldBridge or Editor initialization code:
TaskExecutionBridge::Install(
    &NodeGraphPanel::SetActiveDebugNode,    // BridgeSetNodeFn
    &InspectorPanel::SetDebugBlackboardRaw  // BridgeSetBBFn
);

Usage (Editor shutdown)

TaskExecutionBridge::Uninstall();

C++14 compliant - no C++17/20 features.

Definition in file TaskExecutionBridge.h.
