Simple map-based blackboard for task graph runtime state. More...

#include <LocalBlackboard.h>

Inheritance diagram for Olympe::LocalBlackboard:

Public Member Functions
	LocalBlackboard ()
	Default constructor.

void	Initialize (const TaskGraphTemplate &tmpl)
	Initialises the blackboard from a template.

void	Reset ()
	Resets all variables to their default values.

TaskValue	GetValue (const std::string &varName) const
	Returns the current value of a variable.

void	SetValue (const std::string &varName, const TaskValue &value)
	Sets the value of a variable.

bool	HasVariable (const std::string &varName) const
	Returns true if a variable with the given name is registered.

std::vector< std::string >	GetVariableNames () const
	Returns all registered variable names (useful for debugging / editor).

void	Serialize (std::vector< uint8_t > &outBytes) const
	Serializes all variable names and typed values into a byte buffer.

void	Deserialize (const std::vector< uint8_t > &inBytes)
	Restores variable values from a byte buffer produced by Serialize().

void	InitializeFromEntries (const std::vector< BlackboardEntry > &entries)
	Initializes the blackboard from a vector of BlackboardEntry (ATS VS schema v4).

void	SetValueScoped (const std::string &scopedKey, const TaskValue &value)
	Sets a value using a scoped key (prefix "local:" is stripped).

TaskValue	GetValueScoped (const std::string &scopedKey) const
	Gets a value using a scoped key (prefix "local:" is stripped).

Private Attributes
std::unordered_map< std::string, TaskValue >	m_variables
	Current values for each registered variable.

std::unordered_map< std::string, TaskValue >	m_defaults
	Default (initial) values used by Reset().

std::unordered_map< std::string, VariableType >	m_types
	Declared type of each variable (used for type validation in SetValue).

Detailed Description

Simple map-based blackboard for task graph runtime state.

Variables must be registered via Initialize() before use. SetValue() enforces type compatibility: the new value must match the declared type of the variable. Throws std::runtime_error on unknown variable or type mismatch.

Definition at line 37 of file LocalBlackboard.h.

Constructor & Destructor Documentation

◆ LocalBlackboard()

Olympe::LocalBlackboard::LocalBlackboard ( )

Default constructor.

Blackboard is empty until Initialize() is called.

Definition at line 24 of file LocalBlackboard.cpp.

Member Function Documentation

◆ Deserialize()

void Olympe::LocalBlackboard::Deserialize ( const std::vector< uint8_t > & inBytes )

Restores variable values from a byte buffer produced by Serialize().

The blackboard schema (m_types) must already be initialised via Initialize() before calling this method. Unknown variable names and type-mismatched entries are skipped with a warning log. The buffer is consumed in one pass; parsing stops on any truncation error.

Parameters

inBytes Byte buffer previously produced by Serialize().

Definition at line 213 of file LocalBlackboard.cpp.

References Olympe::Bool, Olympe::EntityID, Olympe::Float, GetComponentTypeID_Static(), Olympe::Int, m_types, m_variables, Olympe::String, SYSTEM_LOG, and Olympe::Vector.

Here is the call graph for this function:

◆ GetValue()

TaskValue Olympe::LocalBlackboard::GetValue ( const std::string & varName ) const

Returns the current value of a variable.

Parameters

varName Name of the variable.

Exceptions

std::runtime_error if the variable is not registered.

Definition at line 64 of file LocalBlackboard.cpp.

References GetComponentTypeID_Static(), and m_variables.

Referenced by Olympe::EntityBlackboard::GetLocalValue(), GetValueScoped(), and Olympe::InspectorPanel::RenderDebugBlackboard().

Here is the call graph for this function:

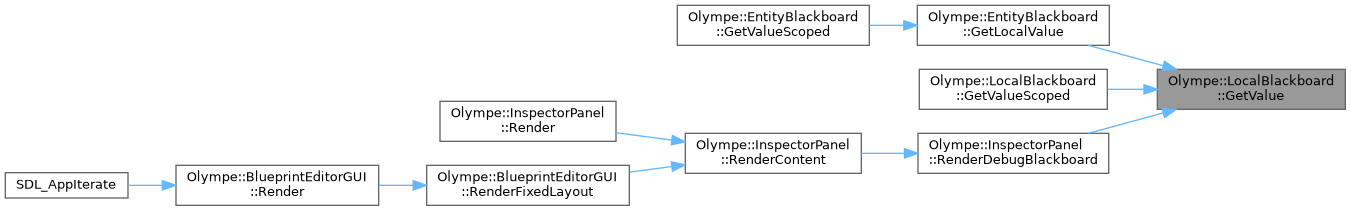

Here is the caller graph for this function:

◆ GetValueScoped()

TaskValue Olympe::LocalBlackboard::GetValueScoped ( const std::string & scopedKey ) const

Gets a value using a scoped key (prefix "local:" is stripped).

Forwards "global:" scope to GlobalBlackboard singleton.

Parameters

scopedKey Key with optional prefix.

Returns: Stored value or default TaskValue() if not found.

Definition at line 411 of file LocalBlackboard.cpp.

References Olympe::GlobalBlackboard::Get(), GetComponentTypeID_Static(), GetValue(), and Olympe::GlobalBlackboard::GetVar().

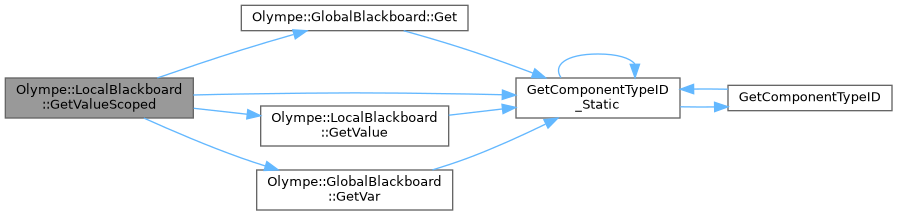

Here is the call graph for this function:

◆ GetVariableNames()

std::vector< std::string > Olympe::LocalBlackboard::GetVariableNames ( ) const

Returns all registered variable names (useful for debugging / editor).

Definition at line 99 of file LocalBlackboard.cpp.

References GetComponentTypeID_Static(), and m_variables.

Referenced by Olympe::InspectorPanel::RenderDebugBlackboard(), and Olympe::DebugPanel::RenderWatchVariables().

Here is the call graph for this function:

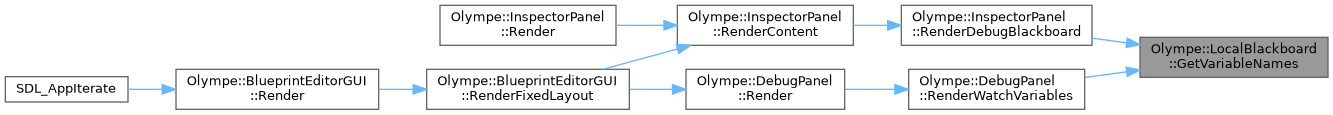

Here is the caller graph for this function:

◆ HasVariable()

bool Olympe::LocalBlackboard::HasVariable ( const std::string & varName ) const

Returns true if a variable with the given name is registered.

Parameters

varName Name of the variable.

Definition at line 94 of file LocalBlackboard.cpp.

References GetComponentTypeID_Static(), and m_variables.

Referenced by Olympe::EntityBlackboard::HasLocalVariable().

Here is the call graph for this function:

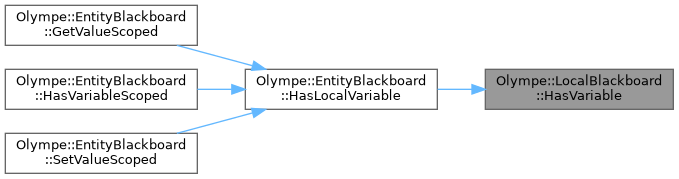

Here is the caller graph for this function:

◆ Initialize()

void Olympe::LocalBlackboard::Initialize ( const TaskGraphTemplate & tmpl )

Initialises the blackboard from a template.

Registers all local variables defined in tmpl, copying their types and default values. Any previous state is discarded.

Parameters

tmpl	The TaskGraphTemplate that owns this blackboard's schema.

Definition at line 32 of file LocalBlackboard.cpp.

References Olympe::VariableDefinition::DefaultValue, GetComponentTypeID_Static(), m_defaults, m_types, m_variables, Olympe::VariableDefinition::Name, SYSTEM_LOG, and Olympe::VariableDefinition::Type.

Referenced by Olympe::TaskSystem::ExecuteAtomicTask(), and Olympe::EntityBlackboard::Initialize().

Here is the call graph for this function:

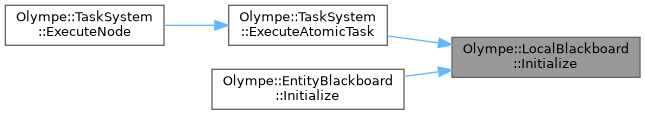

Here is the caller graph for this function:

◆ InitializeFromEntries()

void Olympe::LocalBlackboard::InitializeFromEntries ( const std::vector< BlackboardEntry > & entries )

Initializes the blackboard from a vector of BlackboardEntry (ATS VS schema v4).

Companion to Initialize(const TaskGraphTemplate&) for VS graphs that use the BlackboardEntry schema instead of VariableDefinition.

Parameters

entries Blackboard entries from TaskGraphTemplate::Blackboard.

Definition at line 342 of file LocalBlackboard.cpp.

References Olympe::BlackboardEntry::Default, GetComponentTypeID_Static(), m_defaults, m_types, m_variables, and SYSTEM_LOG.

Referenced by Olympe::TaskSystem::ExecuteVSFrame(), and Olympe::VSGraphExecutor::HandleSubGraph().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Reset()

void Olympe::LocalBlackboard::Reset ( )

Resets all variables to their default values.

Does not change the set of registered variables.

Definition at line 50 of file LocalBlackboard.cpp.

References GetComponentTypeID_Static(), m_defaults, m_variables, and SYSTEM_LOG.

Referenced by Olympe::EntityBlackboard::Reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Serialize()

void Olympe::LocalBlackboard::Serialize ( std::vector< uint8_t > & outBytes ) const

Serializes all variable names and typed values into a byte buffer.

Binary format (little-endian): uint32_t count - number of variables for each variable: uint32_t nameLen - length of name in bytes <nameLen bytes> - variable name (UTF-8) uint8_t type - VariableType tag

: Bool -> uint8_t (0 = false, 1 = true) Int -> int32_t Float -> float Vector -> float x, float y, float z EntityID-> uint64_t String -> uint32_t len, <len bytes>

Parameters

outBytes Output byte buffer (cleared before writing).

Definition at line 139 of file LocalBlackboard.cpp.

References Olympe::Bool, Olympe::EntityID, Olympe::Float, GetComponentTypeID_Static(), Olympe::Int, m_variables, Olympe::String, SYSTEM_LOG, and Olympe::Vector.

Here is the call graph for this function:
