TaskGraphMigrator_v3_to_v4.h File Reference

Migrates task graph JSON from schema v3 (BT-style) to schema v4 (VS-style). More...

#include <string>
#include <vector>
#include "../third_party/nlohmann/json.hpp"

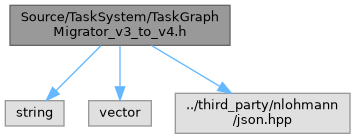

Include dependency graph for TaskGraphMigrator_v3_to_v4.h:

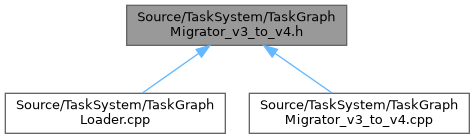

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Olympe::TaskGraphMigrator_v3_to_v4
	Converts task graph JSON from schema v3 to schema v4 (VisualScript). More...

Namespaces
namespace	Olympe
	< Provides AssetID and INVALID_ASSET_ID

Typedefs
using	json = nlohmann::json

Detailed Description

Migrates task graph JSON from schema v3 (BT-style) to schema v4 (VS-style).

Author

Olympe Engine

Date

2026-03-08

Schema v3 uses a flat node list with NextOnSuccess / NextOnFailure integer fields to express control flow (Behavior-Tree-style).

Schema v4 replaces those fields with explicit ExecConnections and DataConnections arrays (Visual-Script-style), adds graphType, and bumps schema_version to 4.

Usage

std::vector<std::string> errors;
bool ok = TaskGraphMigrator_v3_to_v4::Migrate("input_v3.json",
                                               "output_v4.json",
                                               errors);
if (!ok) {
    for (auto& e : errors) std::cerr << e << "\n";
}

C++14 compliant - no C++17/20 features.

Definition in file TaskGraphMigrator_v3_to_v4.h.

Typedef Documentation

json

using json = nlohmann::json

Definition at line 36 of file TaskGraphMigrator_v3_to_v4.h.
