Modal dialog for adding, removing, and reordering conditions on a node. More...

#include <NodeConditionsEditModal.h>

Collaboration diagram for Olympe::NodeConditionsEditModal:

Public Member Functions
	NodeConditionsEditModal (ConditionPresetRegistry &registry)
	Constructs the modal bound to a global preset registry.

	~NodeConditionsEditModal ()=default

	NodeConditionsEditModal (const NodeConditionsEditModal &)=delete

NodeConditionsEditModal &	operator= (const NodeConditionsEditModal &)=delete

bool	IsOpen () const
	Returns true if the modal is currently open.

void	Open (const std::vector< NodeConditionRef > &currentRefs, const std::vector< ConditionRef > &operandRefs=std::vector< ConditionRef >())
	Opens the modal, loading the given condition refs for editing.

void	Close ()
	Closes the modal without confirming changes.

bool	IsConfirmed () const
	Returns true if the user clicked "Apply" and the modal was closed.

const std::vector< NodeConditionRef > &	GetConditionRefs () const
	Returns the edited condition ref list.

const std::vector< ConditionRef > &	GetConditionOperandRefs () const
	Returns the edited operand ref list (Phase 24).

size_t	GetConditionCount () const
	Returns the number of conditions in the working copy.

void	AddCondition (const std::string &presetID)
	Appends a new condition for the given preset to the working copy.

void	RemoveCondition (size_t index)
	Removes the condition at the given index from the working copy.

void	SetLogicalOp (size_t index, LogicalOp op)
	Sets the logical operator for the condition at the given index.

void	MoveConditionUp (size_t index)
	Moves the condition at `index` one position earlier (swap with index-1).

void	MoveConditionDown (size_t index)
	Moves the condition at `index` one position later (swap with index+1).

void	Confirm ()
	Programmatically confirms the modal (equivalent to clicking Apply).

void	SetLocalVariables (const std::vector< BlackboardEntry > &localVars)
	Sets the list of local variables for combo population.

void	SetDropdownFilter (const std::string &filter)
	Sets the search filter for the "Add Condition" preset picker.

const std::string &	GetDropdownFilter () const
	Returns the current dropdown filter string.

std::vector< ConditionPreset >	GetFilteredPresetsForDropdown () const
	Returns presets matching the current dropdown filter.

void	Render ()
	Renders the modal dialog using ImGui.

Public Attributes
std::function< void()>	OnApply
	Optional callback fired when the user clicks "Apply" (Confirm).

Private Member Functions
void	RenderConditionRow (size_t index, const NodeConditionRef &ref)

void	RenderAddConditionPicker ()

void	RenderFooterButtons ()

void	NormalizeLogicalOps ()
	Ensures the first condition's logicalOp is always Start.

Private Attributes
ConditionPresetRegistry &	m_registry
	Shared global registry.

std::vector< NodeConditionRef >	m_workingCopy
	Editable in-progress copy.

std::vector< ConditionRef >	m_workingCopyOperandRefs
	Phase 24: Operand data.

bool	m_isOpen = false

bool	m_isConfirmed = false

std::string	m_dropdownFilter
	Preset-picker search filter.

bool	m_pickerOpen = false
	Whether the add-preset picker is open.

std::vector< BlackboardEntry >	m_localVariables
	Phase 24: Local variables for combo.

Detailed Description

Modal dialog for adding, removing, and reordering conditions on a node.

The modal contains:

A scrollable list of current conditions, each with:
- Logical operator dropdown (And / Or; first entry is always fixed).
- Preset selector dropdown (from global registry).
- Delete [X] button.
- Move Up / Move Down buttons.
An "Add Condition" button (opens preset picker inline).
Apply and Cancel buttons at the bottom.

Definition at line 62 of file NodeConditionsEditModal.h.

Constructor & Destructor Documentation

◆ NodeConditionsEditModal() [1/2]

Olympe::NodeConditionsEditModal::NodeConditionsEditModal ( ConditionPresetRegistry & registry )

explicit

Constructs the modal bound to a global preset registry.

Parameters

registry Global ConditionPresetRegistry (must outlive this modal).

Definition at line 26 of file NodeConditionsEditModal.cpp.

◆ ~NodeConditionsEditModal()

Olympe::NodeConditionsEditModal::~NodeConditionsEditModal ( )

default

◆ NodeConditionsEditModal() [2/2]

Olympe::NodeConditionsEditModal::NodeConditionsEditModal ( const NodeConditionsEditModal & )

delete

Member Function Documentation

◆ AddCondition()

void Olympe::NodeConditionsEditModal::AddCondition ( const std::string & presetID )

Appends a new condition for the given preset to the working copy.

The logicalOp defaults to And (Start for the first condition).

Parameters

presetID UUID of the preset to add.

Definition at line 76 of file NodeConditionsEditModal.cpp.

References Olympe::And, m_workingCopy, NormalizeLogicalOps(), and Olympe::Start.

Referenced by RenderAddConditionPicker().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Close()

void Olympe::NodeConditionsEditModal::Close ( )

Closes the modal without confirming changes.

Definition at line 47 of file NodeConditionsEditModal.cpp.

References m_isOpen, and m_pickerOpen.

Referenced by Confirm(), and RenderFooterButtons().

Here is the caller graph for this function:

◆ Confirm()

void Olympe::NodeConditionsEditModal::Confirm ( )

Programmatically confirms the modal (equivalent to clicking Apply).

Marks the modal as confirmed and closes it. Always succeeds. Fires the OnApply callback (if set) before closing.

Definition at line 121 of file NodeConditionsEditModal.cpp.

References Close(), m_isConfirmed, and OnApply.

Referenced by RenderFooterButtons().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetConditionCount()

size_t Olympe::NodeConditionsEditModal::GetConditionCount ( ) const

Returns the number of conditions in the working copy.

Definition at line 71 of file NodeConditionsEditModal.cpp.

References m_workingCopy.

◆ GetConditionOperandRefs()

const std::vector< ConditionRef > & Olympe::NodeConditionsEditModal::GetConditionOperandRefs ( ) const

Returns the edited operand ref list (Phase 24).

Only meaningful when IsConfirmed() is true.

Definition at line 62 of file NodeConditionsEditModal.cpp.

References m_workingCopyOperandRefs.

◆ GetConditionRefs()

const std::vector< NodeConditionRef > & Olympe::NodeConditionsEditModal::GetConditionRefs ( ) const

Returns the edited condition ref list.

Only meaningful when IsConfirmed() is true.

Definition at line 57 of file NodeConditionsEditModal.cpp.

References m_workingCopy.

◆ GetDropdownFilter()

const std::string & Olympe::NodeConditionsEditModal::GetDropdownFilter ( ) const

inline

Returns the current dropdown filter string.

Definition at line 229 of file NodeConditionsEditModal.h.

References m_dropdownFilter.

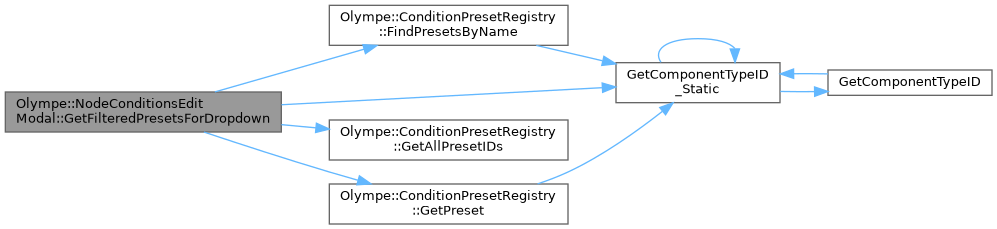

◆ GetFilteredPresetsForDropdown()

std::vector< ConditionPreset > Olympe::NodeConditionsEditModal::GetFilteredPresetsForDropdown ( ) const

Returns presets matching the current dropdown filter.

Definition at line 139 of file NodeConditionsEditModal.cpp.

References Olympe::ConditionPresetRegistry::FindPresetsByName(), Olympe::ConditionPresetRegistry::GetAllPresetIDs(), GetComponentTypeID_Static(), Olympe::ConditionPresetRegistry::GetPreset(), m_dropdownFilter, and m_registry.

Referenced by RenderAddConditionPicker().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsConfirmed()

bool Olympe::NodeConditionsEditModal::IsConfirmed ( ) const

inline

Returns true if the user clicked "Apply" and the modal was closed.

Reset by Open().

Definition at line 106 of file NodeConditionsEditModal.h.

References m_isConfirmed.

◆ IsOpen()

bool Olympe::NodeConditionsEditModal::IsOpen ( ) const

inline

Returns true if the modal is currently open.

Definition at line 84 of file NodeConditionsEditModal.h.

References m_isOpen.

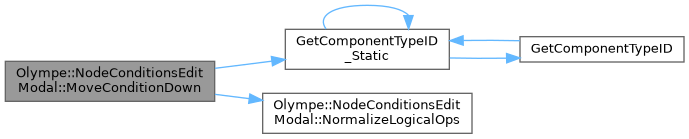

◆ MoveConditionDown()

void Olympe::NodeConditionsEditModal::MoveConditionDown ( size_t index )

Moves the condition at index one position later (swap with index+1).

No-op when index is the last element.

Parameters

index Zero-based index.

Definition at line 112 of file NodeConditionsEditModal.cpp.

References GetComponentTypeID_Static(), m_workingCopy, and NormalizeLogicalOps().

Referenced by RenderConditionRow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MoveConditionUp()

void Olympe::NodeConditionsEditModal::MoveConditionUp ( size_t index )

Moves the condition at index one position earlier (swap with index-1).

No-op when index == 0.

Parameters

index Zero-based index.

Definition at line 103 of file NodeConditionsEditModal.cpp.

References GetComponentTypeID_Static(), m_workingCopy, and NormalizeLogicalOps().

Referenced by RenderConditionRow().

Here is the call graph for this function:

Here is the caller graph for this function:

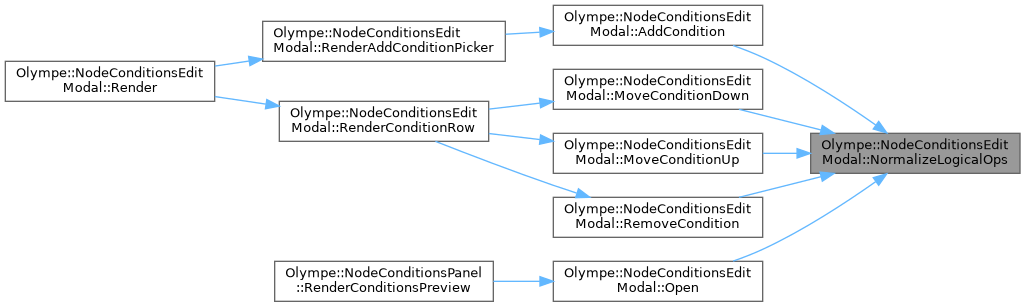

◆ NormalizeLogicalOps()

void Olympe::NodeConditionsEditModal::NormalizeLogicalOps ( )

private

Ensures the first condition's logicalOp is always Start.

Definition at line 305 of file NodeConditionsEditModal.cpp.

References m_workingCopy, and Olympe::Start.

Referenced by AddCondition(), MoveConditionDown(), MoveConditionUp(), Open(), and RemoveCondition().

Here is the caller graph for this function:

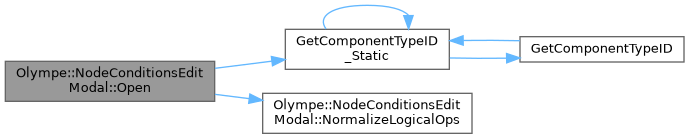

◆ Open()

void Olympe::NodeConditionsEditModal::Open	(	const std::vector< NodeConditionRef > &	currentRefs,
		const std::vector< ConditionRef > &	operandRefs = `std::vector<ConditionRef>()`
	)

Opens the modal, loading the given condition refs for editing.

Resets the confirmed flag and takes a COPY of the refs to edit.

Parameters

currentRefs Condition refs from the selected node.

Definition at line 35 of file NodeConditionsEditModal.cpp.

References GetComponentTypeID_Static(), m_dropdownFilter, m_isConfirmed, m_isOpen, m_pickerOpen, m_workingCopy, m_workingCopyOperandRefs, and NormalizeLogicalOps().

Referenced by Olympe::NodeConditionsPanel::RenderConditionsPreview().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

NodeConditionsEditModal & Olympe::NodeConditionsEditModal::operator= ( const NodeConditionsEditModal & )

delete

◆ RemoveCondition()

void Olympe::NodeConditionsEditModal::RemoveCondition ( size_t index )

Removes the condition at the given index from the working copy.

Parameters

index Zero-based index.

Definition at line 86 of file NodeConditionsEditModal.cpp.

References GetComponentTypeID_Static(), m_workingCopy, and NormalizeLogicalOps().

Referenced by RenderConditionRow().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Render()

void Olympe::NodeConditionsEditModal::Render ( )

Renders the modal dialog using ImGui.

Must be called once per frame from the host's render loop. No-op when !IsOpen().

Definition at line 169 of file NodeConditionsEditModal.cpp.

References GetComponentTypeID_Static(), m_isOpen, m_workingCopy, RenderAddConditionPicker(), RenderConditionRow(), and RenderFooterButtons().

Here is the call graph for this function:

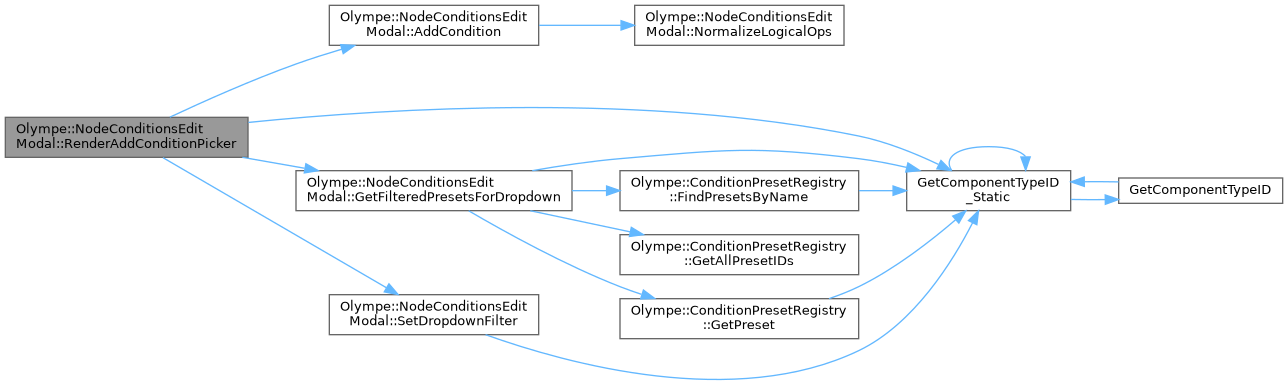

◆ RenderAddConditionPicker()

void Olympe::NodeConditionsEditModal::RenderAddConditionPicker ( )

private

Definition at line 257 of file NodeConditionsEditModal.cpp.

References AddCondition(), GetComponentTypeID_Static(), GetFilteredPresetsForDropdown(), m_pickerOpen, and SetDropdownFilter().

Referenced by Render().

Here is the call graph for this function:

Here is the caller graph for this function:

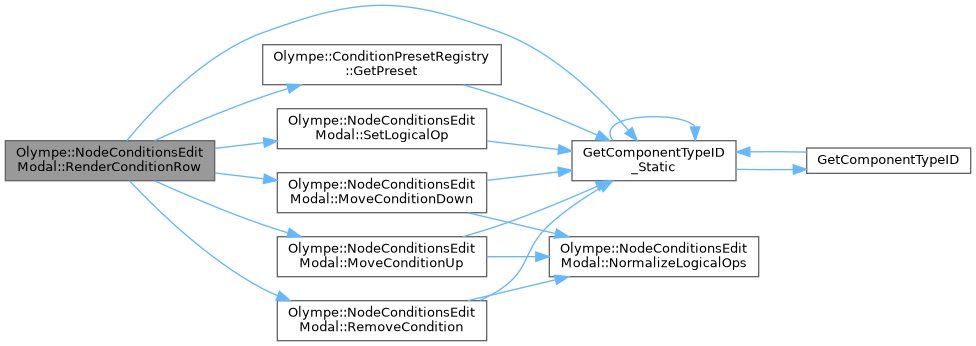

◆ RenderConditionRow()

void Olympe::NodeConditionsEditModal::RenderConditionRow	(	size_t	index,
		const NodeConditionRef &	ref
	)

private

Definition at line 204 of file NodeConditionsEditModal.cpp.

References Olympe::And, GetComponentTypeID_Static(), Olympe::ConditionPresetRegistry::GetPreset(), m_registry, MoveConditionDown(), MoveConditionUp(), Olympe::Or, RemoveCondition(), and SetLogicalOp().

Referenced by Render().

Here is the call graph for this function:

Here is the caller graph for this function:

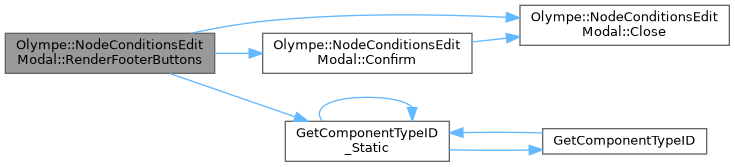

◆ RenderFooterButtons()

void Olympe::NodeConditionsEditModal::RenderFooterButtons ( )

private

Definition at line 288 of file NodeConditionsEditModal.cpp.

References Close(), Confirm(), and GetComponentTypeID_Static().

Referenced by Render().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDropdownFilter()

void Olympe::NodeConditionsEditModal::SetDropdownFilter ( const std::string & filter )

Sets the search filter for the "Add Condition" preset picker.

Parameters

filter Substring filter (empty = show all).

Definition at line 133 of file NodeConditionsEditModal.cpp.

References GetComponentTypeID_Static(), and m_dropdownFilter.

Referenced by RenderAddConditionPicker().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetLocalVariables()

void Olympe::NodeConditionsEditModal::SetLocalVariables ( const std::vector< BlackboardEntry > & localVars )

inline

Sets the list of local variables for combo population.

Parameters

localVars Vector of local blackboard entries.

Definition at line 211 of file NodeConditionsEditModal.h.

References GetComponentTypeID_Static(), and m_localVariables.

Here is the call graph for this function:

◆ SetLogicalOp()

void Olympe::NodeConditionsEditModal::SetLogicalOp	(	size_t	index,
		LogicalOp	op
	)

Sets the logical operator for the condition at the given index.

Index 0 is always forced to LogicalOp::Start.

Parameters

index	Zero-based index.
op	Desired operator (And or Or).

Definition at line 95 of file NodeConditionsEditModal.cpp.

References GetComponentTypeID_Static(), m_workingCopy, and Olympe::Start.

Referenced by RenderConditionRow().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_dropdownFilter

std::string Olympe::NodeConditionsEditModal::m_dropdownFilter

private

Preset-picker search filter.

Definition at line 275 of file NodeConditionsEditModal.h.

Referenced by GetDropdownFilter(), GetFilteredPresetsForDropdown(), Open(), and SetDropdownFilter().

◆ m_isConfirmed

bool Olympe::NodeConditionsEditModal::m_isConfirmed = false

private

Definition at line 273 of file NodeConditionsEditModal.h.

Referenced by Confirm(), IsConfirmed(), and Open().

◆ m_isOpen

bool Olympe::NodeConditionsEditModal::m_isOpen = false

private

Definition at line 272 of file NodeConditionsEditModal.h.

Referenced by Close(), IsOpen(), Open(), and Render().

◆ m_localVariables

std::vector<BlackboardEntry> Olympe::NodeConditionsEditModal::m_localVariables

private

Phase 24: Local variables for combo.

Definition at line 277 of file NodeConditionsEditModal.h.

Referenced by SetLocalVariables().

◆ m_pickerOpen

bool Olympe::NodeConditionsEditModal::m_pickerOpen = false

private

Whether the add-preset picker is open.

Definition at line 276 of file NodeConditionsEditModal.h.

Referenced by Close(), Open(), and RenderAddConditionPicker().

◆ m_registry

ConditionPresetRegistry& Olympe::NodeConditionsEditModal::m_registry

private

Shared global registry.

Definition at line 269 of file NodeConditionsEditModal.h.

Referenced by GetFilteredPresetsForDropdown(), and RenderConditionRow().

◆ m_workingCopy

std::vector<NodeConditionRef> Olympe::NodeConditionsEditModal::m_workingCopy

private

Editable in-progress copy.

Definition at line 270 of file NodeConditionsEditModal.h.

Referenced by AddCondition(), GetConditionCount(), GetConditionRefs(), MoveConditionDown(), MoveConditionUp(), NormalizeLogicalOps(), Open(), RemoveCondition(), Render(), and SetLogicalOp().

◆ m_workingCopyOperandRefs

std::vector<ConditionRef> Olympe::NodeConditionsEditModal::m_workingCopyOperandRefs

private

Phase 24: Operand data.

Definition at line 271 of file NodeConditionsEditModal.h.

Referenced by GetConditionOperandRefs(), and Open().

◆ OnApply

std::function<void()> Olympe::NodeConditionsEditModal::OnApply

Optional callback fired when the user clicks "Apply" (Confirm).

Set this before opening the modal. The callback is invoked from within Confirm() after m_isConfirmed is set but before Close() is called, allowing the host to read GetConditionRefs() synchronously.

Example:

modal.OnApply = [&]() {
    node.conditionRefs = modal.GetConditionRefs();
    pinManager.RegeneratePinsFromConditions(node.conditionRefs);
};

Definition at line 201 of file NodeConditionsEditModal.h.

Referenced by Confirm().

The documentation for this class was generated from the following files:

Source/Editor/Modals/NodeConditionsEditModal.h
Source/Editor/Modals/NodeConditionsEditModal.cpp

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ NodeConditionsEditModal() [1/2]

◆ ~NodeConditionsEditModal()

◆ NodeConditionsEditModal() [2/2]

Member Function Documentation

◆ AddCondition()

◆ Close()

◆ Confirm()

◆ GetConditionCount()

◆ GetConditionOperandRefs()

◆ GetConditionRefs()

◆ GetDropdownFilter()

◆ GetFilteredPresetsForDropdown()

◆ IsConfirmed()

◆ IsOpen()

◆ MoveConditionDown()

◆ MoveConditionUp()

◆ NormalizeLogicalOps()

◆ Open()

◆ operator=()

◆ RemoveCondition()

◆ Render()

◆ RenderAddConditionPicker()

◆ RenderConditionRow()

◆ RenderFooterButtons()

◆ SetDropdownFilter()

◆ SetLocalVariables()

◆ SetLogicalOp()

Member Data Documentation

◆ m_dropdownFilter

◆ m_isConfirmed

◆ m_isOpen

◆ m_localVariables

◆ m_pickerOpen

◆ m_registry

◆ m_workingCopy

◆ m_workingCopyOperandRefs

◆ OnApply
