Olympe::NodeGraphShared Namespace Reference

Classes
class	BehaviorTreeAdapter
class	BlueprintAdapter
class	BTDebugAdapter
	Adapter for visualizing BehaviorTree runtime using unified renderer. More...
class	BTGraphDocumentConverter
	Converts a BehaviorTreeAsset into an Olympe::NodeGraph for display in the NodeGraphPanel (Blueprint Editor pipeline). More...
class	CommandAdapter

Typedefs
using	json = nlohmann::json

Functions
static NodeType	MapBTToEditor (BTNodeType t)
ImVec2	ComputePinCenterScreen (int nodeId, const BTNodeLayout *layout, bool isOutput, float pinOffset, float headerHeight, float zoom)
	Compute the screen-space center position of a pin.
void	DrawPinCircle (ImDrawList *drawList, const ImVec2 &center, float radius, ImU32 fillColor, ImU32 outlineColor, float outlineThickness)
void	RenderNodeHeader (int nodeId, const NodeStyle &style, const char *icon, const std::string &title, bool isCurrentNode, float pulseTimer)
NodeType	MapBTRegistryNameToEditor (const std::string &registryName)
void	RenderNodeVisual (int nodeId, const std::string &title, NodeType editorType, float posX, float posY, float width, float height, bool isCurrentNode, float currentZoom, float pulseTimer, float pinRadius, float pinOutline, float pinHeaderHeight, std::unordered_set< uint32_t > &positionedNodes)
void	RenderBTNode (const BTNode *node, const BTNodeLayout *layout, bool isCurrentNode, float currentZoom, float pulseTimer, const BTConfig &config, std::unordered_set< uint32_t > &positionedNodes)
void	RenderBTNodeConnections (const BehaviorTreeAsset *tree, uint32_t activeNodeId)
void	DrawPinCircle (ImDrawList *drawList, const ImVec2 &center, float radius, uint32_t color, uint32_t outlineColor, float outlineThickness)
	Draw a pin circle with outline.
json	SerializeBehaviorTreeToJson (const BehaviorTreeAsset &tree, const BTGraphLayoutEngine *layoutEngine)

Typedef Documentation

json

using Olympe::NodeGraphShared::json = typedef nlohmann::json

Definition at line 12 of file Serializer.h.

Function Documentation

ComputePinCenterScreen()

ImVec2 Olympe::NodeGraphShared::ComputePinCenterScreen ( int  nodeId, const BTNodeLayout *  layout, bool  isOutput, float  pinOffset, float  headerHeight, float  zoom  )

inline

Compute the screen-space center position of a pin.

Calculates where a pin should be rendered on screen, accounting for:

• Node screen position and dimensions
• Pin type (input/output)
• Header offset
• Zoom level

Parameters

nodeId	The ImNodes node ID
layout	The node's layout information (optional, used for validation)
isOutput	True for output pin (right side), false for input pin (left side)
pinOffset	Horizontal offset from node edge (from ImNodes::GetStyle().PinOffset)
headerHeight	Height of the node header in pixels (pins are positioned below header)
zoom	Current zoom level (affects spacing)

Returns

ImVec2 The screen-space center position of the pin

Definition at line 14 of file NodeGraphShared.h.

References GetComponentTypeID_Static().

Referenced by RenderNodeVisual().

Here is the call graph for this function:

Here is the caller graph for this function:

DrawPinCircle() [1/2]

void Olympe::NodeGraphShared::DrawPinCircle ( ImDrawList *  drawList, const ImVec2 &  center, float  radius, ImU32  fillColor, ImU32  outlineColor, float  outlineThickness  )

inline

Definition at line 34 of file NodeGraphShared.h.

References GetComponentTypeID_Static().

Referenced by RenderNodeVisual().

Here is the call graph for this function:

Here is the caller graph for this function:

DrawPinCircle() [2/2]

void Olympe::NodeGraphShared::DrawPinCircle	(	ImDrawList *	drawList,
		const ImVec2 &	center,
		float	radius,
		uint32_t	color,
		uint32_t	outlineColor,
		float	outlineThickness
	)

Draw a pin circle with outline.

Renders a circular pin with two layers:

• Outer circle (outline) for contrast
• Inner circle (main color)

Parameters

drawList	ImGui draw list to render to
center	Center position of the pin in screen space
radius	Inner radius of the pin
color	Inner circle color (RGBA)
outlineColor	Outline color (RGBA)
outlineThickness	Thickness of the outline in pixels

Definition at line 45 of file RenderHelpers.cpp.

References GetComponentTypeID_Static().

Here is the call graph for this function:

MapBTRegistryNameToEditor()

NodeType Olympe::NodeGraphShared::MapBTRegistryNameToEditor ( const std::string &  registryName )

inline

Definition at line 32 of file Renderer.h.

References Olympe::BT_Action, Olympe::BT_Condition, Olympe::BT_Cooldown, Olympe::BT_Inverter, Olympe::BT_Monitor, Olympe::BT_OnEvent, Olympe::BT_Parallel, Olympe::BT_ParallelThreshold, Olympe::BT_RandomSelector, Olympe::BT_Repeater, Olympe::BT_Root, Olympe::BT_Selector, Olympe::BT_SendMessage, Olympe::BT_Sequence, Olympe::BT_SubGraph, Olympe::BT_UntilFailure, Olympe::BT_UntilSuccess, and GetComponentTypeID_Static().

Here is the call graph for this function:

MapBTToEditor()

NodeType Olympe::NodeGraphShared::MapBTToEditor ( BTNodeType  t )

inlinestatic

Definition at line 27 of file BTGraphDocumentConverter.cpp.

References Action, Olympe::BT_Action, Olympe::BT_Condition, Olympe::BT_Decorator, Olympe::BT_Selector, Olympe::BT_Sequence, Condition, GetComponentTypeID_Static(), Inverter, Repeater, Selector, and Sequence.

Referenced by Olympe::NodeGraphShared::BTGraphDocumentConverter::FromBehaviorTree(), and RenderBTNode().

Here is the call graph for this function:

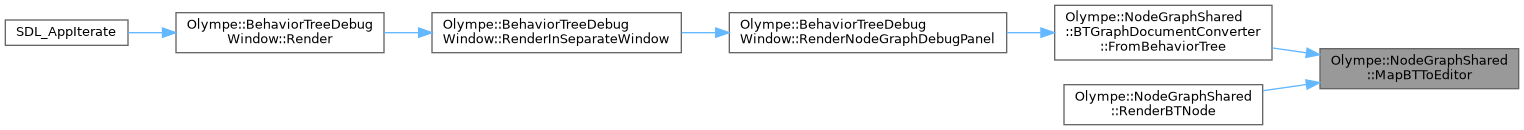

Here is the caller graph for this function:

RenderBTNode()

void Olympe::NodeGraphShared::RenderBTNode ( const BTNode *  node, const BTNodeLayout *  layout, bool  isCurrentNode, float  currentZoom, float  pulseTimer, const BTConfig &  config, std::unordered_set< uint32_t > &  positionedNodes  )

inline

Definition at line 129 of file Renderer.h.

References GetComponentTypeID_Static(), MapBTToEditor(), and RenderNodeVisual().

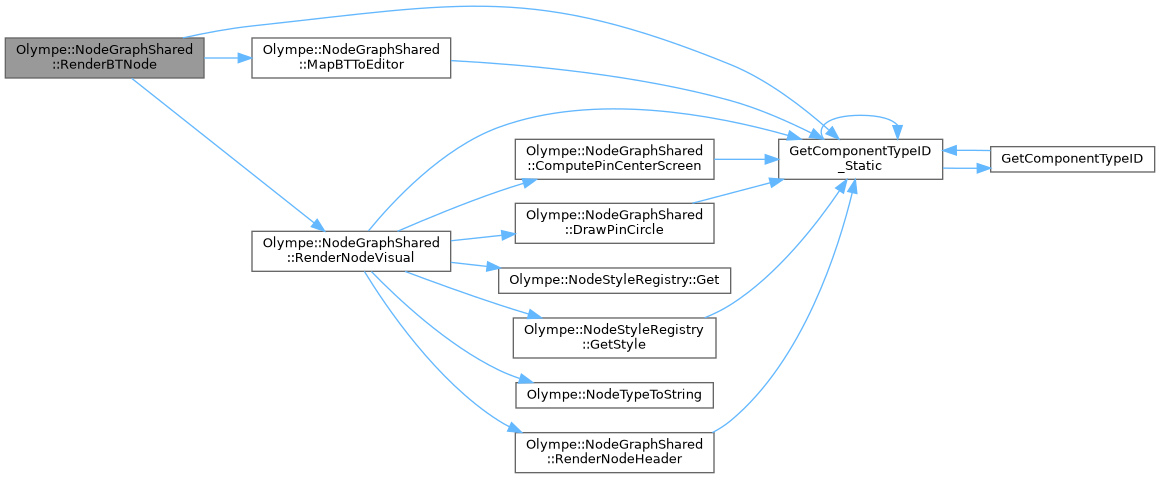

Here is the call graph for this function:

RenderBTNodeConnections()

void Olympe::NodeGraphShared::RenderBTNodeConnections ( const BehaviorTreeAsset *  tree, uint32_t  activeNodeId  )

inline

Definition at line 141 of file Renderer.h.

References GetComponentTypeID_Static(), Inverter, Repeater, Selector, and Sequence.

Here is the call graph for this function:

RenderNodeHeader()

void Olympe::NodeGraphShared::RenderNodeHeader ( int  nodeId, const NodeStyle &  style, const char *  icon, const std::string &  title, bool  isCurrentNode, float  pulseTimer  )

inline

Definition at line 41 of file NodeGraphShared.h.

References GetComponentTypeID_Static(), Olympe::NodeStyle::headerColor, Olympe::NodeStyle::headerHoveredColor, and Olympe::NodeStyle::headerSelectedColor.

Referenced by RenderNodeVisual().

Here is the call graph for this function:

Here is the caller graph for this function:

RenderNodeVisual()

void Olympe::NodeGraphShared::RenderNodeVisual ( int  nodeId, const std::string &  title, NodeType  editorType, float  posX, float  posY, float  width, float  height, bool  isCurrentNode, float  currentZoom, float  pulseTimer, float  pinRadius, float  pinOutline, float  pinHeaderHeight, std::unordered_set< uint32_t > &  positionedNodes  )

inline

Definition at line 69 of file Renderer.h.

References ComputePinCenterScreen(), DrawPinCircle(), Olympe::NodeStyleRegistry::Get(), GetComponentTypeID_Static(), Olympe::NodeStyleRegistry::GetStyle(), Olympe::NodeStyle::icon, Olympe::NodeTypeToString(), and RenderNodeHeader().

Referenced by RenderBTNode().

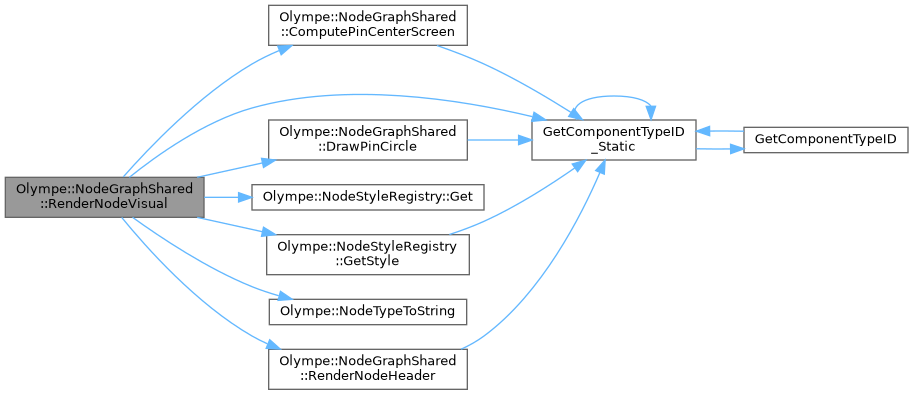

Here is the call graph for this function:

Here is the caller graph for this function:

SerializeBehaviorTreeToJson()

json Olympe::NodeGraphShared::SerializeBehaviorTreeToJson ( const BehaviorTreeAsset &  tree, const BTGraphLayoutEngine *  layoutEngine  )

inline

Definition at line 16 of file Serializer.h.

References Action, AttackIfClose, CanAttack, ChooseRandomNavigablePoint, ClearTarget, Condition, FollowPath, GetComponentTypeID_Static(), HasMoveGoal, HasNavigableDestination, HasReachedDestination, HasValidPath, HealthBelow, HeardNoise, Idle, Inverter, IsWaitTimerExpired, MoveToGoal, PatrolPickNextPoint, Olympe::BTNodeLayout::position, Repeater, RequestPathfinding, Selector, Sequence, SetMoveGoalToLastKnownTargetPos, SetMoveGoalToPatrolPoint, SetMoveGoalToTarget, TargetInRange, TargetVisible, WaitRandomTime, and Vector::x.

Here is the call graph for this function:
