BehaviorTreeDebugWindow.h File Reference

Runtime debugger for behavior tree visualization and inspection. More...

#include "../ECS_Entity.h"
#include "../vector.h"
#include "../json_helper.h"
#include "BTGraphLayoutEngine.h"
#include "BehaviorTree.h"
#include "BTEditorCommand.h"
#include <string>
#include <vector>
#include <deque>
#include <map>
#include <cstdint>

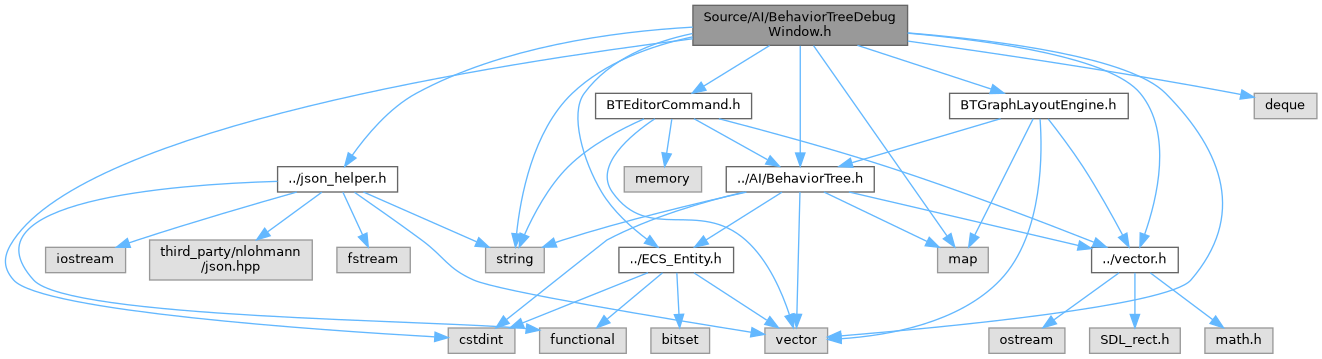

Include dependency graph for BehaviorTreeDebugWindow.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Olympe::NodePin
	Visual connection pin on a behavior tree node. More...
struct	Olympe::BTConfig
	Configuration loaded from BT_config.json. More...
struct	Olympe::BTConfig::Color
struct	Olympe::BTColor
	RGBA color value (0-255 range) More...
struct	Olympe::ExecutionLogEntry
	Single entry in the execution log. More...
struct	Olympe::EntityDebugInfo
	Cached debug information for a single entity. More...
class	Olympe::BehaviorTreeDebugWindow
	Main debug window for behavior tree runtime visualization. More...
struct	Olympe::BehaviorTreeDebugWindow::LinkInfo

Namespaces
namespace	Olympe

Enumerations
enum class	Olympe::PinType { Olympe::Input , Olympe::Output }
	Type of connection pin on a node. More...

Detailed Description

Runtime debugger for behavior tree visualization and inspection.

Author

Olympe Engine - Behavior Tree Debugger

Date

2025

Provides real-time visualization of AI decision-making with:

• Entity list with filtering and sorting
• Interactive node graph with execution token highlighting
• Inspector panel with blackboard and execution log

Definition in file BehaviorTreeDebugWindow.h.
