Singleton that manages runtime debugging of VS graphs. More...

#include <DebugController.h>

Collaboration diagram for Olympe::DebugController:

Public Member Functions
void	SetBreakpoint (int graphID, int nodeID, const std::string &graphName="", const std::string &nodeName="")
	Registers a breakpoint at (graphID, nodeID).

void	ClearBreakpoint (int graphID, int nodeID)
	Removes the breakpoint at (graphID, nodeID) if it exists.

void	ToggleBreakpoint (int graphID, int nodeID, const std::string &graphName="", const std::string &nodeName="")
	Toggles the breakpoint at (graphID, nodeID).

bool	HasBreakpoint (int graphID, int nodeID) const
	Returns true if an enabled breakpoint exists at (graphID, nodeID).

void	SetBreakpointEnabled (int graphID, int nodeID, bool enabled)
	Enables or disables an existing breakpoint.

std::vector< BreakpointInfo >	GetBreakpoints (int graphID) const
	Returns all registered breakpoints for `graphID`.

std::vector< BreakpointInfo >	GetAllBreakpoints () const
	Returns all registered breakpoints across all graphs.

void	ClearAllBreakpoints ()
	Removes all breakpoints.

void	StartDebugging (int graphID)
	Starts a debug session for the given graph.

void	StopDebugging ()
	Stops the current debug session.

void	Continue ()
	Resumes execution from Paused state.

void	Pause ()
	Pauses execution.

void	StepNext ()
	Executes the next node then pauses.

void	StepInto ()
	Steps into a SubGraph if the next node is a SubGraph node.

void	StepOut ()
	Runs until the current SubGraph returns.

DebugState	GetState () const
	Returns the current debug state.

bool	IsDebugging () const
	Returns true when a debug session is active.

int	GetCurrentGraphID () const
	Returns the currently debugged graphID (-1 if none).

int	GetCurrentNodeID () const
	Returns the node being executed (-1 if none).

LocalBlackboard	GetCurrentBlackboard () const
	Returns a copy of the blackboard snapshot from the last OnNodeExecuting() call.

std::vector< SubGraphStackFrame >	GetCallStack () const
	Returns the current SubGraph call stack (most recent at front).

void	OnNodeExecuting (int graphID, int nodeID, const LocalBlackboard *bb)
	Called by VSGraphExecutor before executing a node.

void	PushCallFrame (int graphID, int nodeID, const std::string &graphName="", const std::string &nodeName="")
	Push a SubGraph frame onto the call stack.

void	PopCallFrame ()
	Pop the top SubGraph frame from the call stack.

void	SetHeadlessMode (bool headless)
	When true, OnNodeExecuting() never busy-waits on Paused.

Static Public Member Functions
static DebugController &	Get ()
	Returns the singleton instance (Meyers pattern).

Private Member Functions
	DebugController ()

	~DebugController ()

	DebugController (const DebugController &)=delete

DebugController &	operator= (const DebugController &)=delete

int	MakeBreakpointKey (int graphID, int nodeID) const

bool	HasBreakpointLocked (int graphID, int nodeID) const

Private Attributes
std::mutex	m_mutex

DebugState	m_state = DebugState::NotDebugging

int	m_currentGraphID = -1

int	m_currentNodeID = -1

bool	m_headlessMode = false

LocalBlackboard	m_bbSnapshot

std::unordered_map< int, BreakpointInfo >	m_breakpoints
	Breakpoints keyed by (graphID * 100000 + nodeID)

std::vector< SubGraphStackFrame >	m_callStack
	Call stack (index 0 = bottom / entry, back = current)

Detailed Description

Singleton that manages runtime debugging of VS graphs.

Usage:

// Editor side
DebugController::Get().SetBreakpoint(0, 3);
DebugController::Get().StartDebugging(0);

// TaskSystem side (called from ExecuteFrame)
DebugController::Get().OnNodeExecuting(graphID, nodeID, &blackboard);

Meyers singleton pattern (local static in Get()). Thread-safe via std::mutex.

Definition at line 109 of file DebugController.h.

Constructor & Destructor Documentation

◆ DebugController() [1/2]

Olympe::DebugController::DebugController ( )

private

Definition at line 28 of file DebugController.cpp.

◆ ~DebugController()

Olympe::DebugController::~DebugController ( )

private

Definition at line 32 of file DebugController.cpp.

◆ DebugController() [2/2]

Olympe::DebugController::DebugController ( const DebugController & )

privatedelete

Member Function Documentation

◆ ClearAllBreakpoints()

void Olympe::DebugController::ClearAllBreakpoints ( )

Removes all breakpoints.

Definition at line 145 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_breakpoints, and m_mutex.

Here is the call graph for this function:

◆ ClearBreakpoint()

void Olympe::DebugController::ClearBreakpoint	(	int	graphID,
		int	nodeID
	)

Removes the breakpoint at (graphID, nodeID) if it exists.

Definition at line 75 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_breakpoints, m_mutex, and MakeBreakpointKey().

Here is the call graph for this function:

◆ Continue()

void Olympe::DebugController::Continue ( )

Resumes execution from Paused state.

Transitions Paused -> Running.

Definition at line 173 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_mutex, m_state, Olympe::Paused, and Olympe::Running.

Here is the call graph for this function:

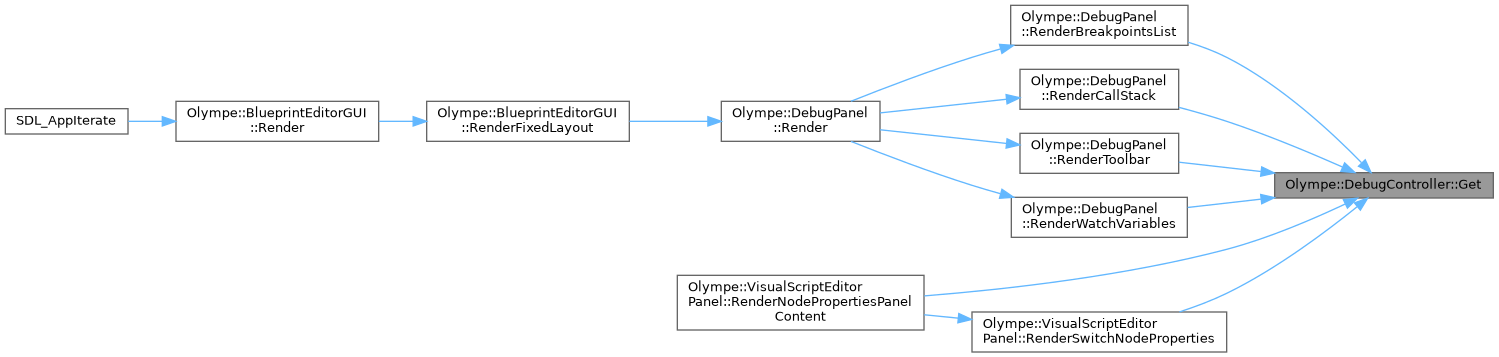

◆ Get()

DebugController & Olympe::DebugController::Get ( )

static

Returns the singleton instance (Meyers pattern).

Definition at line 22 of file DebugController.cpp.

References GetComponentTypeID_Static().

Referenced by Olympe::DebugPanel::RenderBreakpointsList(), Olympe::DebugPanel::RenderCallStack(), Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), Olympe::VisualScriptEditorPanel::RenderSwitchNodeProperties(), Olympe::DebugPanel::RenderToolbar(), and Olympe::DebugPanel::RenderWatchVariables().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAllBreakpoints()

std::vector< BreakpointInfo > Olympe::DebugController::GetAllBreakpoints ( ) const

Returns all registered breakpoints across all graphs.

Definition at line 134 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_breakpoints, and m_mutex.

Here is the call graph for this function:

◆ GetBreakpoints()

std::vector< BreakpointInfo > Olympe::DebugController::GetBreakpoints ( int graphID ) const

Returns all registered breakpoints for graphID.

Definition at line 122 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_breakpoints, and m_mutex.

Here is the call graph for this function:

◆ GetCallStack()

std::vector< SubGraphStackFrame > Olympe::DebugController::GetCallStack ( ) const

Returns the current SubGraph call stack (most recent at front).

Definition at line 252 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_callStack, and m_mutex.

Here is the call graph for this function:

◆ GetCurrentBlackboard()

LocalBlackboard Olympe::DebugController::GetCurrentBlackboard ( ) const

Returns a copy of the blackboard snapshot from the last OnNodeExecuting() call.

Definition at line 246 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_bbSnapshot, and m_mutex.

Here is the call graph for this function:

◆ GetCurrentGraphID()

int Olympe::DebugController::GetCurrentGraphID ( ) const

Returns the currently debugged graphID (-1 if none).

Definition at line 234 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_currentGraphID, and m_mutex.

Here is the call graph for this function:

◆ GetCurrentNodeID()

int Olympe::DebugController::GetCurrentNodeID ( ) const

Returns the node being executed (-1 if none).

Definition at line 240 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_currentNodeID, and m_mutex.

Here is the call graph for this function:

◆ GetState()

DebugState Olympe::DebugController::GetState ( ) const

Returns the current debug state.

Definition at line 222 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_mutex, and m_state.

Here is the call graph for this function:

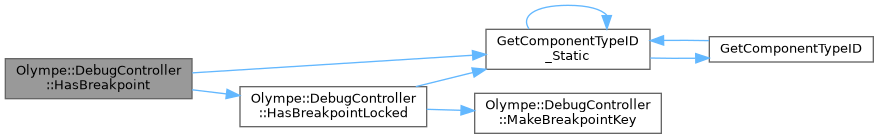

◆ HasBreakpoint()

bool Olympe::DebugController::HasBreakpoint	(	int	graphID,
		int	nodeID
	)		const

Returns true if an enabled breakpoint exists at (graphID, nodeID).

Definition at line 105 of file DebugController.cpp.

References GetComponentTypeID_Static(), HasBreakpointLocked(), and m_mutex.

Referenced by Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), and Olympe::VisualScriptEditorPanel::RenderSwitchNodeProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

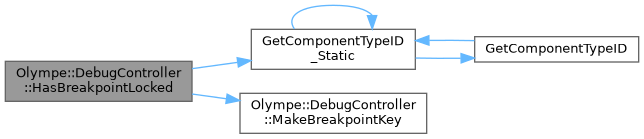

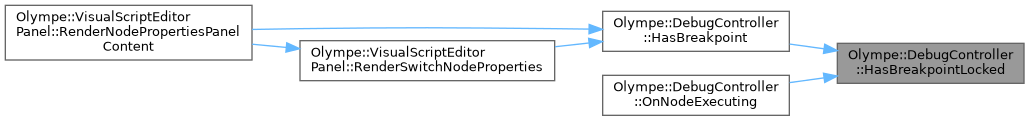

◆ HasBreakpointLocked()

bool Olympe::DebugController::HasBreakpointLocked	(	int	graphID,
		int	nodeID
	)		const

private

Definition at line 47 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_breakpoints, and MakeBreakpointKey().

Referenced by HasBreakpoint(), and OnNodeExecuting().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsDebugging()

bool Olympe::DebugController::IsDebugging ( ) const

Returns true when a debug session is active.

Definition at line 228 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_mutex, m_state, and Olympe::NotDebugging.

Here is the call graph for this function:

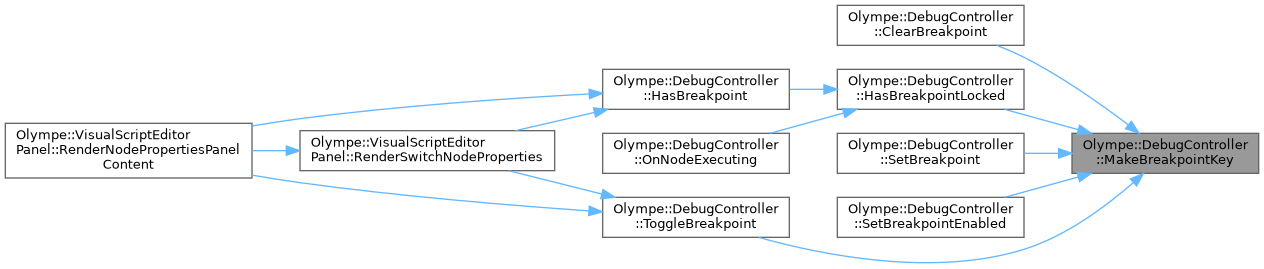

◆ MakeBreakpointKey()

int Olympe::DebugController::MakeBreakpointKey	(	int	graphID,
		int	nodeID
	)		const

private

Definition at line 40 of file DebugController.cpp.

Referenced by ClearBreakpoint(), HasBreakpointLocked(), SetBreakpoint(), SetBreakpointEnabled(), and ToggleBreakpoint().

Here is the caller graph for this function:

◆ OnNodeExecuting()

void Olympe::DebugController::OnNodeExecuting	(	int	graphID,
		int	nodeID,
		const LocalBlackboard *	bb
	)

Called by VSGraphExecutor before executing a node.

Updates the current node/graph and blackboard snapshot. If a breakpoint is hit and state is Running, transitions to Paused. If state is StepNext, transitions to Paused after the first call.

Note: This method may busy-wait when the state is Paused (in debug mode with the UI thread calling Continue/StepNext). In a headless test context, busy-wait is skipped.

Parameters

graphID	Graph being executed.
nodeID	Node about to be executed.
bb	Live blackboard pointer (snapshot is copied).

Definition at line 262 of file DebugController.cpp.

References GetComponentTypeID_Static(), HasBreakpointLocked(), m_bbSnapshot, m_currentGraphID, m_currentNodeID, m_headlessMode, m_mutex, m_state, Olympe::NotDebugging, Olympe::Paused, Olympe::Running, Olympe::StepInto, and Olympe::StepNext.

Here is the call graph for this function:

◆ operator=()

DebugController & Olympe::DebugController::operator= ( const DebugController & )

privatedelete

◆ Pause()

void Olympe::DebugController::Pause ( )

Pauses execution.

Transitions Running -> Paused.

Definition at line 182 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_mutex, m_state, Olympe::Paused, and Olympe::Running.

Here is the call graph for this function:

◆ PopCallFrame()

void Olympe::DebugController::PopCallFrame ( )

Pop the top SubGraph frame from the call stack.

Called by VSGraphExecutor when returning from a SubGraph.

Definition at line 341 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_callStack, m_mutex, m_state, Olympe::Paused, and Olympe::StepOut.

Here is the call graph for this function:

◆ PushCallFrame()

void Olympe::DebugController::PushCallFrame	(	int	graphID,
		int	nodeID,
		const std::string &	graphName = `""`,
		const std::string &	nodeName = `""`
	)

Push a SubGraph frame onto the call stack.

Called by VSGraphExecutor when entering a SubGraph.

Definition at line 322 of file DebugController.cpp.

References GetComponentTypeID_Static(), Olympe::SubGraphStackFrame::graphID, Olympe::SubGraphStackFrame::graphName, Olympe::SubGraphStackFrame::isCurrent, m_callStack, m_mutex, Olympe::SubGraphStackFrame::nodeID, and Olympe::SubGraphStackFrame::nodeName.

Here is the call graph for this function:

◆ SetBreakpoint()

void Olympe::DebugController::SetBreakpoint	(	int	graphID,
		int	nodeID,
		const std::string &	graphName = `""`,
		const std::string &	nodeName = `""`
	)

Registers a breakpoint at (graphID, nodeID).

Safe to call multiple times — idempotent.

Definition at line 60 of file DebugController.cpp.

References GetComponentTypeID_Static(), Olympe::BreakpointInfo::graphID, m_breakpoints, m_mutex, and MakeBreakpointKey().

Here is the call graph for this function:

◆ SetBreakpointEnabled()

void Olympe::DebugController::SetBreakpointEnabled	(	int	graphID,
		int	nodeID,
		bool	enabled
	)

Enables or disables an existing breakpoint.

Definition at line 111 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_breakpoints, m_mutex, and MakeBreakpointKey().

Here is the call graph for this function:

◆ SetHeadlessMode()

void Olympe::DebugController::SetHeadlessMode ( bool headless )

When true, OnNodeExecuting() never busy-waits on Paused.

Useful for unit tests where there is no UI thread to call Continue().

Definition at line 362 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_headlessMode, and m_mutex.

Here is the call graph for this function:

◆ StartDebugging()

void Olympe::DebugController::StartDebugging ( int graphID )

Starts a debug session for the given graph.

Transitions from NotDebugging -> Running.

Definition at line 155 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_callStack, m_currentGraphID, m_currentNodeID, m_mutex, m_state, and Olympe::Running.

Here is the call graph for this function:

◆ StepInto()

void Olympe::DebugController::StepInto ( )

Steps into a SubGraph if the next node is a SubGraph node.

Transitions Paused -> StepInto.

Definition at line 200 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_mutex, m_state, Olympe::Paused, and Olympe::StepInto.

Here is the call graph for this function:

◆ StepNext()

void Olympe::DebugController::StepNext ( )

Executes the next node then pauses.

Transitions Paused -> StepNext.

Definition at line 191 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_mutex, m_state, Olympe::Paused, and Olympe::StepNext.

Here is the call graph for this function:

◆ StepOut()

void Olympe::DebugController::StepOut ( )

Runs until the current SubGraph returns.

Transitions Paused -> StepOut.

Definition at line 209 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_mutex, m_state, Olympe::Paused, and Olympe::StepOut.

Here is the call graph for this function:

◆ StopDebugging()

void Olympe::DebugController::StopDebugging ( )

Stops the current debug session.

Transitions to NotDebugging from any state.

Definition at line 164 of file DebugController.cpp.

References GetComponentTypeID_Static(), m_callStack, m_currentGraphID, m_currentNodeID, m_mutex, m_state, and Olympe::NotDebugging.

Here is the call graph for this function:

◆ ToggleBreakpoint()

void Olympe::DebugController::ToggleBreakpoint	(	int	graphID,
		int	nodeID,
		const std::string &	graphName = `""`,
		const std::string &	nodeName = `""`
	)

Toggles the breakpoint at (graphID, nodeID).

Adds it if absent, removes it if present.

Definition at line 82 of file DebugController.cpp.

References GetComponentTypeID_Static(), Olympe::BreakpointInfo::graphID, m_breakpoints, m_mutex, and MakeBreakpointKey().

Referenced by Olympe::VisualScriptEditorPanel::RenderNodePropertiesPanelContent(), and Olympe::VisualScriptEditorPanel::RenderSwitchNodeProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_bbSnapshot

LocalBlackboard Olympe::DebugController::m_bbSnapshot

private

Definition at line 312 of file DebugController.h.

Referenced by GetCurrentBlackboard(), and OnNodeExecuting().

◆ m_breakpoints

std::unordered_map<int, BreakpointInfo> Olympe::DebugController::m_breakpoints

private

Breakpoints keyed by (graphID * 100000 + nodeID)

Definition at line 315 of file DebugController.h.

Referenced by ClearAllBreakpoints(), ClearBreakpoint(), GetAllBreakpoints(), GetBreakpoints(), HasBreakpointLocked(), SetBreakpoint(), SetBreakpointEnabled(), and ToggleBreakpoint().

◆ m_callStack

std::vector<SubGraphStackFrame> Olympe::DebugController::m_callStack

private

Call stack (index 0 = bottom / entry, back = current)

Definition at line 318 of file DebugController.h.

Referenced by GetCallStack(), PopCallFrame(), PushCallFrame(), StartDebugging(), and StopDebugging().

◆ m_currentGraphID

int Olympe::DebugController::m_currentGraphID = -1

private

Definition at line 308 of file DebugController.h.

Referenced by GetCurrentGraphID(), OnNodeExecuting(), StartDebugging(), and StopDebugging().

◆ m_currentNodeID

int Olympe::DebugController::m_currentNodeID = -1

private

Definition at line 309 of file DebugController.h.

Referenced by GetCurrentNodeID(), OnNodeExecuting(), StartDebugging(), and StopDebugging().

◆ m_headlessMode

bool Olympe::DebugController::m_headlessMode = false

private

Definition at line 310 of file DebugController.h.

Referenced by OnNodeExecuting(), and SetHeadlessMode().

◆ m_mutex

std::mutex Olympe::DebugController::m_mutex

mutableprivate

◆ m_state

DebugState Olympe::DebugController::m_state = DebugState::NotDebugging

private

Definition at line 307 of file DebugController.h.

Referenced by Continue(), GetState(), IsDebugging(), OnNodeExecuting(), Pause(), PopCallFrame(), StartDebugging(), StepInto(), StepNext(), StepOut(), and StopDebugging().

The documentation for this class was generated from the following files:

Source/BlueprintEditor/DebugController.h
Source/BlueprintEditor/DebugController.cpp

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DebugController() [1/2]

◆ ~DebugController()

◆ DebugController() [2/2]

Member Function Documentation

◆ ClearAllBreakpoints()

◆ ClearBreakpoint()

◆ Continue()

◆ Get()

◆ GetAllBreakpoints()

◆ GetBreakpoints()

◆ GetCallStack()

◆ GetCurrentBlackboard()

◆ GetCurrentGraphID()

◆ GetCurrentNodeID()

◆ GetState()

◆ HasBreakpoint()

◆ HasBreakpointLocked()

◆ IsDebugging()

◆ MakeBreakpointKey()

◆ OnNodeExecuting()

◆ operator=()

◆ Pause()

◆ PopCallFrame()

◆ PushCallFrame()

◆ SetBreakpoint()

◆ SetBreakpointEnabled()

◆ SetHeadlessMode()

◆ StartDebugging()

◆ StepInto()

◆ StepNext()

◆ StepOut()

◆ StopDebugging()

◆ ToggleBreakpoint()

Member Data Documentation

◆ m_bbSnapshot

◆ m_breakpoints

◆ m_callStack

◆ m_currentGraphID

◆ m_currentNodeID

◆ m_headlessMode

◆ m_mutex

◆ m_state
