Abstract interface for a single atomic unit of work. More...

#include <IAtomicTask.h>

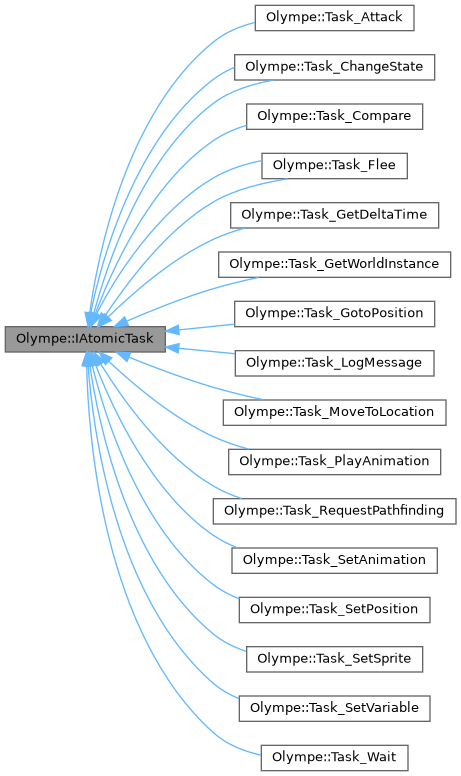

Inheritance diagram for Olympe::IAtomicTask:

Public Types
using	ParameterMap = std::unordered_map< std::string, TaskValue >
	Convenience alias for the parameter map passed to Execute().

Public Member Functions
virtual	~IAtomicTask ()=default

virtual TaskStatus	Execute (const ParameterMap &params)=0
	Executes the atomic task for one frame.

virtual TaskStatus	ExecuteWithContext (const AtomicTaskContext &ctx, const ParameterMap &params)
	Executes the atomic task for one frame with full runtime context.

virtual void	Abort ()=0
	Aborts the task, releasing any in-progress state.

Detailed Description

Abstract interface for a single atomic unit of work.

Implement Execute() to perform the task logic and Abort() to release any resources or state when the task is interrupted before completion. Tasks receive their parameters as a map of TaskValue instances keyed by parameter name.

Example:

class Task_MyTask : public IAtomicTask {
public:
    TaskStatus Execute(const ParameterMap& params) override { ... }
    void       Abort()                             override { ... }
};

Definition at line 63 of file IAtomicTask.h.

Member Typedef Documentation

◆ ParameterMap

using Olympe::IAtomicTask::ParameterMap = std::unordered_map<std::string, TaskValue>

Convenience alias for the parameter map passed to Execute().

Definition at line 67 of file IAtomicTask.h.

Constructor & Destructor Documentation

◆ ~IAtomicTask()

virtual Olympe::IAtomicTask::~IAtomicTask ( )

virtualdefault

Member Function Documentation

◆ Abort()

virtual void Olympe::IAtomicTask::Abort ( )

pure virtual

Aborts the task, releasing any in-progress state.

Called by the TaskSystem when execution is interrupted (e.g. a parent node is aborted or a new graph is bound while a task is Running). Concrete tasks must implement this to clean up timers, reservations, animations, or any other side-effects started in Execute().

Implemented in Olympe::Task_ChangeState, Olympe::Task_Flee, Olympe::Task_GotoPosition, Olympe::Task_RequestPathfinding, Olympe::Task_SetAnimation, Olympe::Task_Compare, Olympe::Task_SetVariable, Olympe::Task_Attack, Olympe::Task_Flee, Olympe::Task_MoveToLocation, Olympe::Task_PlayAnimation, Olympe::Task_SetSprite, Olympe::Task_ChangeState, Olympe::Task_GetDeltaTime, Olympe::Task_GetWorldInstance, Olympe::Task_SetPosition, Olympe::Task_LogMessage, and Olympe::Task_Wait.

◆ Execute()

virtual TaskStatus Olympe::IAtomicTask::Execute ( const ParameterMap & params )

pure virtual

Executes the atomic task for one frame.

Parameters

params Named parameters provided by the task graph node.

Returns: TaskStatus::Success, Failure, or Running. Returning Running causes the task to be ticked again next frame.

Implemented in Olympe::Task_ChangeState, Olympe::Task_Flee, Olympe::Task_GotoPosition, Olympe::Task_RequestPathfinding, Olympe::Task_SetAnimation, Olympe::Task_Compare, Olympe::Task_SetVariable, Olympe::Task_Attack, Olympe::Task_Flee, Olympe::Task_MoveToLocation, Olympe::Task_PlayAnimation, Olympe::Task_SetSprite, Olympe::Task_ChangeState, Olympe::Task_GetDeltaTime, Olympe::Task_GetWorldInstance, Olympe::Task_SetPosition, Olympe::Task_LogMessage, and Olympe::Task_Wait.

Referenced by ExecuteWithContext().

Here is the caller graph for this function:

◆ ExecuteWithContext()

virtual TaskStatus Olympe::IAtomicTask::ExecuteWithContext	(	const AtomicTaskContext &	ctx,
		const ParameterMap &	params
	)

inlinevirtual

Executes the atomic task for one frame with full runtime context.

New tasks should override this method to access the richer context (World pointer, LocalBlackboard, EntityID, dt, StateTimer). The default implementation simply forwards to Execute(params) so all existing tasks remain compatible without any changes.

Parameters

ctx	Runtime context for this tick (Entity, World*, LocalBB, dt, StateTimer).
params	Named parameters provided by the task graph node.

Returns: TaskStatus::Success, Failure, or Running.

Reimplemented in Olympe::Task_ChangeState, Olympe::Task_Flee, Olympe::Task_GotoPosition, Olympe::Task_RequestPathfinding, Olympe::Task_SetAnimation, Olympe::Task_Compare, Olympe::Task_SetVariable, Olympe::Task_Attack, Olympe::Task_Flee, Olympe::Task_MoveToLocation, Olympe::Task_PlayAnimation, Olympe::Task_SetSprite, Olympe::Task_ChangeState, Olympe::Task_GetDeltaTime, Olympe::Task_GetWorldInstance, Olympe::Task_SetPosition, and Olympe::Task_Wait.

Definition at line 93 of file IAtomicTask.h.

References Execute(), and GetComponentTypeID_Static().

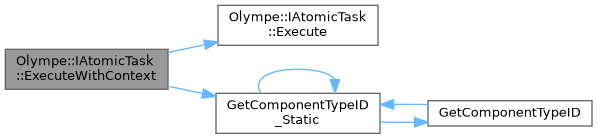

Here is the call graph for this function:

The documentation for this class was generated from the following file:

Source/TaskSystem/IAtomicTask.h
