Olympe Engine: Olympe::Tiled Namespace Reference

Olympe Engine 2.0

2D Game Engine with ECS Architecture

Loading...

Searching...

No Matches

Namespaces
namespace	anonymous_namespace{TiledToOlympe.cpp}

Classes
struct	ConversionConfig

class	IsometricProjection

struct	LayerProperties

class	LevelParser

struct	LevelParseResult

struct	ObjectReference

struct	ObjectTypeCensus

struct	ParallaxLayer

class	ParallaxLayerManager

struct	Point

struct	ResolvedGid

struct	TiledChunk

class	TiledDecoder

struct	TiledLayer

class	TiledLevelLoader

struct	TiledMap

struct	TiledObject

struct	TiledProperty

struct	TiledTile

struct	TiledTileset

class	TiledToOlympe

class	TilesetCache

class	TilesetParser

struct	VisualResourceManifest

Typedefs
using	json = nlohmann::json

Enumerations
enum class	PropertyType { String , Int , Float , Bool , Color , File , Object }

enum class	LayerType { TileLayer , ObjectGroup , ImageLayer , Group }

enum class	ObjectType { Rectangle , Ellipse , Point , Polygon , Polyline , Text }

enum class	MapOrientation { Orthogonal , Isometric , Staggered , Hexagonal }

enum class	RenderOrder { RightDown , RightUp , LeftDown , LeftUp }

Functions
std::string	GetString (const json &j, const std::string &key, const std::string &defaultValue="")

int	GetInt (const json &j, const std::string &key, int defaultValue=0)

float	GetFloat (const json &j, const std::string &key, float defaultValue=0.0f)

double	GetDouble (const json &j, const std::string &key, double defaultValue=0.0)

bool	GetBool (const json &j, const std::string &key, bool defaultValue=false)

json	GetArray (const json &j, const std::string &key)

json	GetObject (const json &j, const std::string &key)

bool	HasKey (const json &j, const std::string &key)

size_t	GetArraySize (const json &j)

int	ParseColor (const std::string &colorStr)

std::string	ColorToString (int color)

LayerProperties	ParseLayerProperties (const std::map< std::string, TiledProperty > &properties)

std::ostream &	operator<< (std::ostream &os, MapOrientation orientation)

uint32_t	GetTileId (uint32_t gid)

bool	IsFlippedHorizontally (uint32_t gid)

bool	IsFlippedVertically (uint32_t gid)

bool	IsFlippedDiagonally (uint32_t gid)

ResolvedGid	ResolveGid (const TiledMap &map, uint32_t gid)

std::vector< std::string >	GetAllImagePaths (const TiledMap &map)

static std::string	GetPadding (int totalWidth, const std::string &content)

Variables
constexpr uint32_t	FLIPPED_HORIZONTALLY_FLAG = 0x80000000

constexpr uint32_t	FLIPPED_VERTICALLY_FLAG = 0x40000000

constexpr uint32_t	FLIPPED_DIAGONALLY_FLAG = 0x20000000

constexpr uint32_t	TILE_ID_MASK = 0x1FFFFFFF

Typedef Documentation

◆ json

using Olympe::Tiled::json = typedef nlohmann::json

Definition at line 17 of file TiledJsonHelper.h.

Enumeration Type Documentation

◆ LayerType

enum class Olympe::Tiled::LayerType

strong

Enumerator
TileLayer
ObjectGroup
ImageLayer
Group

Definition at line 117 of file TiledStructures.h.

◆ MapOrientation

enum class Olympe::Tiled::MapOrientation

strong

Enumerator
Orthogonal
Isometric
Staggered
Hexagonal

Definition at line 318 of file TiledStructures.h.

◆ ObjectType

enum class Olympe::Tiled::ObjectType

strong

Enumerator
Rectangle
Ellipse
Point
Polygon
Polyline
Text

Definition at line 126 of file TiledStructures.h.

◆ PropertyType

enum class Olympe::Tiled::PropertyType

strong

Enumerator
String
Int
Float
Bool
Color
File
Object

Definition at line 42 of file TiledStructures.h.

◆ RenderOrder

enum class Olympe::Tiled::RenderOrder

strong

Enumerator
RightDown
RightUp
LeftDown
LeftUp

Definition at line 340 of file TiledStructures.h.

Function Documentation

◆ ColorToString()

std::string Olympe::Tiled::ColorToString ( int color )

inline

Definition at line 122 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Here is the call graph for this function:

◆ GetAllImagePaths()

std::vector< std::string > Olympe::Tiled::GetAllImagePaths ( const TiledMap & map )

inline

Definition at line 493 of file TiledStructures.h.

References GetComponentTypeID_Static(), Group, and ImageLayer.

Here is the call graph for this function:

◆ GetArray()

json Olympe::Tiled::GetArray	(	const json &	j,
		const std::string &	key
	)

inline

Definition at line 65 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Here is the call graph for this function:

◆ GetArraySize()

size_t Olympe::Tiled::GetArraySize ( const json & j )

inline

Definition at line 89 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Here is the call graph for this function:

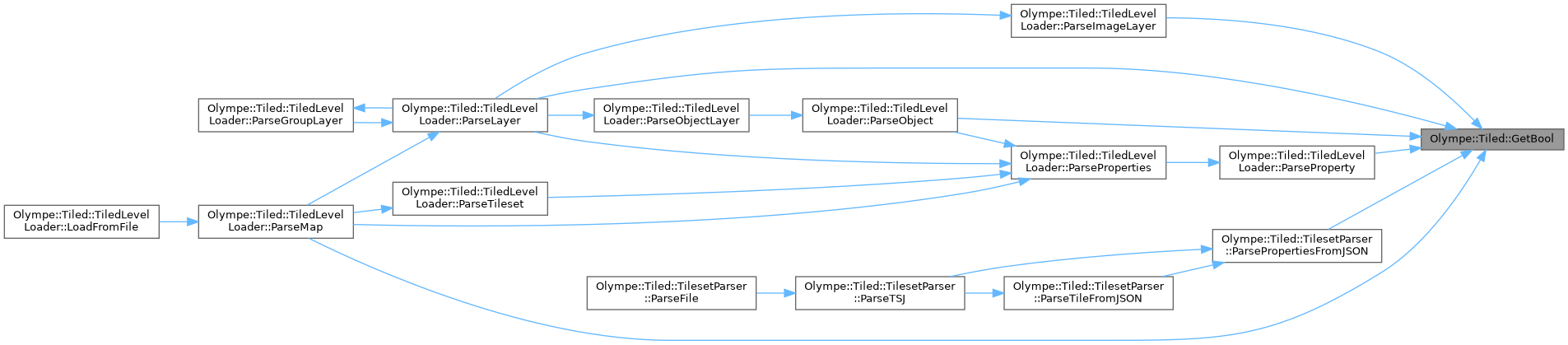

◆ GetBool()

bool Olympe::Tiled::GetBool	(	const json &	j,
		const std::string &	key,
		bool	defaultValue = `false`
	)

inline

Definition at line 56 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Referenced by Olympe::Tiled::TiledLevelLoader::ParseImageLayer(), Olympe::Tiled::TiledLevelLoader::ParseLayer(), Olympe::Tiled::TiledLevelLoader::ParseMap(), Olympe::Tiled::TiledLevelLoader::ParseObject(), Olympe::Tiled::TilesetParser::ParsePropertiesFromJSON(), and Olympe::Tiled::TiledLevelLoader::ParseProperty().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDouble()

double Olympe::Tiled::GetDouble	(	const json &	j,
		const std::string &	key,
		double	defaultValue = `0.0`
	)

inline

Definition at line 47 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Here is the call graph for this function:

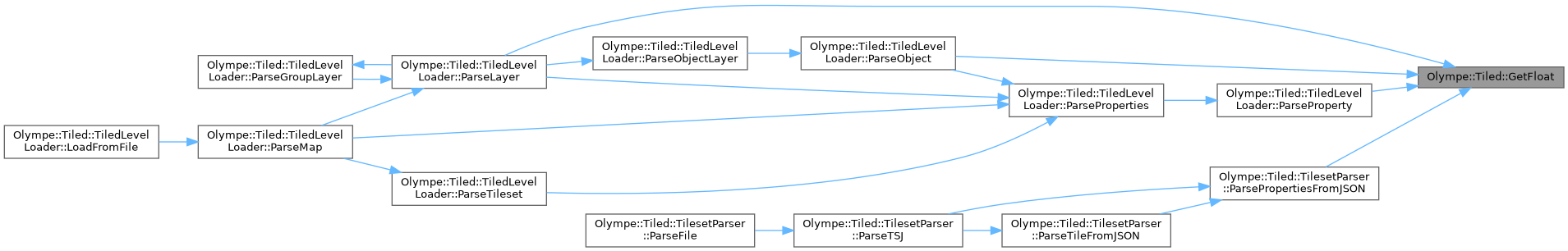

◆ GetFloat()

float Olympe::Tiled::GetFloat	(	const json &	j,
		const std::string &	key,
		float	defaultValue = `0.0f`
	)

inline

Definition at line 38 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Referenced by Olympe::Tiled::TiledLevelLoader::ParseLayer(), Olympe::Tiled::TiledLevelLoader::ParseObject(), Olympe::Tiled::TilesetParser::ParsePropertiesFromJSON(), and Olympe::Tiled::TiledLevelLoader::ParseProperty().

Here is the call graph for this function:

Here is the caller graph for this function:

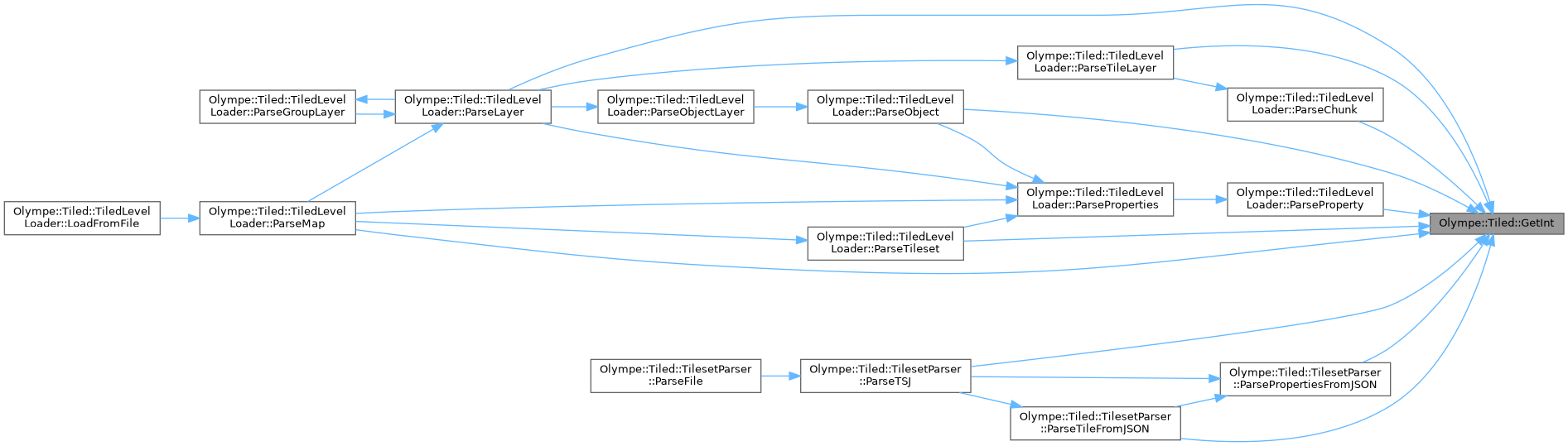

◆ GetInt()

int Olympe::Tiled::GetInt	(	const json &	j,
		const std::string &	key,
		int	defaultValue = `0`
	)

inline

Definition at line 29 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Referenced by Olympe::Tiled::TiledLevelLoader::ParseChunk(), Olympe::Tiled::TiledLevelLoader::ParseLayer(), Olympe::Tiled::TiledLevelLoader::ParseMap(), Olympe::Tiled::TiledLevelLoader::ParseObject(), Olympe::Tiled::TilesetParser::ParsePropertiesFromJSON(), Olympe::Tiled::TiledLevelLoader::ParseProperty(), Olympe::Tiled::TilesetParser::ParseTileFromJSON(), Olympe::Tiled::TiledLevelLoader::ParseTileLayer(), Olympe::Tiled::TiledLevelLoader::ParseTileset(), and Olympe::Tiled::TilesetParser::ParseTSJ().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetObject()

json Olympe::Tiled::GetObject	(	const json &	j,
		const std::string &	key
	)

inline

Definition at line 74 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Here is the call graph for this function:

◆ GetPadding()

static std::string Olympe::Tiled::GetPadding	(	int	totalWidth,
		const std::string &	content
	)

static

Definition at line 23 of file LevelParser.cpp.

References GetComponentTypeID_Static().

Here is the call graph for this function:

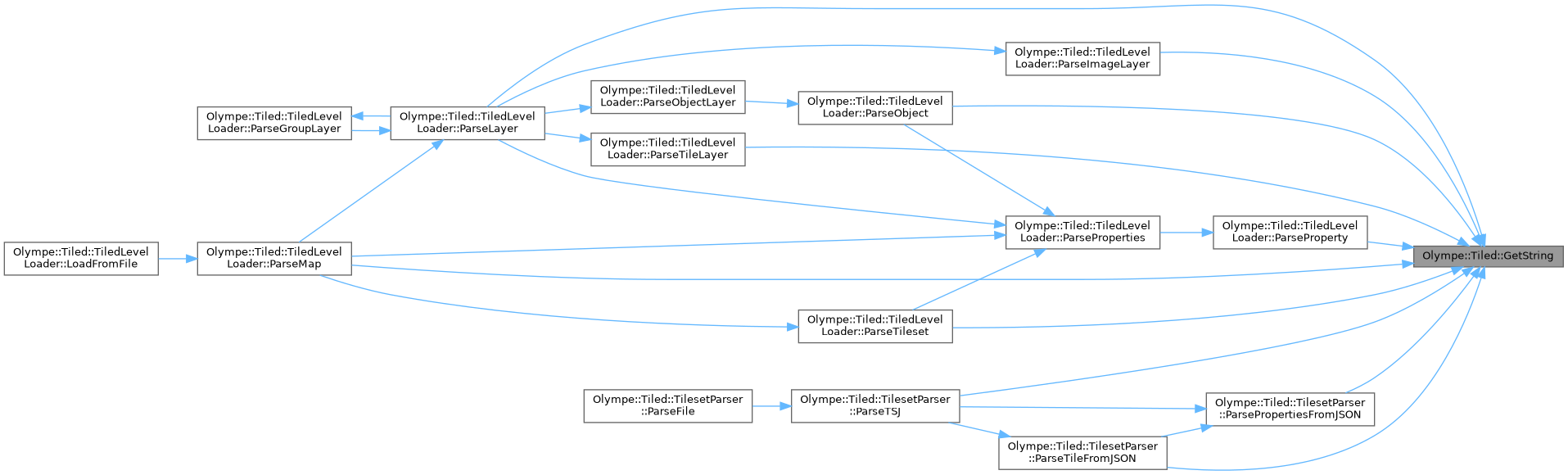

◆ GetString()

std::string Olympe::Tiled::GetString	(	const json &	j,
		const std::string &	key,
		const std::string &	defaultValue = `""`
	)

inline

Definition at line 20 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Referenced by Olympe::Tiled::TiledLevelLoader::ParseImageLayer(), Olympe::Tiled::TiledLevelLoader::ParseLayer(), Olympe::Tiled::TiledLevelLoader::ParseMap(), Olympe::Tiled::TiledLevelLoader::ParseObject(), Olympe::Tiled::TilesetParser::ParsePropertiesFromJSON(), Olympe::Tiled::TiledLevelLoader::ParseProperty(), Olympe::Tiled::TilesetParser::ParseTileFromJSON(), Olympe::Tiled::TiledLevelLoader::ParseTileLayer(), Olympe::Tiled::TiledLevelLoader::ParseTileset(), and Olympe::Tiled::TilesetParser::ParseTSJ().

Here is the call graph for this function:

Here is the caller graph for this function:

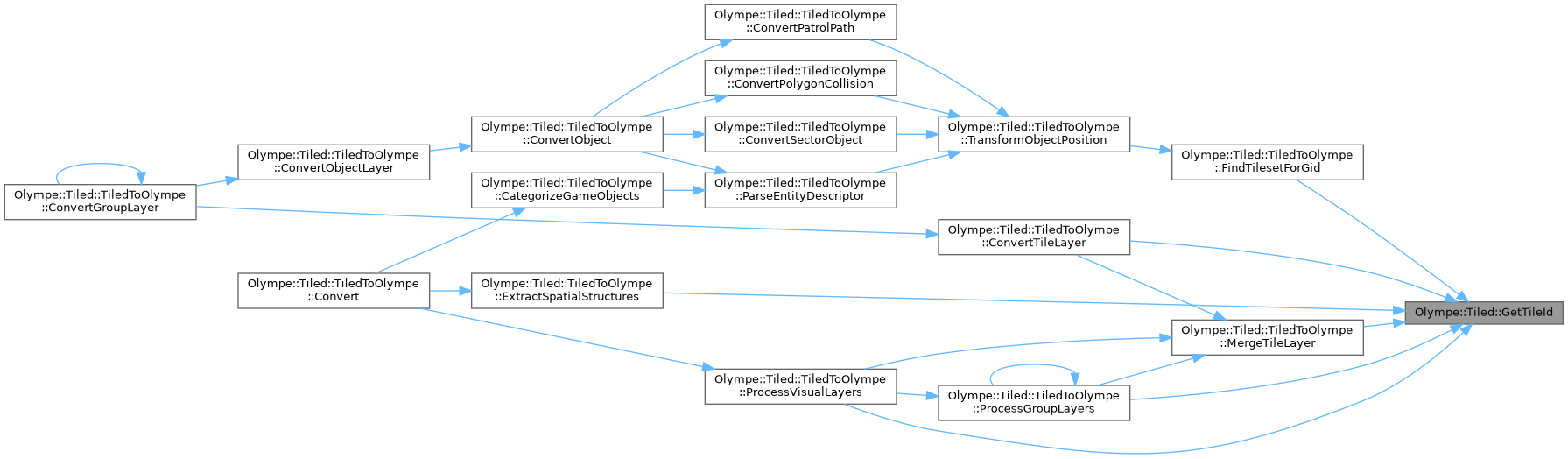

◆ GetTileId()

uint32_t Olympe::Tiled::GetTileId ( uint32_t gid )

inline

Definition at line 438 of file TiledStructures.h.

References TILE_ID_MASK.

Referenced by Olympe::Tiled::TiledToOlympe::ConvertTileLayer(), Olympe::Tiled::TiledToOlympe::ExtractSpatialStructures(), Olympe::Tiled::TiledToOlympe::FindTilesetForGid(), Olympe::Tiled::TiledToOlympe::MergeTileLayer(), Olympe::Tiled::TiledToOlympe::ProcessGroupLayers(), and Olympe::Tiled::TiledToOlympe::ProcessVisualLayers().

Here is the caller graph for this function:

◆ HasKey()

bool Olympe::Tiled::HasKey	(	const json &	j,
		const std::string &	key
	)

inline

Definition at line 83 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Referenced by Olympe::Tiled::TiledLevelLoader::ParseChunk(), Olympe::Tiled::TiledLevelLoader::ParseGroupLayer(), Olympe::Tiled::TiledLevelLoader::ParseLayer(), Olympe::Tiled::TiledLevelLoader::ParseMap(), Olympe::Tiled::TiledLevelLoader::ParseObject(), Olympe::Tiled::TiledLevelLoader::ParseObjectLayer(), Olympe::Tiled::TiledLevelLoader::ParseTileData(), Olympe::Tiled::TilesetParser::ParseTileFromJSON(), Olympe::Tiled::TiledLevelLoader::ParseTileLayer(), Olympe::Tiled::TiledLevelLoader::ParseTileset(), and Olympe::Tiled::TilesetParser::ParseTSJ().

Here is the call graph for this function:

Here is the caller graph for this function:

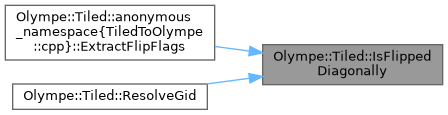

◆ IsFlippedDiagonally()

bool Olympe::Tiled::IsFlippedDiagonally ( uint32_t gid )

inline

Definition at line 453 of file TiledStructures.h.

References FLIPPED_DIAGONALLY_FLAG.

Referenced by Olympe::Tiled::anonymous_namespace{TiledToOlympe.cpp}::ExtractFlipFlags(), and ResolveGid().

Here is the caller graph for this function:

◆ IsFlippedHorizontally()

bool Olympe::Tiled::IsFlippedHorizontally ( uint32_t gid )

inline

Definition at line 443 of file TiledStructures.h.

References FLIPPED_HORIZONTALLY_FLAG.

Referenced by Olympe::Tiled::anonymous_namespace{TiledToOlympe.cpp}::ExtractFlipFlags(), and ResolveGid().

Here is the caller graph for this function:

◆ IsFlippedVertically()

bool Olympe::Tiled::IsFlippedVertically ( uint32_t gid )

inline

Definition at line 448 of file TiledStructures.h.

References FLIPPED_VERTICALLY_FLAG.

Referenced by Olympe::Tiled::anonymous_namespace{TiledToOlympe.cpp}::ExtractFlipFlags(), and ResolveGid().

Here is the caller graph for this function:

◆ operator<<()

std::ostream & Olympe::Tiled::operator<<	(	std::ostream &	os,
		MapOrientation	orientation
	)

inline

Definition at line 327 of file TiledStructures.h.

References GetComponentTypeID_Static(), Hexagonal, Isometric, Orthogonal, and Staggered.

Here is the call graph for this function:

◆ ParseColor()

int Olympe::Tiled::ParseColor ( const std::string & colorStr )

inline

Definition at line 98 of file TiledJsonHelper.h.

References GetComponentTypeID_Static().

Referenced by Olympe::Tiled::TiledLevelLoader::ParseLayer(), and Olympe::Tiled::TiledLevelLoader::ParseLayerXML().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ParseLayerProperties()

LayerProperties Olympe::Tiled::ParseLayerProperties ( const std::map< std::string, TiledProperty > & properties )

inline

Definition at line 80 of file TiledStructures.h.

References Bool, GetComponentTypeID_Static(), and Olympe::Tiled::LayerProperties::hasNavigationProperties.

Referenced by World::GenerateCollisionAndNavigationMaps().

Here is the call graph for this function:

Here is the caller graph for this function:

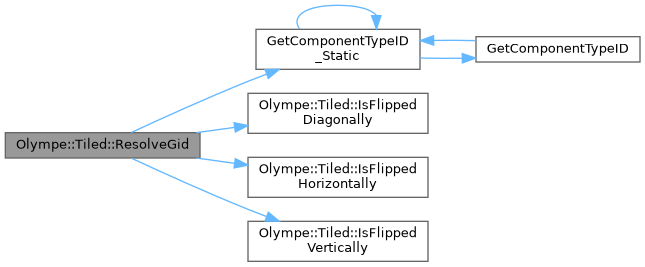

◆ ResolveGid()

ResolvedGid Olympe::Tiled::ResolveGid	(	const TiledMap &	map,
		uint32_t	gid
	)

inline

Definition at line 460 of file TiledStructures.h.

References Olympe::Tiled::ResolvedGid::flipH, GetComponentTypeID_Static(), IsFlippedDiagonally(), IsFlippedHorizontally(), IsFlippedVertically(), and TILE_ID_MASK.

Here is the call graph for this function:

Variable Documentation

◆ FLIPPED_DIAGONALLY_FLAG

constexpr uint32_t Olympe::Tiled::FLIPPED_DIAGONALLY_FLAG = 0x20000000

constexpr

Definition at line 29 of file TiledStructures.h.

Referenced by IsFlippedDiagonally().

◆ FLIPPED_HORIZONTALLY_FLAG

constexpr uint32_t Olympe::Tiled::FLIPPED_HORIZONTALLY_FLAG = 0x80000000

constexpr

Definition at line 27 of file TiledStructures.h.

Referenced by IsFlippedHorizontally().

◆ FLIPPED_VERTICALLY_FLAG

constexpr uint32_t Olympe::Tiled::FLIPPED_VERTICALLY_FLAG = 0x40000000

constexpr

Definition at line 28 of file TiledStructures.h.

Referenced by IsFlippedVertically().

◆ TILE_ID_MASK

constexpr uint32_t Olympe::Tiled::TILE_ID_MASK = 0x1FFFFFFF

constexpr

Definition at line 30 of file TiledStructures.h.

Referenced by Olympe::Tiled::TiledTileset::ContainsGid(), Olympe::Tiled::TiledMap::FindTilesetForGid(), Olympe::Tiled::TiledMap::FindTilesetForGid(), Olympe::Tiled::TiledTileset::GetLocalId(), GetTileId(), and ResolveGid().
